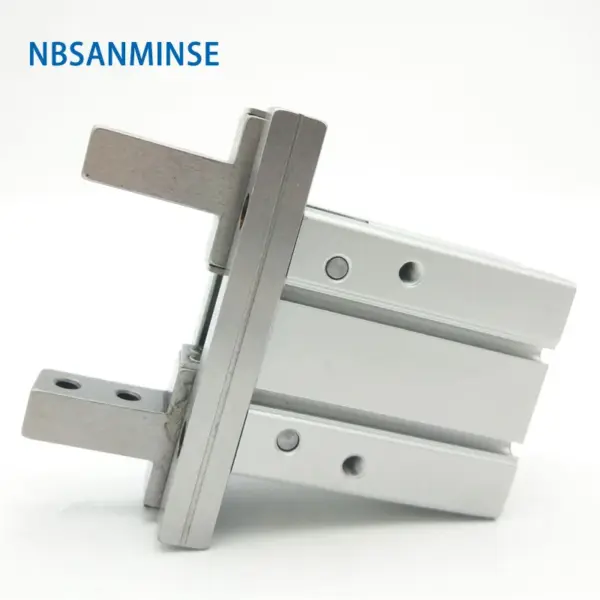

Pneumatic Gripper Parallel Style Air Gripper MHZ2 Type Double Acting Compress Air Cylinder Automation Parts NBSANMINSE

Fluid

Air

Operating Pressure

Double Acting

Φ 6 : 0 . 15 to 0 . 7 MPa

Φ 10 : 0 . 2 to 0 . 7 MPa

Φ 16 to Φ 40 : 0 . 1 to 0 . 7 MPa

Single Acting

Normally Open

Φ 6 : 0 . 15 to 0 . 7 MPa

Φ 10 : 0 . 2 to 0 . 7 MPa

Φ 16 to Φ 40 : 0 . 1 to 0 . 7 MPa

Normally Closed

Ambient and fluid temperature

– 10 to 60 ℃

Repeatability

Φ 6 to Φ 25 ± 0 . 01 mm

Φ 32 , Φ 40 ± 0 . 02mm

Max . operating frequency

Φ 6 to Φ 25 : 180 c . p . m .

Φ 32 , Φ 40 : 60 c . p . m .

Lubrication

Not required

Action

Double Acting / Single Acting

Auto switch ( option ) Note)

Solid state auto switch ( 3 – wire , 2 – wire)
