Description
NC:Normally Closed
|
Fluid Type: |
Air,Gas |
|
Operation Mode: |
NC,Normally Closed Direct Action |
|
Port Size: |
1/8"BSP ID≈9mm |
|
Coil Voltage: |
DC: 12V,24V,36V AC: 110V,220V |
|
Solenoid Valve Type: |
3 Port 2 position (3 Way 2 Position) |
|
Operation pressure: |
1.5 – 8kgf/cm^2 |
|
Proof pressure: |
1.5Mpa |
|
Protection: |
IP65 |
|
Temp: |
5-50C |
|
Body Material: |
Aluminum alloy |
|
Package Content: |
1 PC Solenoid Valve |
Application:
* Control appropriate flow and direction.
* Electrically driven pneumatic power control.
Note:

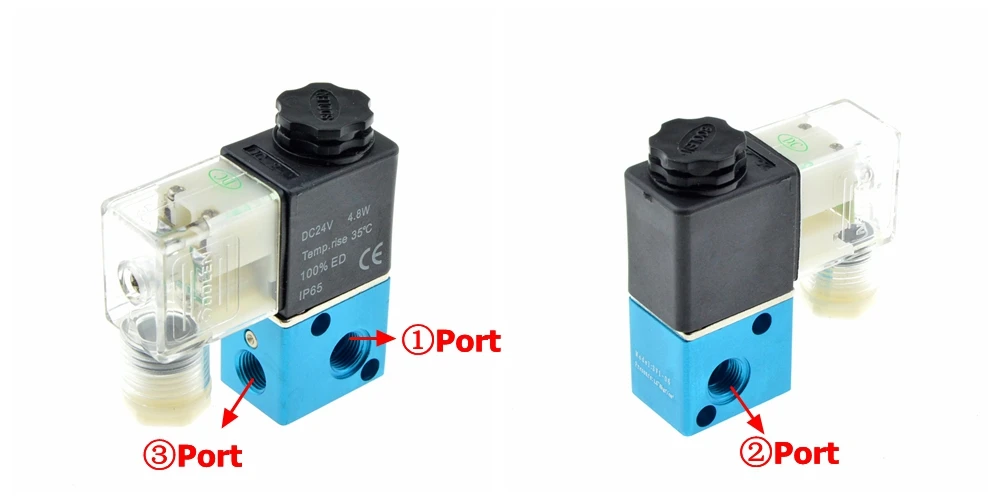

1: ① Port → ② Port, it is always Open.
2: ① Port or ② Port → ③ Port,
when the power off, it is closed
when the power on, it is open
