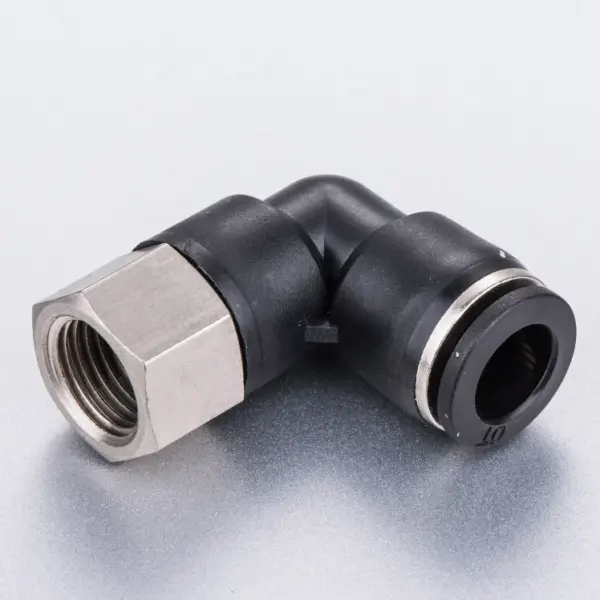

PLF" Hose OD 4-12mm - Internal Thread M5'' 1/8'' 1/4'' 3/8'' 1/2'' Pneumatic Female Elbow Connector Tube Air Push In Fitting

Description

Stainless steel Push In Fitting

1.Connection and disconnection of the tube can be repeated several times and is   performed with one hand ,without using of tools.

2.Nickel-plated brass bodies   ensures anti-corrosion and anti-contamination.

3.The sealing ring(O-ring) can   be easily replaced if it is damaged.

4.Most all models available in inch and   metric size.

Push-In fittings with different shape, only one hand can be very convenient to insert the tube and pull out without any tools. The fitting with safety sealing, and it's thermostable. In addition, these pipe fittings meets repeated insertion and pull-out requirement. When it gets older along with the timed, MP series can easily be replaced.

Reliability – Rapid manual connecting and disassembling. Full flow
Compatibility – Works with the use of nylon, PU, Teflon tube

Adaptability – Hot and cold water systems, steam, machine tool, latheSuch as application if corrosive                               environment SP series

Tube OD:
04, 05, 06, 08, 10, 12, 14 mm
1/8, 1/4, 3/8, 1/2 Inch

Connections:
M5, G1/8, G1/4, G3/8, G1/2
R1/8, R1/4, R3/8, R1/2
N1/8, N1/4, N3/8, N1/2

Applicable to: Compressed Air, Fluid
Working pressure: 15 Bar
Temperature range: –20° C to +80° C (200° C )

Material:
Body: Brass Nickel-Plated or Stainless Steel
Gripper: Brass Nickel-Plated
O-ring: NBR or FKM/FPM
G = BSPP Conform ISO 228
R = BSPT Conform ISO 7
N = NPT Conform SAE AS 71051: 1999
