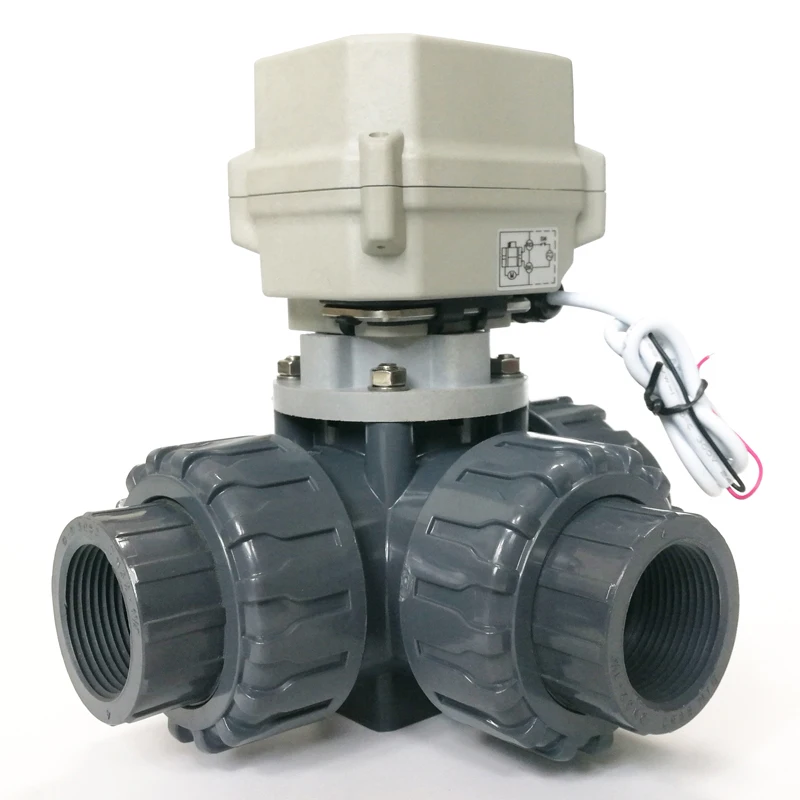

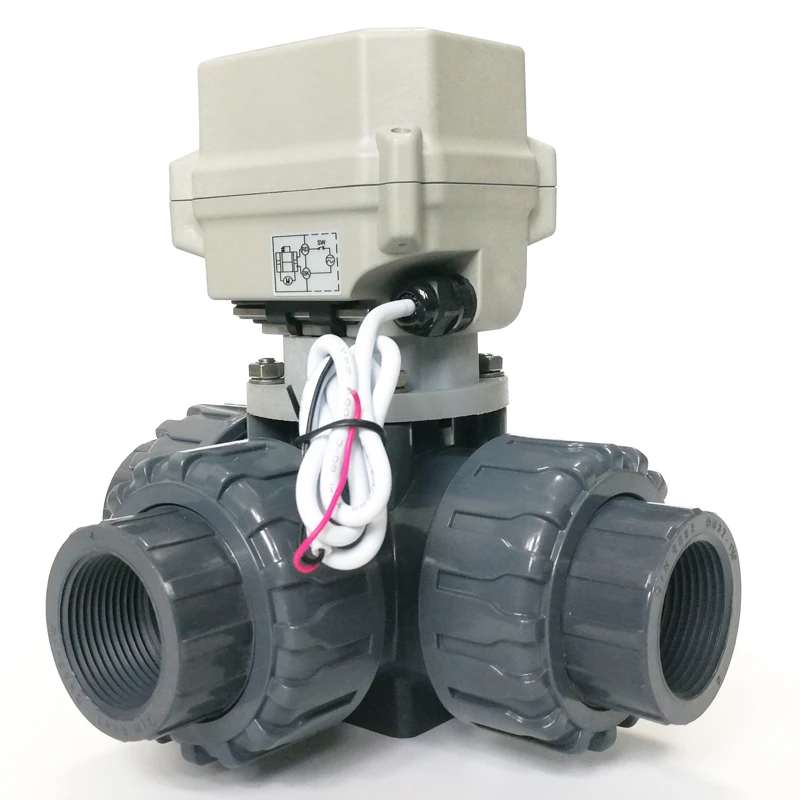

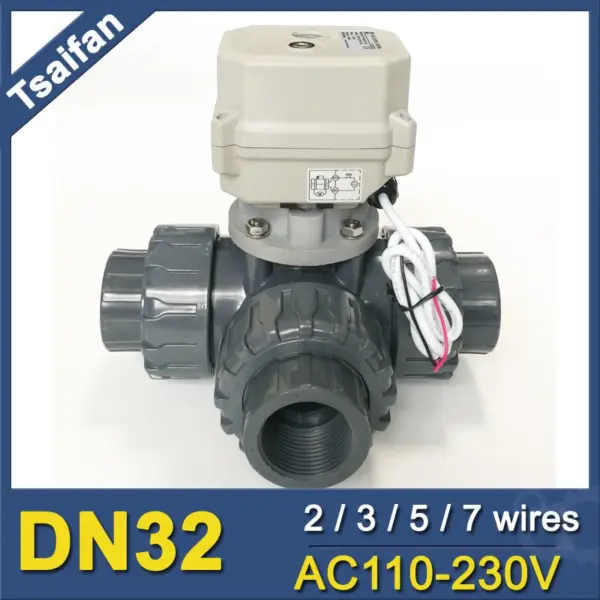

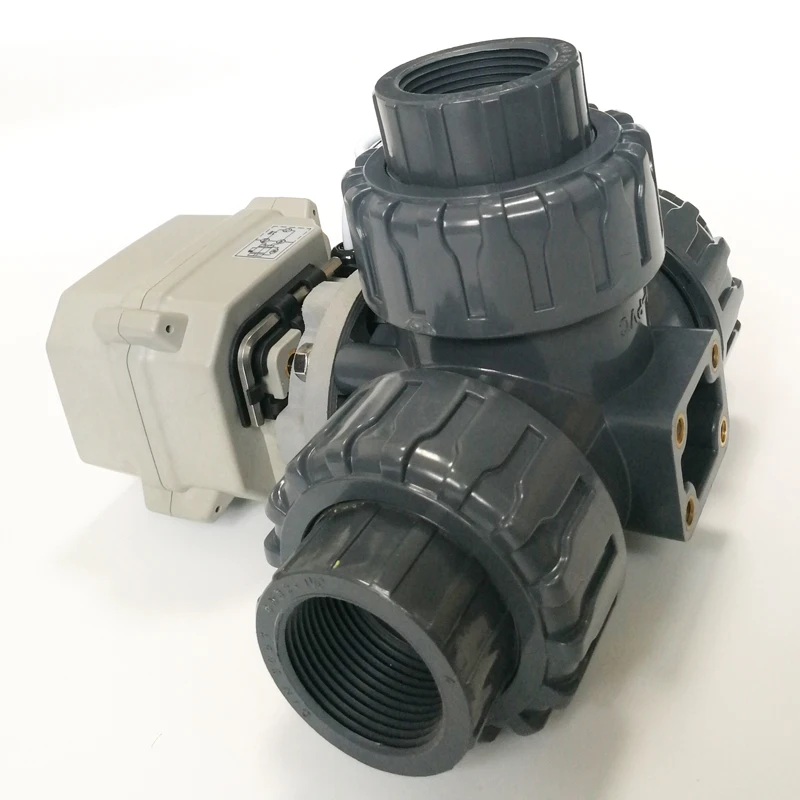

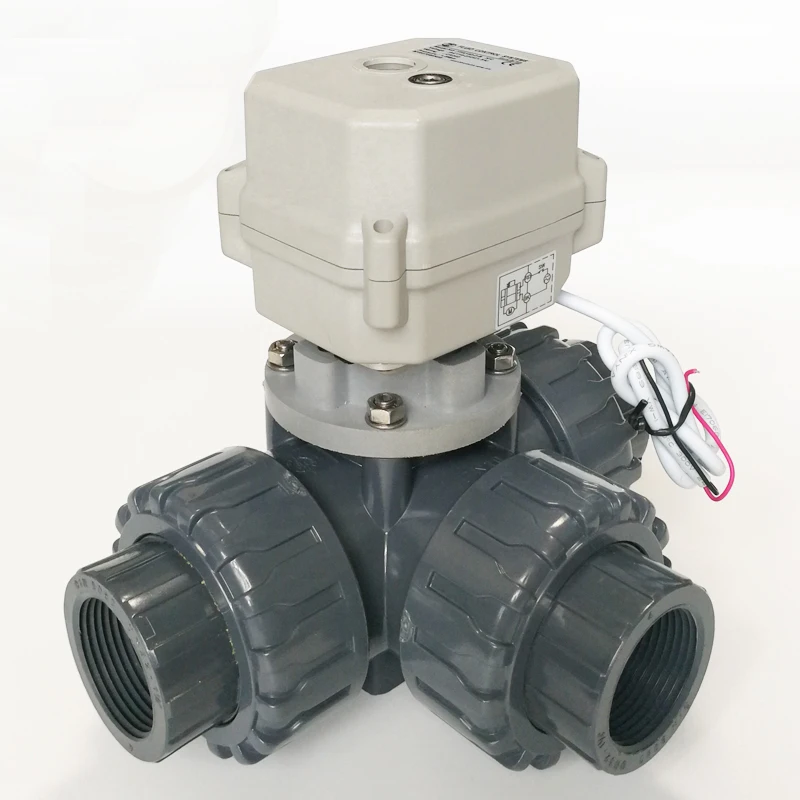

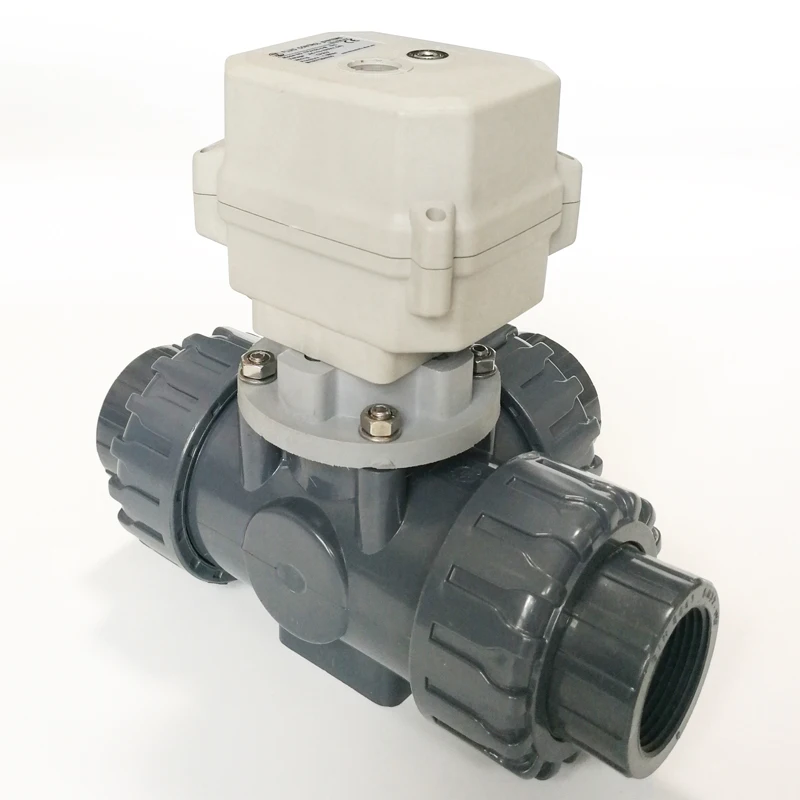

Plastic Electric Solenoid 3way with 230V actuator, Electro-Mechanical Valve IP67 for chemical industry CE certified

Rp5.052.550

Plastic Electric Solenoid 3way with 230V actuator, Electro-Mechanical Valve IP67 for chemical industry CE certified

2 terjual

SKU: 1005009973878624 Categories: Home Improvement, Plumbing

Terjual: 2+ | Toko: Tsai Fan Motorized Valve Store

🕐 Pre-Order · Estimasi 30 Hari

Wiring Control

Thread Type

Voltage

Specification

Pilihan varian akan disertakan dalam pesan WhatsApp Anda.

🚚

Pengiriman ke seluruh Indonesia Estimasi 2–7 hari kerja via ekspedisi terpercaya

💬

Konsultasi gratis via WhatsApp Tim kami siap membantu Anda memilih produk

🏷️

Harga terbaik & transparan Harga sudah termasuk pajak, tanpa biaya tersembunyi

Description

Electronic Parameters

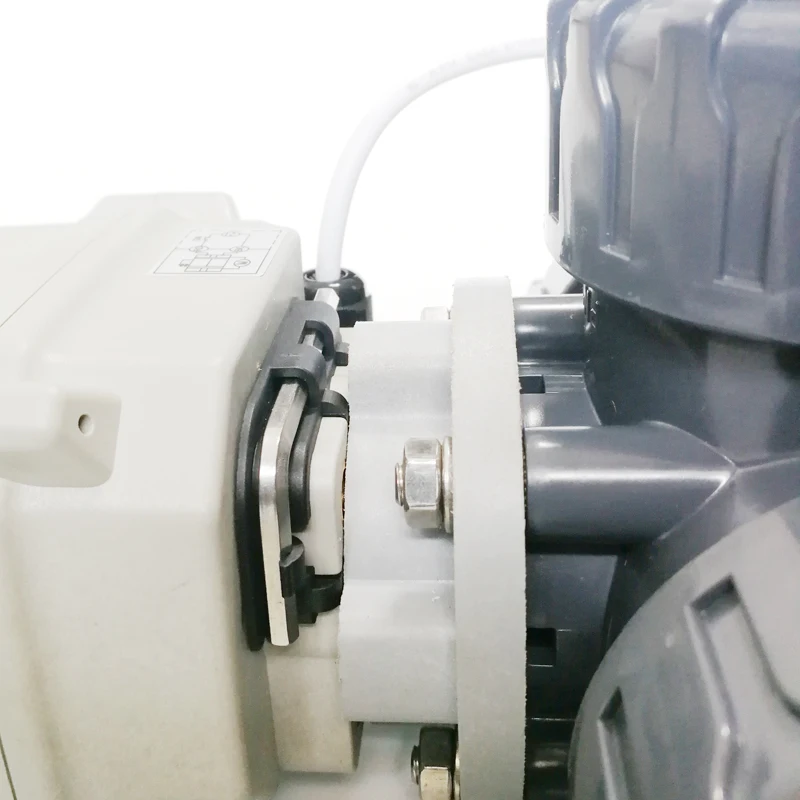

Connection standard	ISO5211 F03、F05
Output axis specification	Female octagonal 99 or 1111
Maximum working pressure	1.0MPa
Rated voltage	AC110-230V

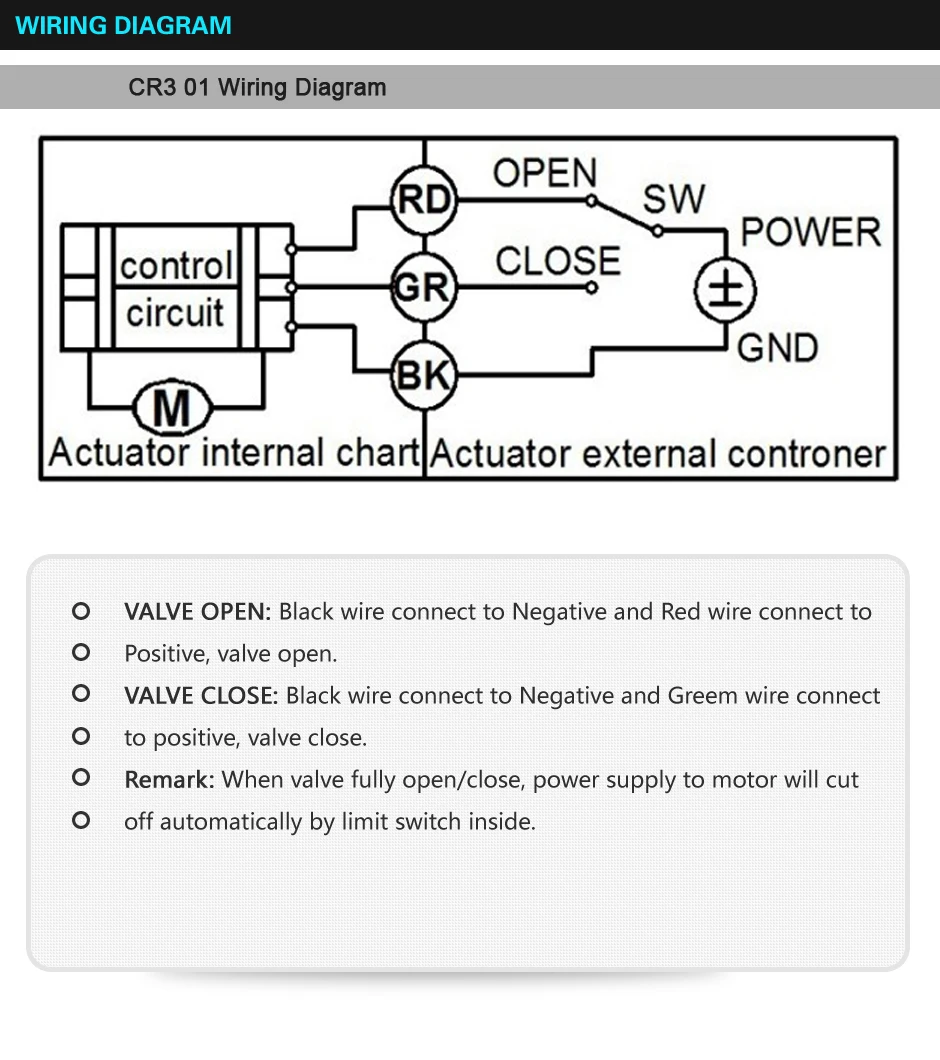

Wiring diagram	CR202;CR303;CR306;CR502;CR703;CR706 (Optional)
Life time	70000 times（testing pressure is 0.4MPa, medium is water）
Actuator material	Engineering Plastics PPO
Torque force	15 N.m
Cable Length	0.5m
Environment temperature	-15～60 centigrade
Liquid temperature	2～90 centigrade

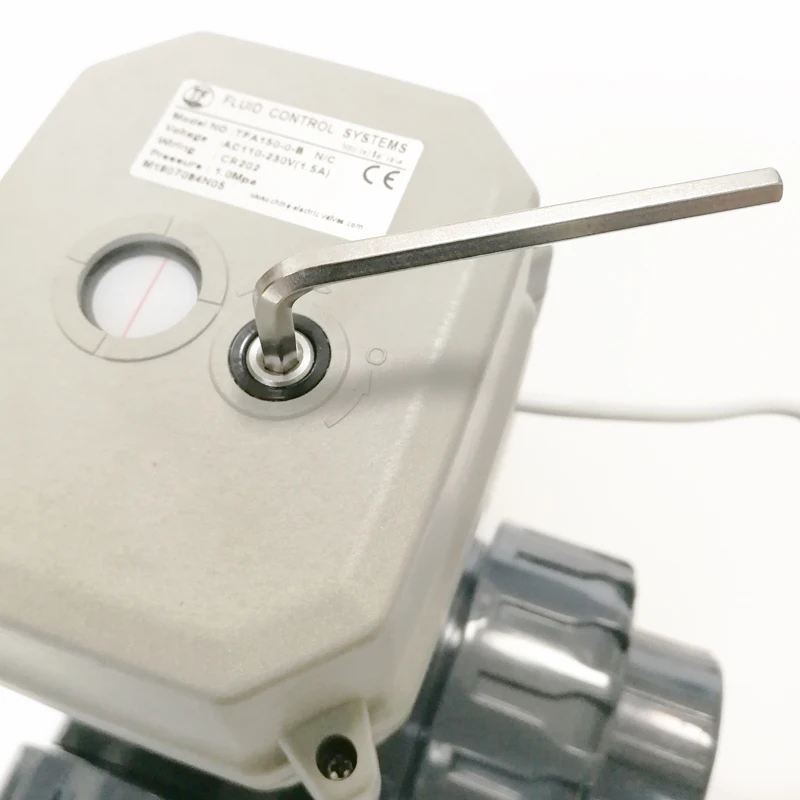

Manual operation	Yes
Open/close indicator	Yes
Protection class	IP67
Company quality management	ISO 9001:2015

Additional information

Wiring Control	CR301, CR202(Spring return), CR502(Spring return), CR703, CR303, CR702
Thread Type	BSP thread, NPT thread, Glue End(40MM)
Voltage	DC12V, DC24V, AC24V, AC110V to AC230V
Specification	T type flow plan A, L type
