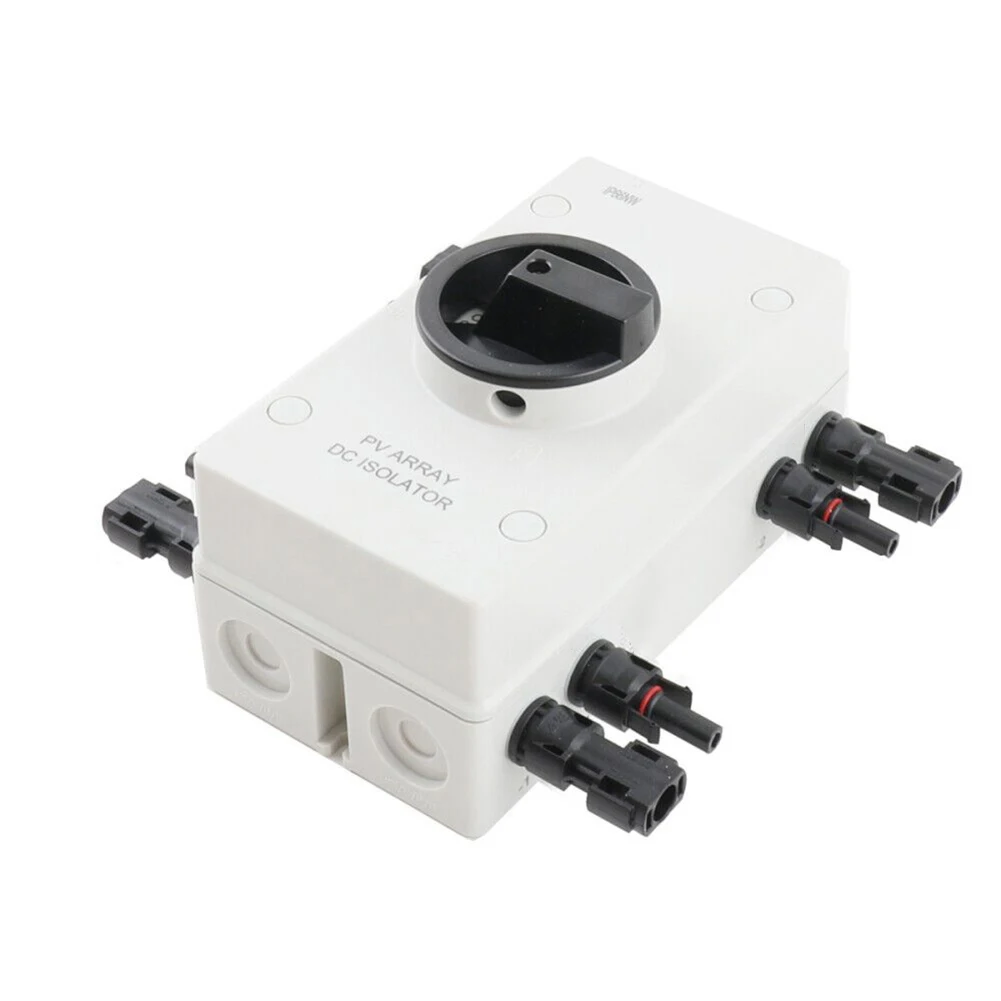

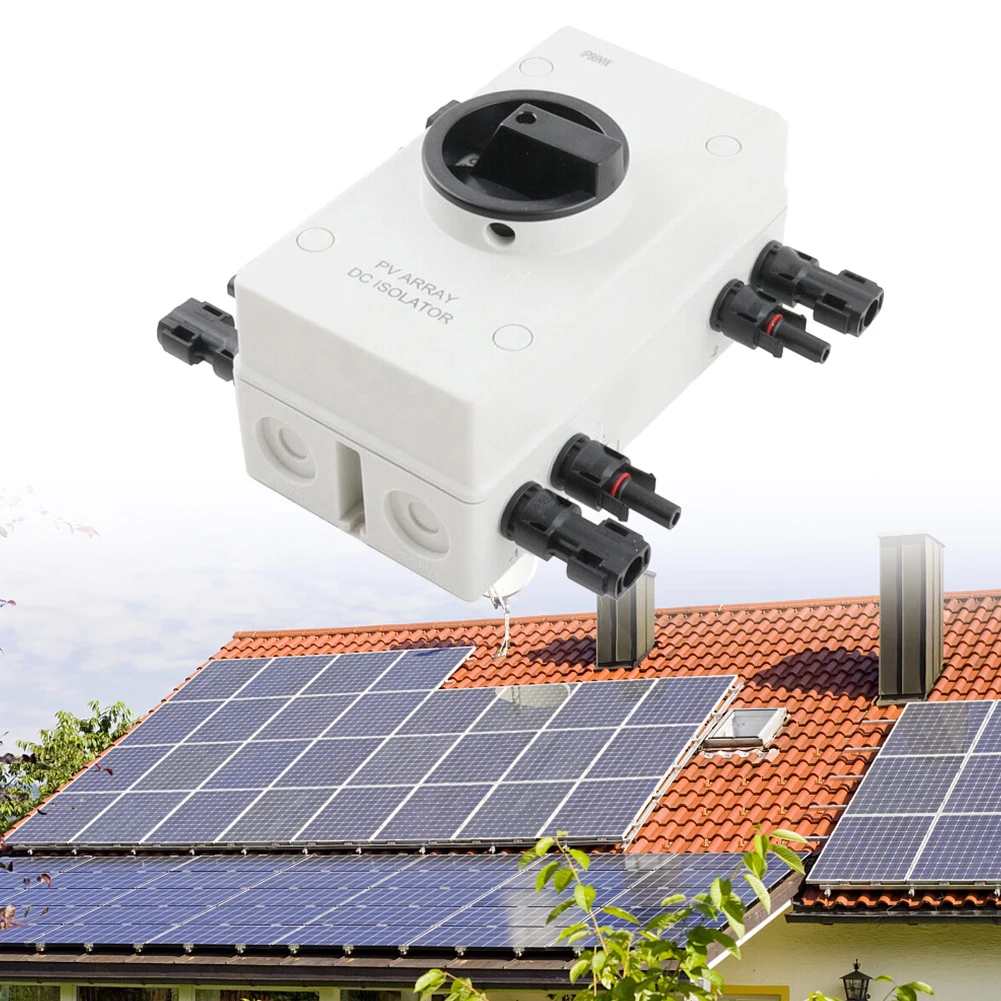

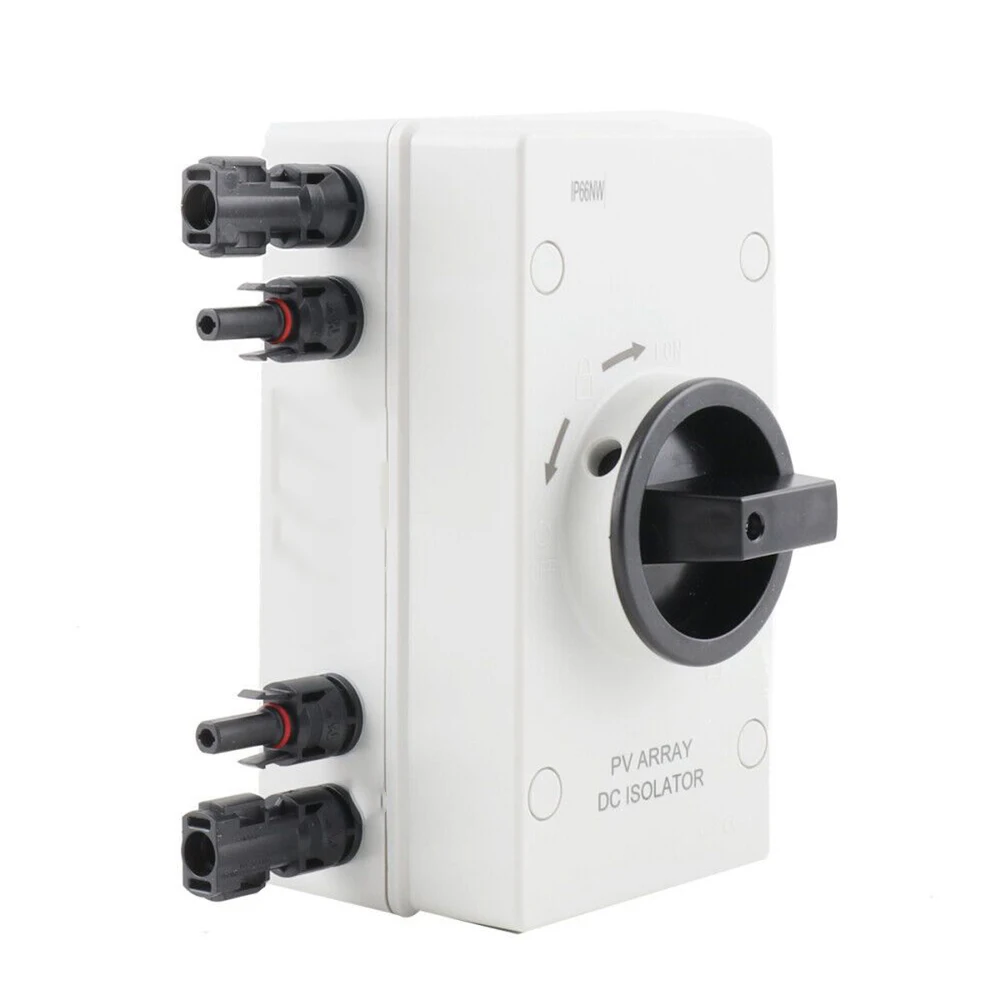

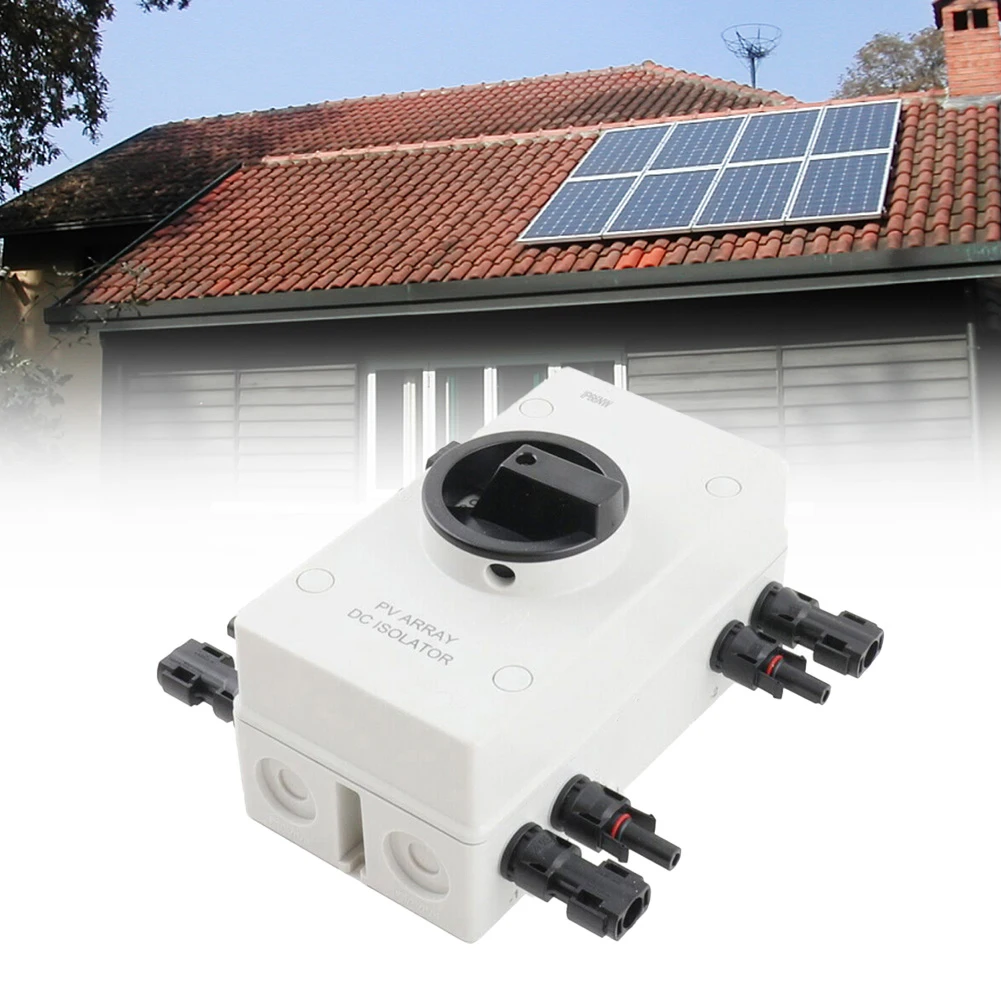

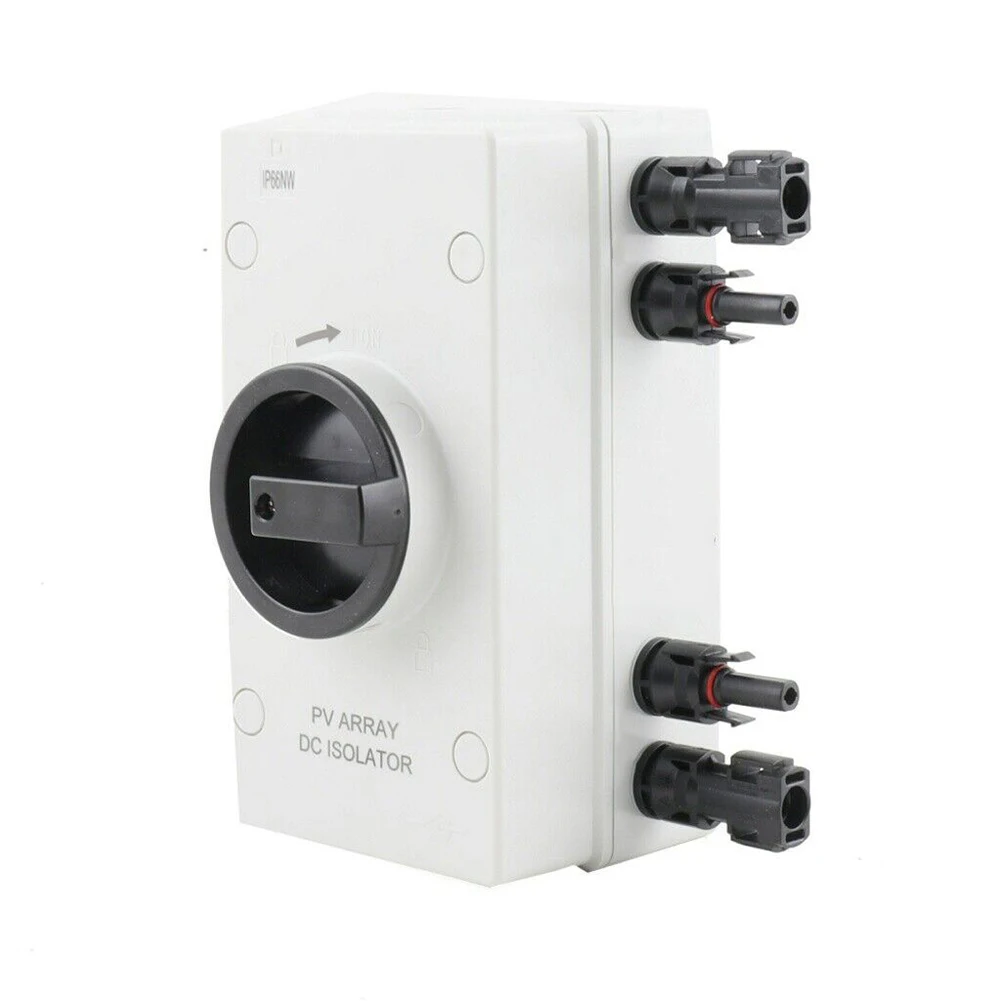

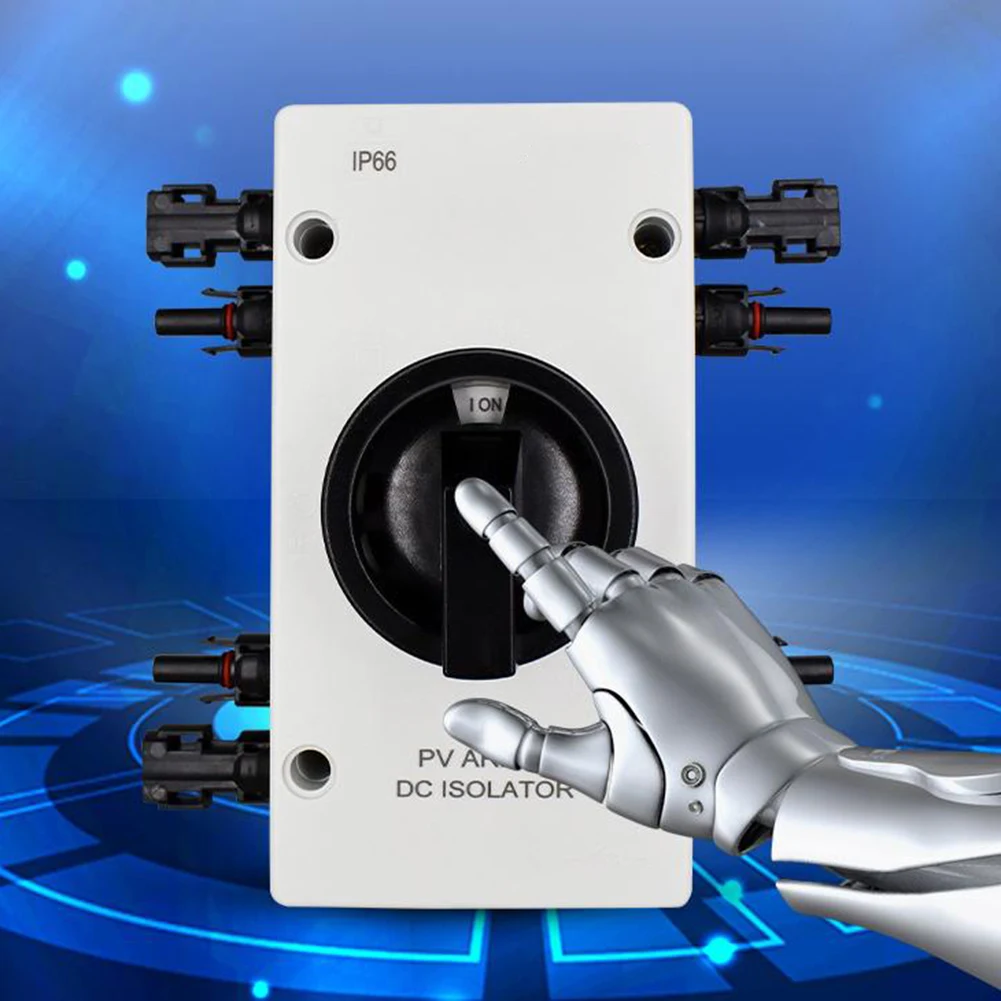

Photovoltaic DC Isolating Switch 32A 1000V IP66 Rated for Solar Panel Systems Marine Use and Renewable Energy Applications

Features:

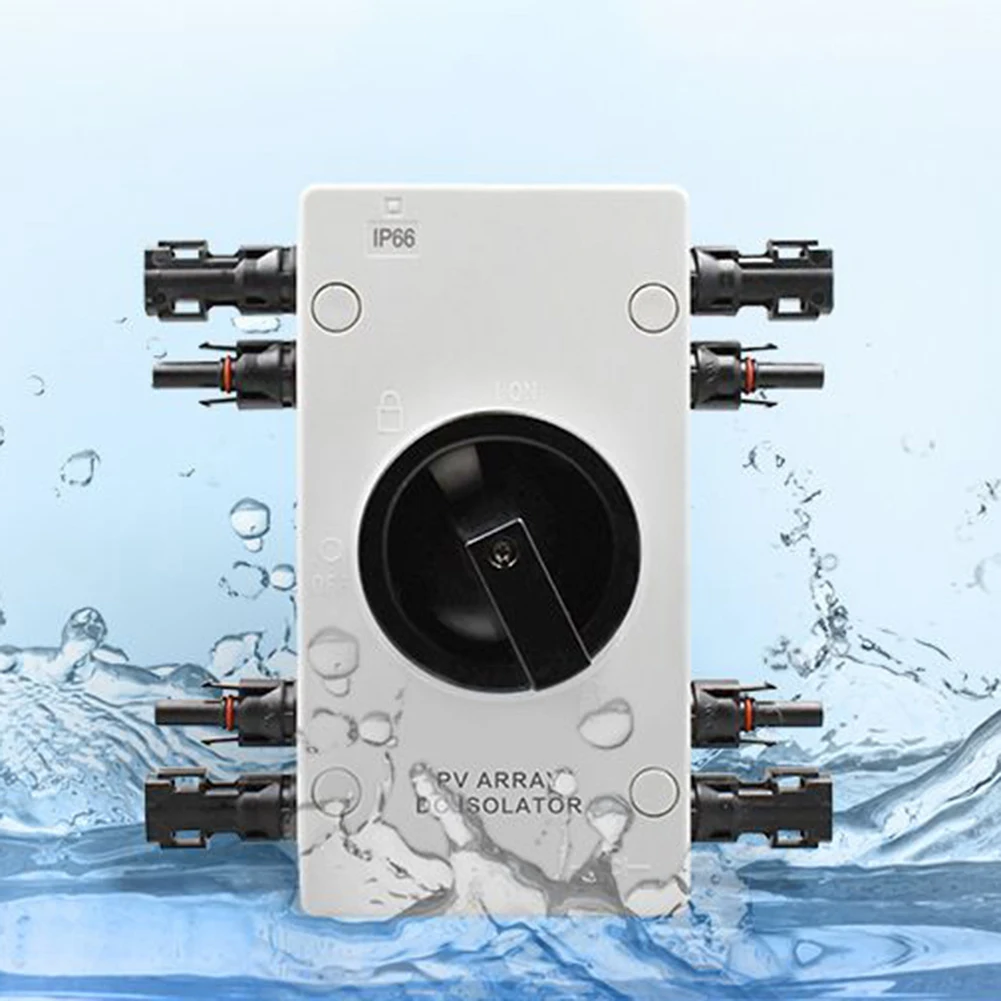

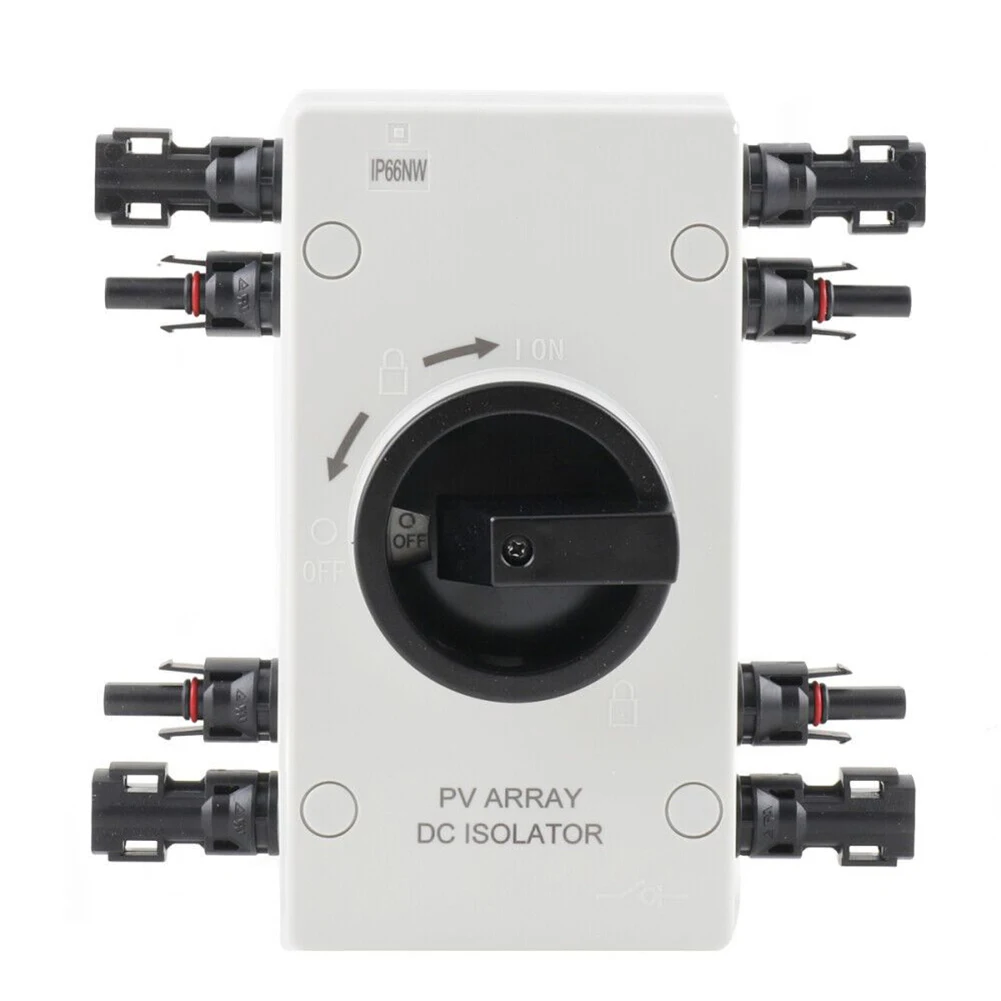

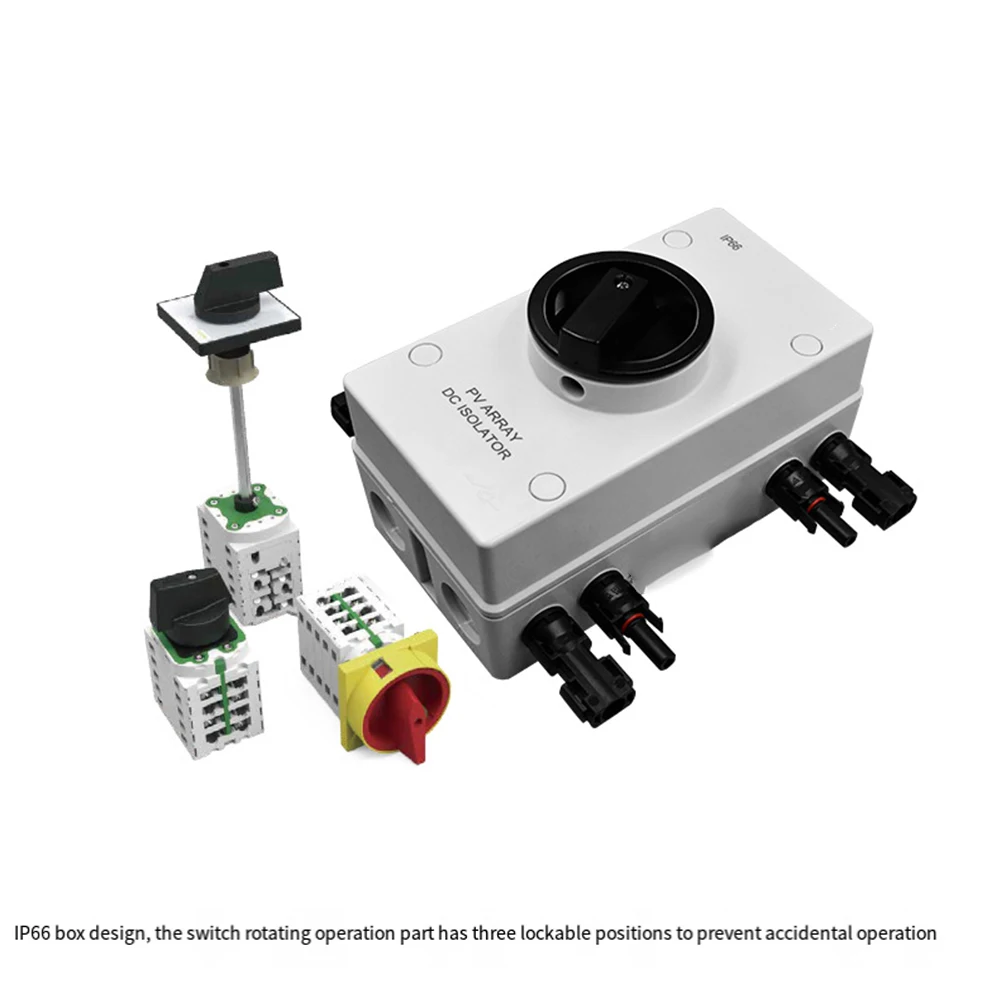

*Reliable Operation: The IP66 waterproof housing ensures that the isolating switch remains functional even in harsh environmental conditions, providing peace of mind for users who require dependable performance in outdoor settings;The rotary actuator of the switch has three lockable positions to prevent accidental operation.

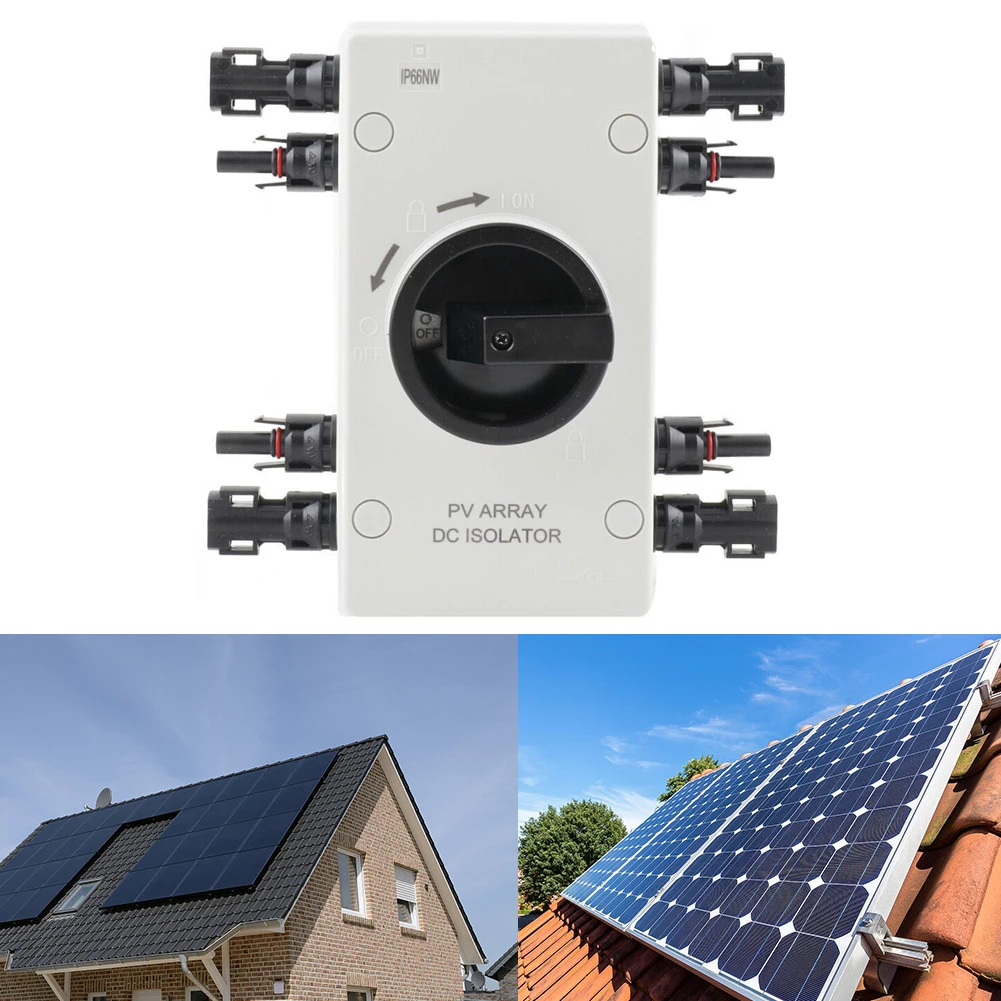

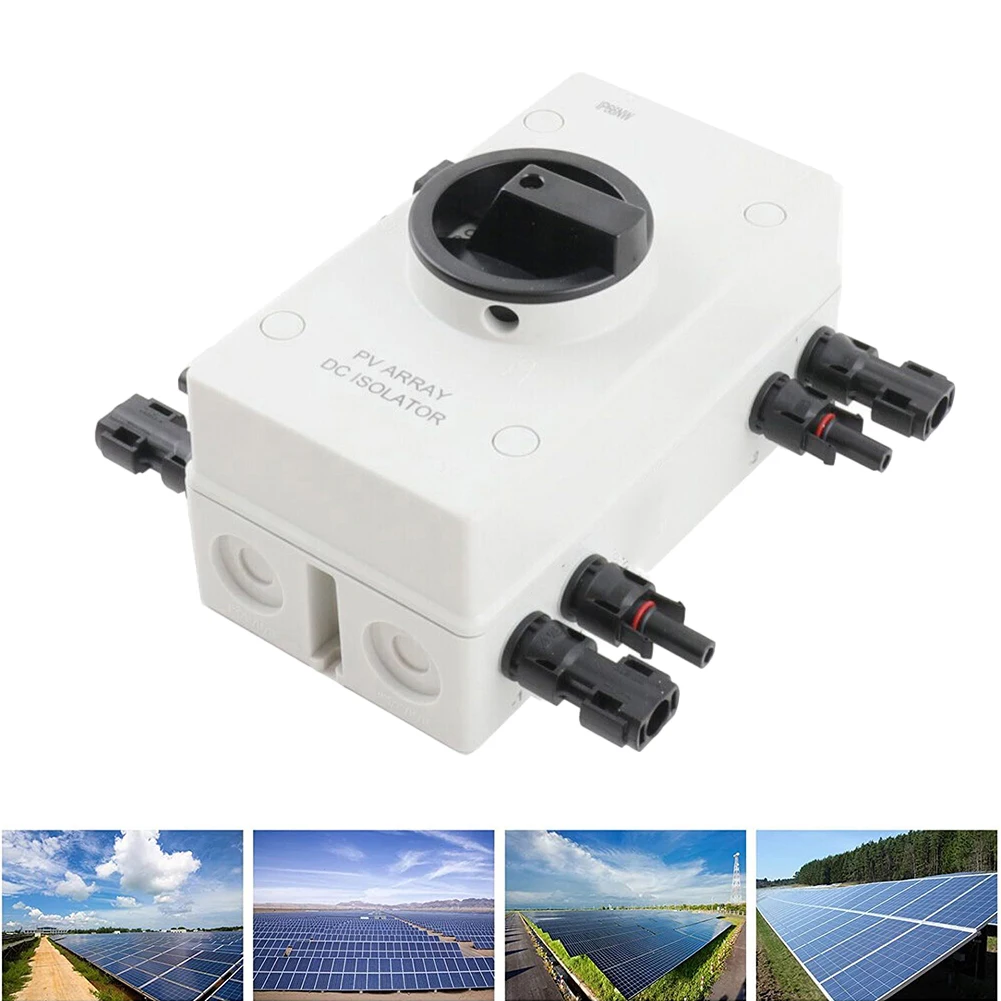

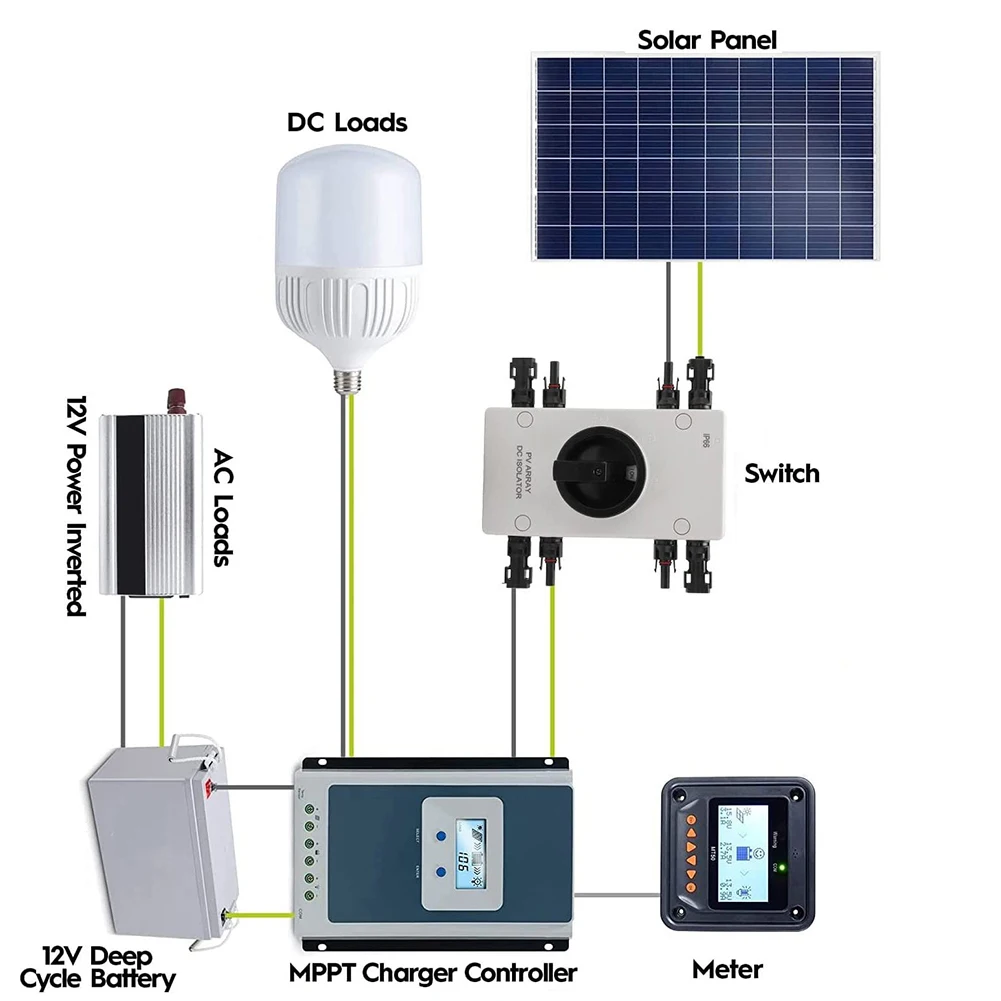

*Wide Applications: This switch is designed for versatility, making it Perfect for a range of applications including RVs, marine setups, and home solar power systems, effectively bridging the gap between various energy solutions.

*Easy Installation: Featuring a flexible wall-mounting system, this switch allows for straightforward installation with different connector types, simplifying the setup process for users.

*Modular Design: With a stranded insulation voltage of 1500V and a compact form factor, this device accommodates various configurations and ensures optimal heat dissipation during operation,The whole machine can work under -40℃-70℃ full load conditions, enhancing overall efficiency.

*Fast Switching Mechanism: The energy storage spring mechanism enables quick onoff switching with a reply time of less than 5ms, facilitating efficient control in critical situations.

Specifications:

*Product Name:DC photovoltaic dedicated waterproof isolation transfer control switch

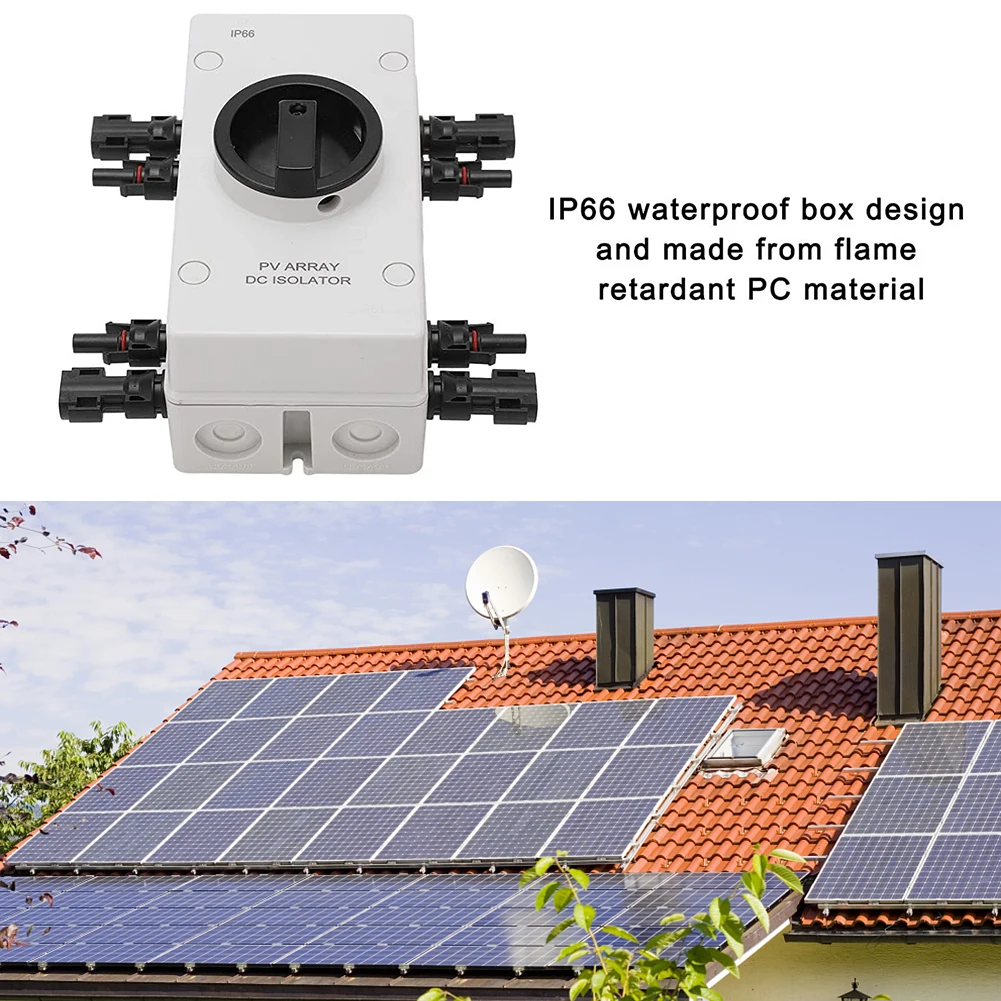

*Material:PC

*Size:/

*Color:black+white

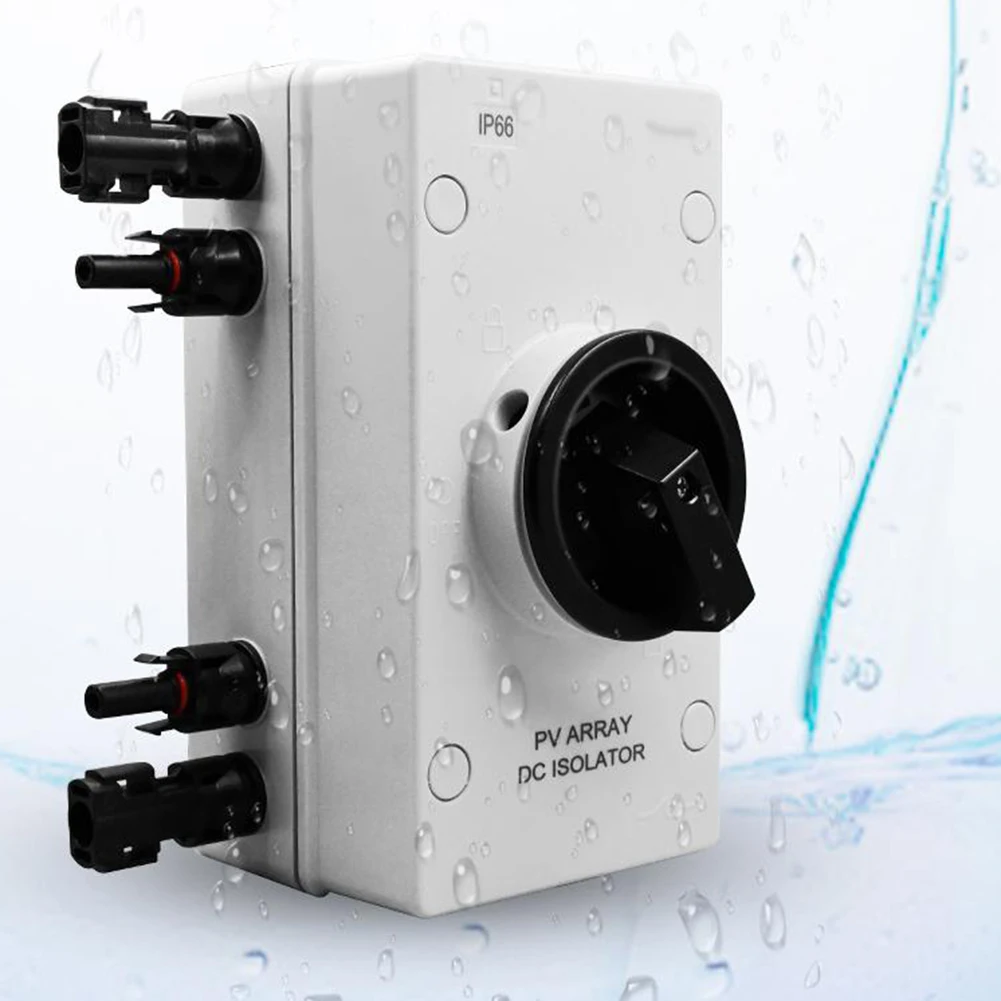

*Waterproof: IP66
*Flame retardant class: UL94V-0
*Standard: IEC60947-1 and 3

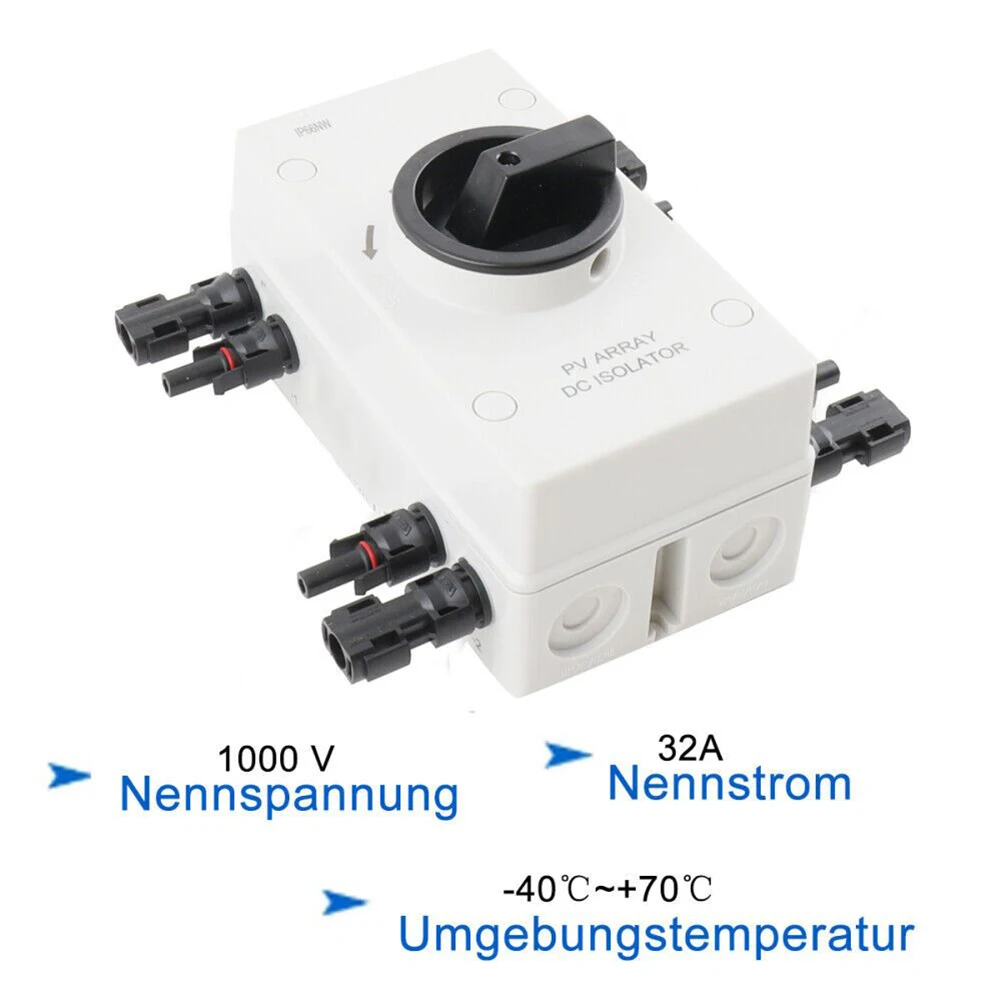

*Rated voltage: 1000 V

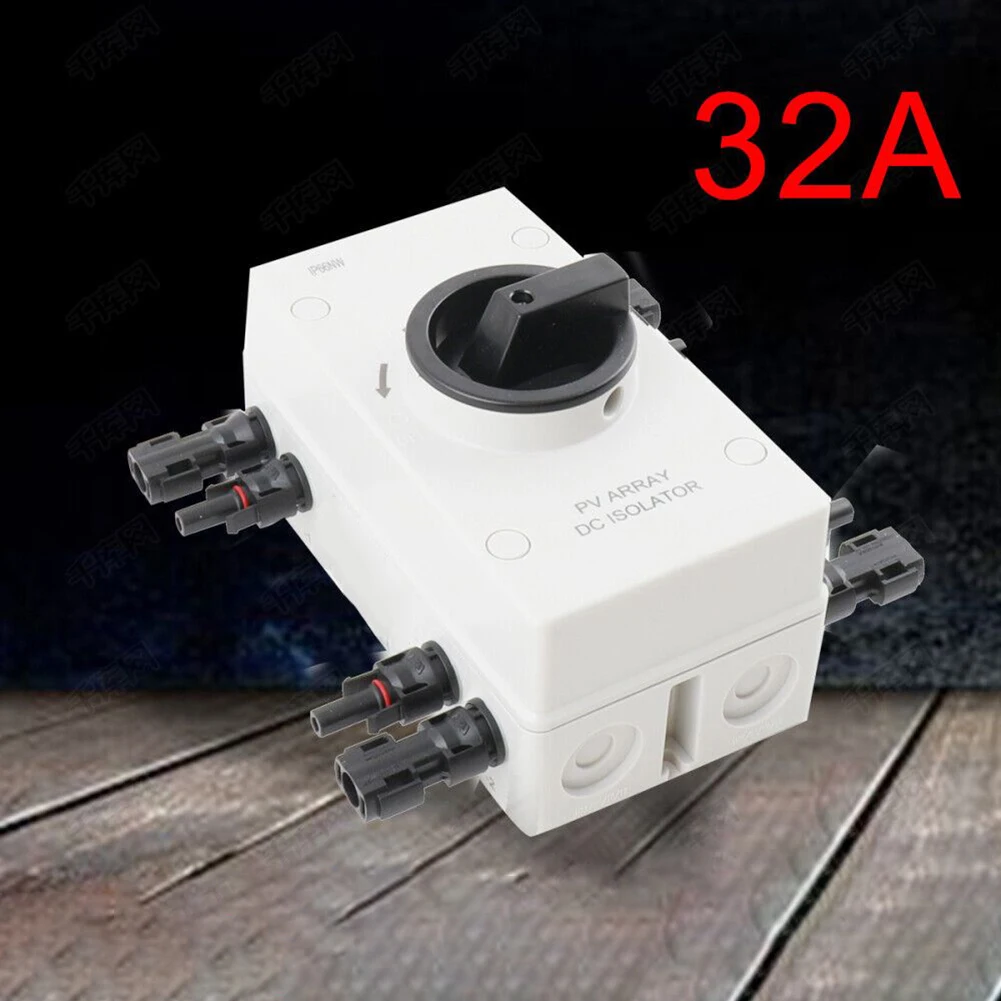

*Rated current: 32A
*Rated shock resistance Uimp: 8 kV
*Design insulation voltage Ui: 1500V
*Ambient temperature: -40℃~+70℃

Package Content:

1 x Solar Disconnector

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
