PC/PL Pneumatic Straight and Elbow Quick Connector 14mm Hose OD 1/4" 3/8" 1/2" Male Thread Adapters Air Push In Mount 5Pcs

1. Good sealing: Real material, high strength and not easy to be damaged.

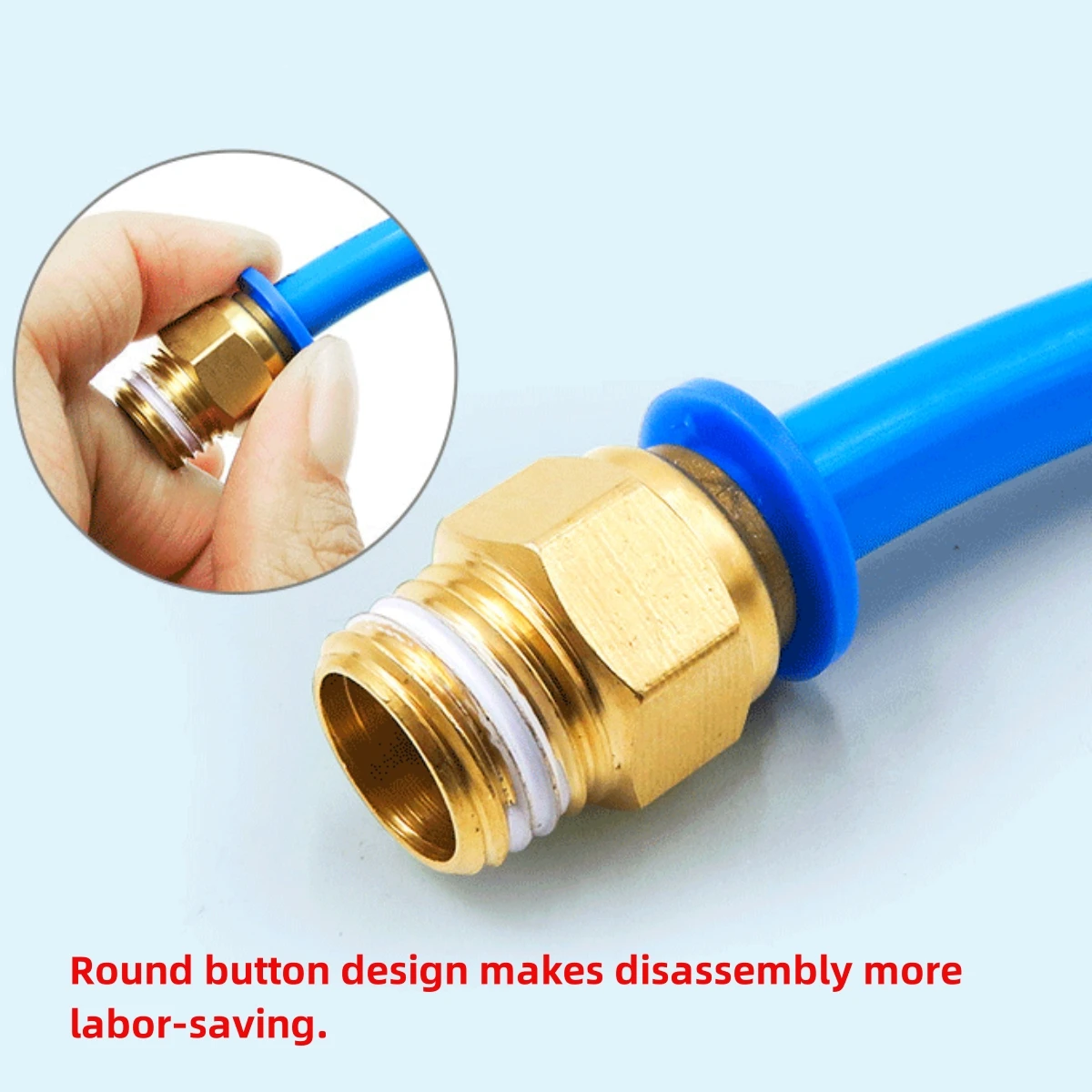

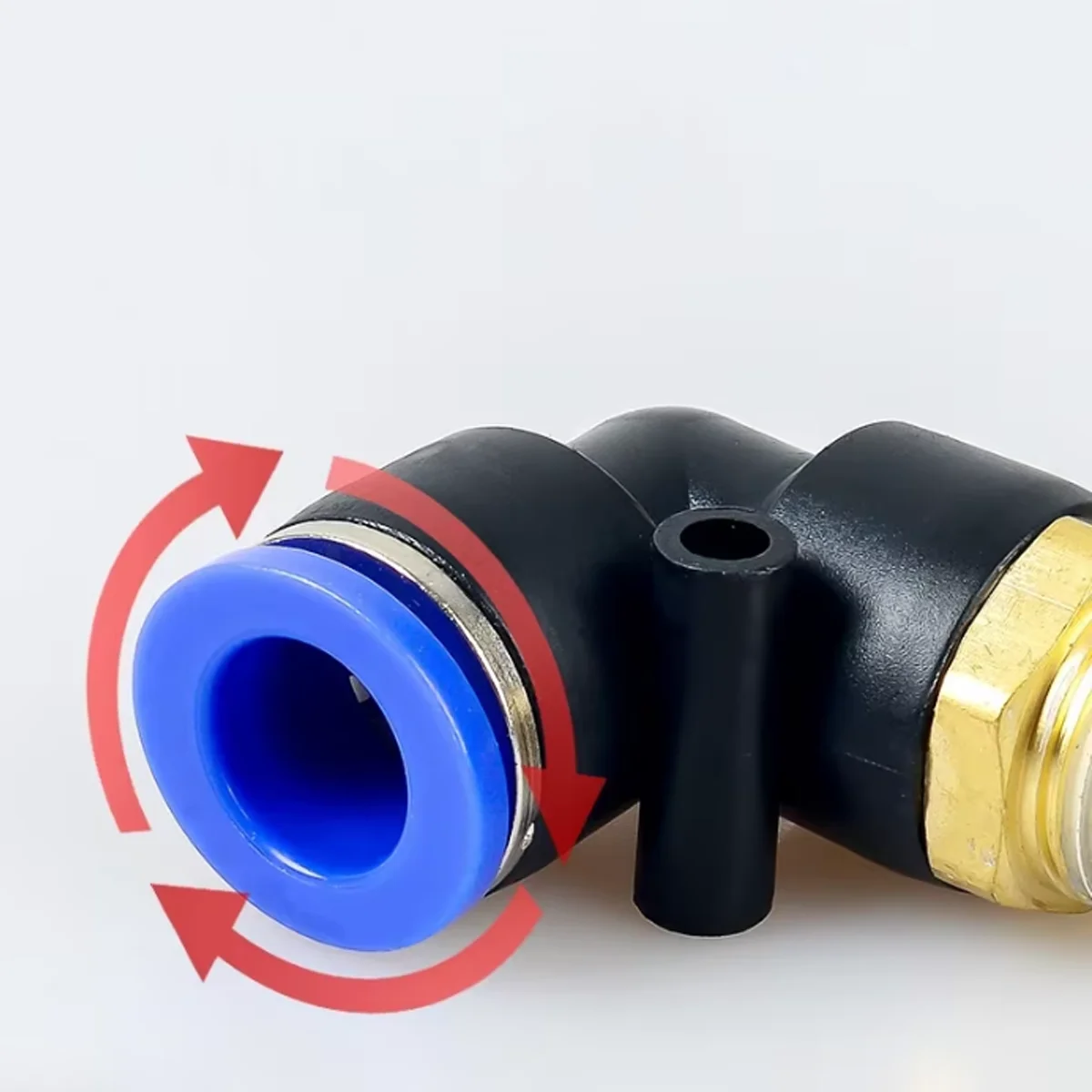

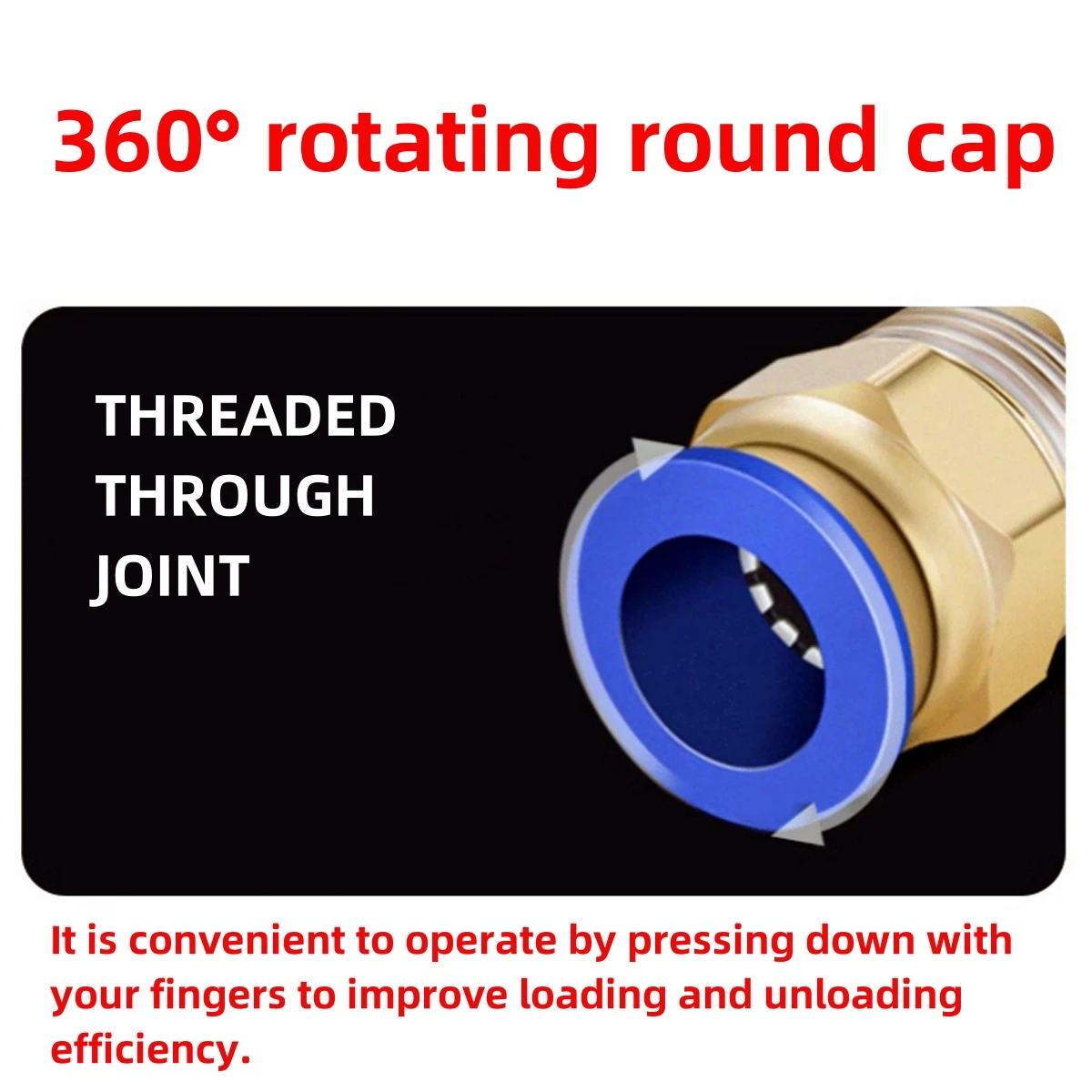

2. Comes with circular release ring: The release ring adopts a circular design to make disassembly more labor-saving and convenient.

3. High pressure resistance without detachment: Can withstand larger and stronger pressure without tripping, easy installation and long life.

Specification:

▶Name: Male Thread to 14mm Pneumatic Joint

▶Material: Plastic+ Brass
▶Fit For Tube Material: PU/Nylon, Polyurethane(PU/PE/Nylon Hose)

▶Suitable Pipe Size: 14mm OD Hose

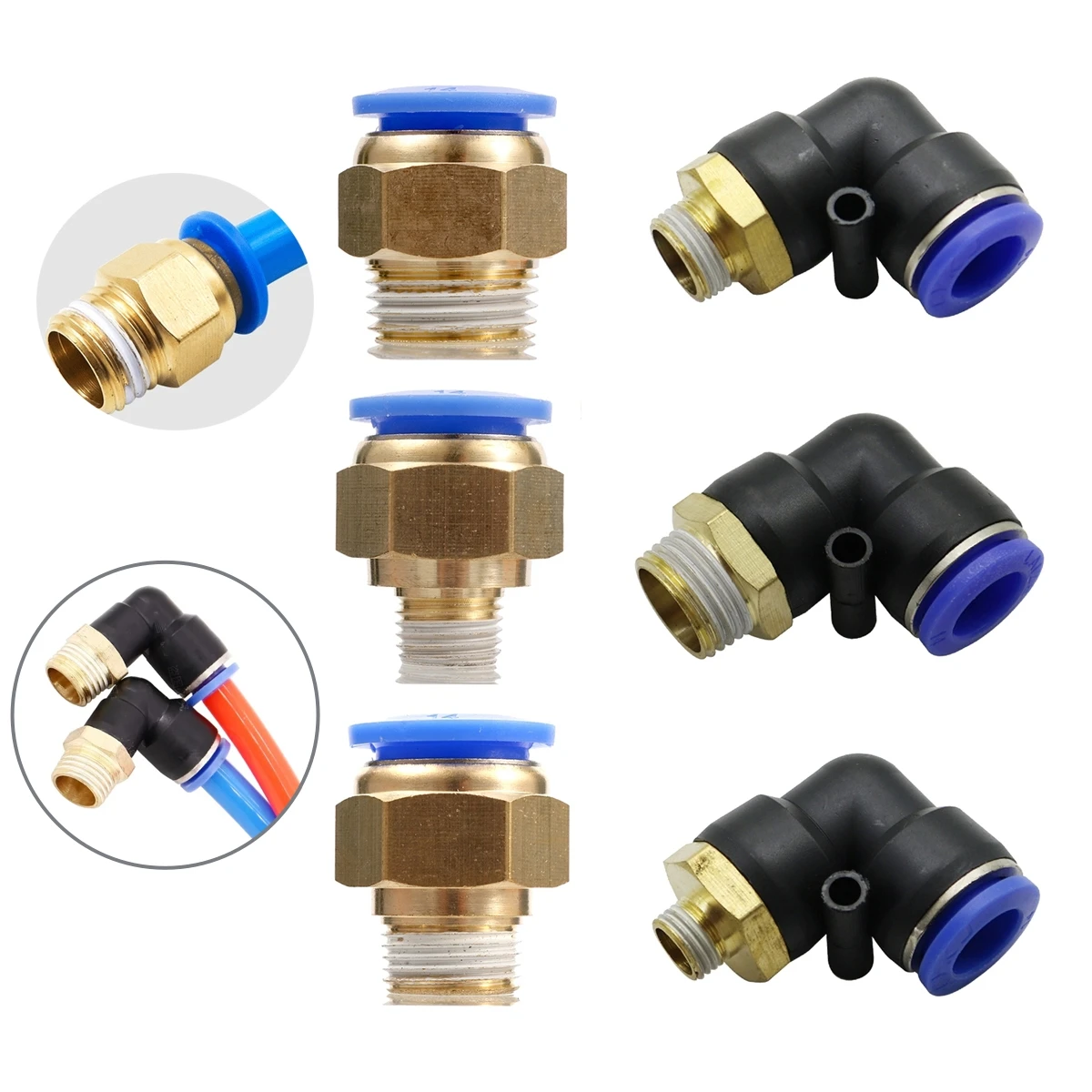

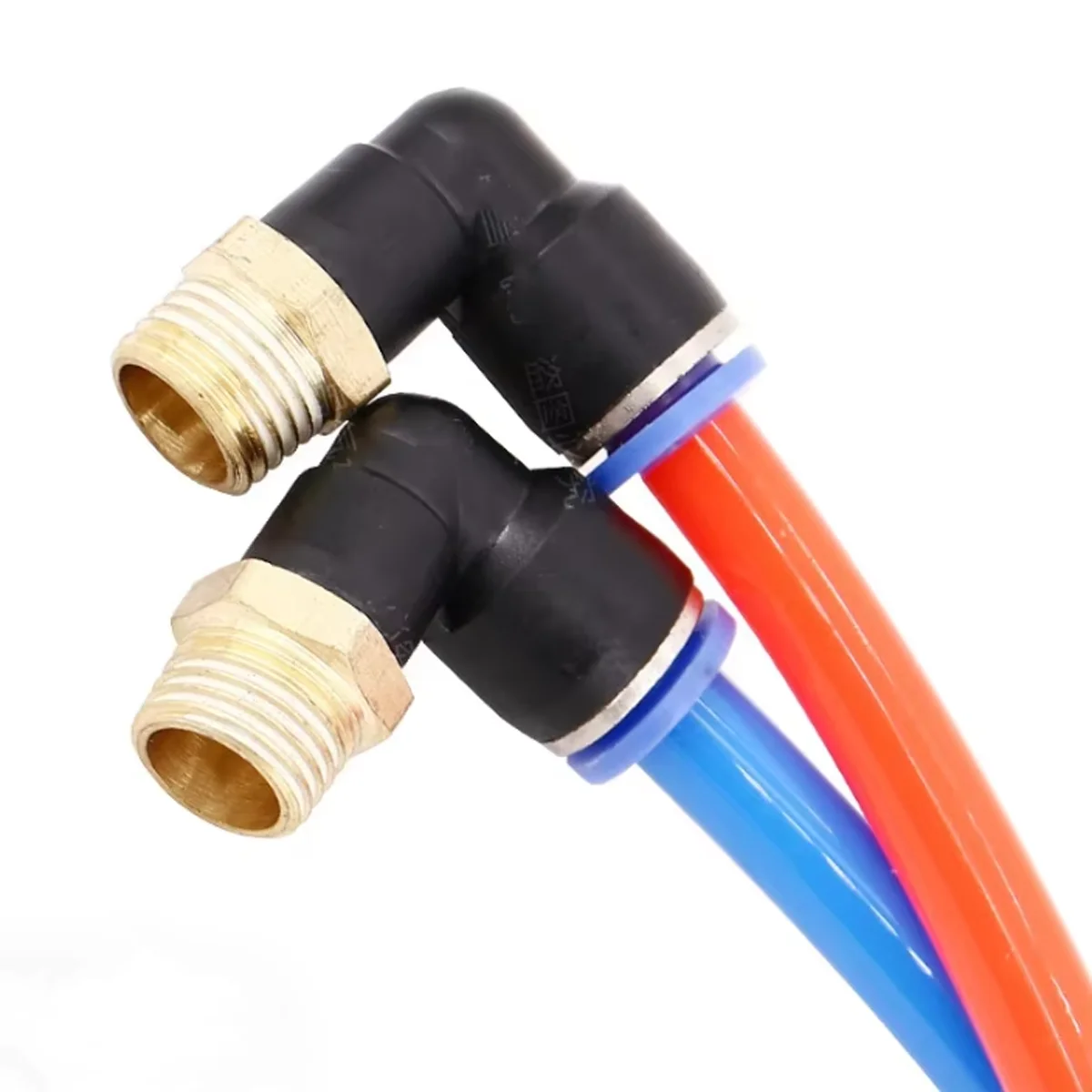

▶Type: Straight, Elbow

▶Fluid Type: Air/Vacuum/Water

▶Operating Pressure: 0~1.0 Mpa

▶Operating Temperature Range: -5~60℃
▶Features: Easy and quick tubing connections with no special tools.

▶Quantity: 5Pcs

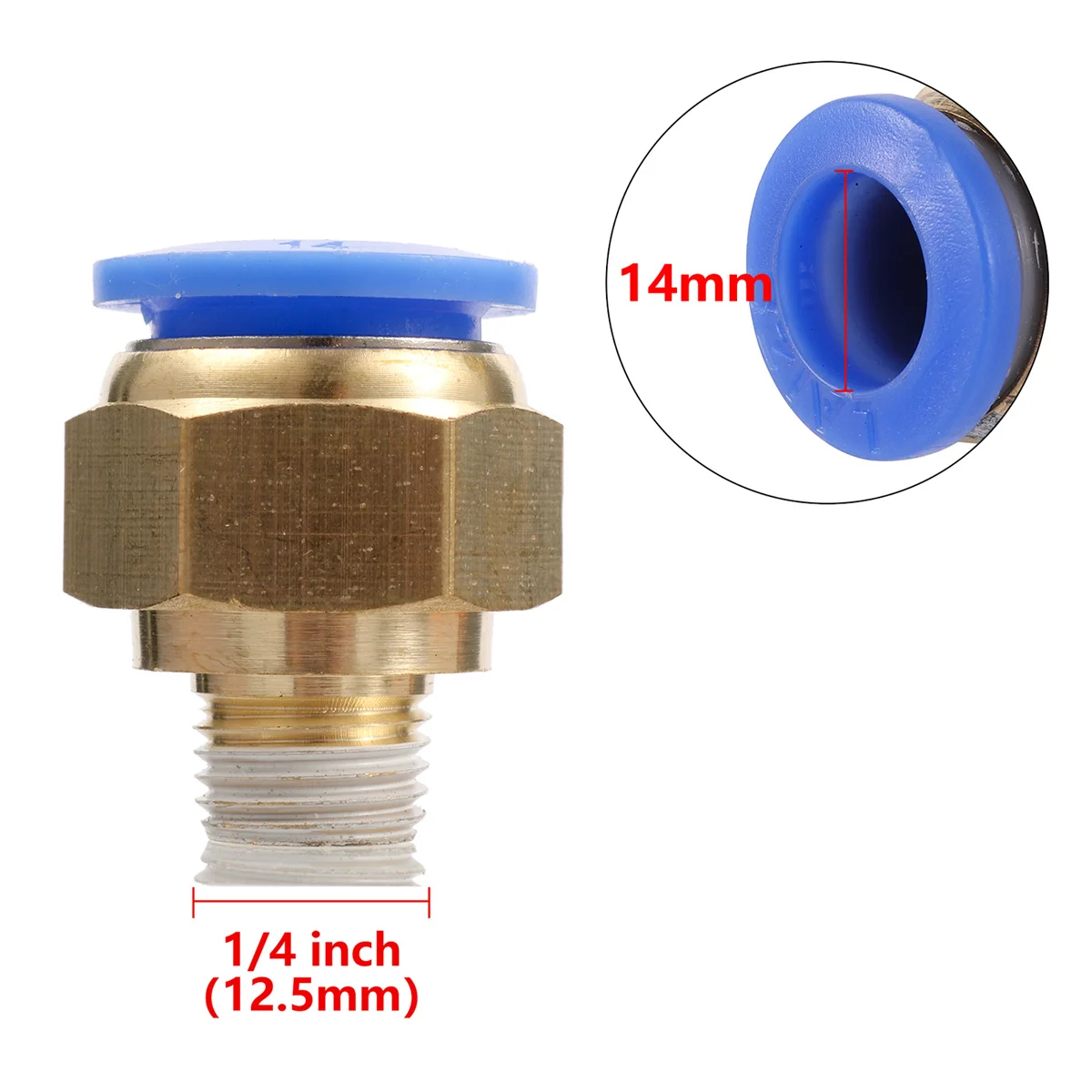

Size Specifications:

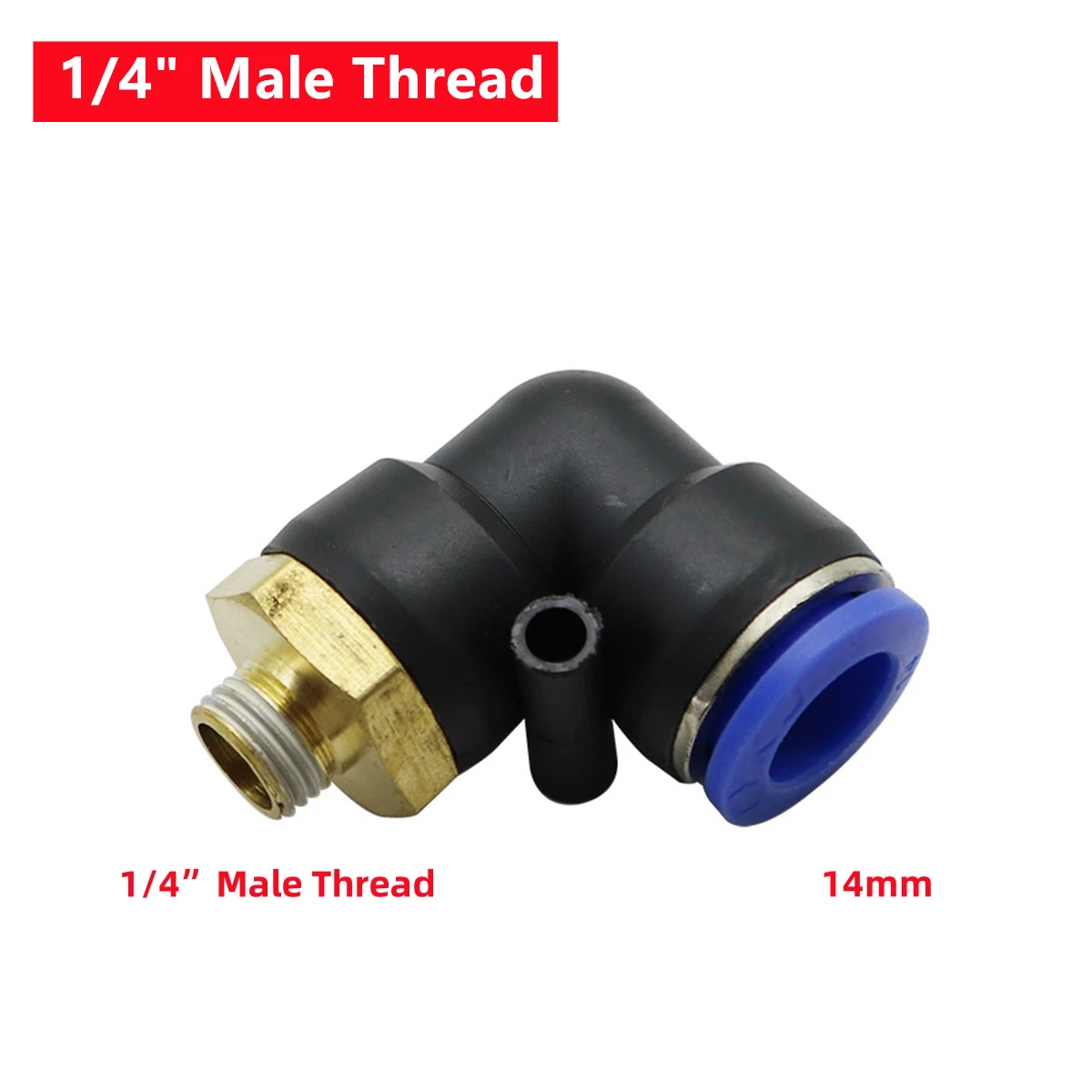

1/4" ≈ 12.5mm

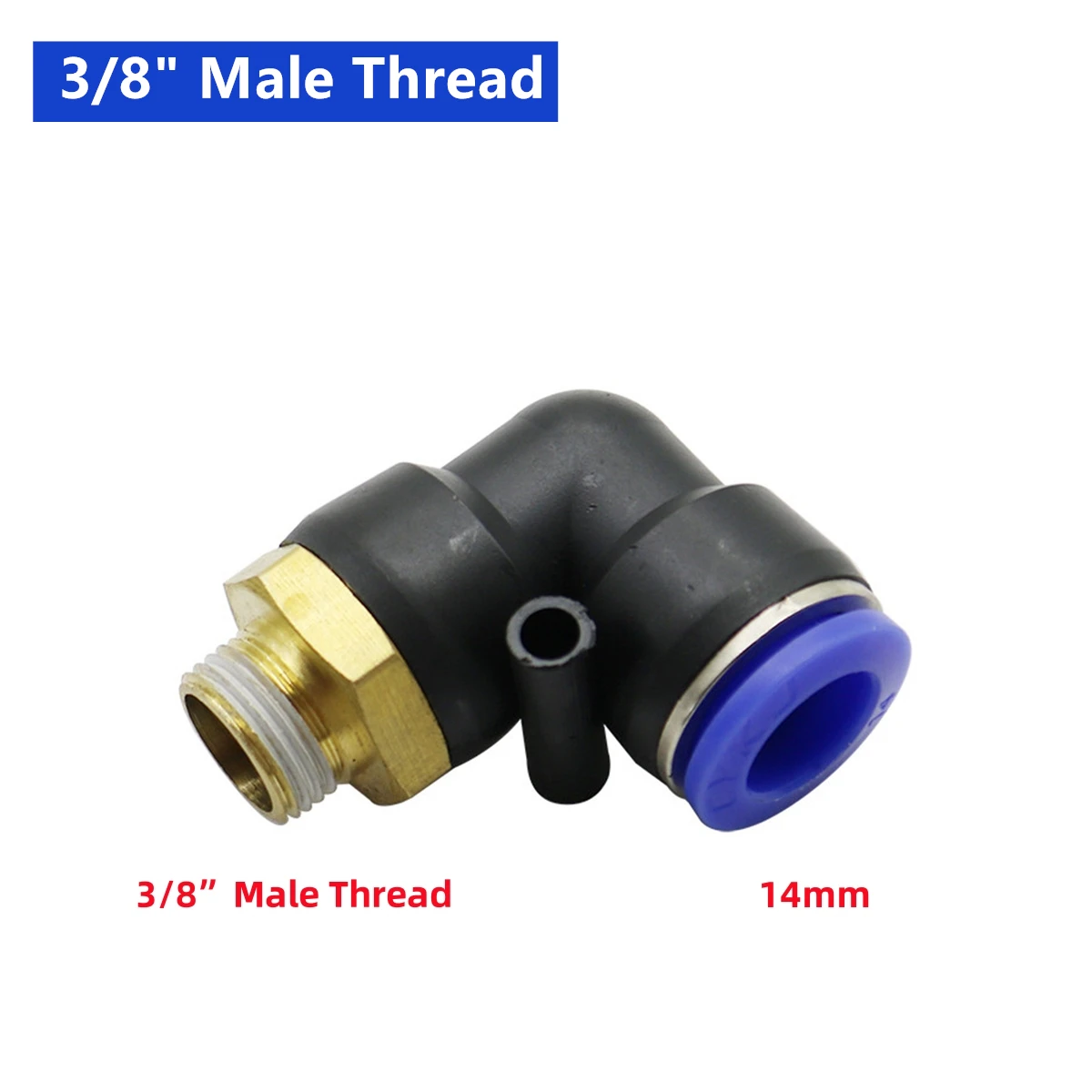

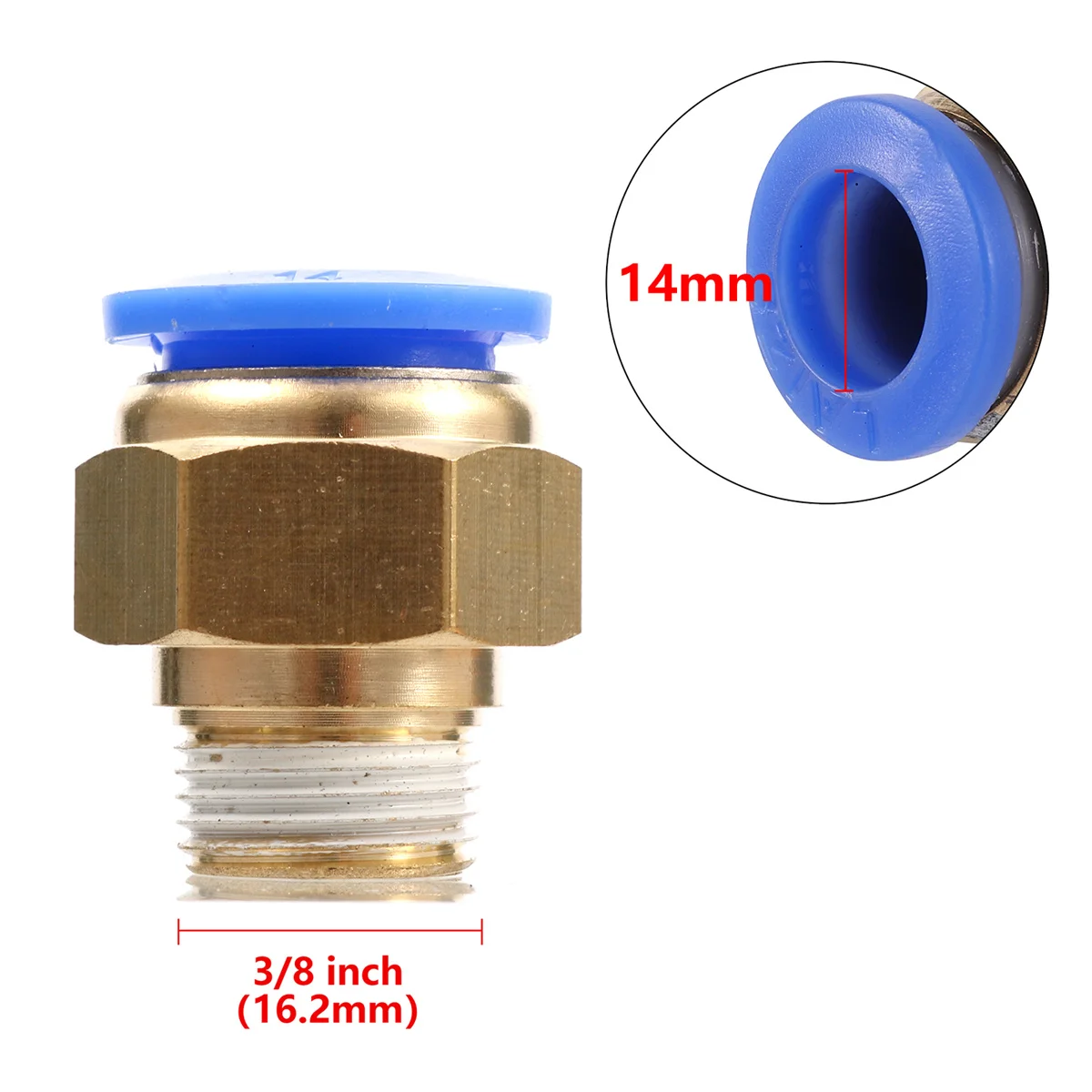

3/8" ≈ 16.2mm

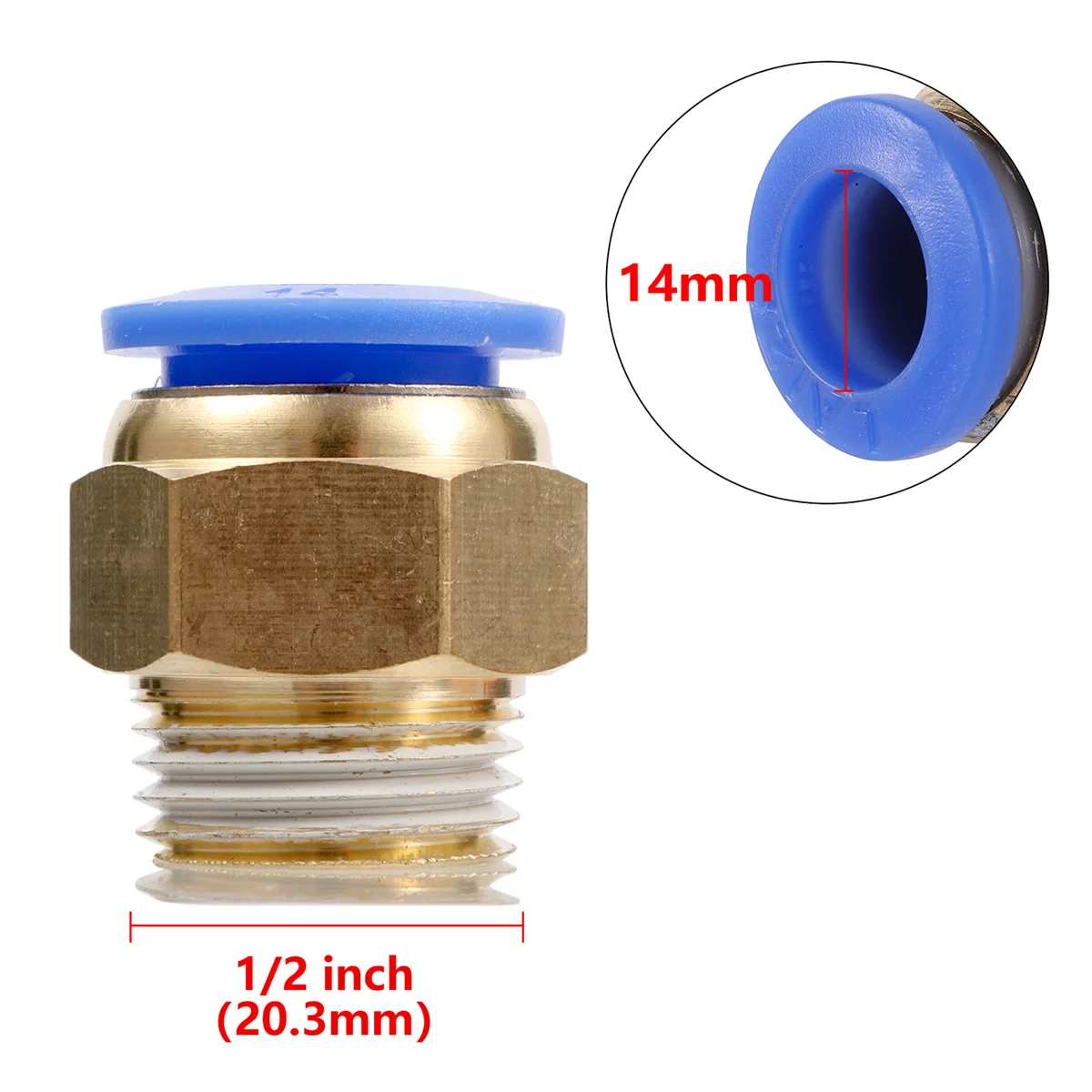

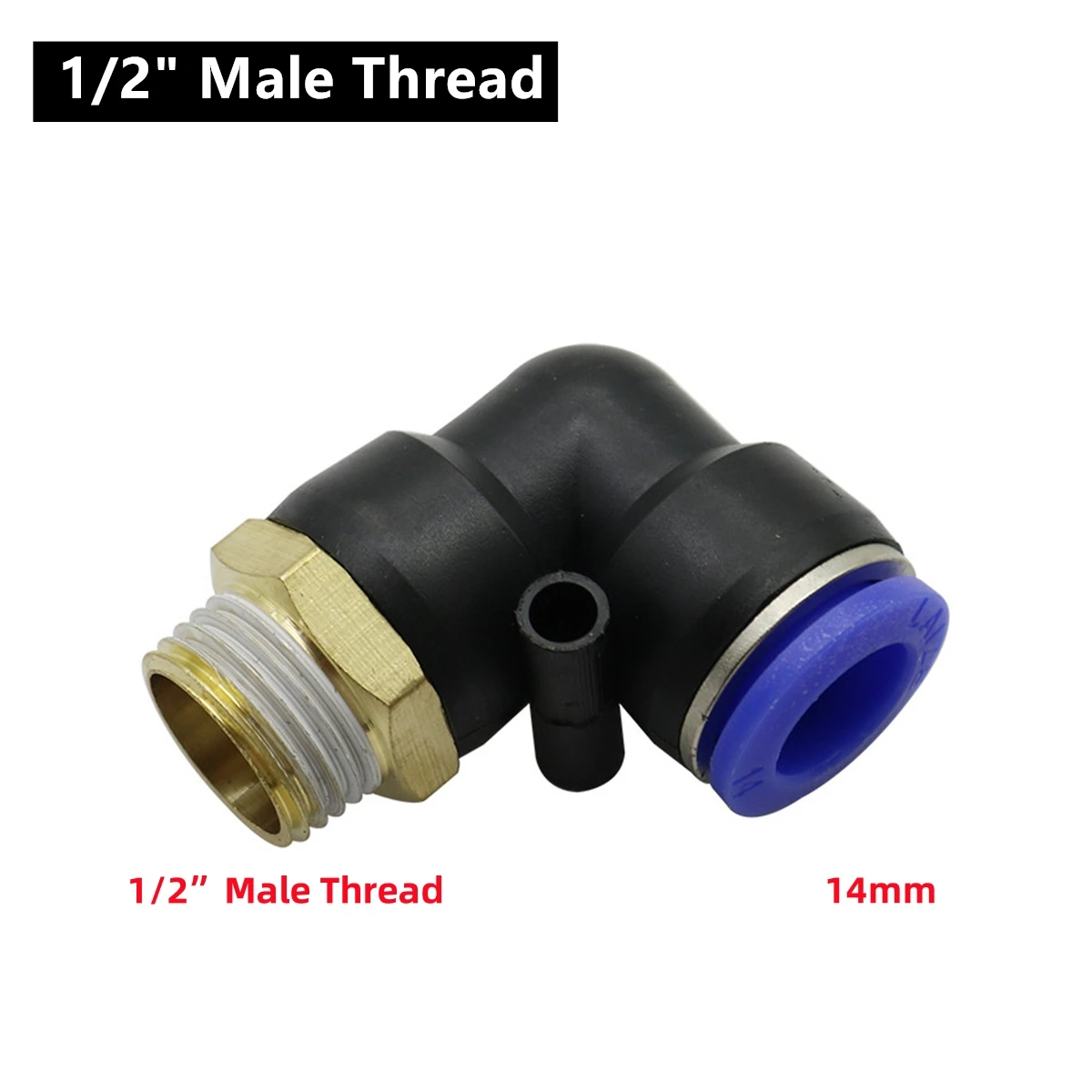

1/2" ≈ 20.3mm

Precautions:

1. If a non-company's trachea product is used, it may cause leakage or abnormal connection and disassembly due to the tolerance of the trachea. Therefore, it is necessary to check whether the outer diameter conforms to the tolerance allowable size.

2. Please check to see if the end face of the trachea is cut at right angles. If there is any damage or scratch outside the trachea, insert it into the end to ensure the seal.

3. When disassembling the air pipe, check that the pressure in the air pipe is zero.

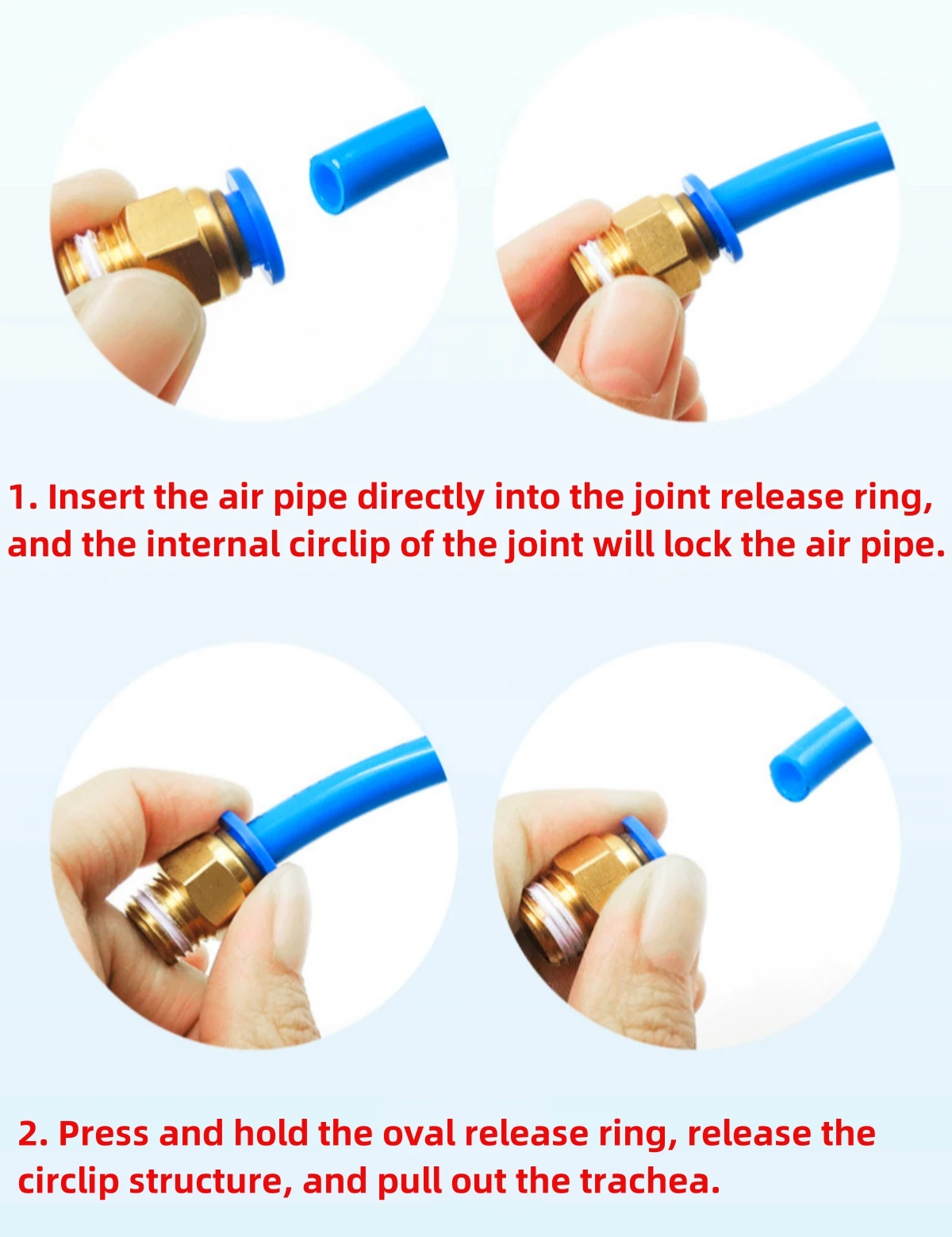

Connection pipe precautions:

1. Make sure that the cut surface of the pipe is vertical, there is no damage on the outer circumference of the pipe and the pipe is not oval.

2. When inserting the pipe, it must be inserted into the bottom of the joint. If the pipe is not inserted, it may cause air leakage.

3. After the pipe is installed, pull the pipe to confirm that the pipe cannot be pulled out.

Precautions when removing the joint:

1. Use a suitable tool to remove the pipe joint using the outer hexagon of the pipe joint

2. It is necessary to remove the sealing material adhered to the opposite side of the pipe joint.

3. Otherwise the adhered sealing material may enter the peripheral components, causing malfunction

Notes:

1. In the fluid other than air and water, try not to use.

2. If it is used in a place where sparks are generated, it may cause a fire, so it is forbidden to use it in such a place.

WARNINGS

1. Due to different computer display colors, the actual color may differ slightly from the above pictures. Thank you for your understanding.

2. Please allow slight dimension differences due to different manual measurements. Thank you!
