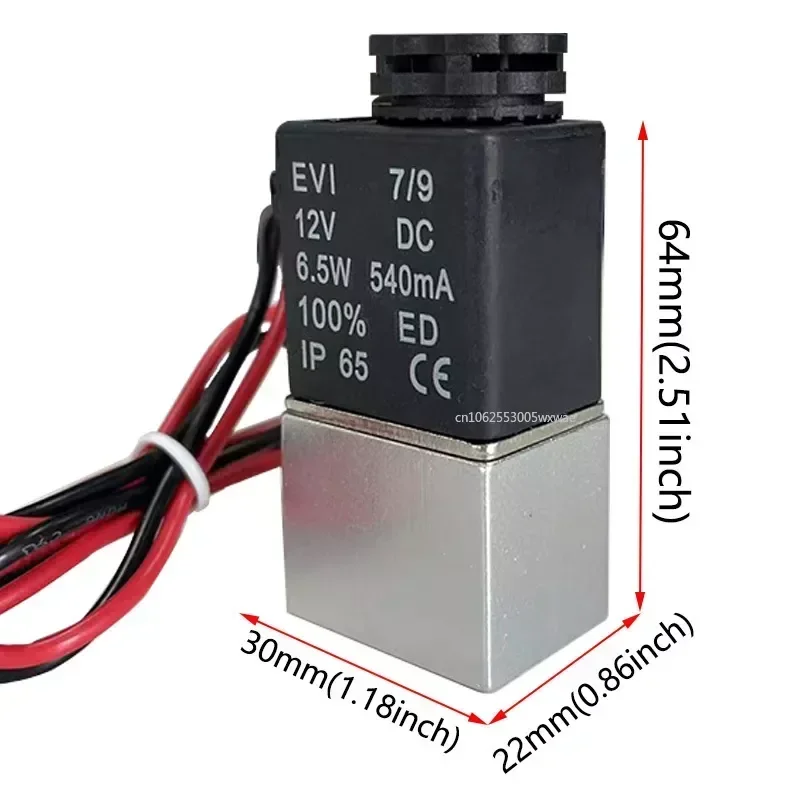

Normally Open Solenoid Valve 1/8" DC 12V 24V AC 110V 220V 2 Way Pneumatic Valves for Water Two-way

Model Number: 2V025-1/8″

Valve Type: 1 Way Normally Open

Port Size: 1/8″ NPT Female Port

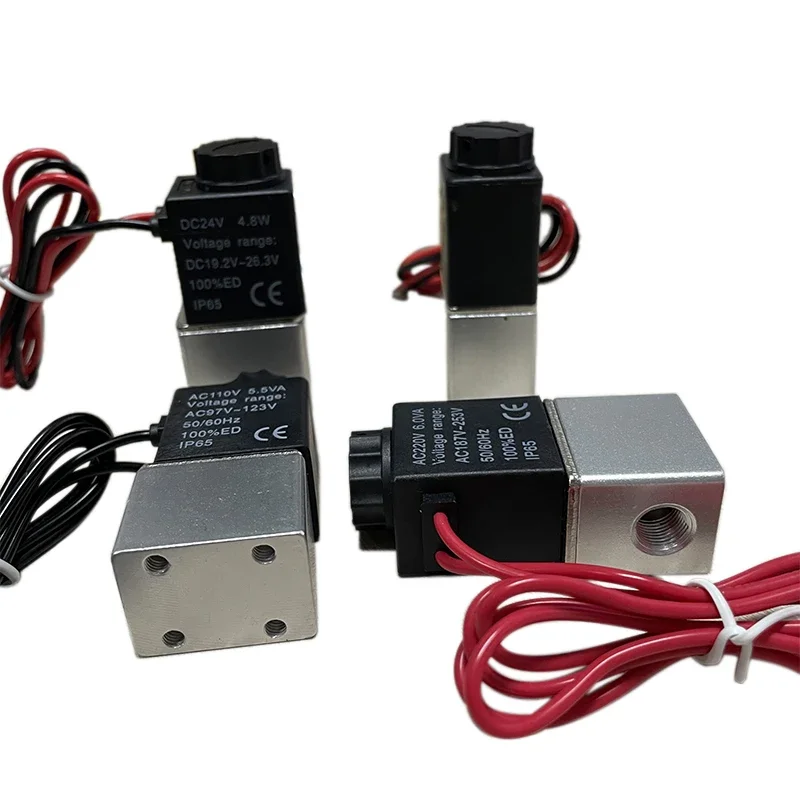

Coil Voltage: DC12V DC24V AC110V AC220V

Service Media: Air, Gas, Liquid, Water

Operation Model: Direct Acting

Flow Model: Uni-Directional

Flow Rate: 0.23Cv (Fluid Flow)

Response Time: Less than 50 ms

Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))

Operating Temperature: -10 to 80 °C

Coil Power: 6.5W

Body Material: Aluminum

Seal Material: NBR (Buna N)

Armature Tube Material: Brass

Plunger & Spring Material: Stainless Steel

1 x Solenoid Valve

1 x Brass Pagoda Connector(4mm/6mm/8mm/10mm/12mm)
