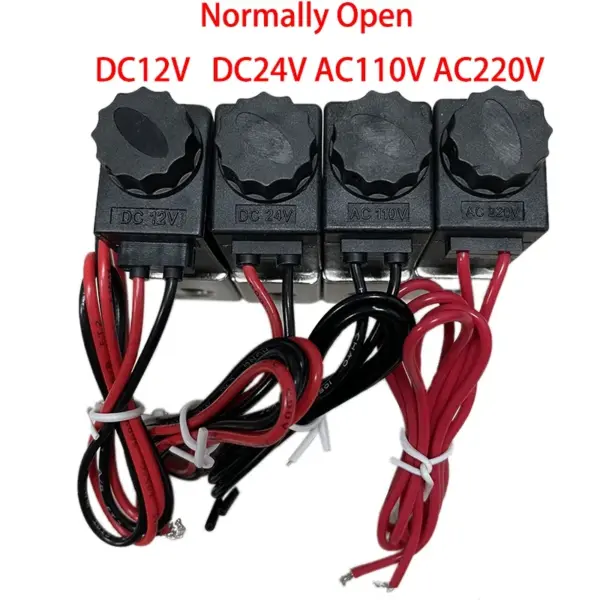

Normally Open DC12V DC24V AC110V AC220V Solenoid Valve 1/8" NPT Female Port 2 Way Direct-acting Pneumatic 1.2Mpa -10 to 80 °C

Model Number: 2V025-1/8"

Valve Type: 2 Way Normally Open

Port Size: 1/8" NPT Female Port

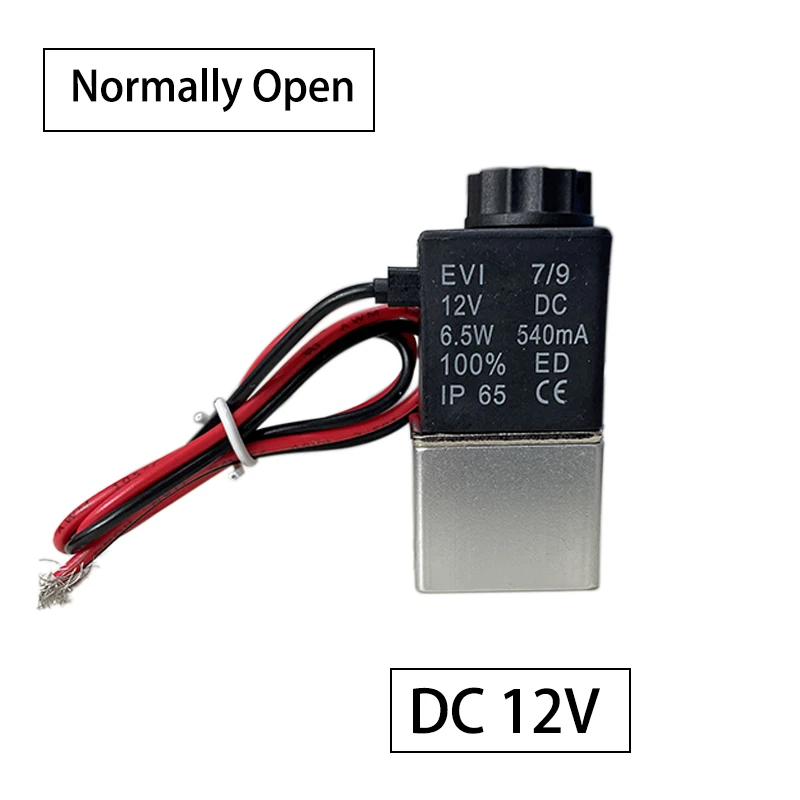

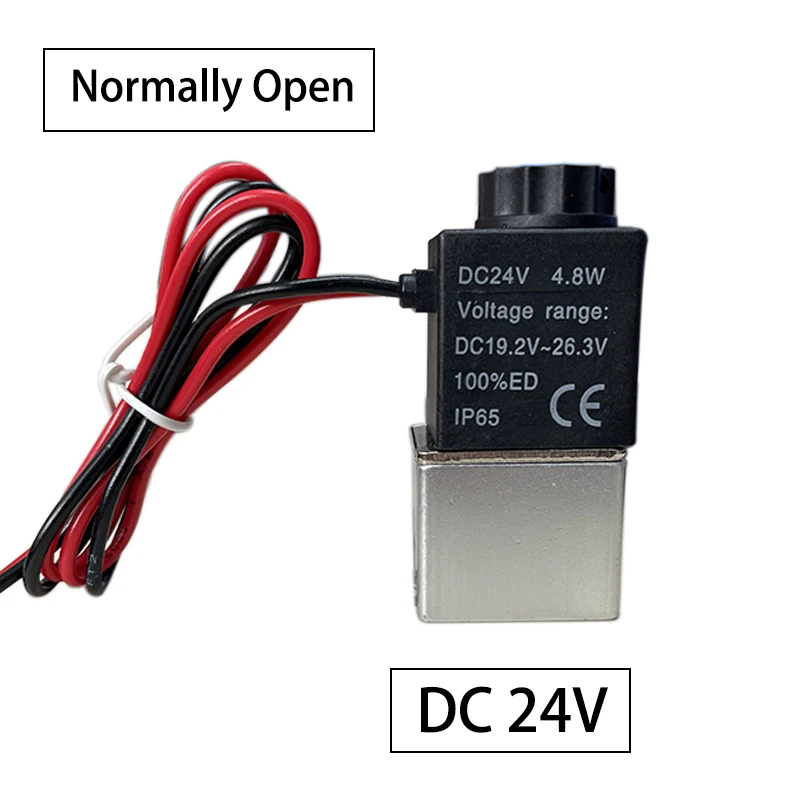

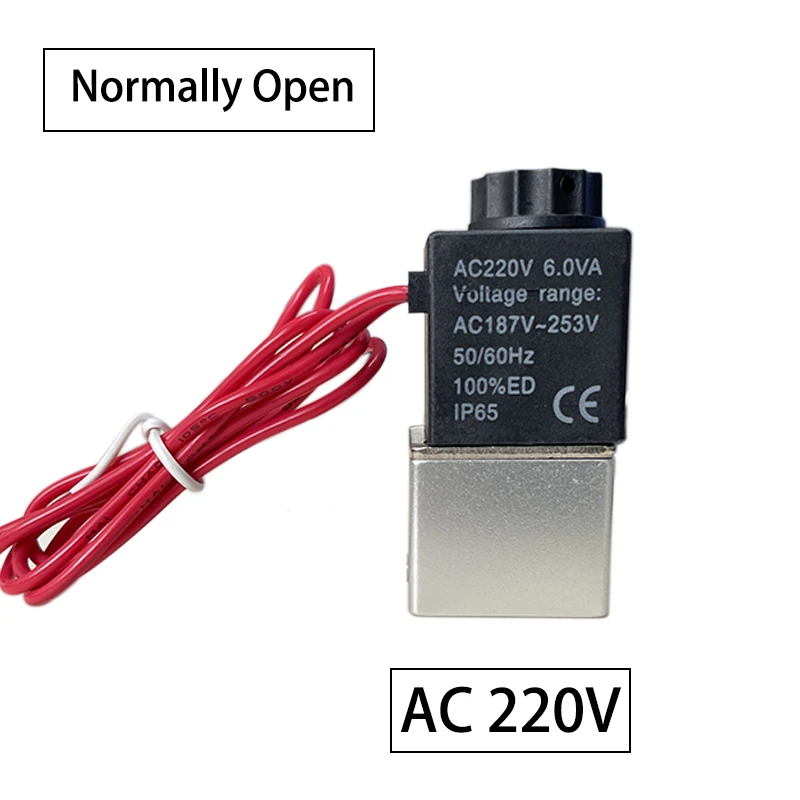

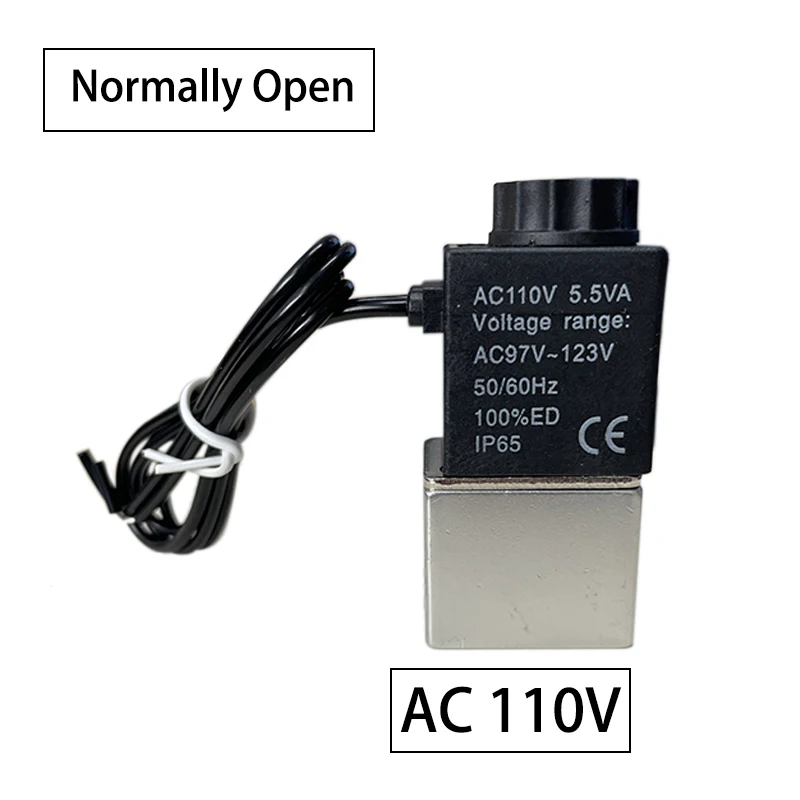

Coil Voltage: DC12V DC24V AC110V AC220V

Service Media: Air, Gas, Liquid, Water

Operation Model: Direct Acting

Flow Model: Uni-Directional

Flow Rate: 0.23Cv (Fluid Flow)

Response Time: Less than 50 ms

Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))

Operating Temperature: -10 to 80 °C

Coil Power: 6.5W

Body Material: Aluminum

Seal Material: NBR (Buna N)

Armature Tube Material: Brass

Plunger & Spring Material: Stainless Steel

1 x  Solenoid Valve
