Description
Features

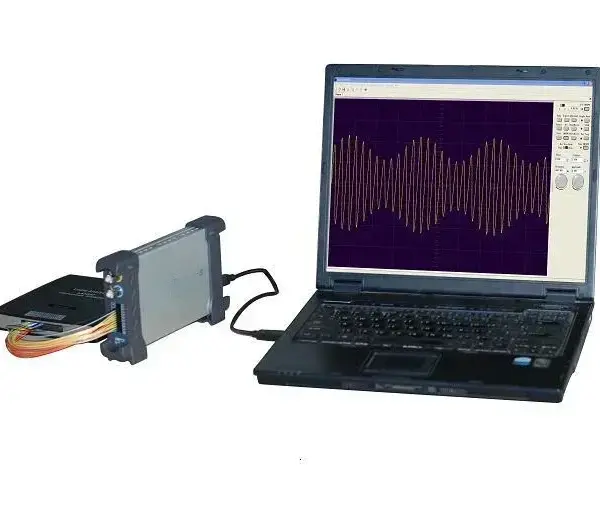

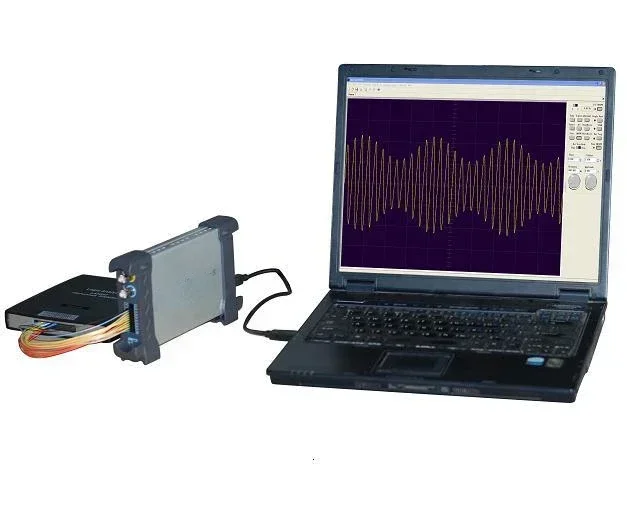

·Cost-effective, USB function/any wave generator.
· Excellent industrial design, the Shell uses the same anodized aluminum as iPad, not only beautiful and elegant,
Moreover, it greatly improves the surface hardness of aluminum alloy and has good heat resistance and wear resistance.
·USB interface, plug-and-play, power-free, easy to carry, similar to desktop signal generator interface, easy to use.
· It can be used out of the computer, and can simulate the sensor and the actual environment signal and reproduce its waveform when it is powered on.
· 200MSa/sSampling rate, 12-bit vertical resolution,25MHzArbitrary Wave Output. (sine wave can output up75MHz).
· One computer can connect multiple signal sources at the same time to easily expand the number of channels.
· 50MHzEqual accuracy frequency meter.
· Programmable word generator.
·USBXITMStandard interface for easy insertion of USBXITMIn the chassis, a combined instrument is formed.
· Software support: Win 7,Windows NT, Windows 2000, Windows XP
|
Shape frequency |
DC~25MHz |
|
|
DAC clock |
2K~200MHz adjustable |
|
|
Number of channels |
1CH waveform output |
|
|
Waveform depth |
4KSa |
|
|
Vertical resolution |
12 Bit |
|
|
Frequency Stability |
<30ppm |
|
|
Waveform amplitude |
±3.5V Max. |
|
|
Output impedance |
50 Ω |
|
|
Output Current |
50mA Ipeak=50mA |
|
|
System BW |
25M |
|
|
Harmonic distortion |
-50dBc(1KHz),-40dBc(10KHz) |
|
|
Frequency measurement channel |
||
|
Frequency range |
DC~50MHz |
|
|
Input signal amplitude |
400mVpp~18Vpp |
|
|
Coupling mode |
DC |
|
|
Frequency measurement accuracy |
±Time Base Error ±1 Count |
|
|
Input impedance |
> 100KΩ |
|
|
Digital input and output |
||
|
Number of digits |
12 Bits Digital Generator Output and 6Bit Generator In |
|
|
Level |
LVCMOS |
|
|
Conditions of Use |
||
|
Ambient temperature |
0~70 degrees Celsius |
|
|
Ambient humidity |
0~95% |
|
|
Weight |
0.3Kg |
|
