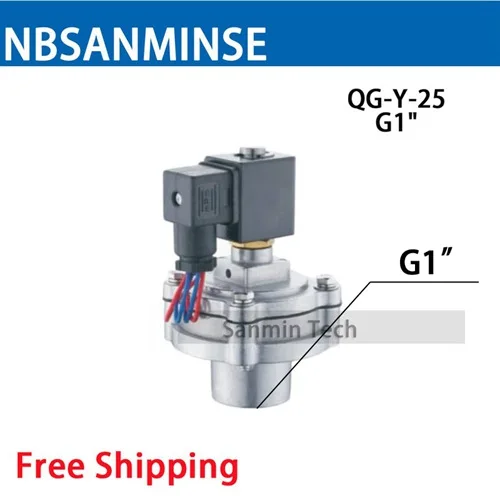

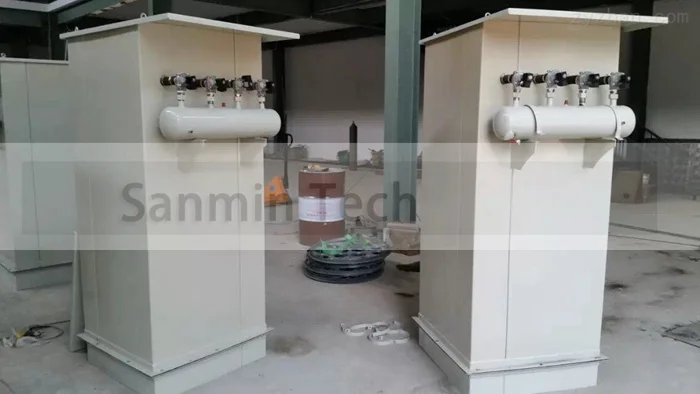

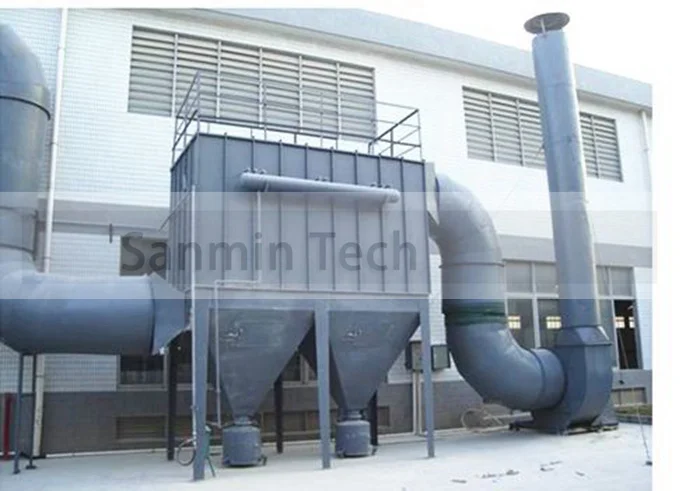

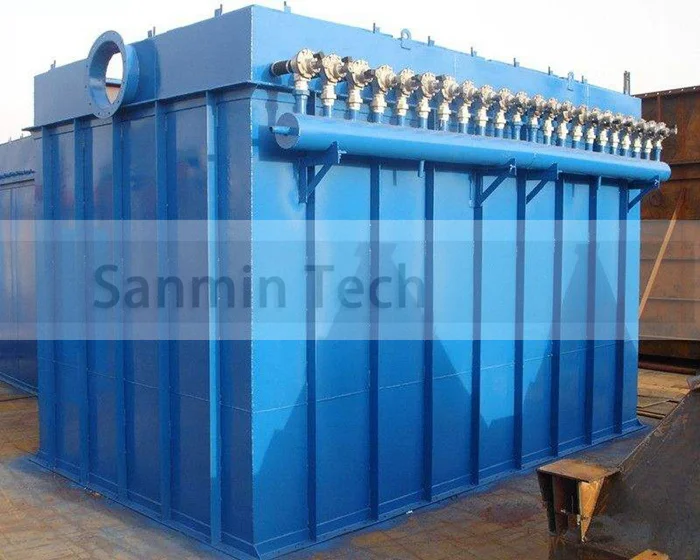

NBSANMINSE QG - Y - 25 Replaced GOYEN G1 Diaphragm Valve Dust Collector Pulse Jet Valve Solenoid Valve Single Diaphragm

Right angle

Embedded

Inline

Plug

Design-pressure

0.3~0.8MPa

0.2~0.8MPa

0.3~0.8MPa

0.2~1.0MPa

Working-pressure

0.3~0.6MPa

0.2~0.6MPa

0.3~0.6MPa

0.2~0.6MPa

Ambient Temperature

-25~60℃ Customized for lower or higher temperature

Relative Humidity

≤85%

Working Medium

Clean Air

Voltage

AC220V/DC24V/AC110V/AC24V Customized

Protection Class

IP65

Diaphragm Life

Over One Million Cycles

Cv/Kv

Call us for detail

Use period

Failure phenomena

Possible Reason

Troubleshooting

During installation and commissioning

The valves cannot all be opened, but the leading part does act.

Check the gas dome pressure to see if it is too low.

Check the leakage

Some valves do not work, but the others are normal.

Check the valve coil connection and coil

Replace the accessories

The valves cannot all be closed. There is leakage. There is no way to establish a gas dome.

Y-valve. Some valves for the same gas dome are leaking, thus causing leakage for all the valves.

Check the leakage

Z-valve. The valve inlet and blowing muzzle are installed backwards.

Re-install

Some valves cannot be closed. There is leakage.

There is some dirt or debris on the membrane, ii is blocking the moving iron core.

Clean the membrane and check that the membrane is complete. Check the moving iron core and air lock.

A valve closing is slowly.

The membrane orifice is blocked.

Dredge the membrane orifice

During use period

Some valves are leaking. The membrane cannot close tightly and the valve is always open a

little.

There is some dirt or debris on the membrane, the leading part is damaged. Moving iron core is blocked.

Clean the membrane and check that the membrane piece is complete. Check the moving iron core and the air lock. Replace the accessories if necessary.

Coil is hot and burned out.

It has been turned on for too long.

Check the working condition of the control system.

Voltage exists but the valve does not operate.

Membrane is damaged and the orifice is blocked.

Replace the accessories in time.

Ambient temperature is below -20℃. The valve is leaking and cannot open.

Ambient temperature is too low and here is frost in the valve.

Pay attention to insulation and maintaining proper temperatures.
