Description

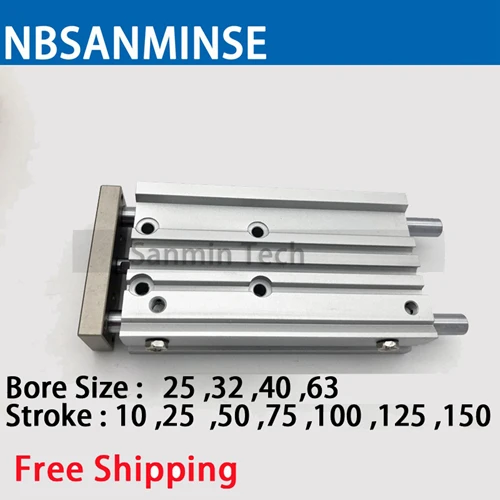

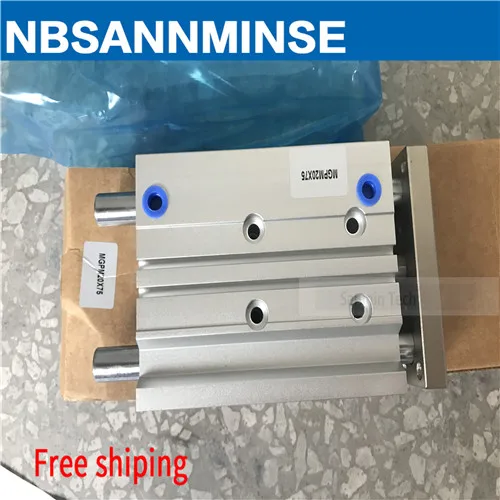

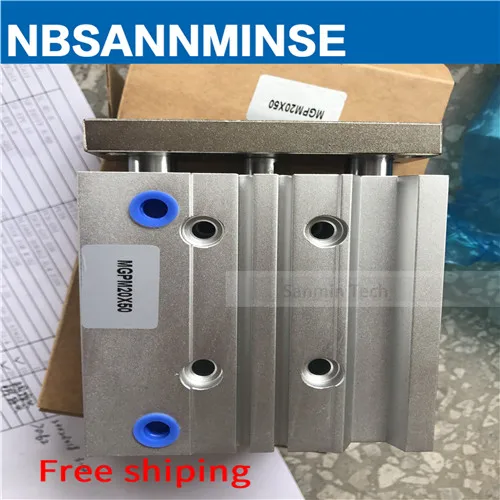

NBSANMINSE MGPM Compact Guide Type Cylinder Miniature Guide Rod Pneumatic Air Cylinder Double Acting
The images shown are not all the actual item and are for your reference only
Specification
|
Bore Size ( mm ) |
12 |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
|
Action |
Double Acting |
|||||||||
|
Fluid |
Air |
|||||||||
|
Proof pressure |
1.5MPa |
|||||||||
|
Max Pressure |
1.0MPa |
|||||||||
|
Min Pressure |
0.12MPa |
0.1MPa |
||||||||
|
Ambient and fluid temperature |
– 10 to 60 ℃ ( No freezing ) |
|||||||||
|
Piston speed |
50 to 500 mm / s |
50 to 400 mm/s |
||||||||
|
Cushion |
Rubber bumper on both ends |
|||||||||
|
Lubrication |
Not required ( Non – lube ) |
|||||||||
|
Stroke length tolerance |
+1.5mm 0mm |
|||||||||
Standard Strokes
|
Bore Size |
Standard Stroke ( mm ) |
|
12 , 16 |
10 , 20 , 30 , 40 , 50 , 75 , 100 , 125 , 150 , 175 , 200 , 250 |
|
20 , 25 |
20 , 30 , 40 , 50 , 75 , 100 , 125 , 150 , 175 , 200 , 250 , 300 , 350 , 400 |
|
32 to 100 |
25 , 50 , 75 , 100 , 125 , 150 , 175 , 200 , 250 , 300, 350 , 400 |
