Description

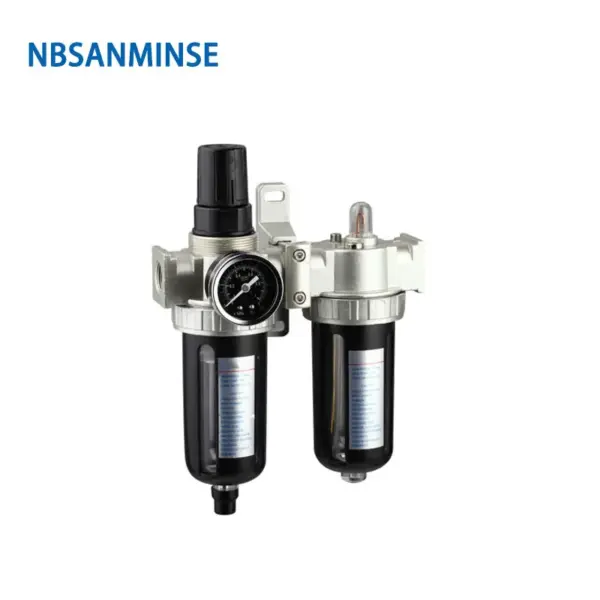

NBSANMINSE Air Preparation Units SFC 200 1/4 3/8 1/2 Two Units Air Filter Regulator Lubricator Air Compressor Filter Regulator
All FRL units will send by randomly the color and filter,Normally color is black ,orange ,blue botton .Normally filter is white (plastic) or Brass.
A Type FRL have G thread and PT thread ,our warehouse send to you by Random.If you are care the thread,pls indicate to us about your thread request.
The images shown are not all the actual item and are for your reference only

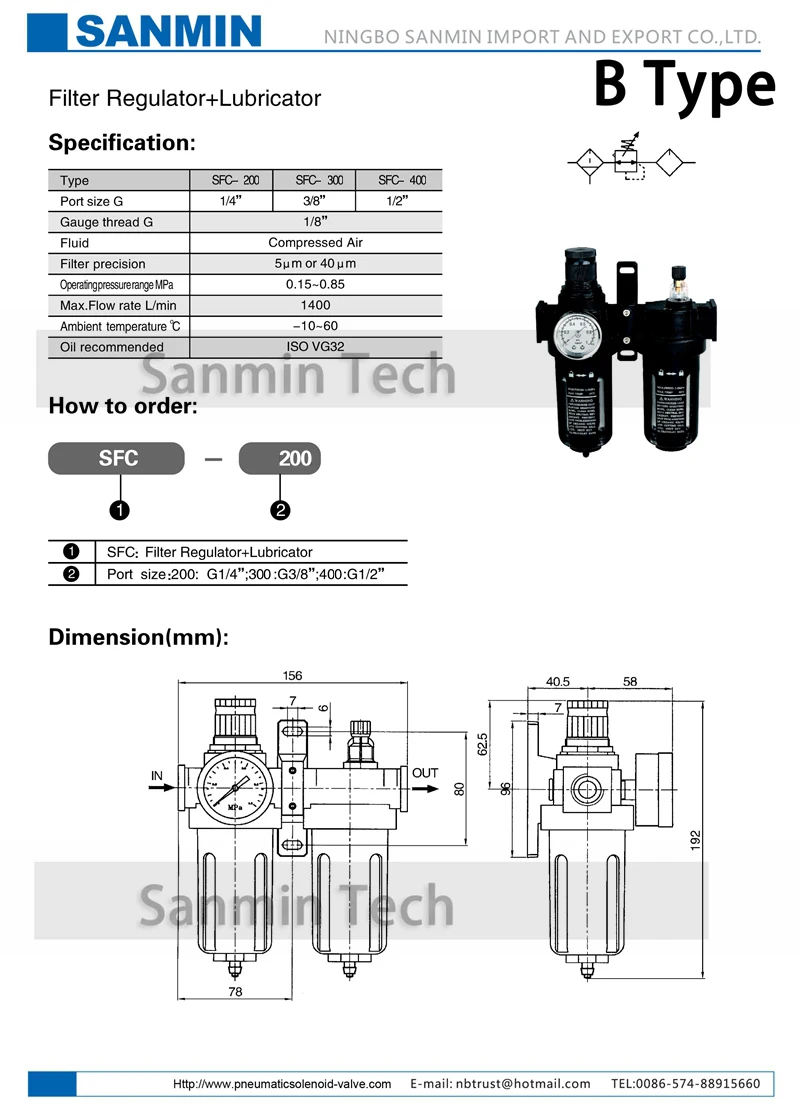

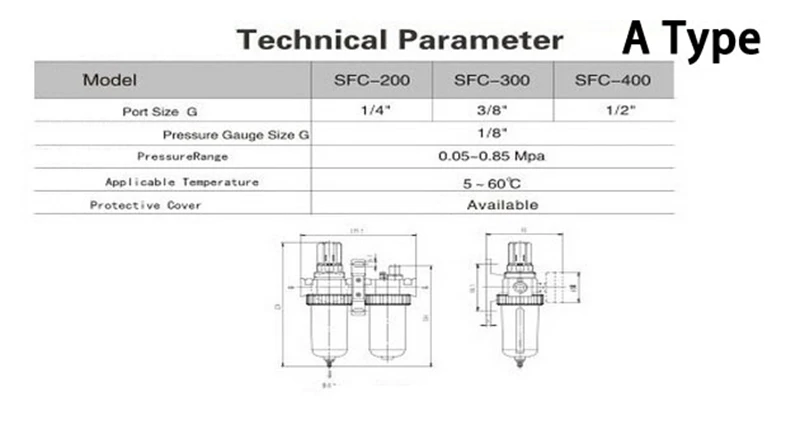

Specification
|
Model
|
SFC-200
|
SFC-300
|
SFC-400
|
|
Port Size G
|
1/4”
|
3/8”
|
1/2”
|
|
Pressure Gauge Size G
|
1/8”
|
||
|
Pressure Range
|
0.05 ~ 0.85 Mpa
|
||
|
Applicable Temperature
|
5~60 C
|
||
|
Protective Cover
|
Available
|
||
|
Differential Pressure Type
|
Manual drain standard
|
Automatic drain option
|
|
Adopting Pressure Differential for automatic drain , drain automatically when the air depletion and make up produce differential
|
Also placed the left to be differential pressure type
|
Use float switch valve , drain automatically when water level over the float , close automatically after completely drain
|
Warning:
Confirm the air line and power in turned off before serving , prevent injury and damage while disassembly for maintenance.
Danger :
Pay attention to the direction of the air source while installing, never used in reversed air direction .
Air Compressor Filter Regulator , Air Compressor Parts , Air compressor pressure regulator , Air Filter Regulator , Air Regulator Valve , Air Source Equipment Units , Air Source units , Airtac , Festo , SMC , Compressed air , Compressed air compressor ,Compressor Filter , Compressor Moisture Trap , Filter Regulator Lubricator , Filters for air compressors , FRL Units , Lubricator , Mini Filter , Mini Lubricator , Mini Regulator , Moisture Separator , Pneumatic , Pressure compressor , Pneumatic parts , Pneumatic filter , Pneumatic lubricator , Air Lubricator , Pneumatic regulator , air regulator with gauge , compressor air regulator , oil lubricator , one units,two units,three units .
