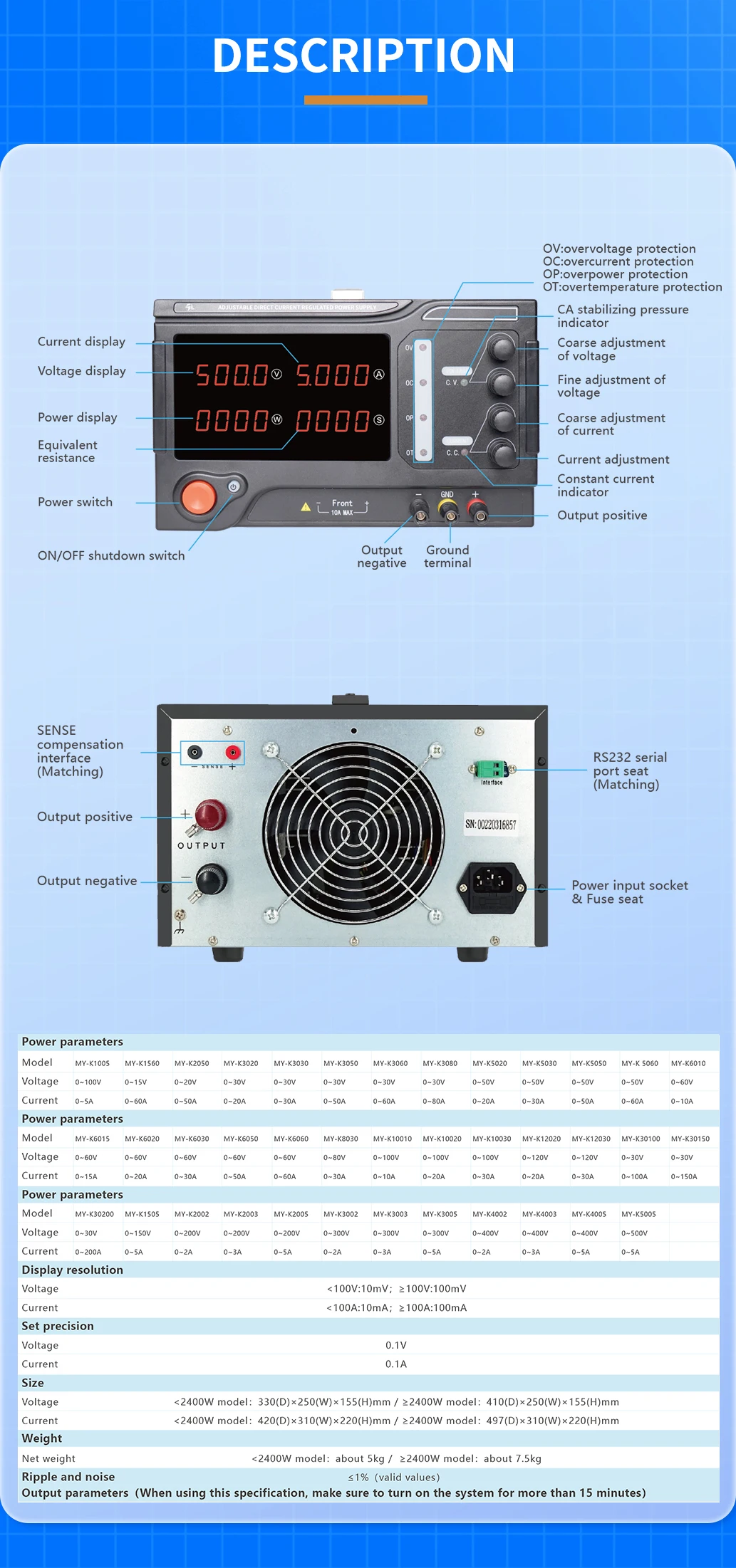

Description
Feature:
(1) Voltage and current can be preset;
(2) Voltage, current, power, equivalent resistance 4 Windows 4 high precision display at the same time;

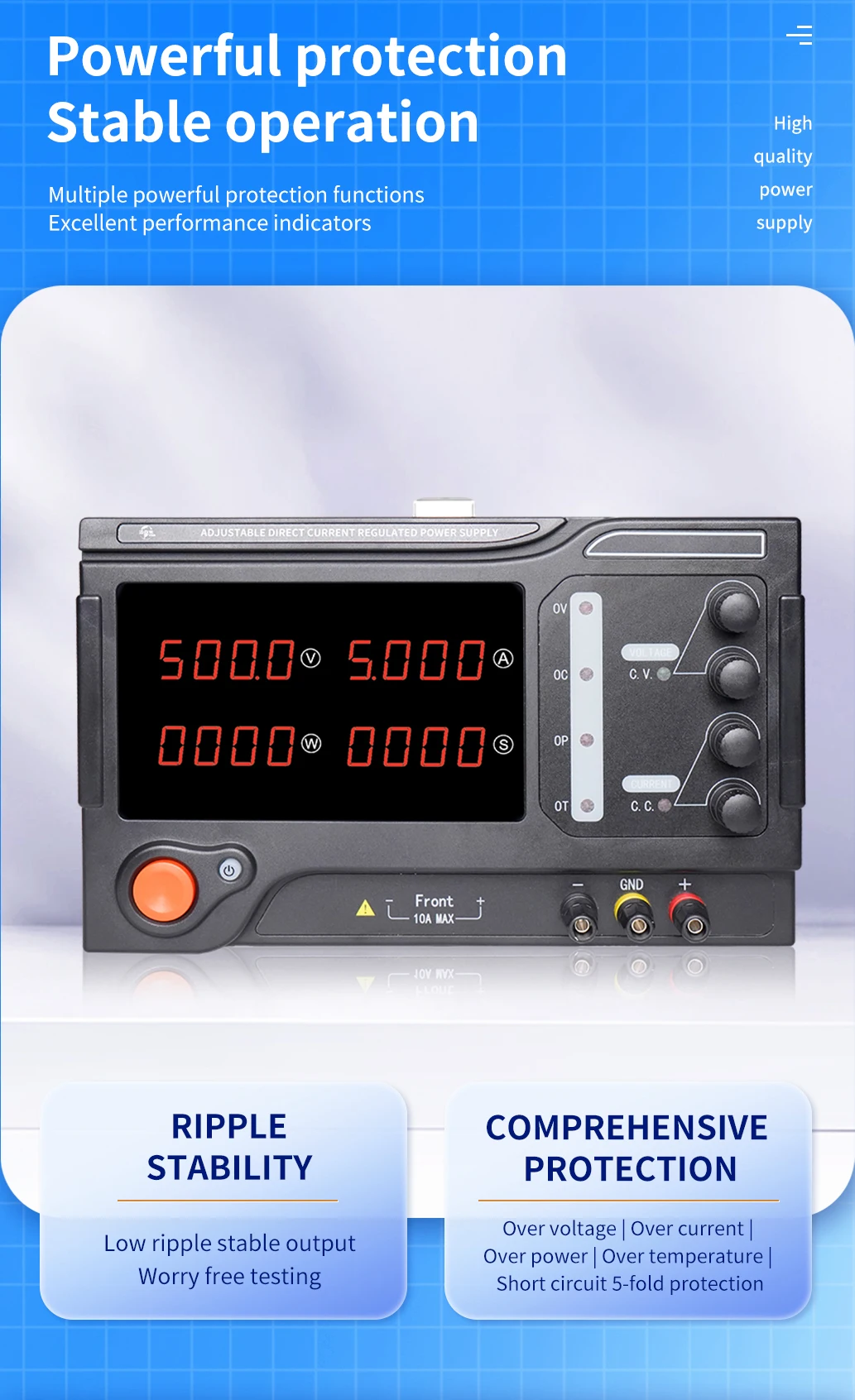

(3) over voltage, over current, over power, over temperature, cornet 5 double protection;

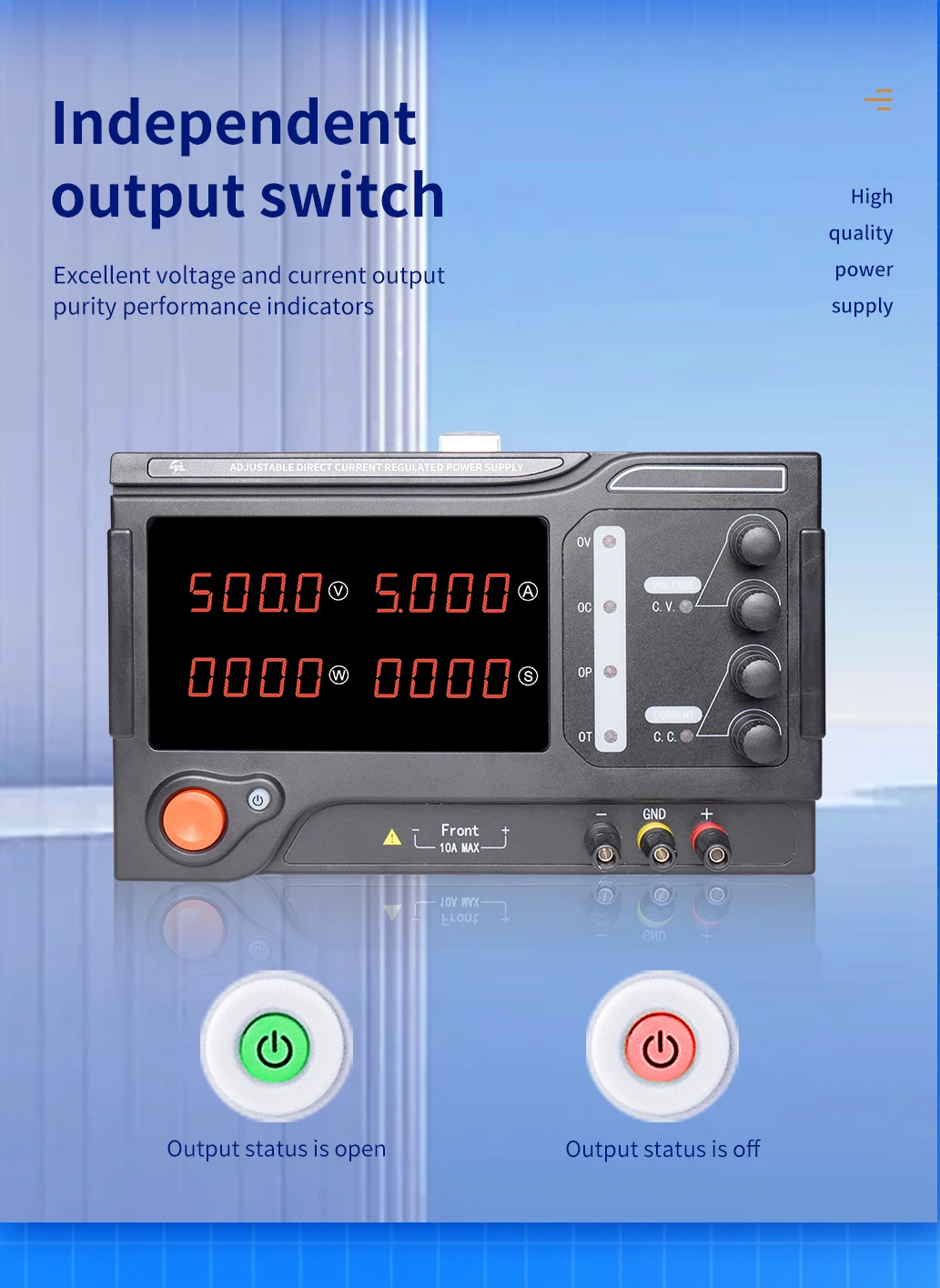

(4) ON/OFF output on-off switch;

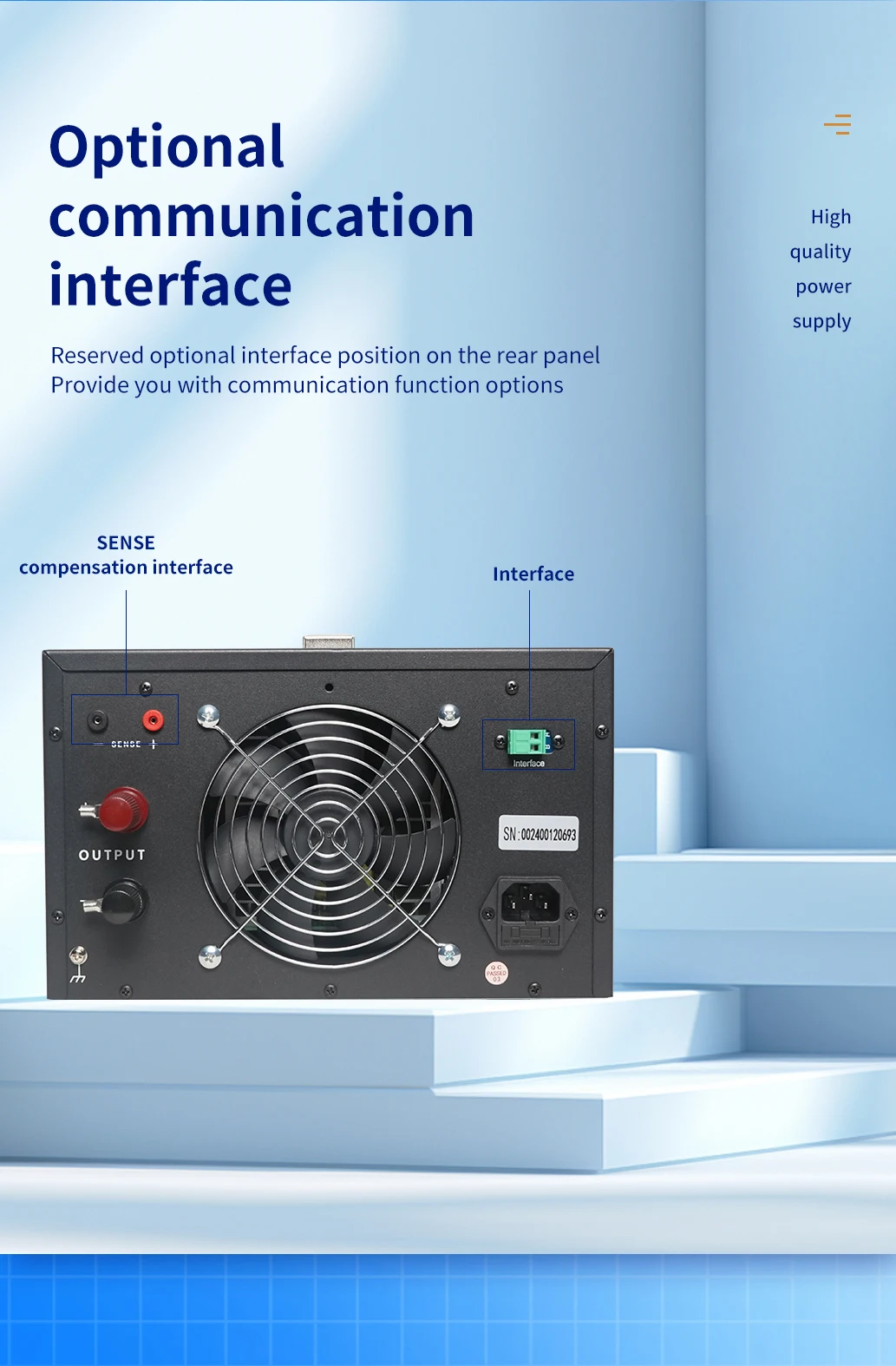

(5) SENSE compensation interface is optional at the back;
(6) Can be optional at the back with a communication serial port RS485/USB/RS232, and the upper computer software can control the output switch to read the output voltage and current values;
(1) Voltage and current can be preset;
(2) Voltage, current, power, equivalent resistance 4 Windows 4 high precision display at the same time;
(3) over voltage, over current, over power, over temperature, cornet 5 double protection;
(4) ON/OFF output on-off switch;
(5) SENSE compensation interface is optional at the back;
(6) Can be optional at the back with a communication serial port RS485/USB/RS232, and the upper computer software can control the output switch to read the output voltage and current values;
|
Rated DC output (0℃~ 40℃)
|
||
|
Voltage
|
0-400V
|
|
|
Current
|
0-2A/0-3A/0-5A
|
|
|
Voltage stability
|
≤2%
|
|
|
Current stability
|
≤0.5%
|
|
|
Load stability
|
≤0.5%
|
|
|
Ripple & noise
|
≤1%
|
|
|
Display resolution
|
||
|
Voltage resolution
|
10mV
|
|
|
Current resolution
|
10mA
|
|
|
Power resolution
|
1mW
|
|
|
Load resistance
|
1mR
|
|
|
Operating environment
|
||
|
Elevation
|
≤2000m
|
|
|
Relative humidity
|
＜80%
|
|
|
Environment temperature
|
5℃~ 40℃
|
|
|
Storage environment
|
||
|
Environment temperature
|
-20~ 80℃
|
|
|
Relative humidity
|
≤80%
|
|
|
Power input
|
||
|
Input
|
AC110V/220V±10%,50/60Hz
|
|
|
Size
|
||
|
Fuselage size
|
330(D)×250(W)×155(H)mm
|
|
|
Package size
|
430(D)×330(W)×250(H)mm
|
|
|
Weight
|
6Kg
|
|
