Multimeter With Circuit Break Detection Battery Tester Digital Multimeter Built-in 400mAh Battery Non-contact Voltage Sensing

Features:

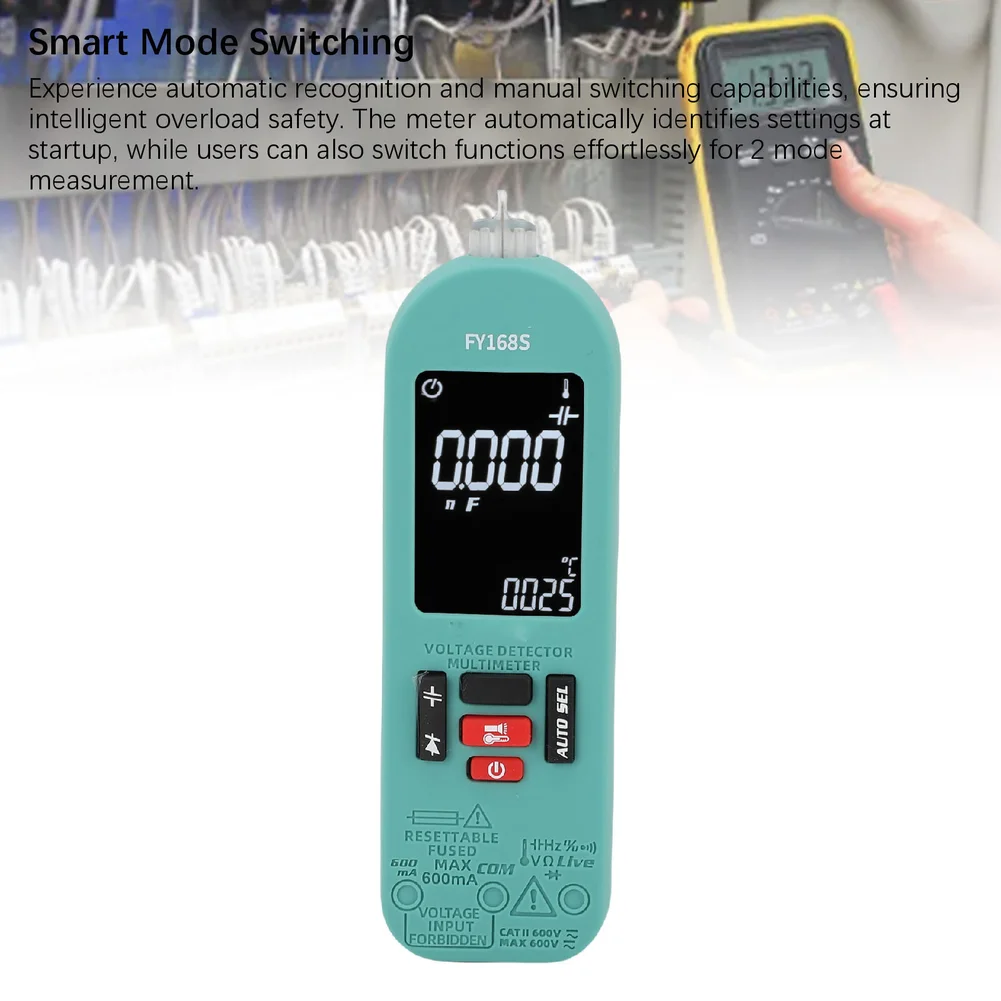

1. Intelligent Mode Switching: Features automatic recognition and manual switching to for ensure intelligent overload safety. The meter automatically recognizes settings upon startup, and users can easily switch between two measurement modes.

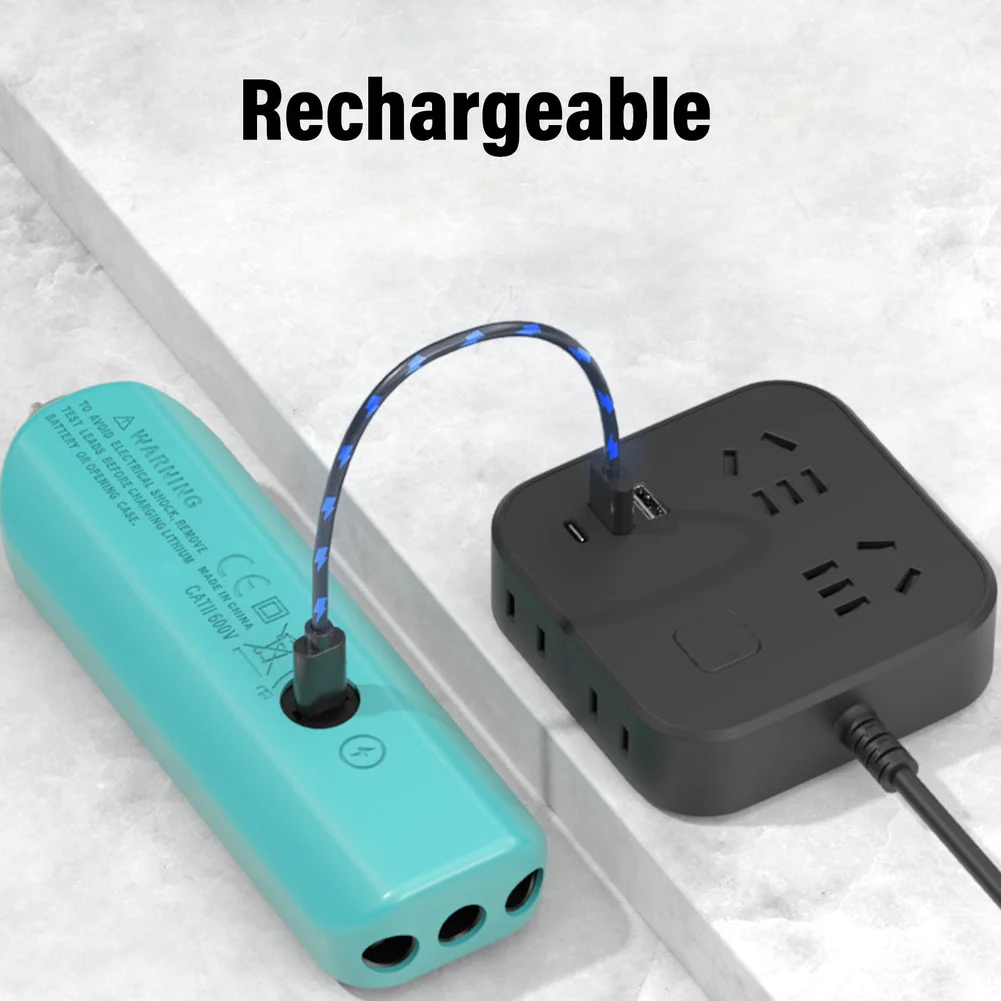

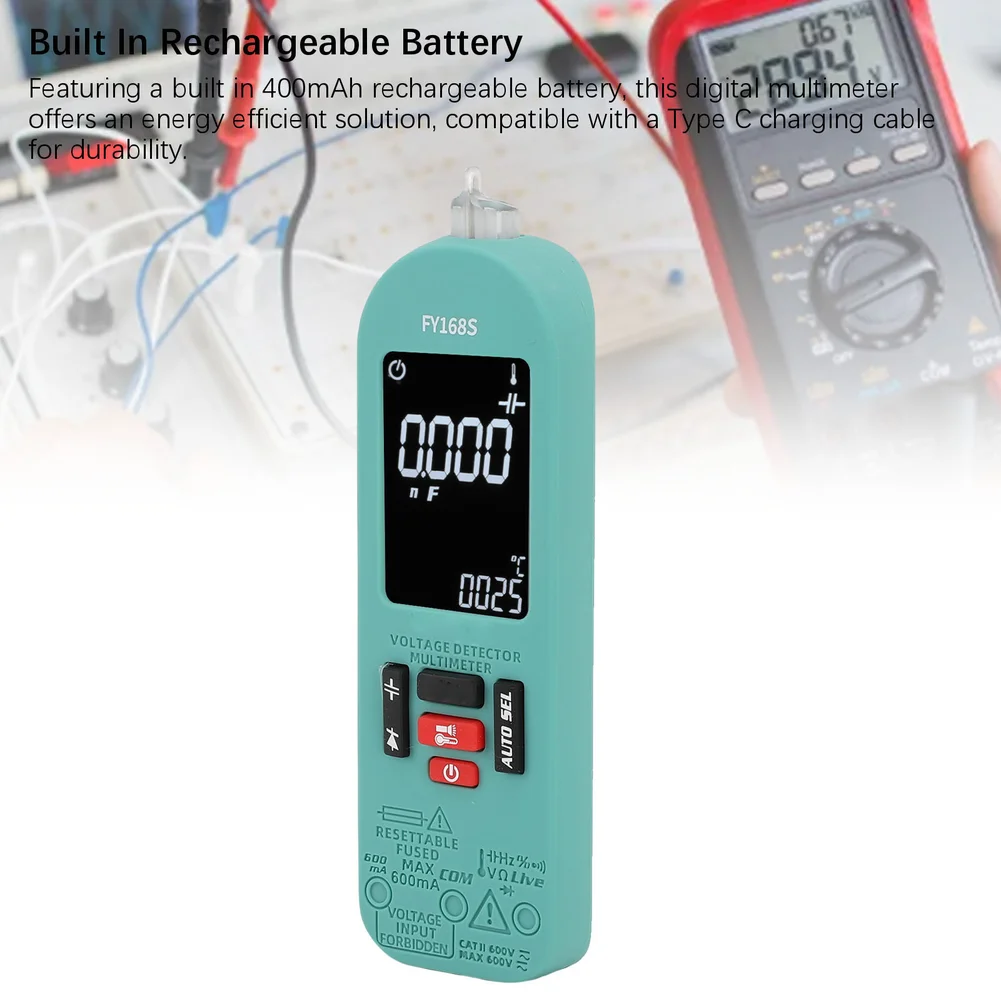

2. Built-in Rechargeable Battery: Equipped with a built-in 400mAh rechargeable battery, this digital multimeter offers an energy-saving solution and is compatible with Type-C charging cables for durability.

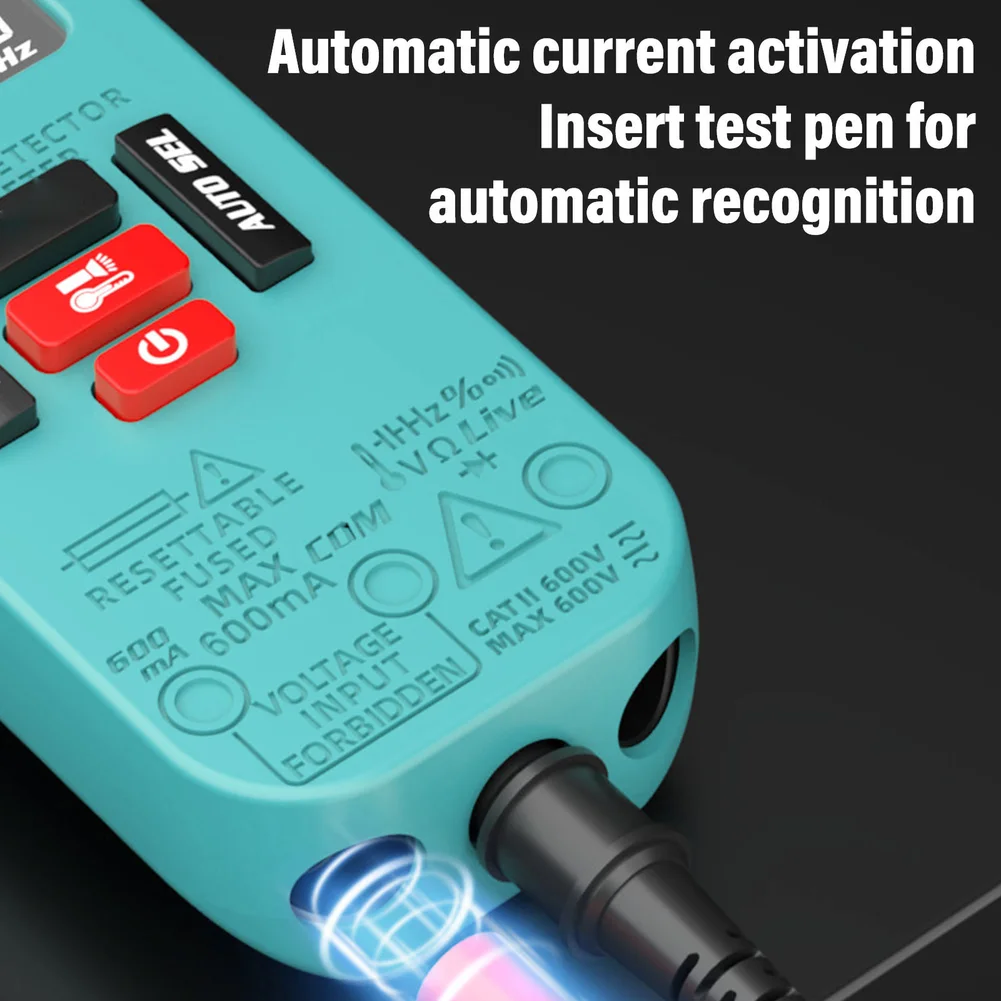

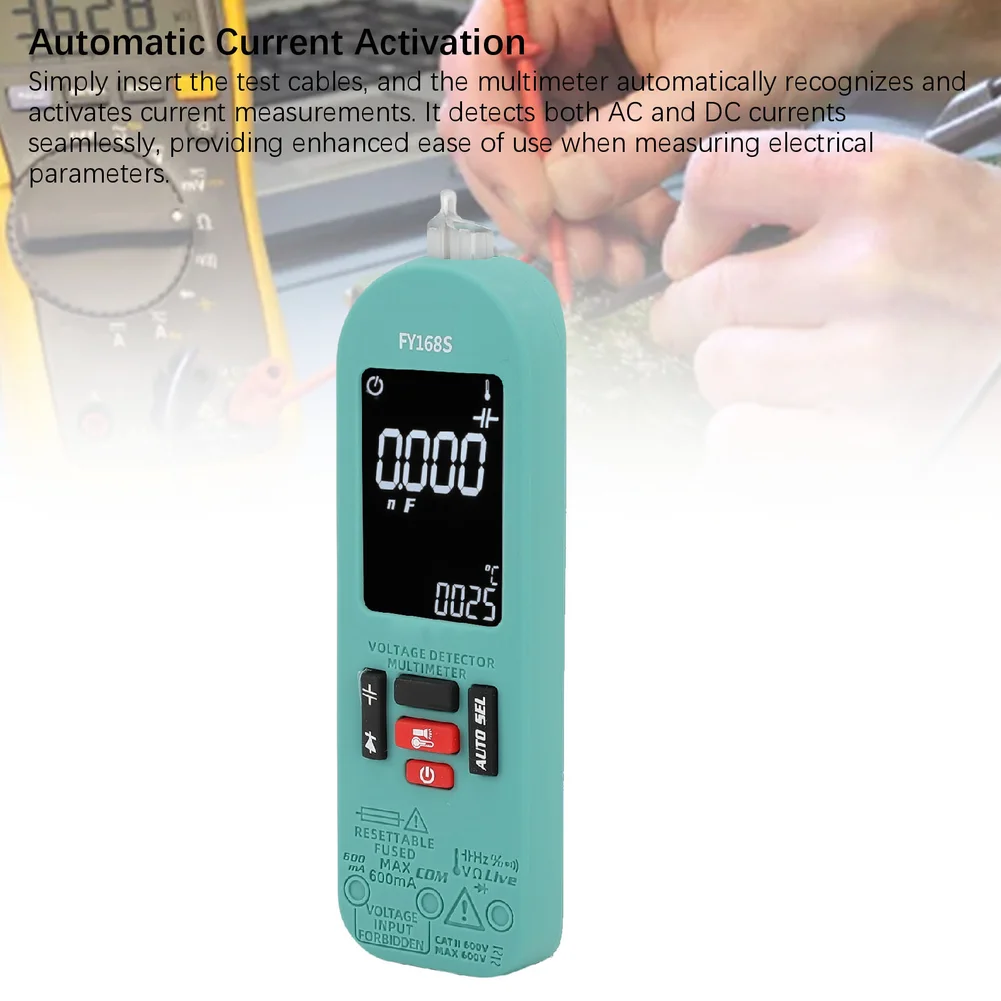

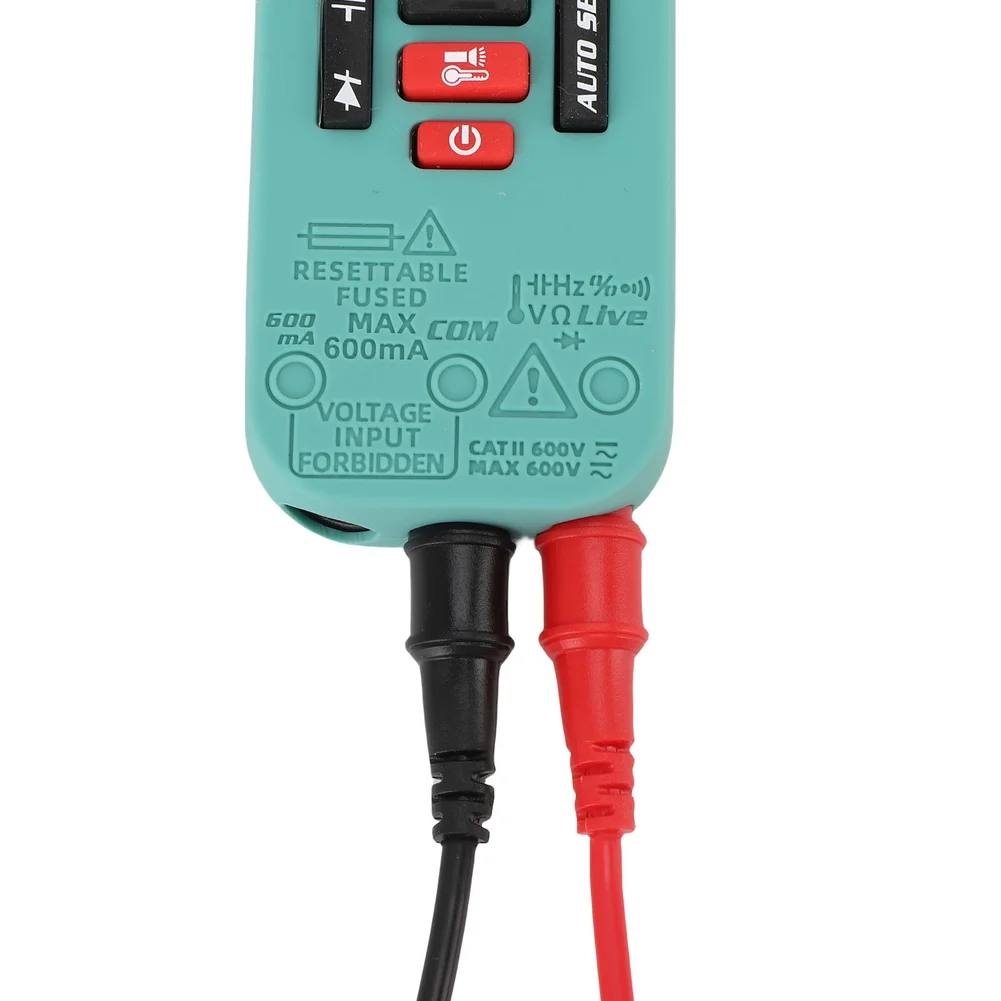

3. Automatic Current Activation: Simply insert the test leads, and the multimeter automatically recognizes and activates current measurement. It seamlessly detects both AC and DC currents, making it more convenient for measuring electrical parameters.

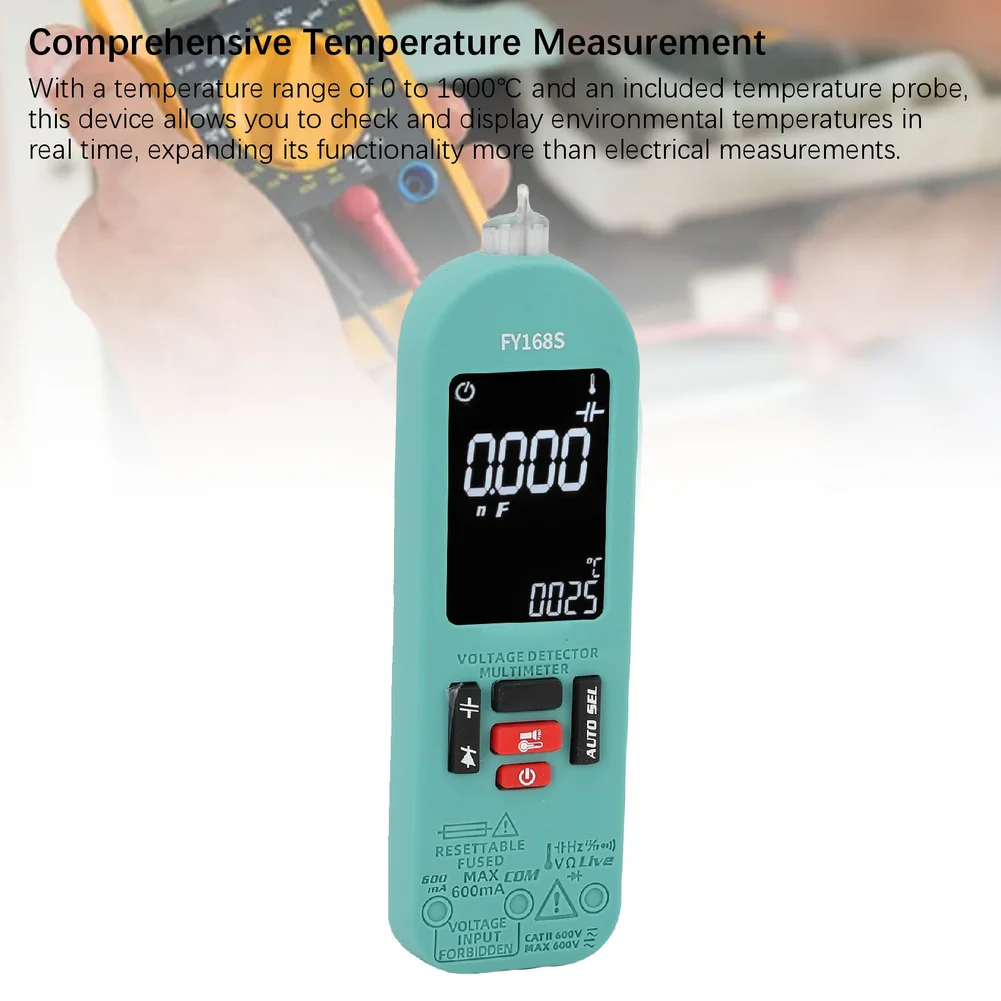

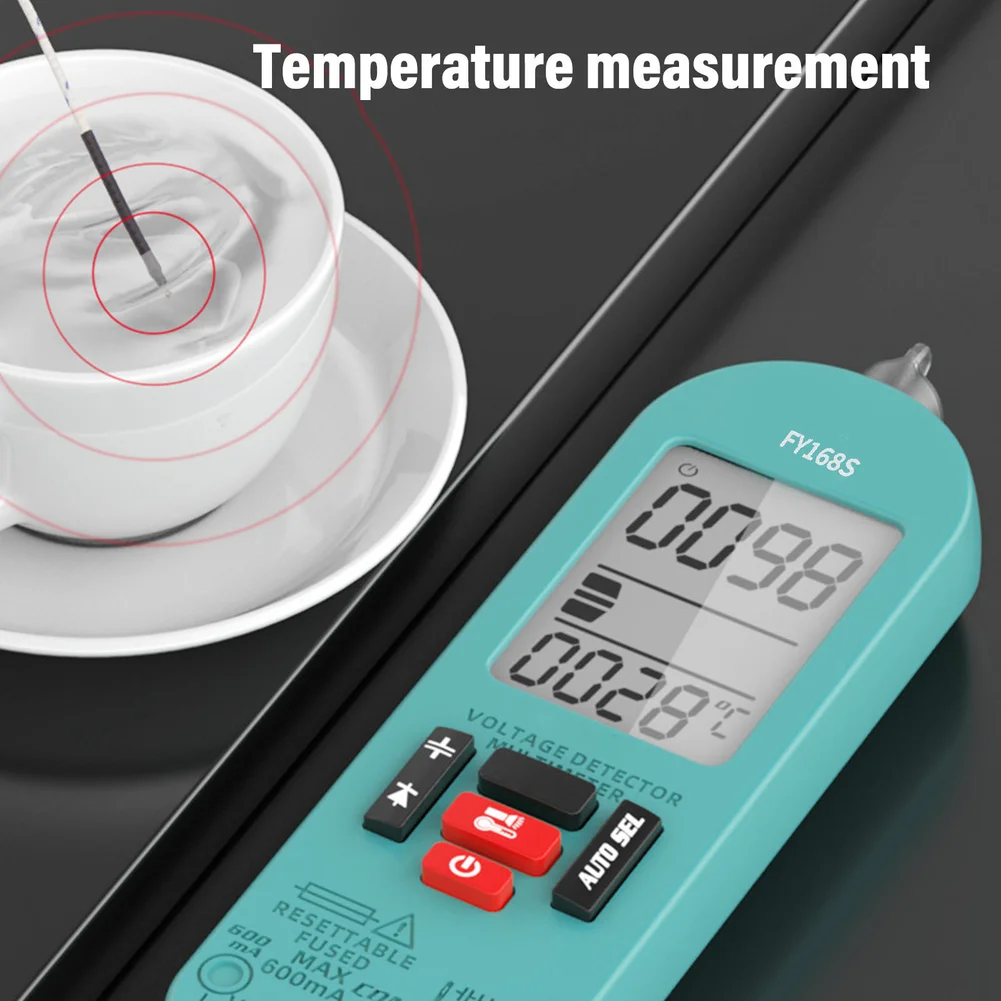

4. Comprehensive Temperature Measurement: With a temperature measurement range of 0 to 1000°C and equipped with a temperature probe, it can detect and display ambient temperature in real time, extending its functionality far electrical measurement.

5. Circuit Break Detection: Easily locate circuit breaks using the non-contact voltage detection mode (V ). This function helps you efficiently track and identify wire faults, making troubleshooting a breeze.

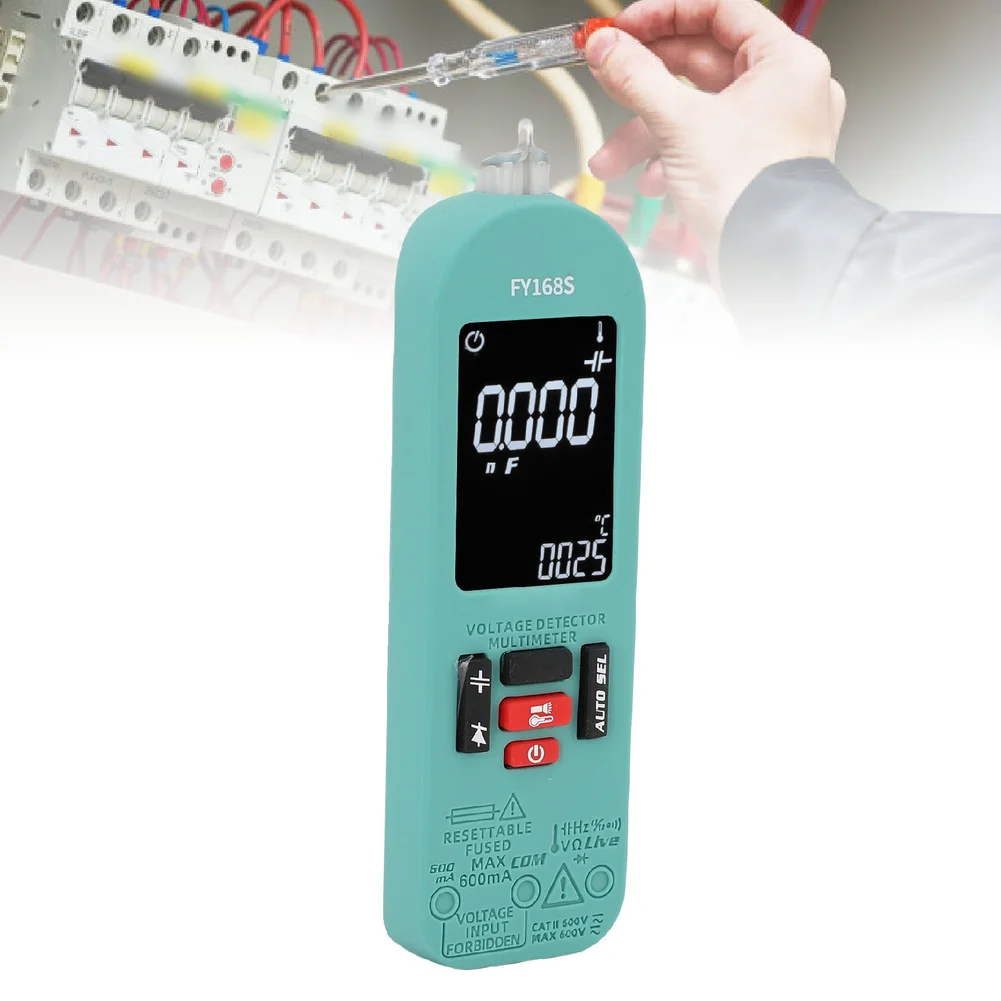

6. Live-line Safety Check: The live-line mode for ensures safe electricity use; users only need test probe to accurately identify the live and neutral wires. In addition, this multimeter has a live wire function to remind you of any potential hazards.

Specifications:

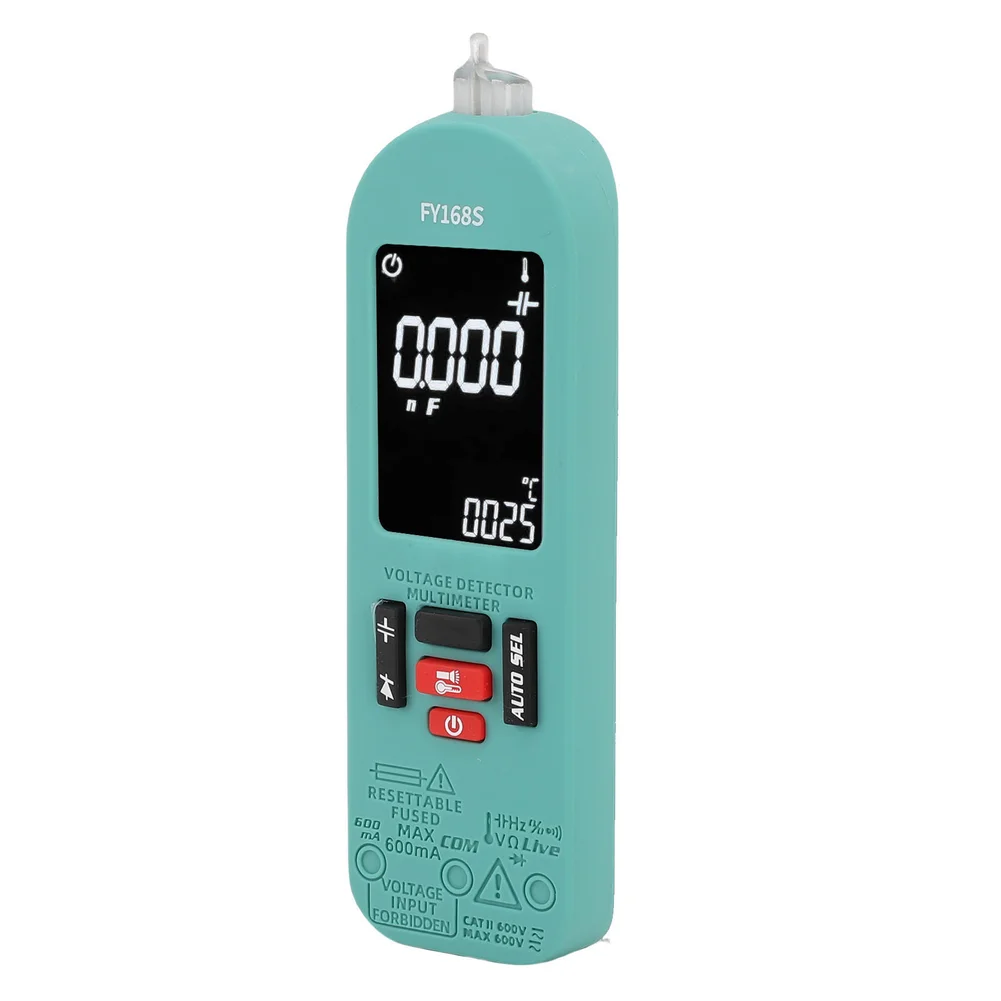

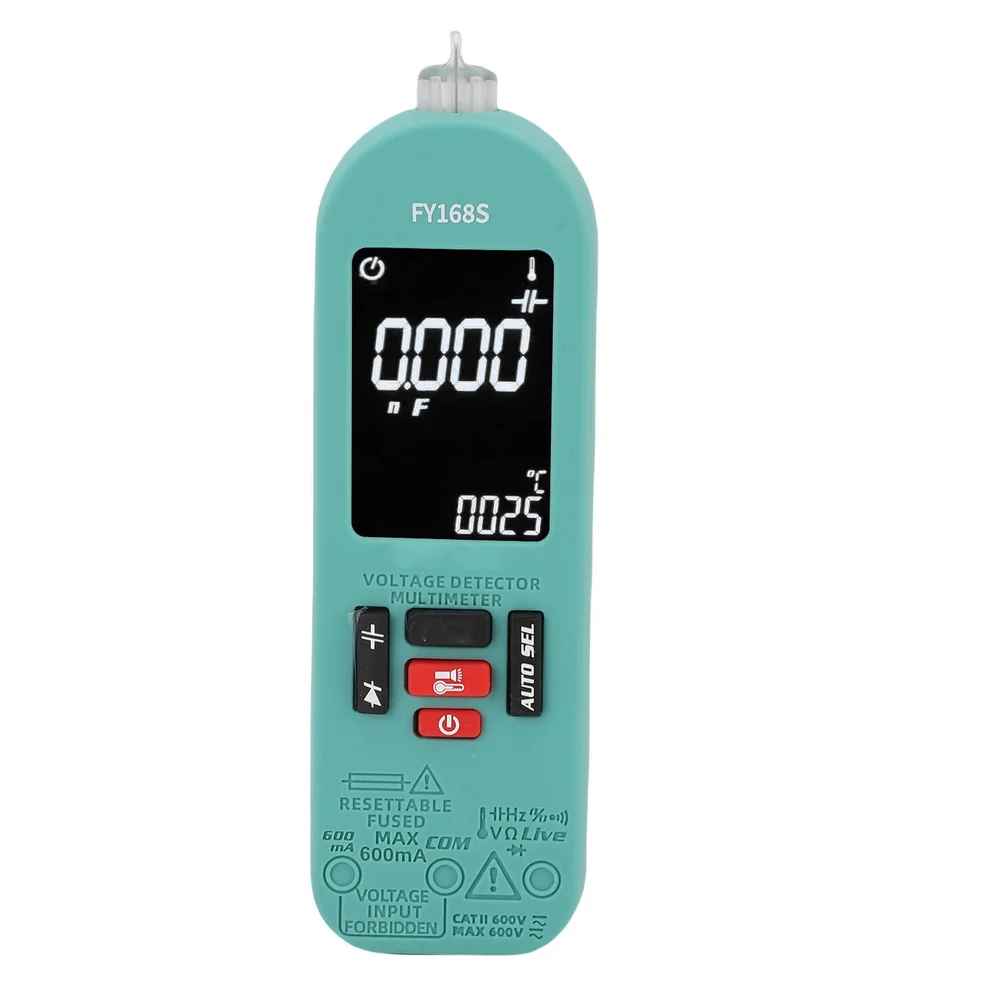

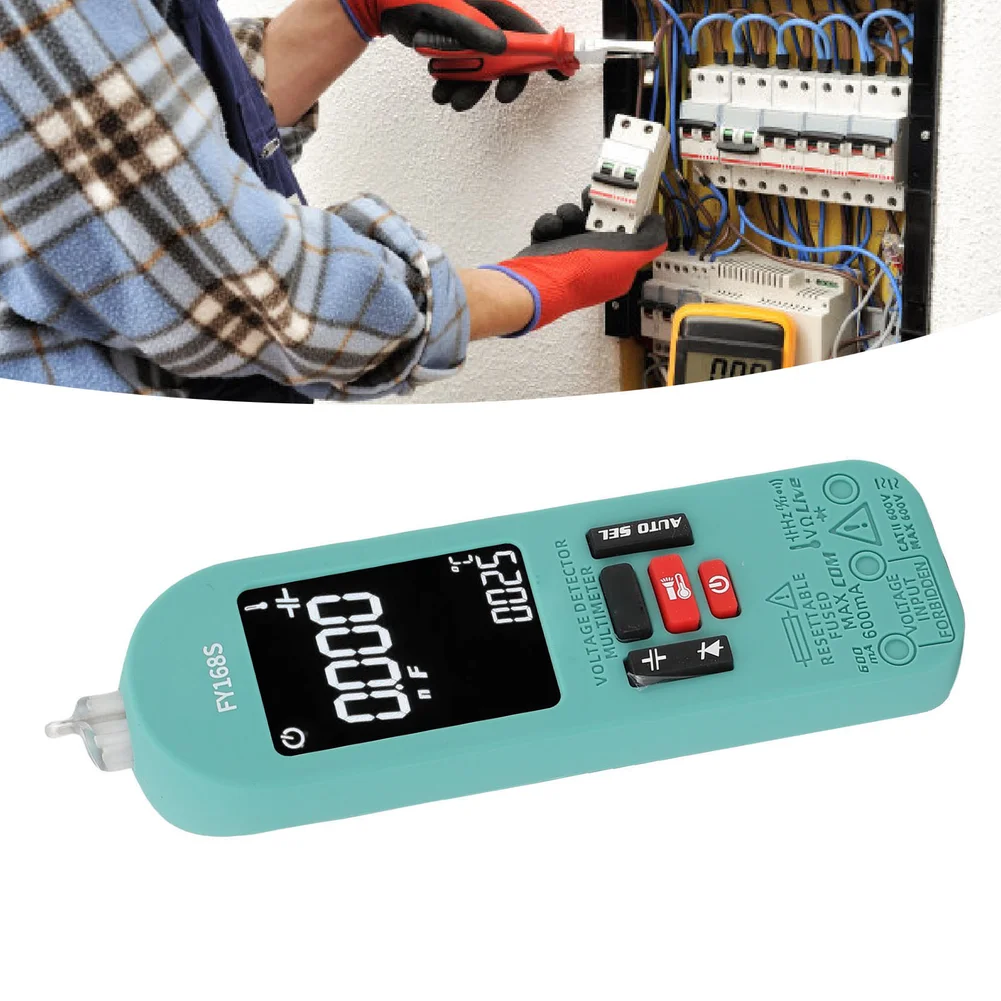

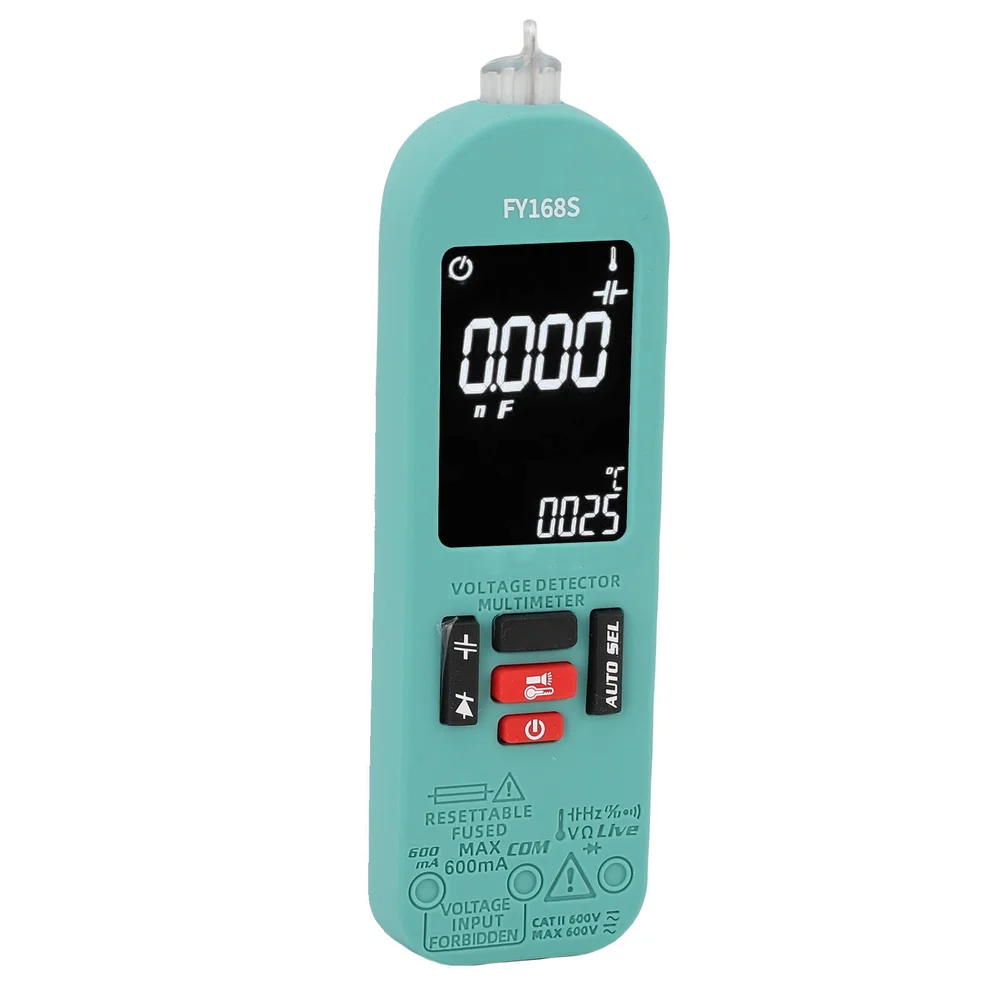

Part Name: FY168S Color Screen Digital Display Multimeter

Material: ABS

Color:

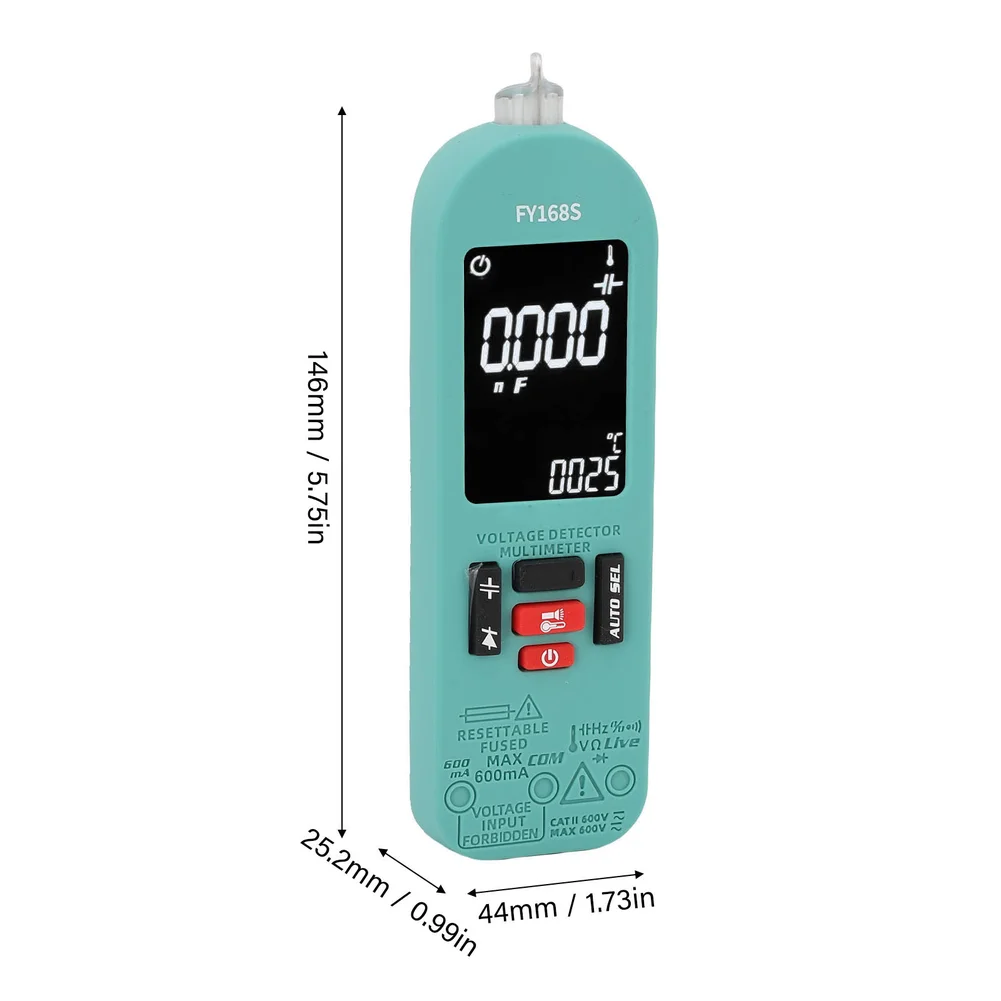

Size: 146*44*25.2mm

Operating Modes: Automatic, Manual

Screen: Reverse Display

Silicone Cover: Supported

AC Voltage:60mV-620V (Manual)

0.8-620V (Automatic)

±(1.2% of reading + 5)

10-620V (VFC Inverter Voltage)

DC Voltage:60mV-620V (Manual)

0.8-620V (Automatic)

±(0.8% of reading + 3)

AC Current (Pin Auto) Automatic Identification:1mA-610mA

±(1.5% of reading + 3)

DC Current (Pin Auto Identification):1mA-610mA

±(1.5% of reading + 3)

Capacitance:0.5μF-60μF

±(4.5% of reading + 10)

Resistance:10-60MΩ

±(4.5% of reading + 10)

Frequency, Duty Cycle: Supported

Diode: Supported

Switch Buzzer: Supported

Live/Neutral/Live Wire Detection: Supported

Voltage Alarm; Non-contact Voltage Sensing: Adjustable Sensitivity (for HI High Sensitivity, LO Low Sensitivity);

Line Break Detection: Detected in voltage alarm mode;

Temperature Range: 0℃ to 1000℃;

Ambient Temperature Range: 0℃ to 50℃;

Automatic Shutdown: Automatically shuts down after approximately 15 minutes of operation; Power Supply: 3.7V 400mAh Battery x 1 [Built-in Battery]

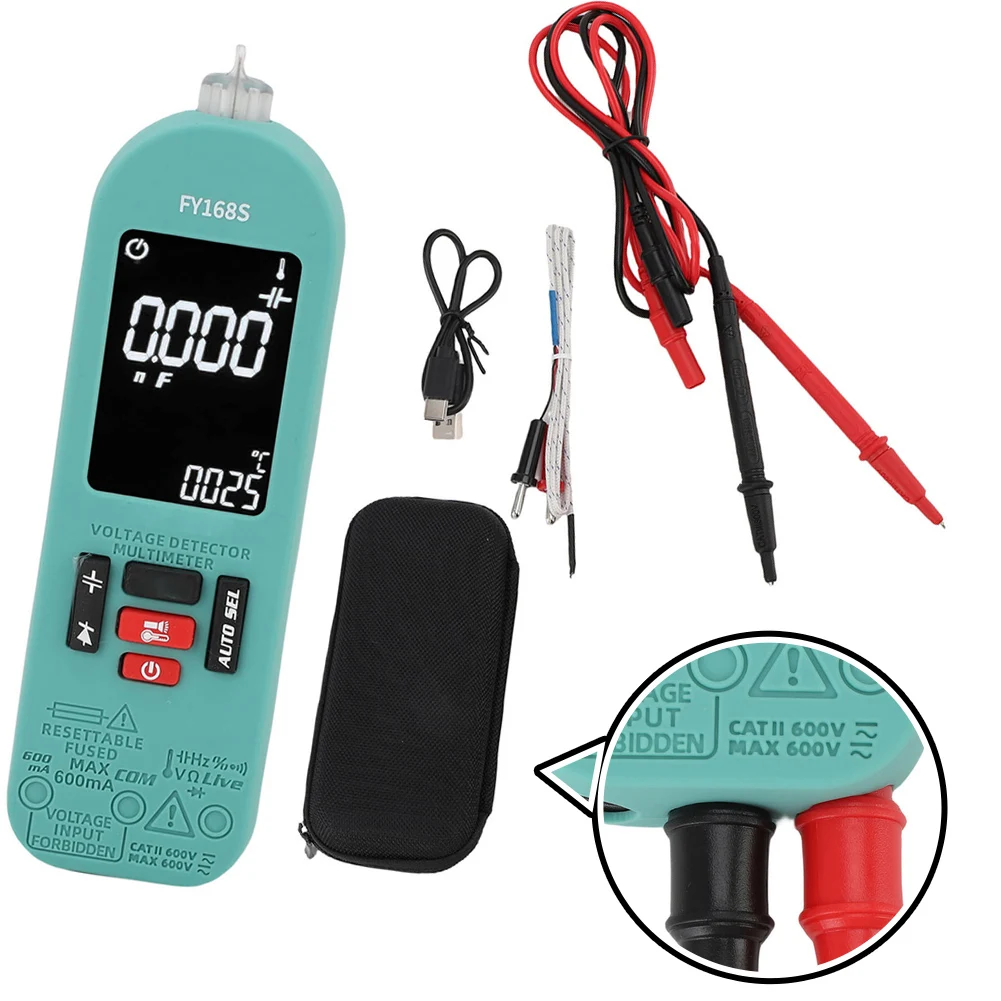

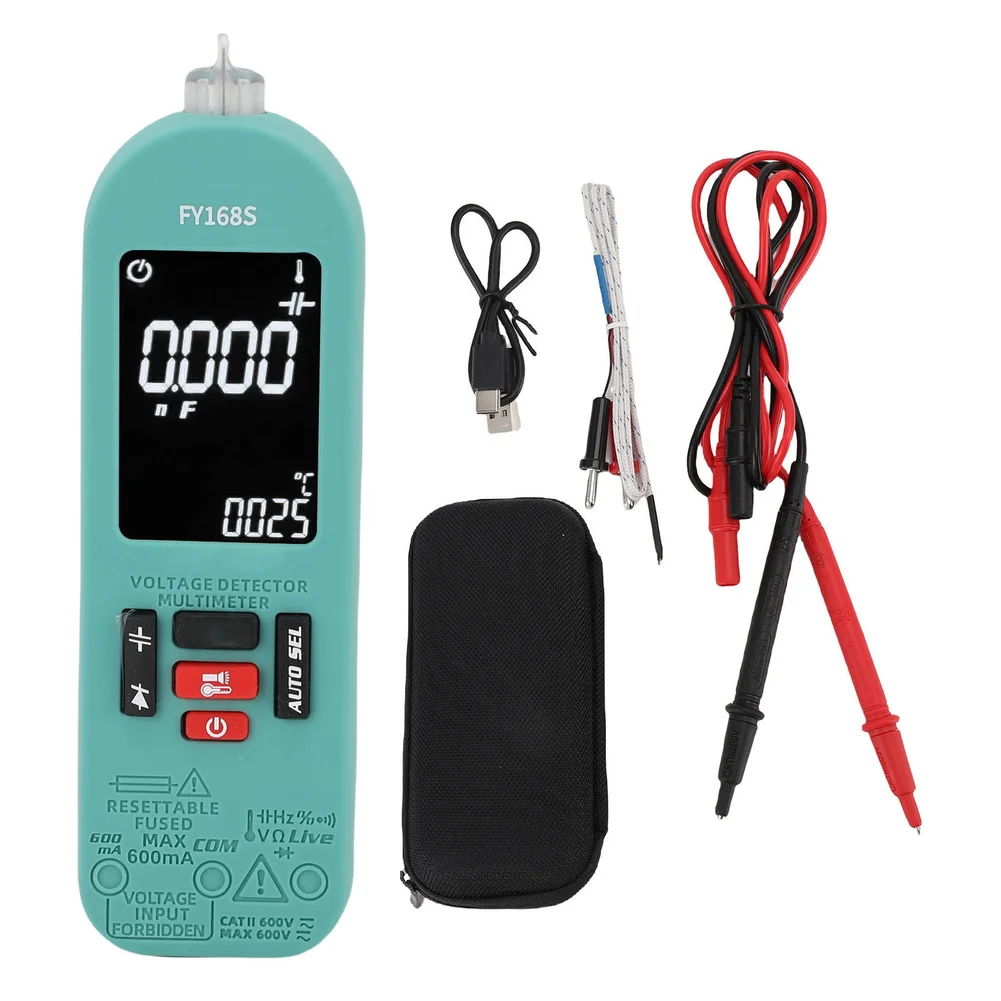

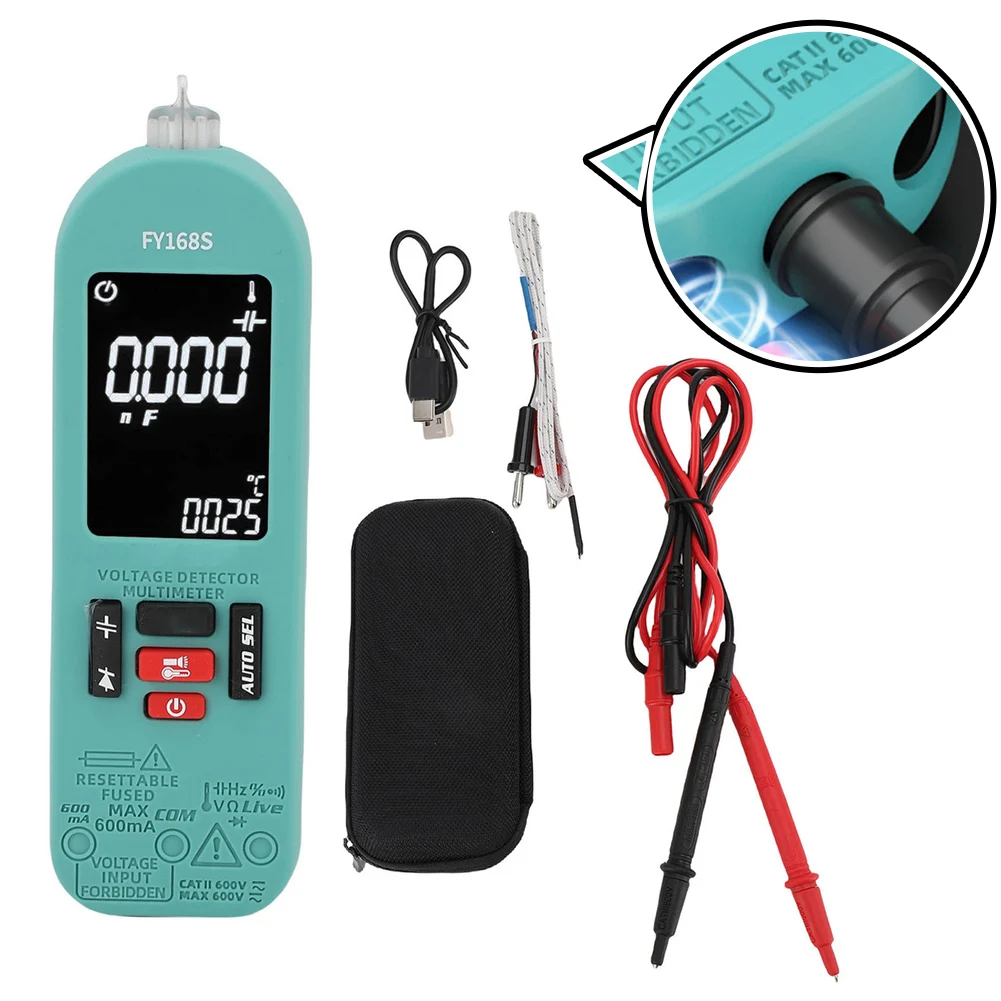

Package Contents:

1* multimeter

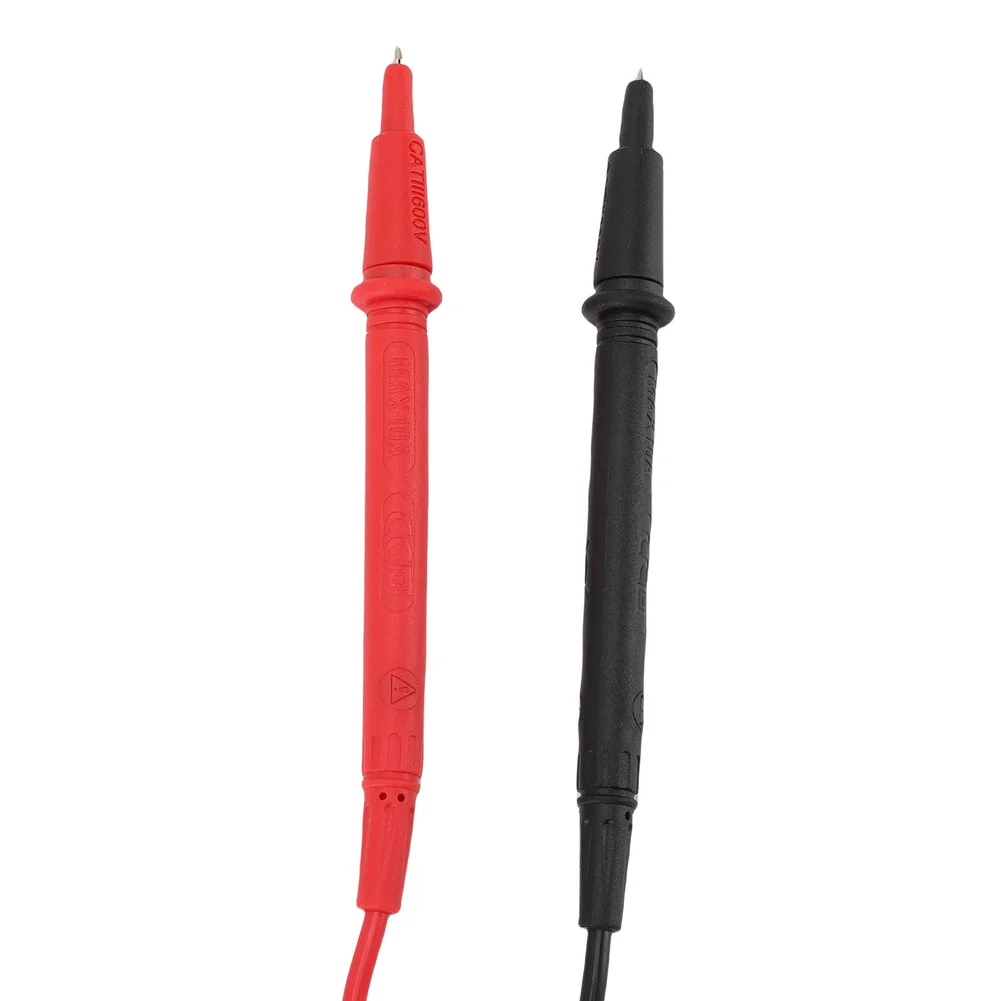

3*test cables

1* USB data cable

1* carrying case

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2. Please allow slight manual measurement deviation for the data.
