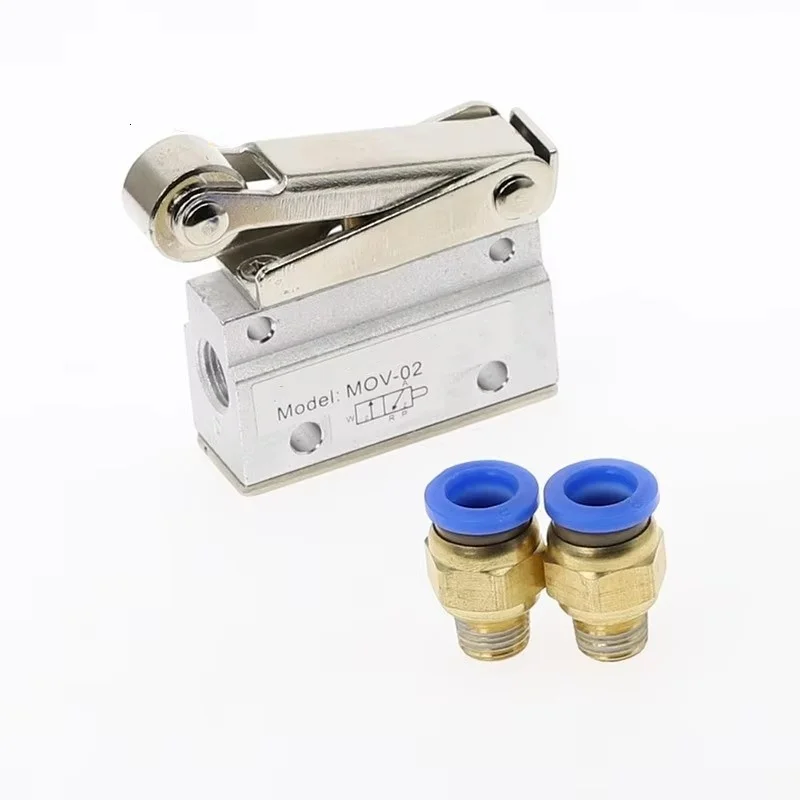

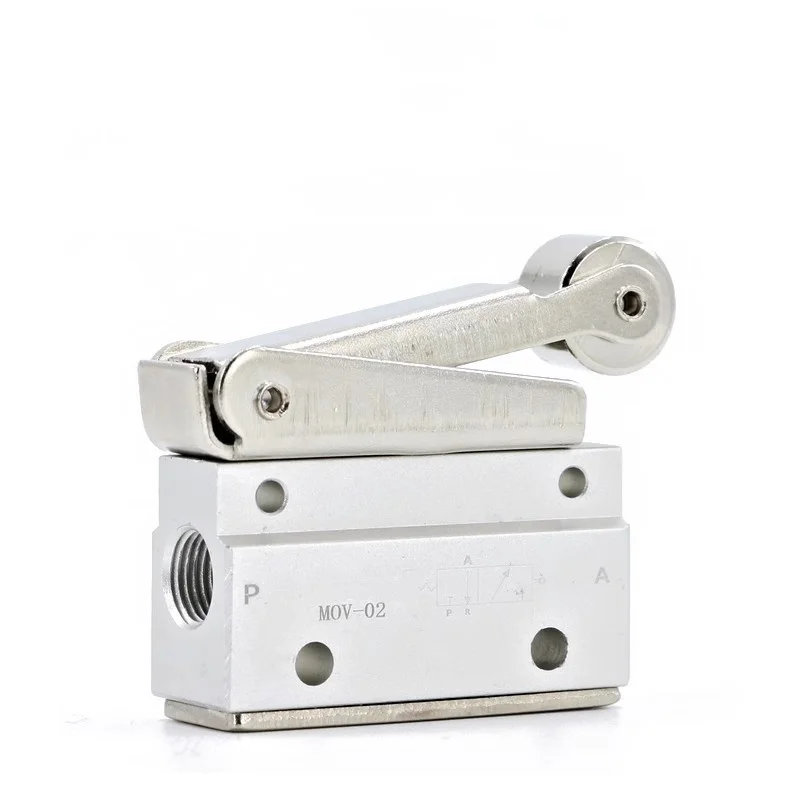

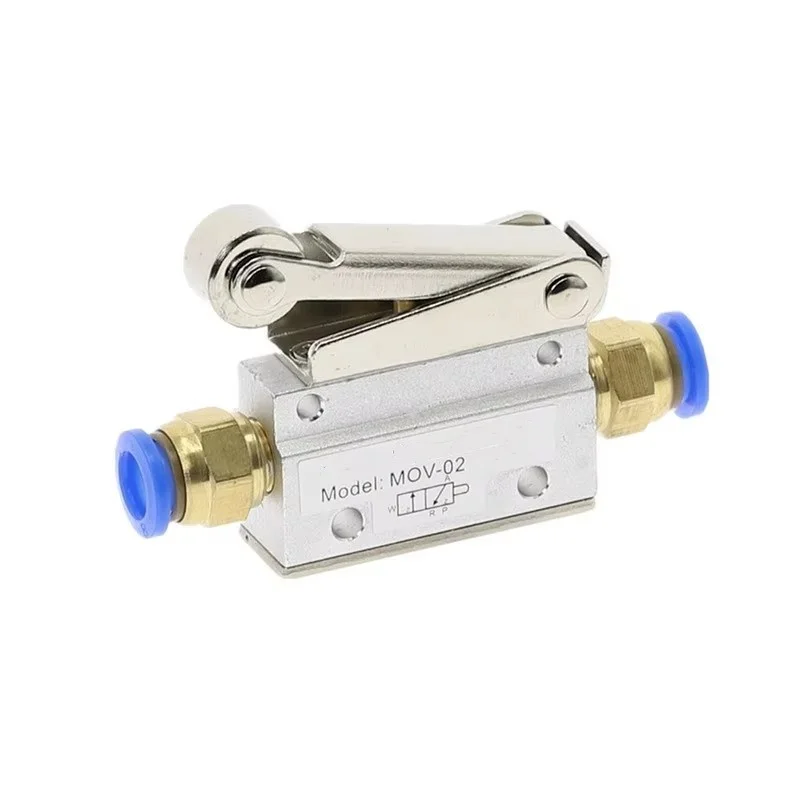

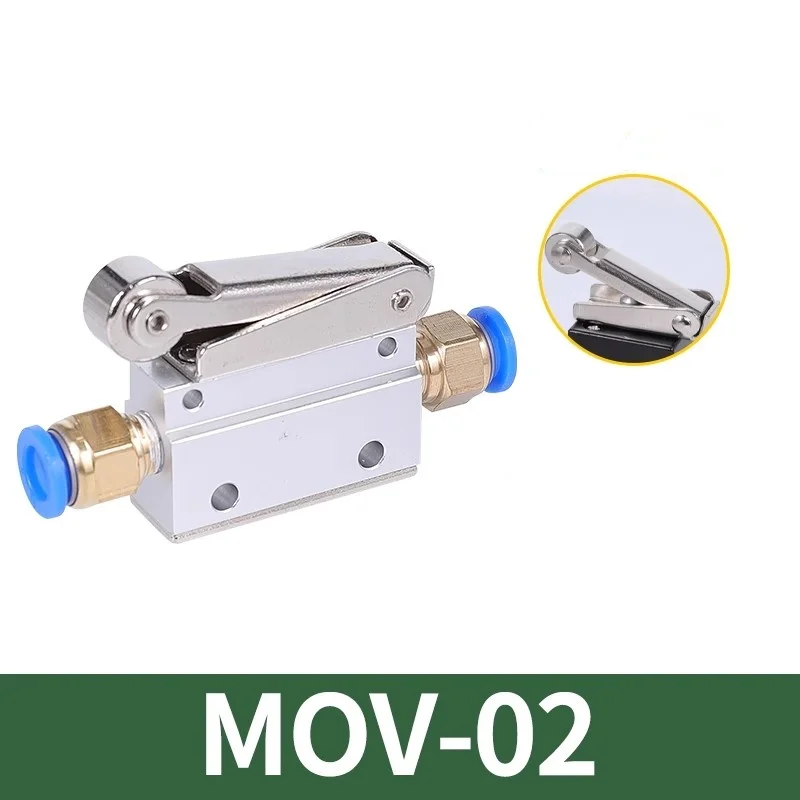

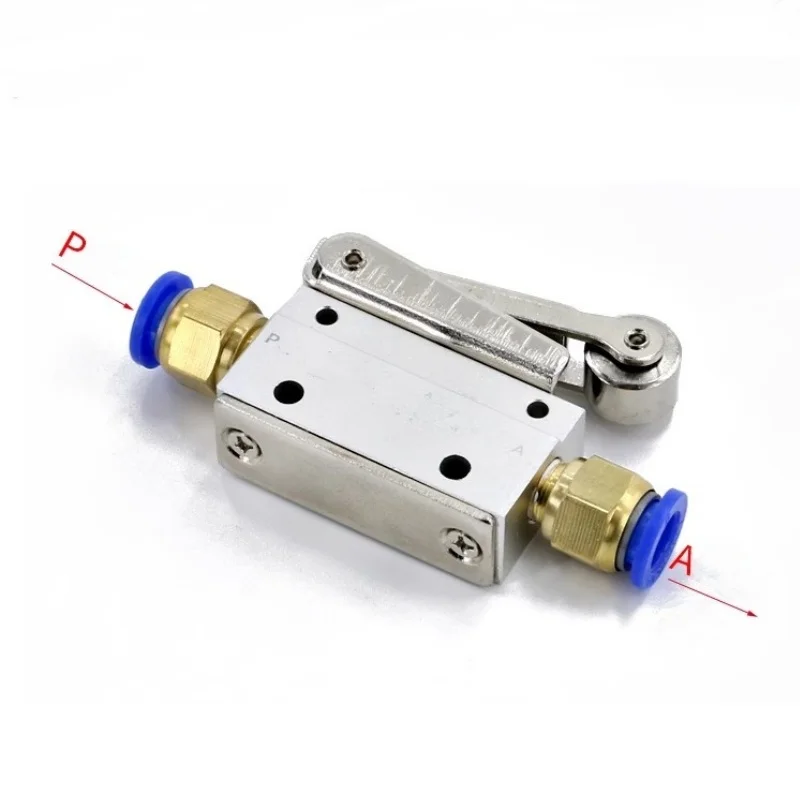

MOV-02 PT 1/8"Female Thread 3 Position 2 Way Pneumatic Mechanical Valve MOV-321 Reversing Valve Roller Hand Manual Valves

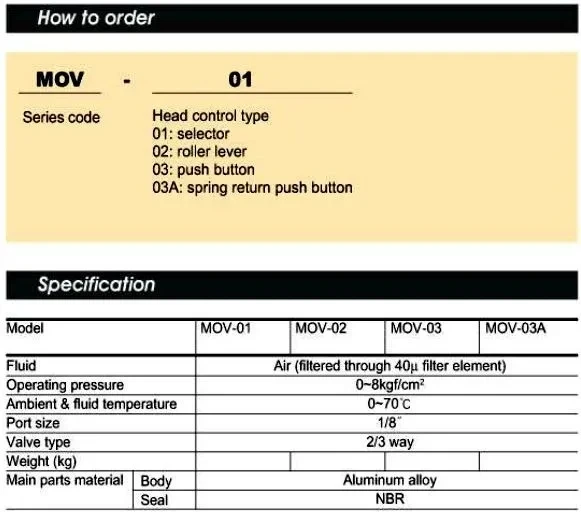

Product Name "Mechanical Valve
Model "MOV-02
Resetting Type
Standard Type
Actuator Type Roller Type
Fluid "Air
Position and Way No. 2 Position 3 Way

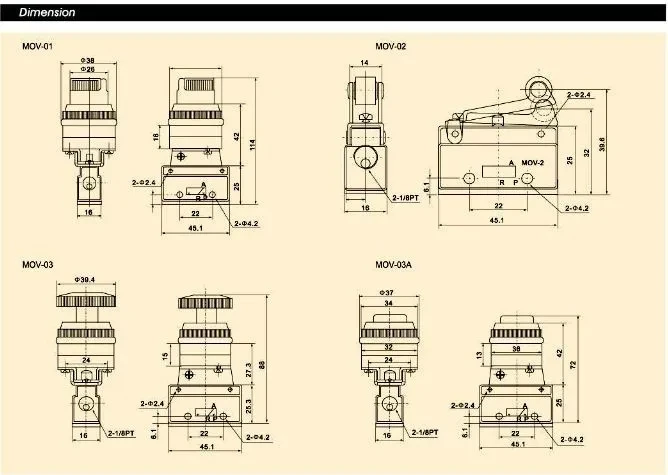

Pipe Thread Diameter :8.5mm
Fixing Hole Diameter :4.5mm
Working Pressure Range:
0 – 8kgf/cm⊃2;
Roller Diameter :13.8mm / 0.5"
Arm Size(not include roller) :50 x 11mm / 1.9" x 0.47" (L * W)

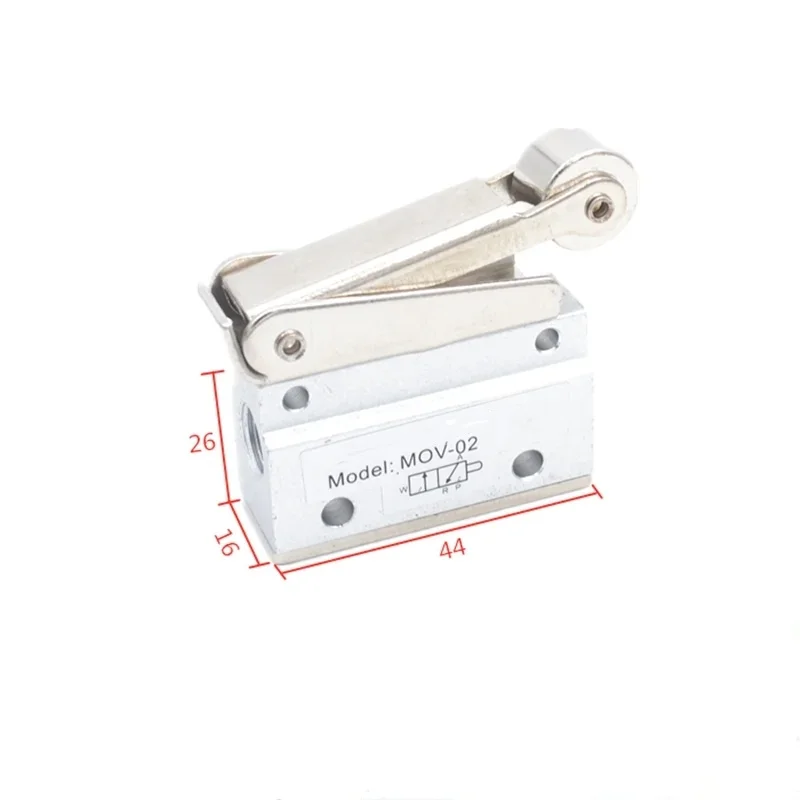

Body Size(Approx.) :44 x 23.3 x 16mm / 1.7" x 0.9" x 0.63"(L*W*T)
Package 1 x Mechanical Valve
