What is the self-Regulating Heating Cable, what is the advantage of the electric cable?
1. Temperature control with tropical cable by the conductive polymer composite (plastic) and two parallel metal wire and insulated jacket.
2. Flat ribbon cable. Its characteristics are conductive polymer composites with positive temperature coefficient "PTC" characteristics, and in parallel with each other, can.
3. With the heating system temperature changes automatically adjust the output power, automatically limit the heating temperature.

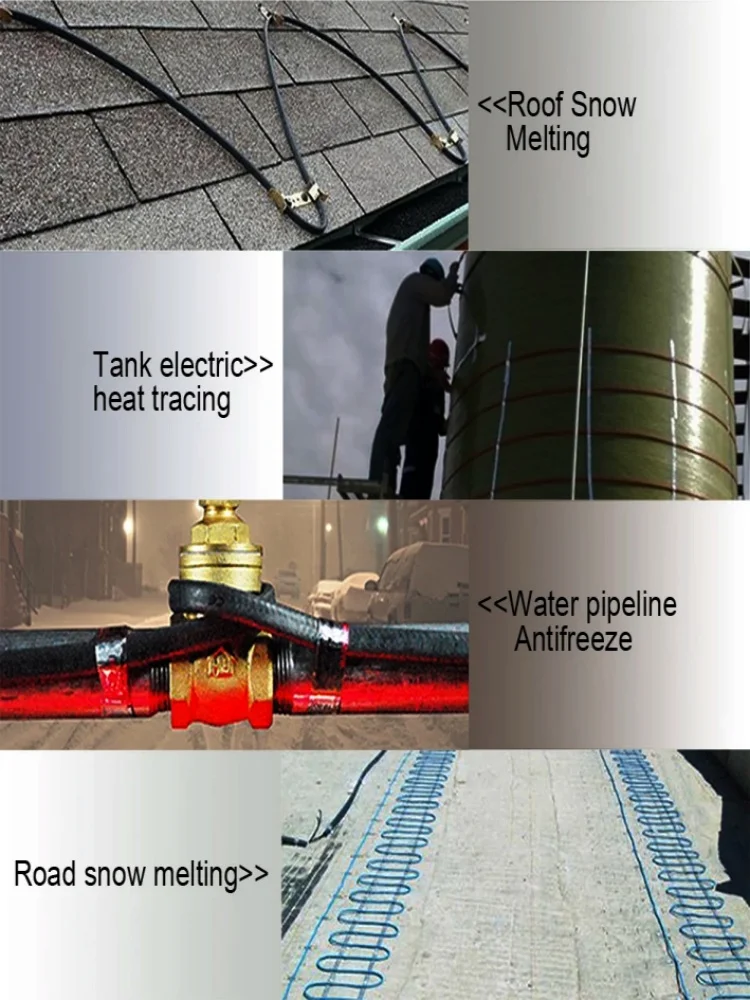

>> This cable is suitable for household drinking water pipe, drain pipe freeze protection in winter and other heating applications.
>> The cable can self regulate the output power according to the temperature, it won't overheat, so the temperature controller is not necessary.
>> The cable is with high quality PE jacket, and inner has the PE composite insulation layer, better water-proof and good quality.
Self-Regulating Heating Cable's Advantages:
1, The heating pipe temperature's uniformity, not overheating, safe and reliable;
2, saving energy;
3, intermittent operation, the temperature rise,moving fast;
4, installation and operation costs low;
5, easy installation and maintenance;
6, easy to automate management;
7, no environmental pollution;
8, suitable for complex pipeline tracing;
9, for the pipeline away from the device with heat;
10, for the instrument box and pipe antifreeze.
Description:
1. T his Drain Water Pipe Freeze Protection cable is suitable for household drinking water pipe, drain pipe freeze protection in winter and other heating applications.
2. The cable can self regulate the output power according to the temperature, it won't overheat, so the temperature controller is not necessary.
3. The cable is with high quality PE jacket, and inner has the PE composite insulation layer, better water-proof and good quality.
Technical Data:
Cable type: self-regulating heating cable
Voltage: 200V~240V
Power: 17W/m (5W/ft) @10℃. Initially, the power will be about twice that of normal, but as the temperature rises, the power will drop below 17W/m.
Max working temperature: 60℃
Min installation temperature: -40℃
Start-up current: less than 0.6 A/m
Min. bend radius: @20℃:25.4mm @-30℃:35.0mm
Structure:
1. Copper conductor
2. PTC heating element
3. PE outer sheath

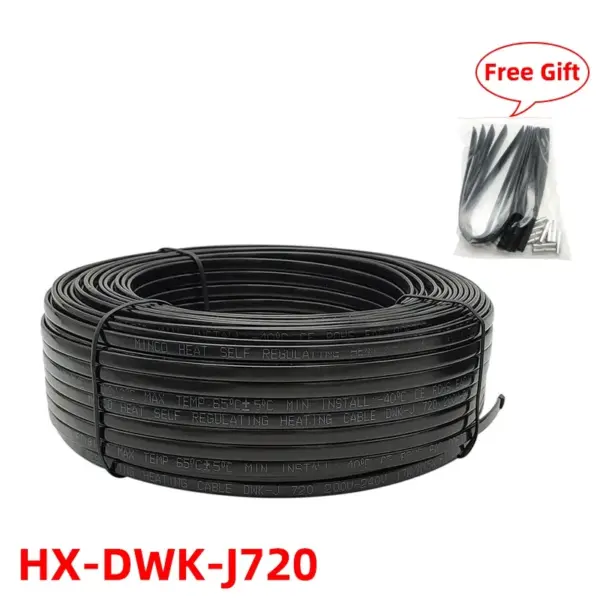

Product Pictures:
Should you wish to purchase end caps 1 and 2, you may contact me.

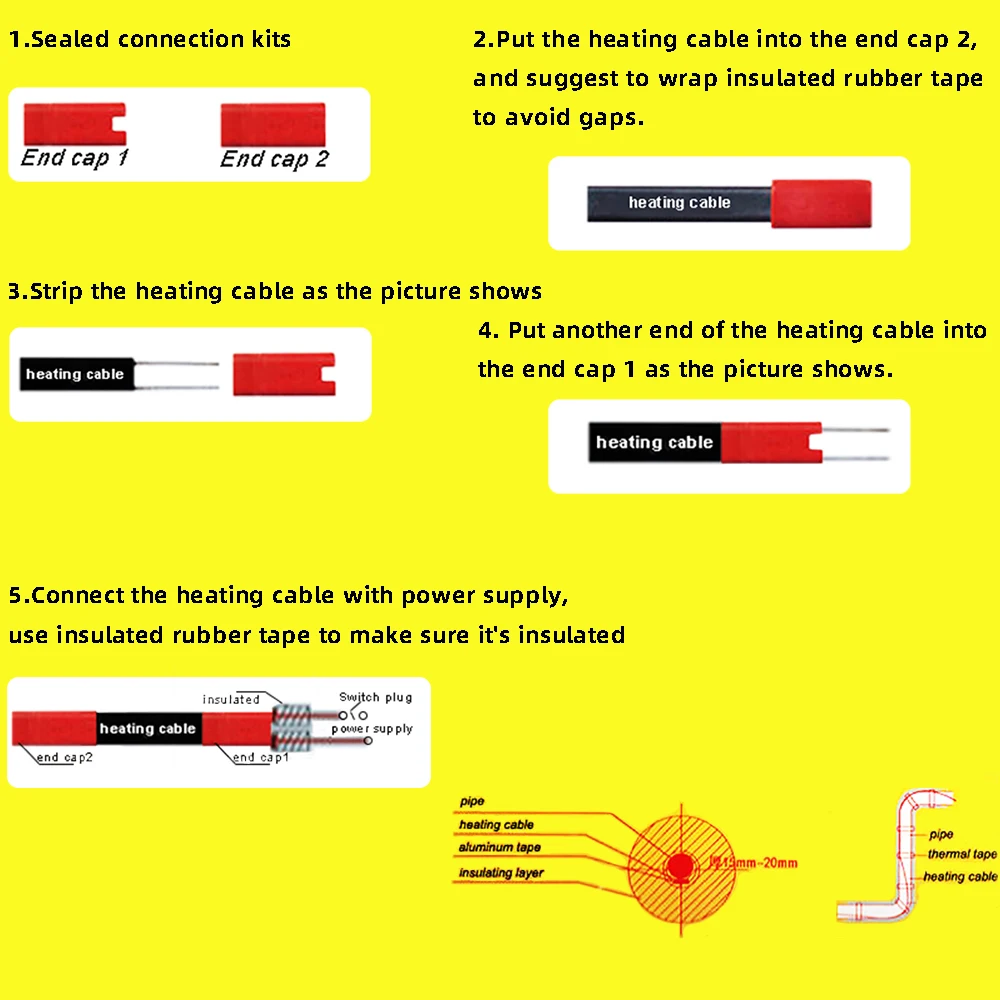

Installation diagram:
1) Seal the end of the cable with heat shrinkable tube or other electrical insulating tape.DO NOT connect the two conductors together!
2) Connect the other end with cold wire or plug (for connecting to the power supply).
3) Wrap the heating cable on water pipes or fastening straight on pipes, both are ok. Put the whole cable on the pipes and fasten it every 30~60cm with thermal tape or aluminum tape(sold in my store).
4) Suggest to wrap a layer of rubber insulation on the pipe, enhance efficiency of the heating cable and save energy, also can protect the heating cables.
5) Connect or plug into 220~240V. The heat trace system is finished.
Tips:max circuit length is 20 meters.
