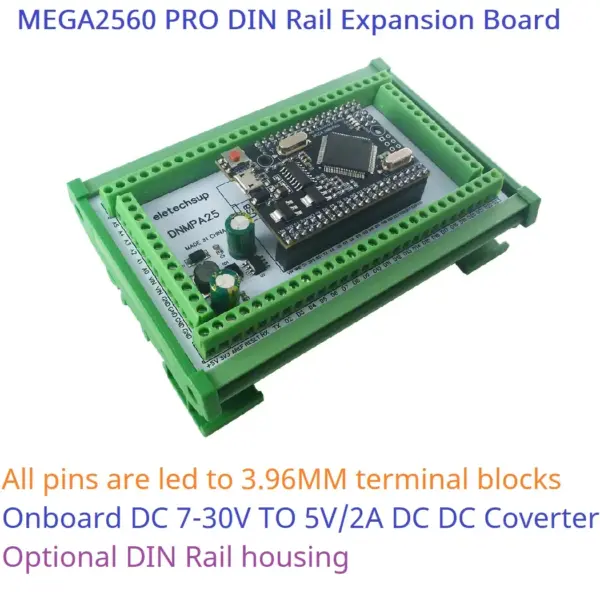

MEGA2560 PRO DIN Rail Expansion Board DC-DC 5V 2A Converter 3.96mm Mount Screw Terminal Block Adapter Module DNMPA25 for Arduino

Package inlcuded:

1 PCS DNMPA25 DIN PinBoard for MEGA2560 PRO(only board or with shell)

(does not include the MEGA2560 pro module)

Description:

Terminal spacing: 3.96mm.

Terminal Blocks: Wire Range 26-16AWG, Strip Length 3.96mm, Metric M2/M2.5 Slotted Screws.

All pins are led to 3.96MM terminal blocks

Onboard DC 7-30V TO 5V/2A DC DC Coverter

Optional DIN Rail housing

Size: 117 * 72 * 14mm(Only Board);121 * 82*38mm(with Din Rail Box)

Weight: 74g(Only Board);162g(with Din Rail Box)

Use:
DIN Rail Mount Screw Terminal Adapter Module for Arduino MEGA2560 PRO Board.
With this adapter modules, you can easily extend your Arduiuo projects to industrial control applications.

Notice:
Without MEGA2560 PRO board, you need to bring your own

DIN rail Box parameters:
Product model: UM72
Color: Green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 117 mm PCB boards
Net weight: 88g
Installation: DIN35 and C45 rail
