Description
OOTDTY
brand new and high quality.
More durable for your for cars’ daily use.
Adjustable cushion on both cylinder end covers to make sure the cylinder works very smoothly, safly and with low noise.
With self-lubricating bearing, the piston rod is lubrication
It is widely applied to the automatic equipment in light industry, industry, textile industry, electronic and machinery industry.
Product Description:

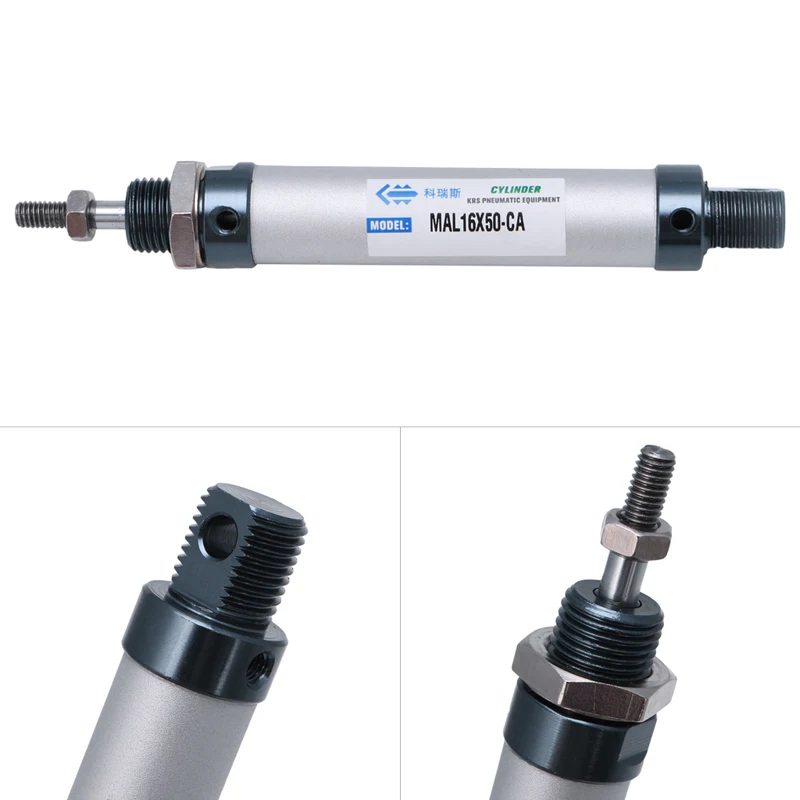

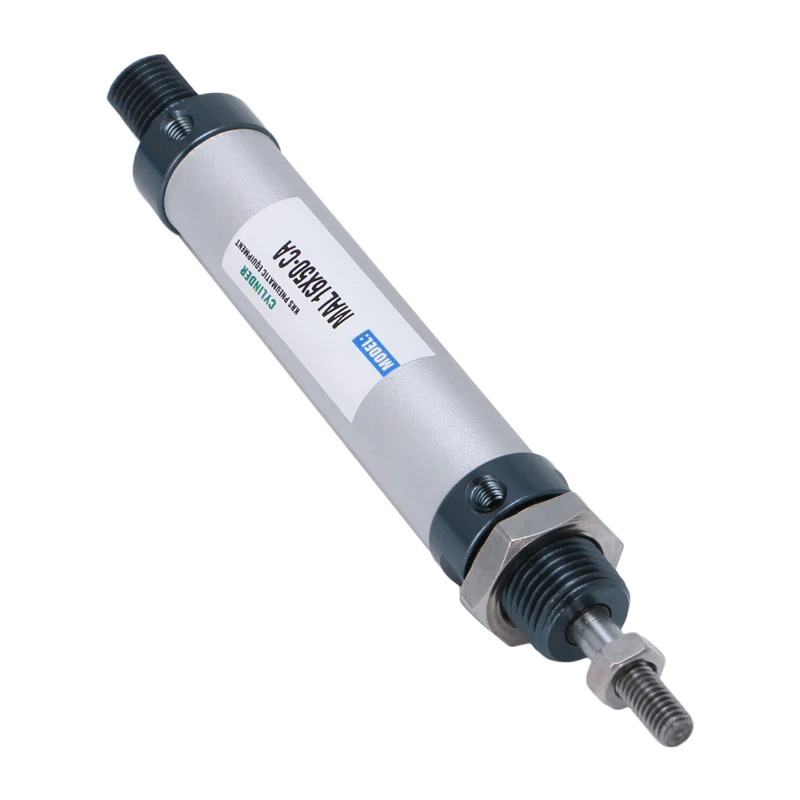

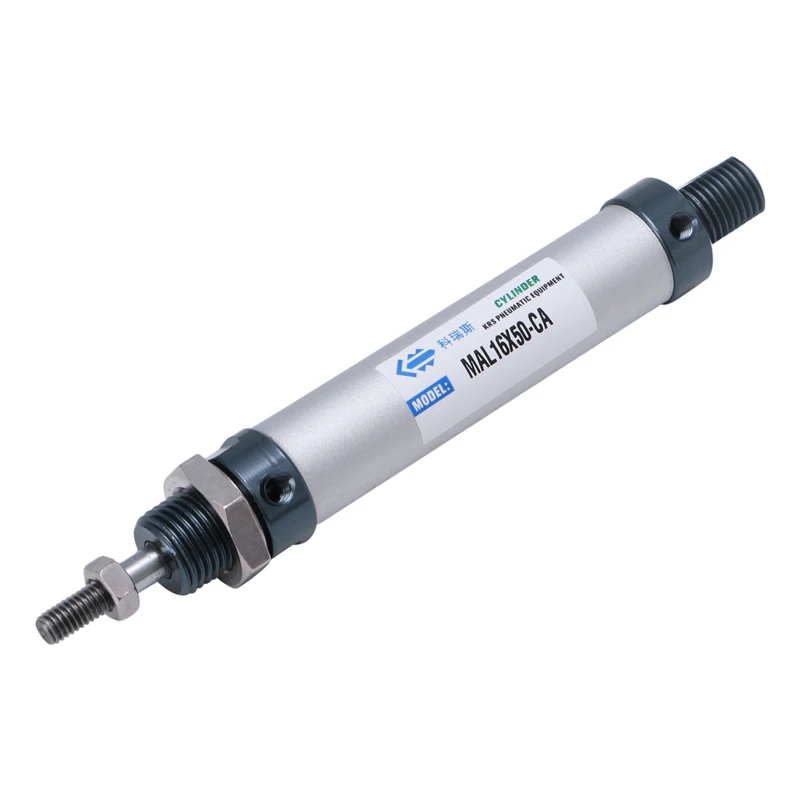

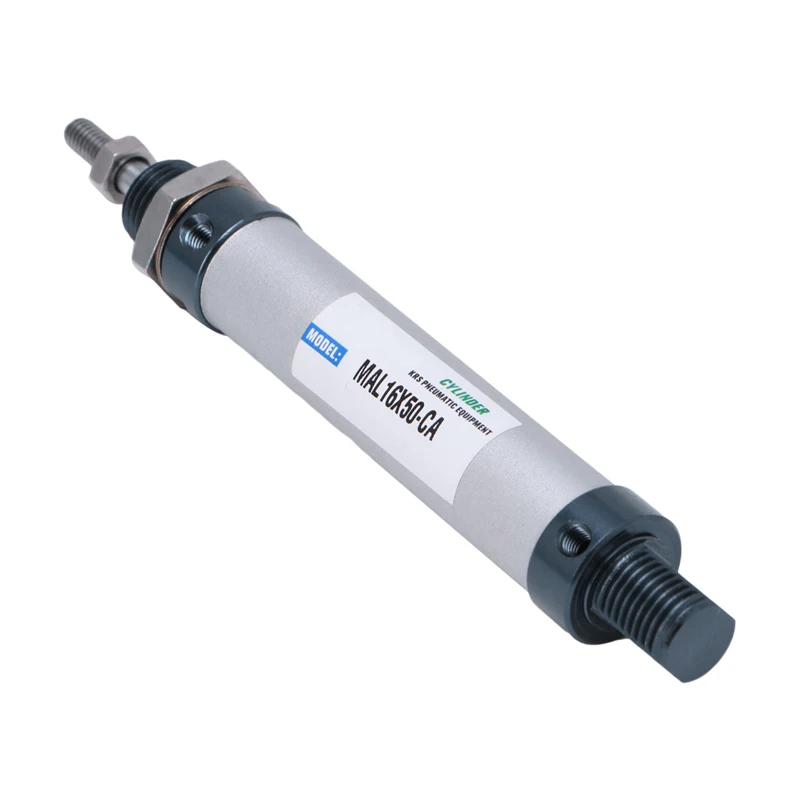

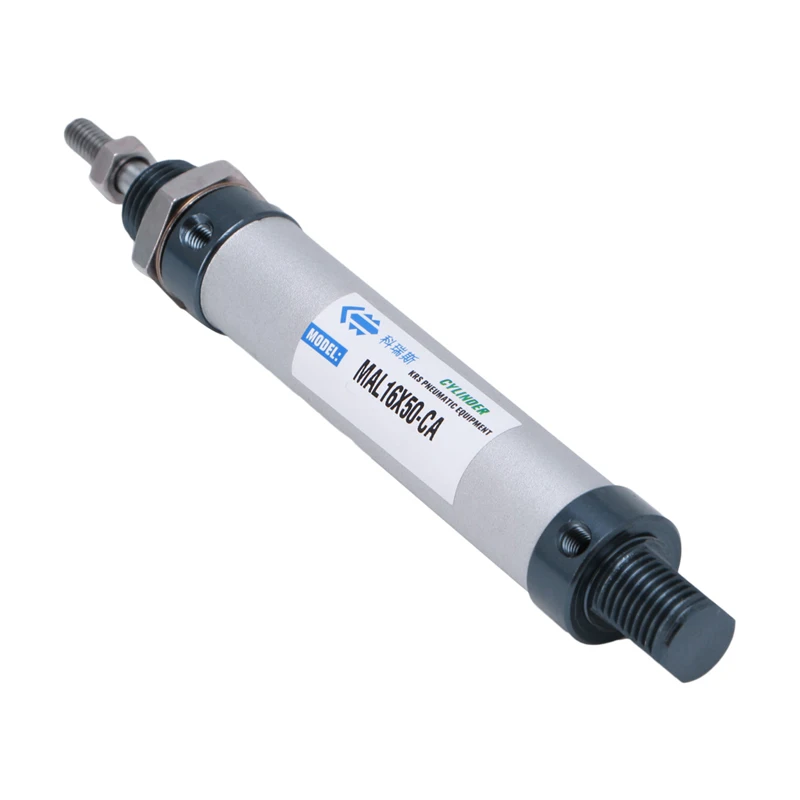

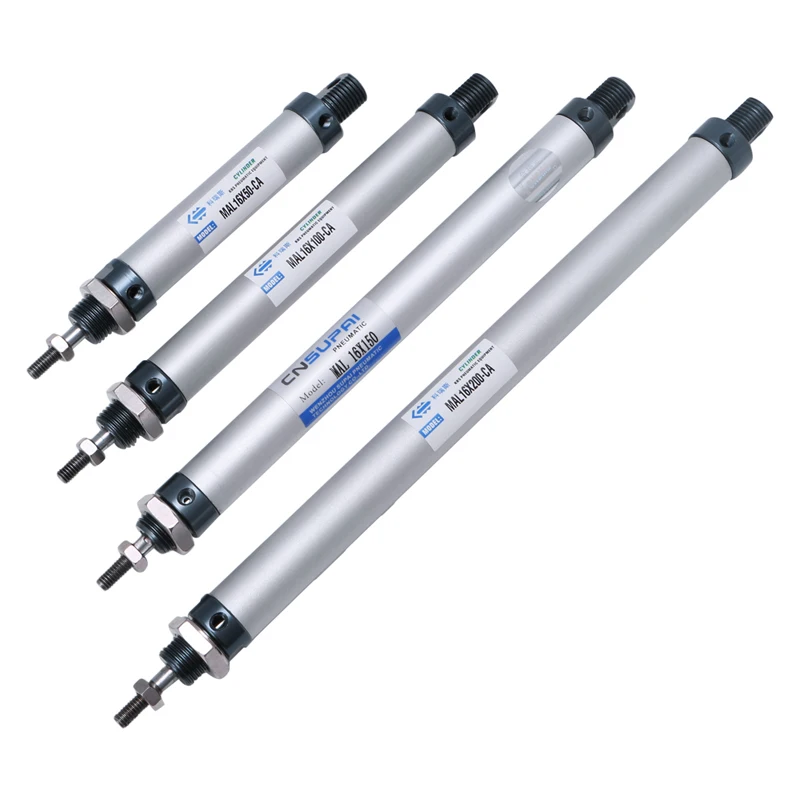

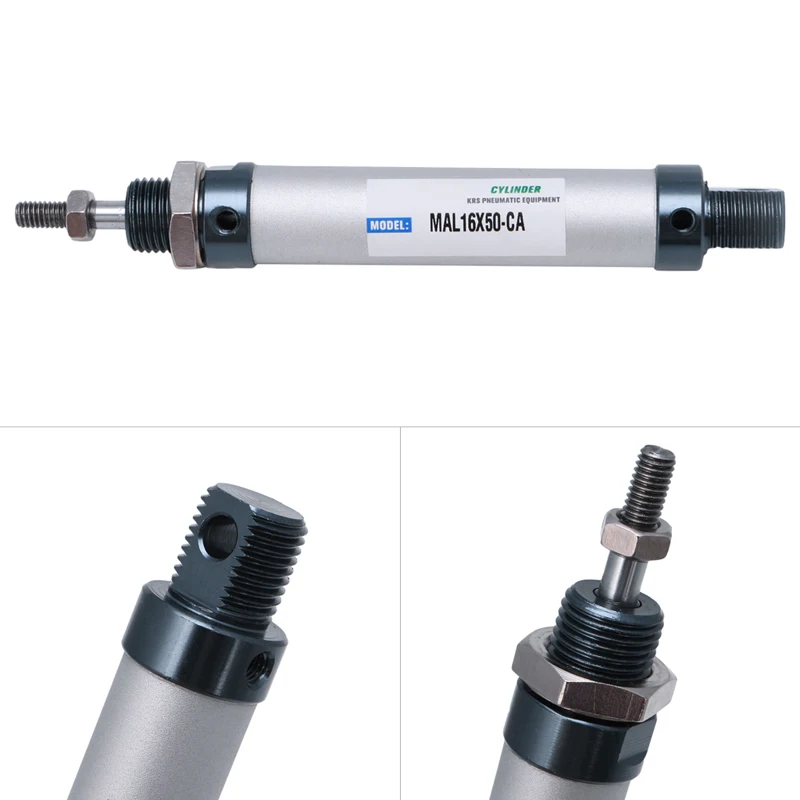

Model: MAL 16 50-CA
Action Type: Double Action
Rod type: single rod
Fluid: air
Bore: 16MM
Stroke: 50mm
Piston rod thread: M6 * 1
Screw diameter: 6mm
End thread. : 16mm * 1.5
Working pressure: 0.15-1MPA
Weight: 107g
Length: 17.6cm / 6.93
Material : Aluminum Alloy

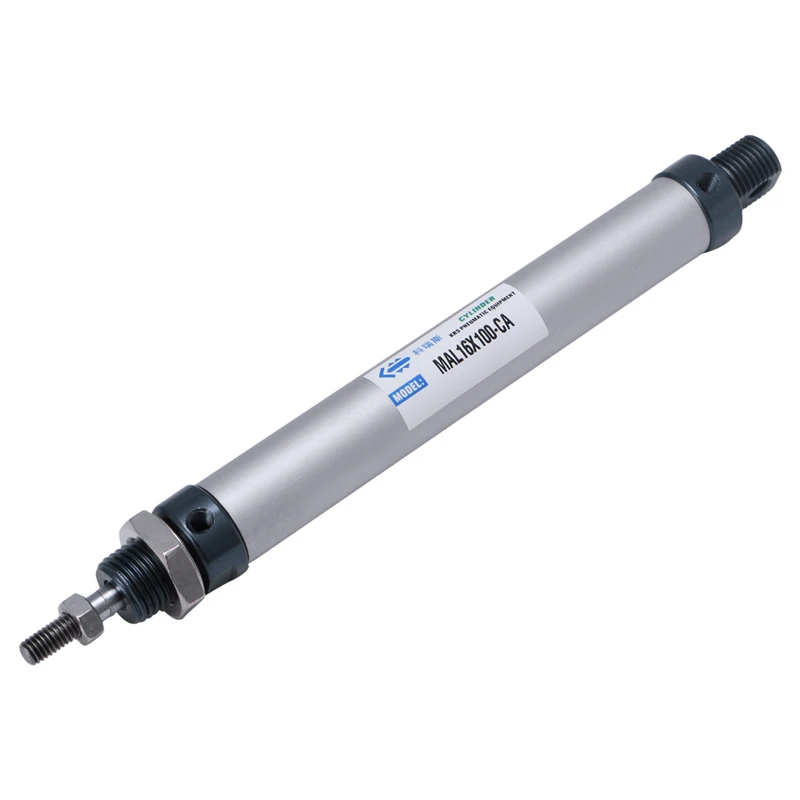

Model: MAL 16 100-CA
Action Type: Double Action
Rod type: single rod
Fluid: air
Bore: 16MM
Stroke: 100mm
Piston rod thread: M6 * 1
Screw diameter: 6mm
End thread. : 16mm * 1.5
Working pressure: 0.15-1MPA
Weight: 135g
Length: 21cm / 8.27
Material : Aluminum Alloy

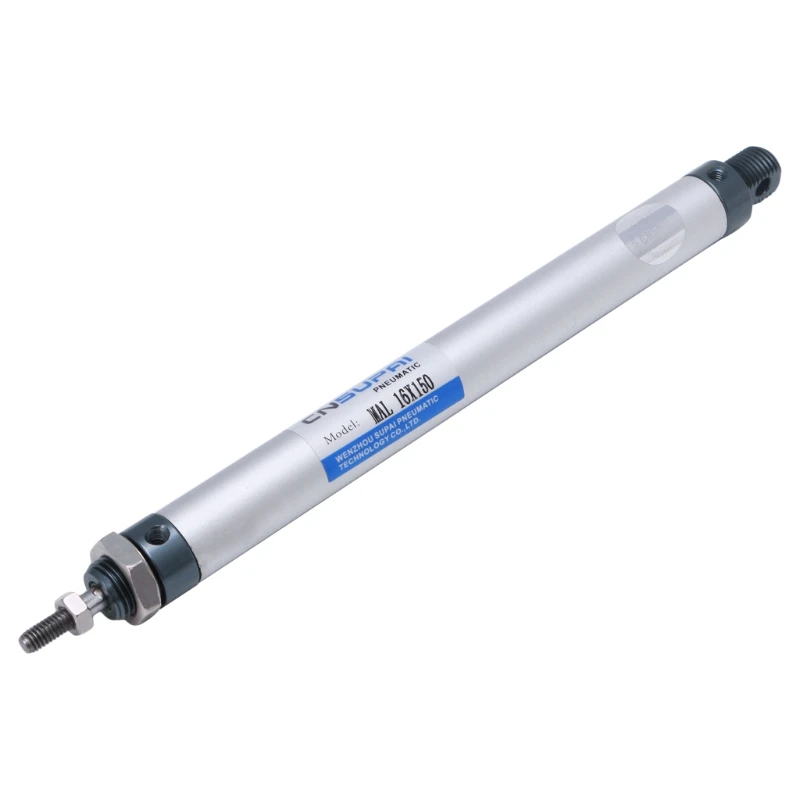

Model: MAL 16 150-CA
Action type: double action
Rod type: single rod
Fluid: air
Bore: 16MM
Stroke: 150mm
Piston rod thread: M6 * 1
Screw diameter: 6mm
End thread. : 16mm * 1.5
Working pressure: 0.15-1MPA
Weight: 162g
Length: 25.5cm / 10.04
Material : Aluminum Alloy

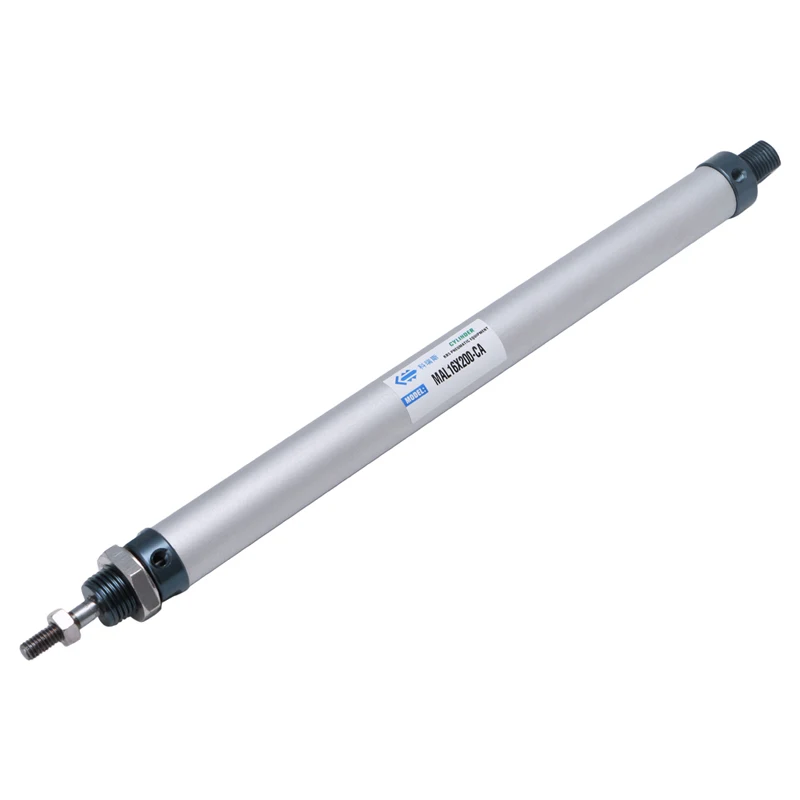

Model: MAL 16 200-CA
Action type: double action
Rod type: single rod
Fluid: air
Bore: 16MM
Stroke: 200mm
Piston rod thread: M6 * 1
Screw diameter: 6mm
End thread. : 16mm * 1.5
Working pressure: 0.15-1MPA
Material : Aluminum Alloy
Weight: 190g
Length: 31cm / 12.2
No Retail Packages
Quantity: 1Pc
Note:
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Packing list:
1 * Air cylinder
