Description

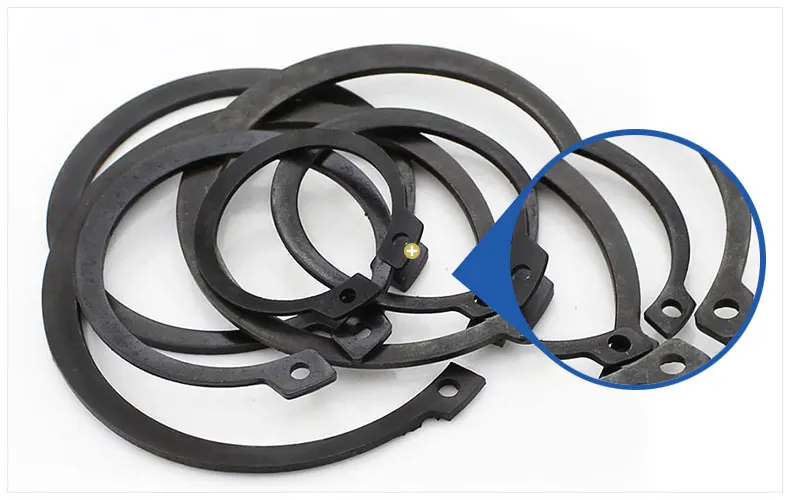

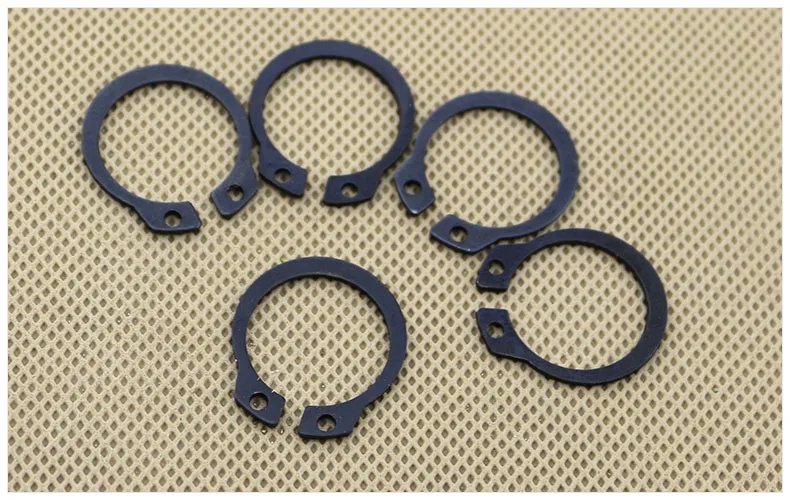

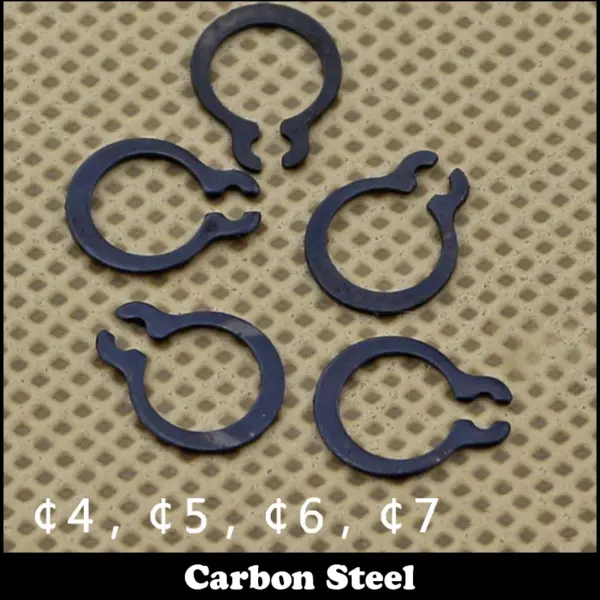

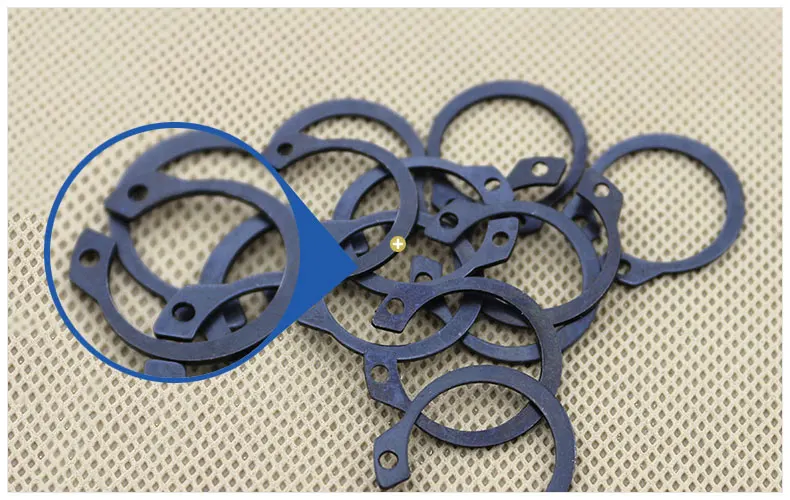

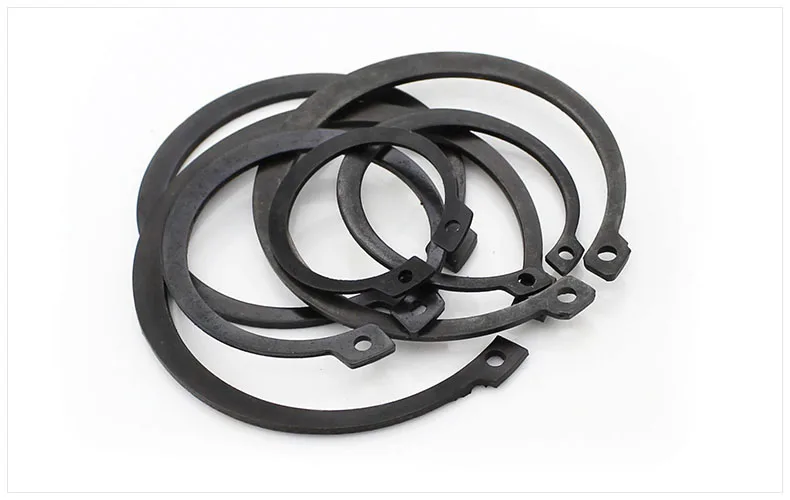

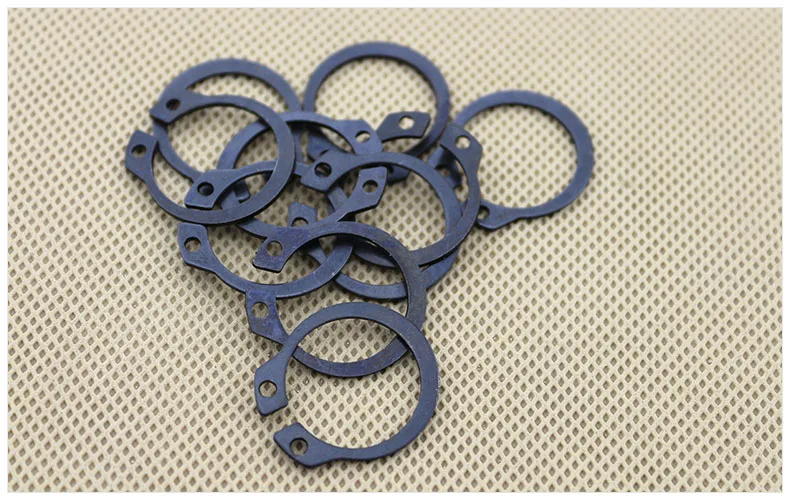

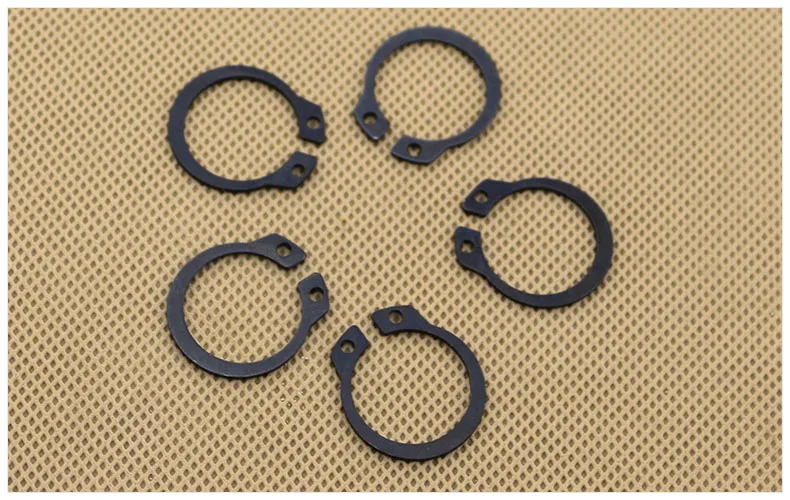

M4 M5 M6 M7 Carbon Steel Mn65 Washer DIN471 C-Type Calabsah Type Snap Retaining Ring For 4mm 5mm 6mm 7mm External Shaft Circlip
|
|
|||||||
|
The Measurements Allowed Error,The Exact Size Is Based On Real Object
Unit:mm
|
|||||||
|

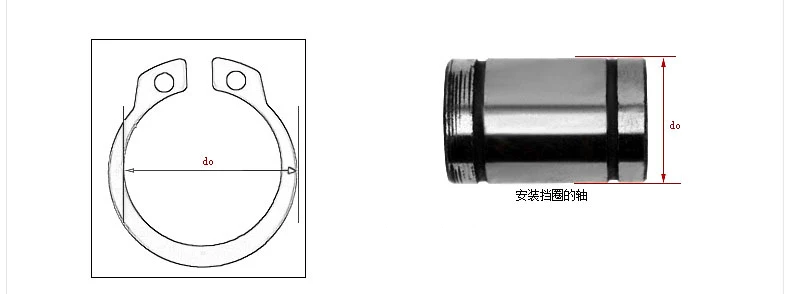

Spec do |
d |
D |
h |
Spec do |
d |
D |
h |
|
Ф3 |
2.7 |
3.9 |
0.4 |
Ф34 |
31.5 |
38 |
1.8 |
|
Ф4 |
3.7 |
5 |
Ф35 |
32.2 |
39 |
||
|
Ф5 |
4.7 |
6.4 |
0.5 |
Ф36 |
33.2 |
40 |
|
|
Ф6 |
5.6 |
7.6 |
Ф37 |
34.2 |
41 |
||
|
Ф7 |
6.5 |
8.48 |
Ф38 |
35.2 |
42.7 |
||
|
Ф8 |
7.4 |
9.38 |
0.7 |
Ф38 |
35.2 |
44 |
|
|
Ф9 |
8.4 |
10.56 |
Ф40 |
36.5 |
46 |
||
|
Ф10 |
9.3 |
11.5 |
1 |
Ф42 |
38.5 |
49 |
|
|
Ф11 |
10.2 |
12.5 |
Ф45 |
41.5 |
49 |
||
|
Ф12 |
11 |
13.6 |
Ф47 |
43.5 |
21 |
||
|
Ф13 |
11.9 |
14.7 |
Ф48 |
44.5 |
52 |
||
|
Ф14 |
12.9 |
15.7 |
Ф50 |
45.8 |
54 |
2 |
|
|
Ф15 |
13.8 |
16.8 |
Ф52 |
47.5 |
56 |
||
|
Ф16 |
14.7 |
18.2 |
Ф55 |
50.8 |
59 |
||
|
Ф17 |
15.7 |
19.4 |
Ф58 |
53.8 |
63 |
||
|
Ф18 |
16.5 |
20.2 |
Ф60 |
55.8 |
65 |
||
|
Ф19 |
17.5 |
21.2 |
Ф62 |
57.8 |
67 |
||
|
Ф20 |
18.5 |
22.5 |
Ф65 |
60.8 |
70 |
2.5 |
|
|
Ф21 |
19.5 |
23.5 |
Ф68 |
63.5 |
73 |
||
|
Ф22 |
20.5 |
24.5 |
Ф70 |
65.5 |
75 |
||
|
Ф22 |
20.5 |
24.5 |
Ф72 |
70 |
77 |
||
|
Ф24 |
22.2 |
27.2 |
1.2 |
Ф75 |
73.5 |
80 |
|
|
Ф25 |
23.2 |
28.2 |
Ф78 |
73.5 |
83 |
||
|
Ф26 |
24.2 |
29.2 |
Ф80 |
74.5 |
85 |
||
|
Ф27 |
25.2 |
30.2 |
Ф85 |
79.5 |
90 |
||
|
Ф28 |
25.9 |
31.3 |
Ф90 |
84.5 |
96 |
||
|
Ф30 |
27.9 |
33.5 |
Ф95 |
89.5 |
103.3 |
||
|
Ф32 |
29.6 |
35.5 |
Ф100 |
94.5 |
108.5 |
||
