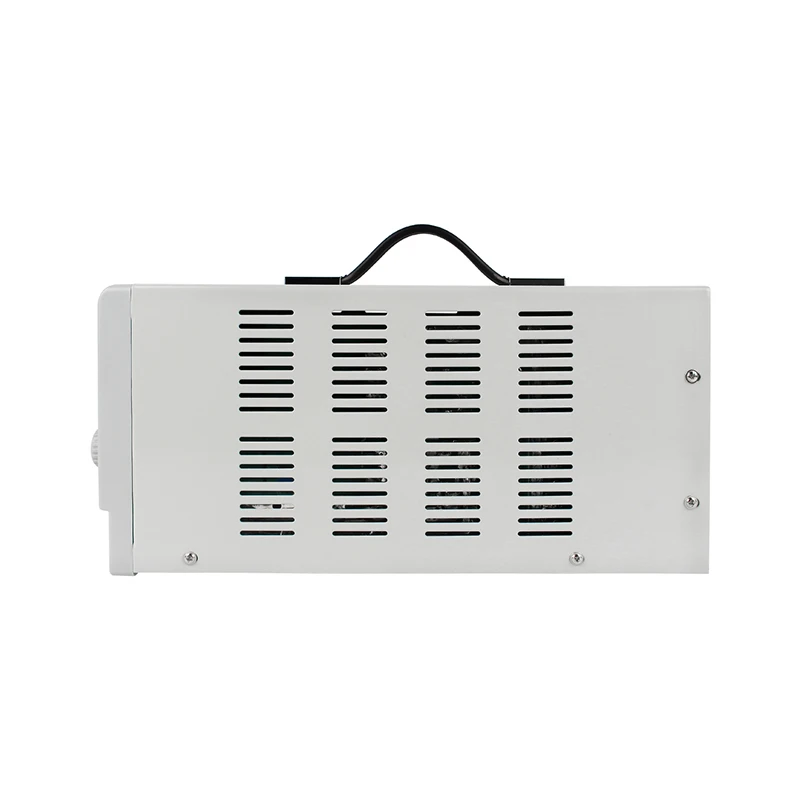

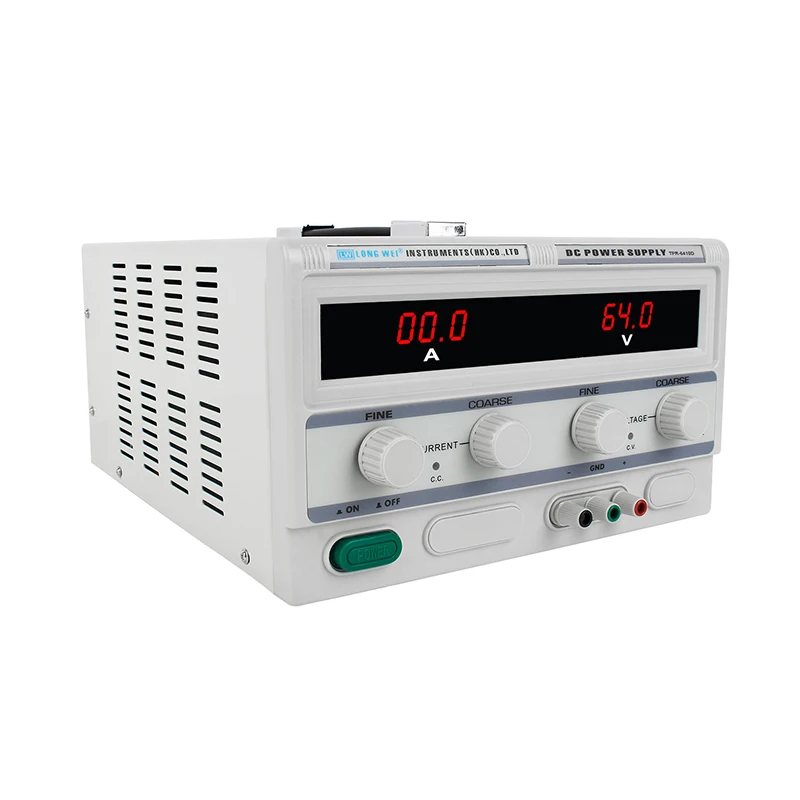

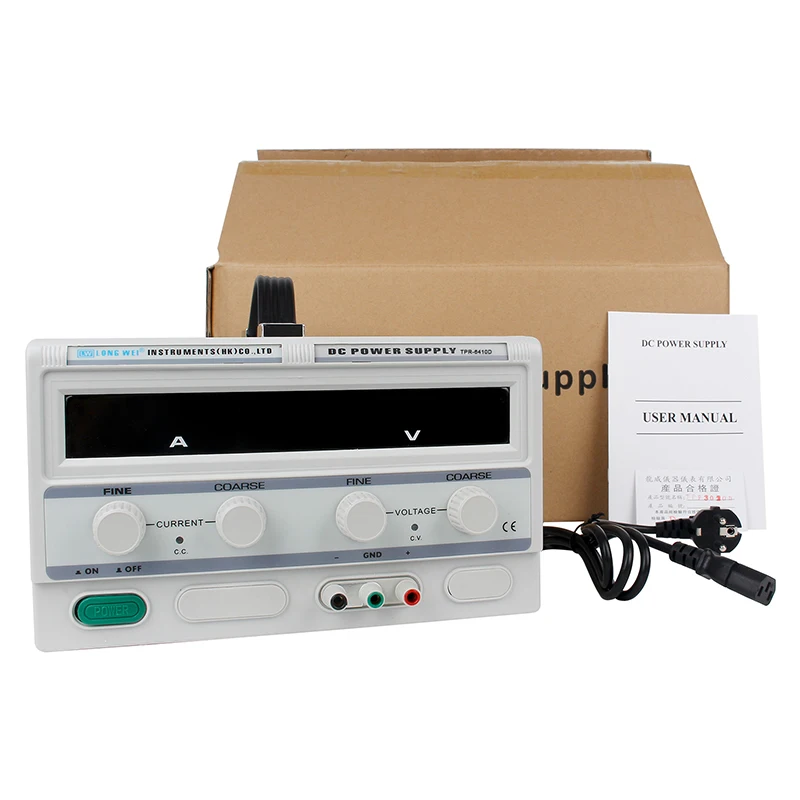

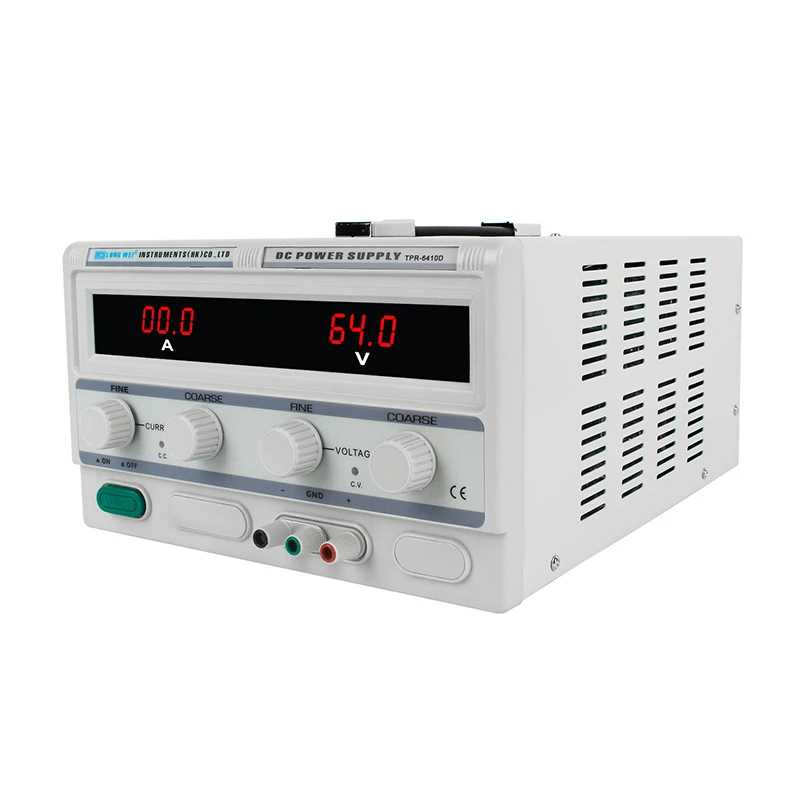

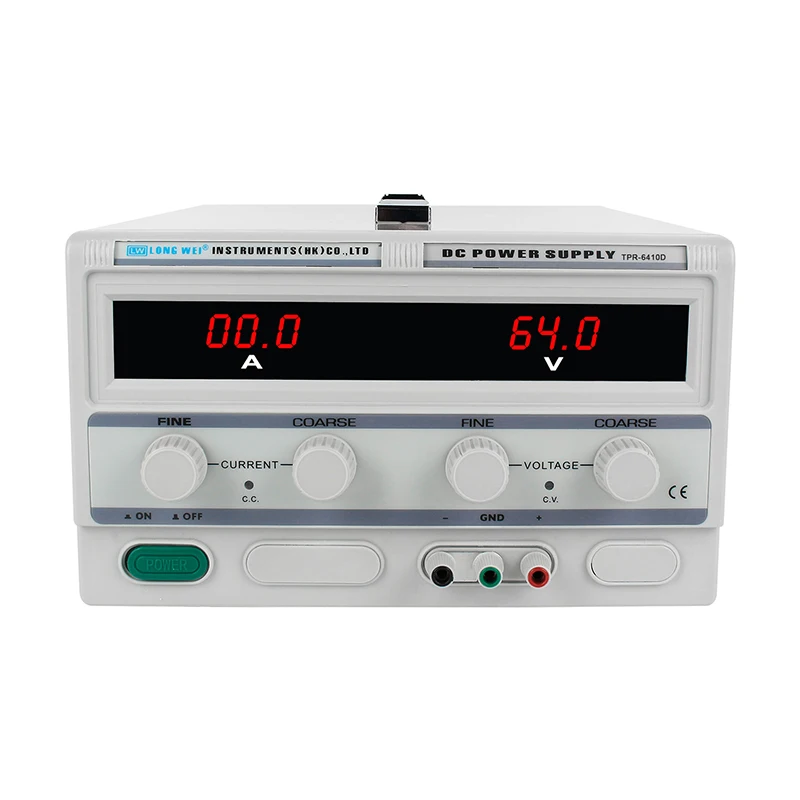

LW TPR-6410D 60V 10A High Quality LED Digital Variable Bench Regulated DC Power Supply Adjustable

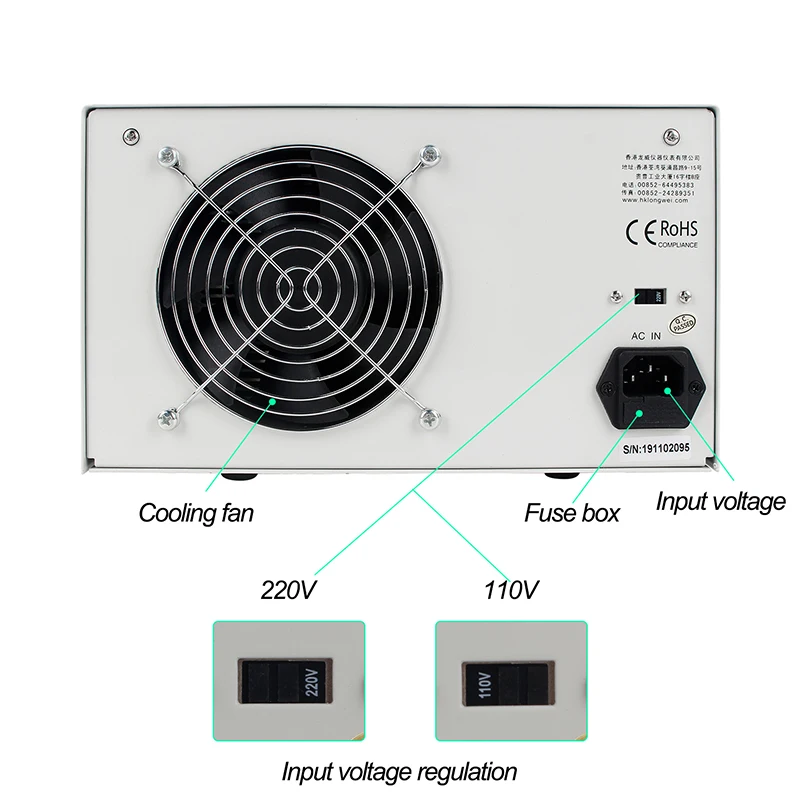

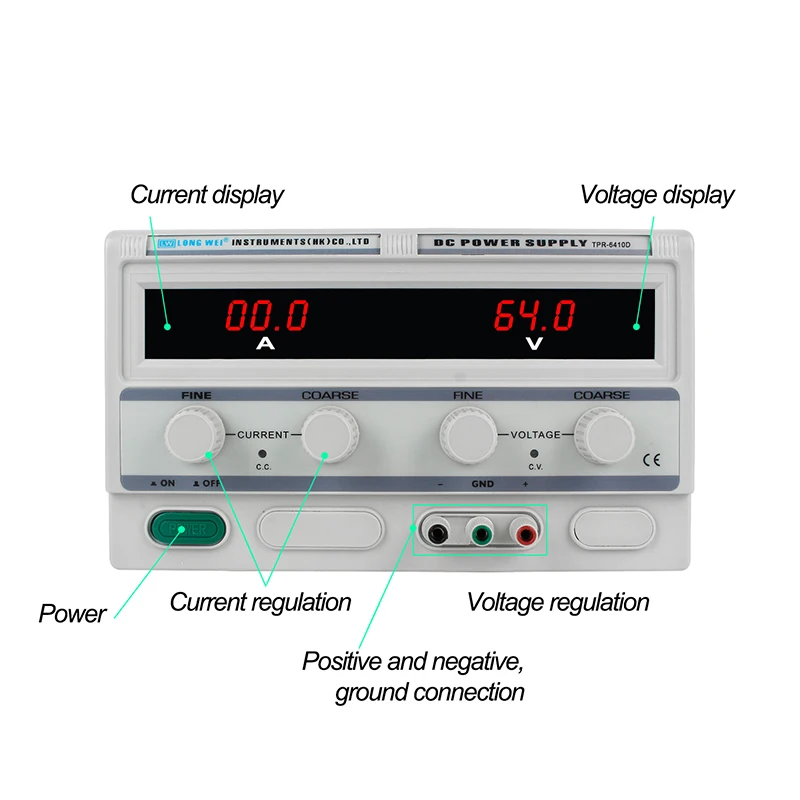

Application range: 1. For teaching experiments, research 2. Testing and aging of products used in electronic production lines 3. For the repair of communication equipment 4. Other areas that require DC regulated power supplies Technical Parameter Output voltage: AC220V±10% 50Hz (AC110V±10% 60Hz can be customized according to requirements) Working temperature: -10 ° C -40 ° C Relative humidity <80% Storage temperature: -10 ° C -70 ° C Relative humidity <70% Regulated state: Voltage stability ≤ 0.05% + 2mV Load stability ≤ 0.7% + 2mV Recovery time ≤100us Ripple noise ≤ 5mVrms (effective value) Temperature coefficient ≤300PPM/°C Steady state: current stability ≤ 0.5% + 3mA Load stability ≤ 0.75% + 3mA Ripple wave noise ≤ 7mArms (effective value) Voltage display accuracy: three-digit LED digital display ±1% ± 1 word Current display accuracy: three-digit LED digital display ±1% ± 1 word
|
Type
|
TPR-6405D
|
TPR-6410D
|
TPR-6420D
|
|
output voltage
|
0-64V
|
0-64V
|
0-64V
|
|
output current
|
0-5A
|
0-10A
|
0-20A
|
|
weight
|
10Kg
|
16.5Kg
|
22.5Kg
|
|
Size
|
340*260*155mm
|
375*260*155mm
|
425*260*155mm
|
