Description

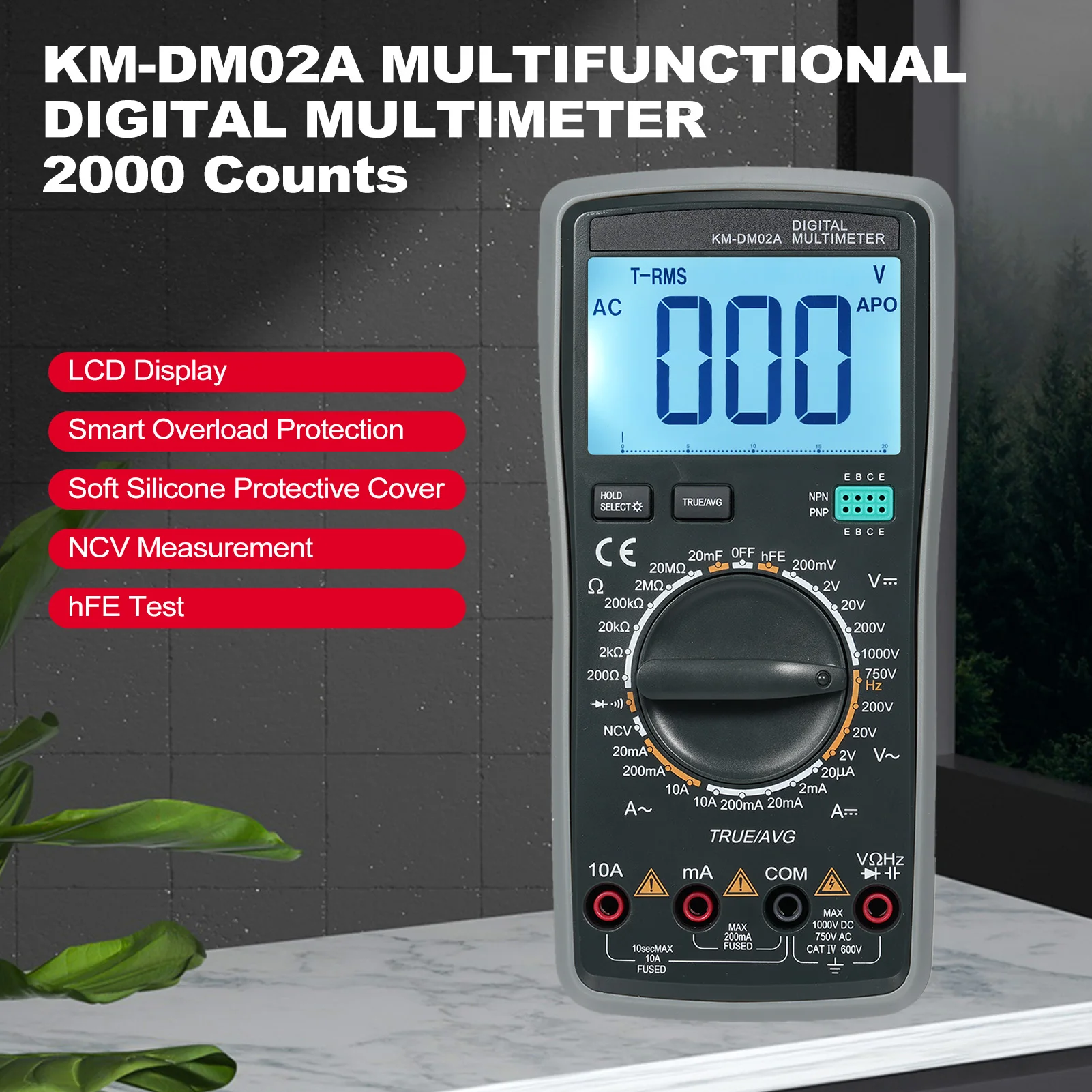

Features:

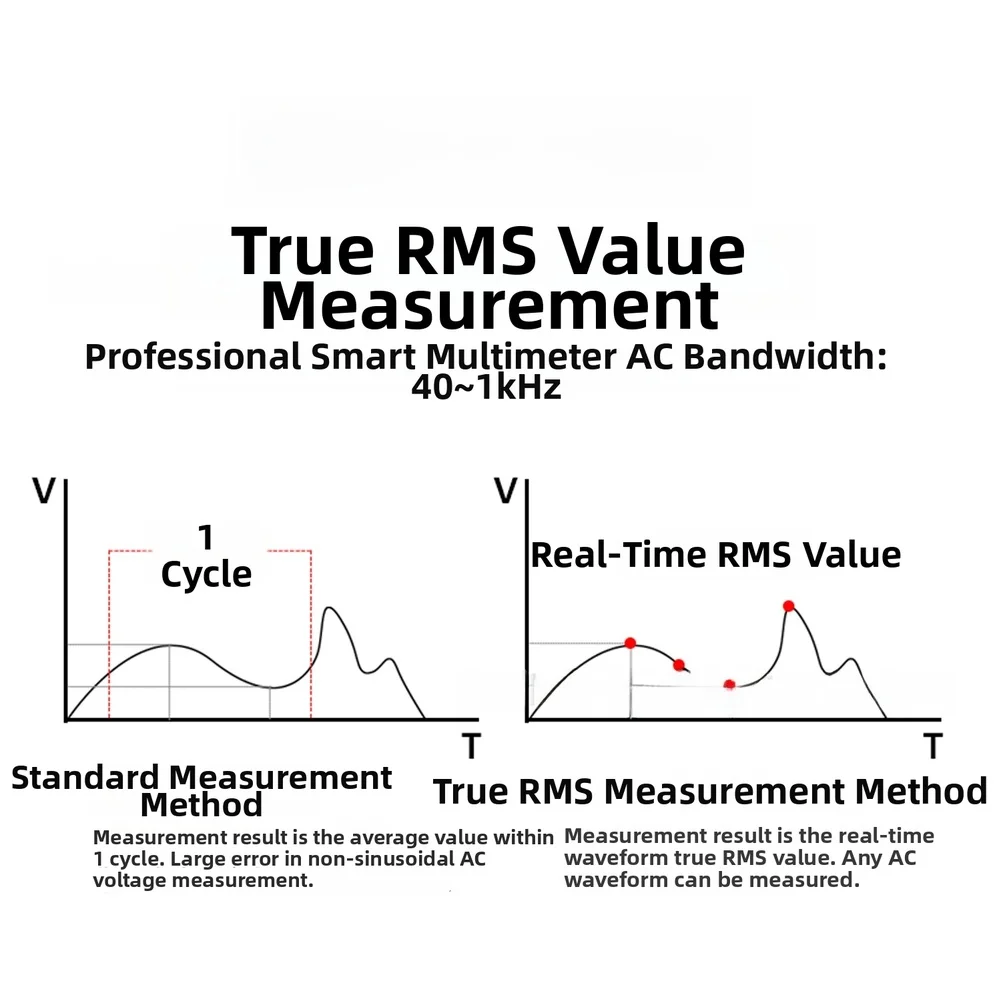

1. Multifunctional: Measures AC/DC current, AC/DC voltage, resistance, capacitance, frequency, continuity, and diode testing, as well as hFE, average value, and true RMS.
2. Large LCD Display: The instrument features a 2000-character large LCD display,clear handwriting, eliminating parallax, and includes backlighting for easy reading in dark environments.
3. NCV Voltage Sensing Detection: When adjusted to the NCV setting, an alarm will sound when nearby AC voltage is detected.

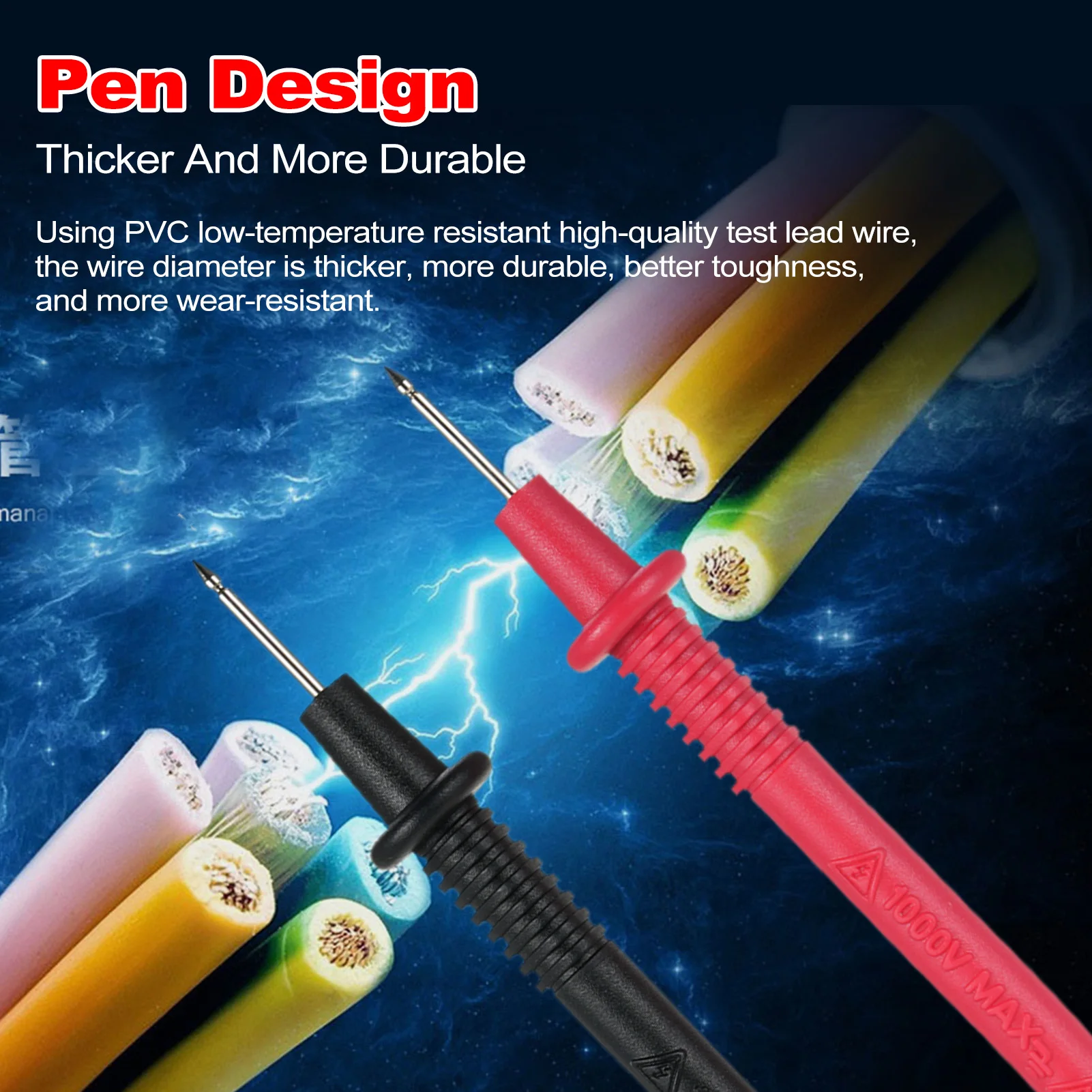

4. Thickened Test Design: Uses high-quality low-temperature resistant PVC test, which are thicker, more, tougher, and more wear-resistant.

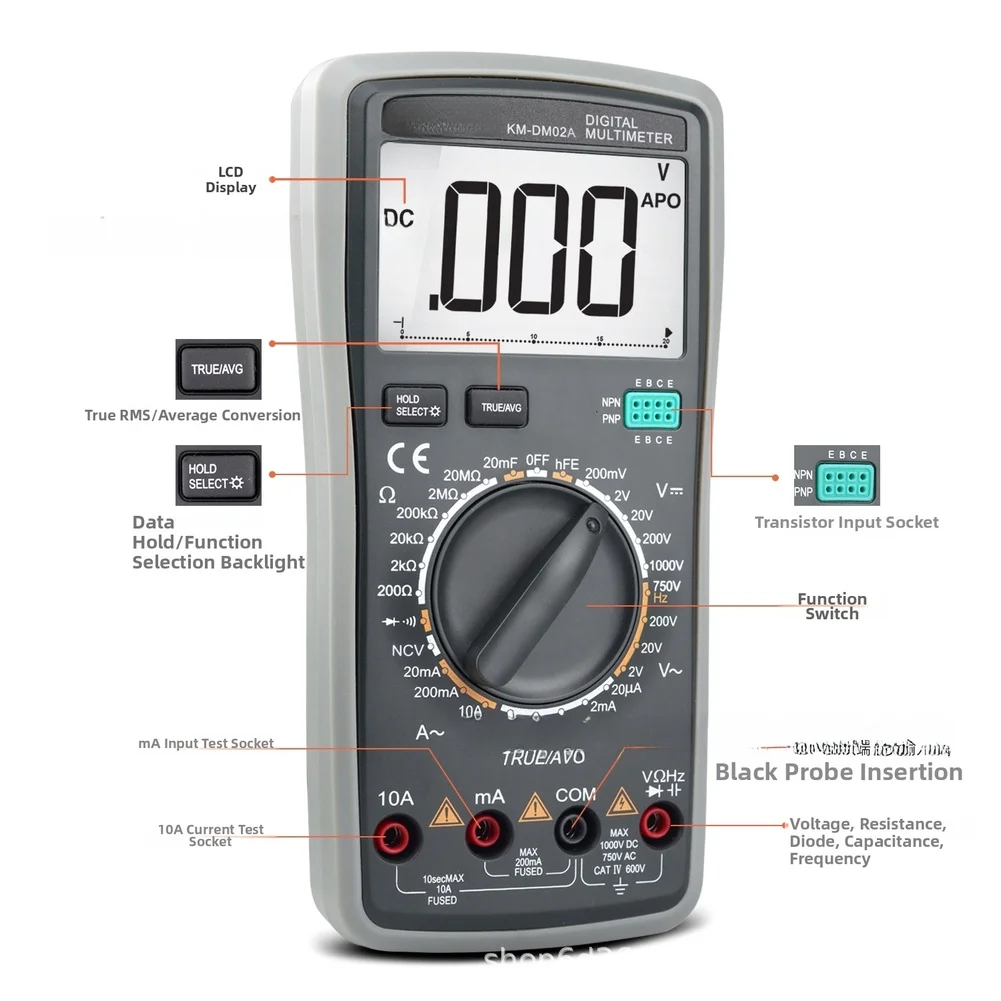

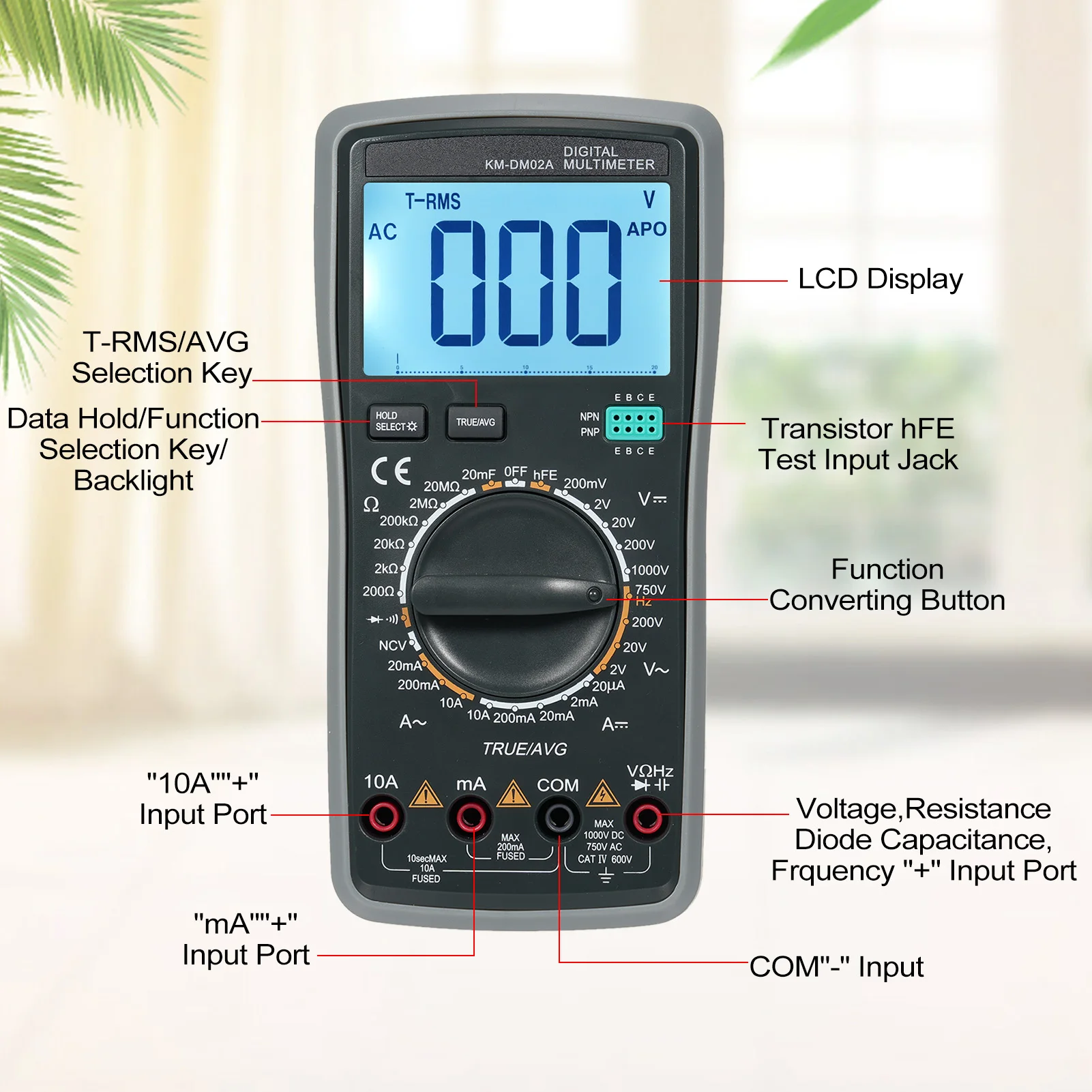

5. Test Sockets: Finely crafted and rationally designed,smooth and secure insertion of test, with a maximum input value indicator.

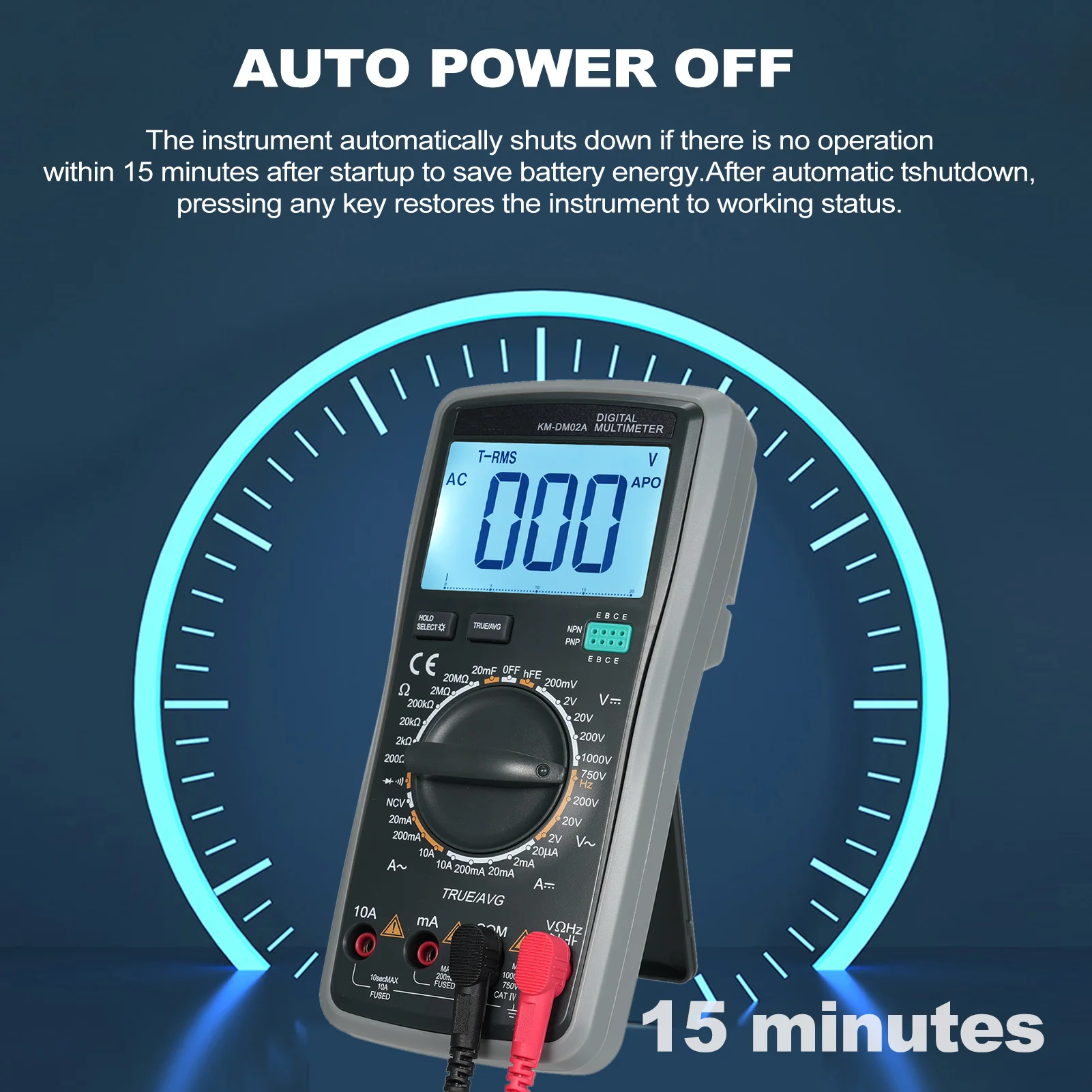

6. Automatic Power Off: This product is powered by a 9V battery. After approximately 15 minutes of inactivity, it will automatically power off and enter sleep mode. It can be restarted by pressing any button in automatic power-off mode.
7. Data Retention: One-click pause, continuous display of measurement data for convenient data recording.

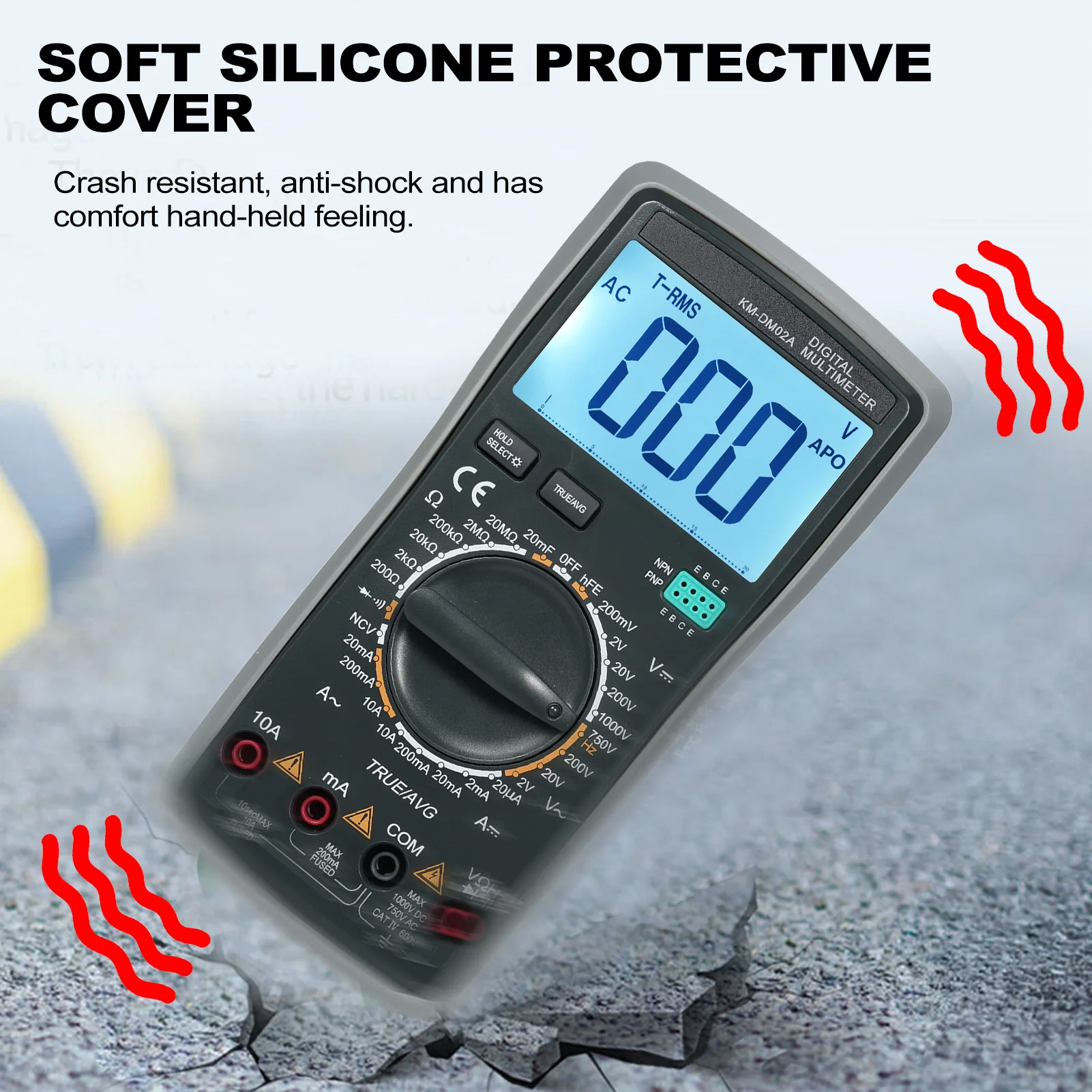

8. High-Quality Shell: Made of premium ABS material with a soft silicone protective cover, drop-resistant, shockproof, and comfortable to hold.

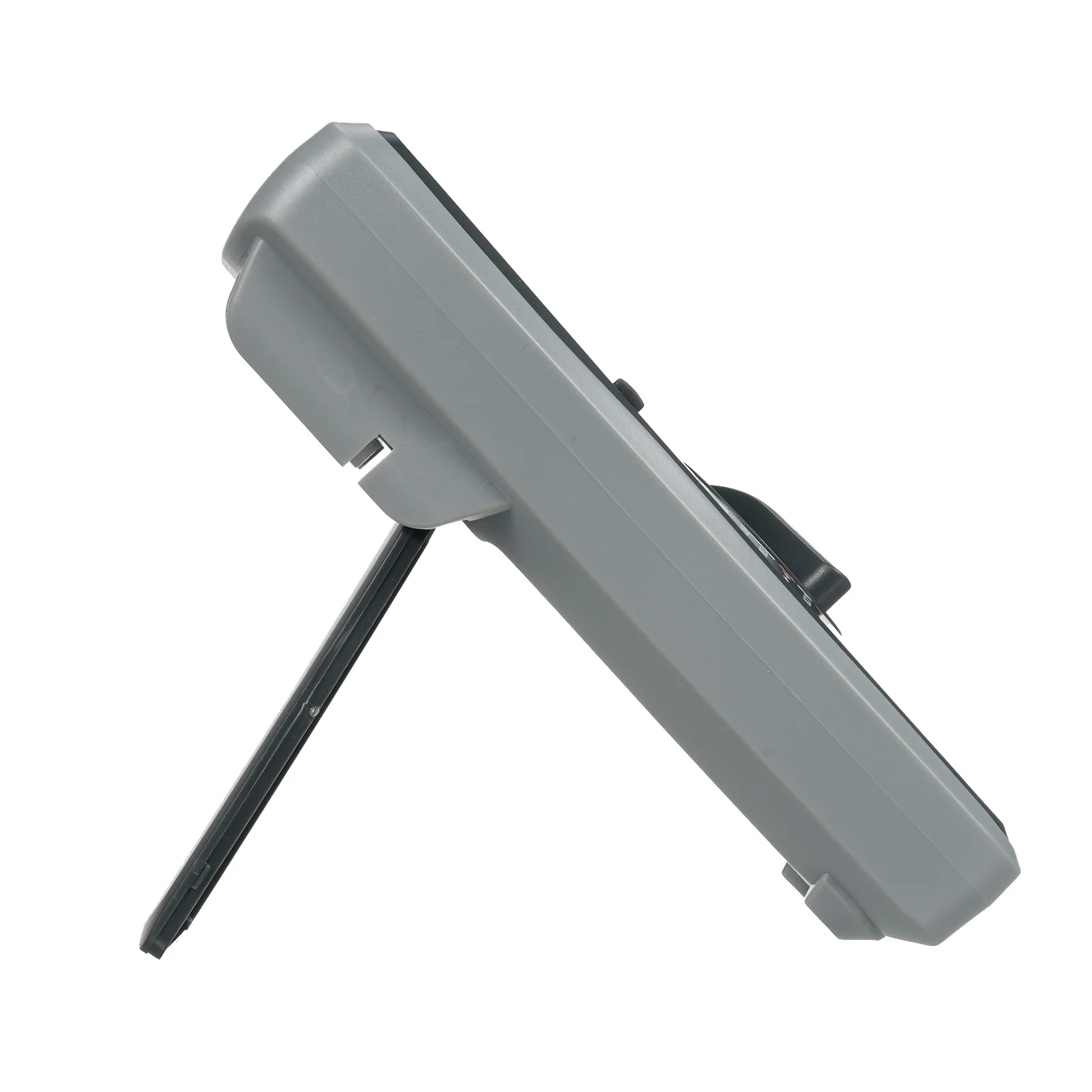

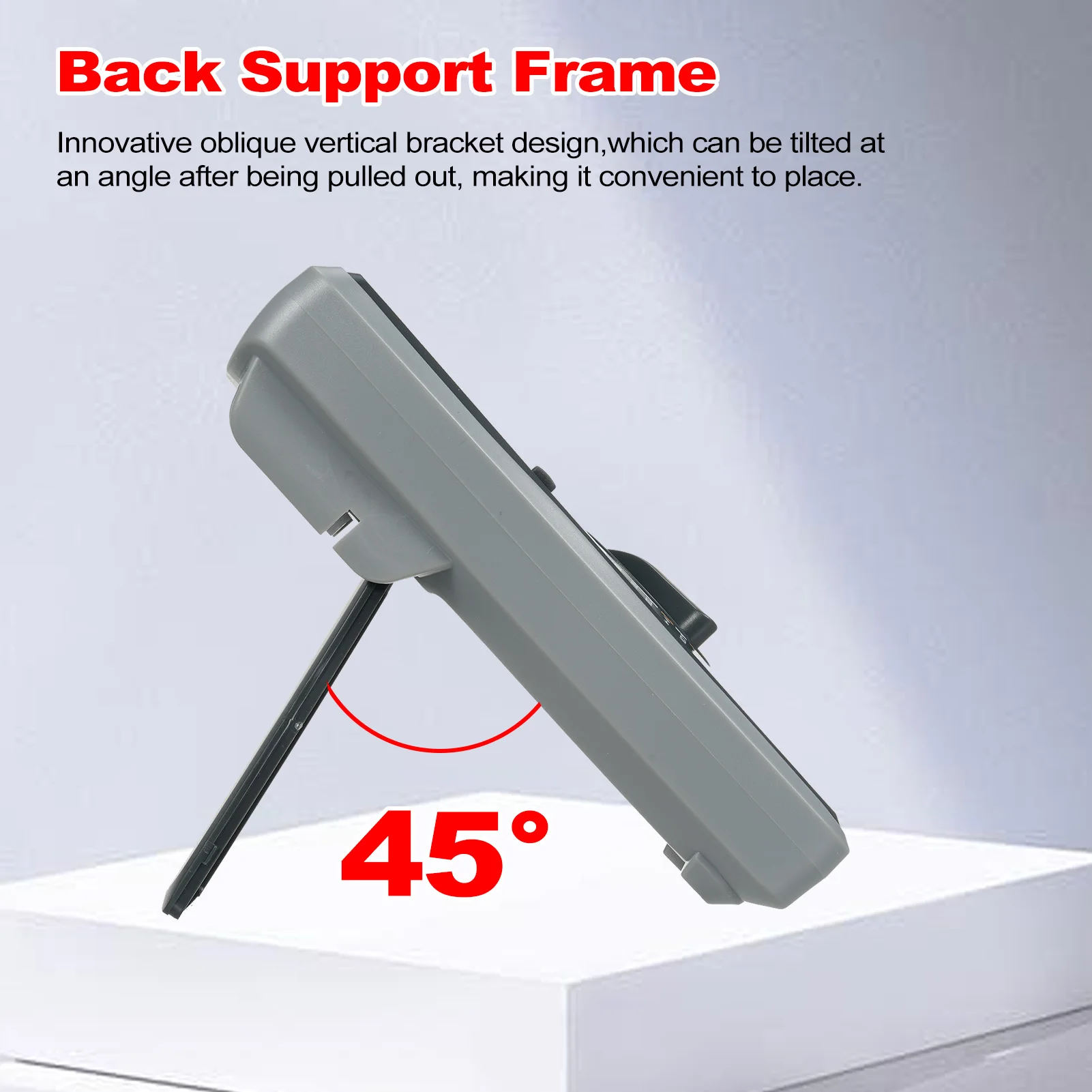

9. Back Support: Innovative angled vertical support design; can be pulled out and tilted at a certain angle for easy placement.

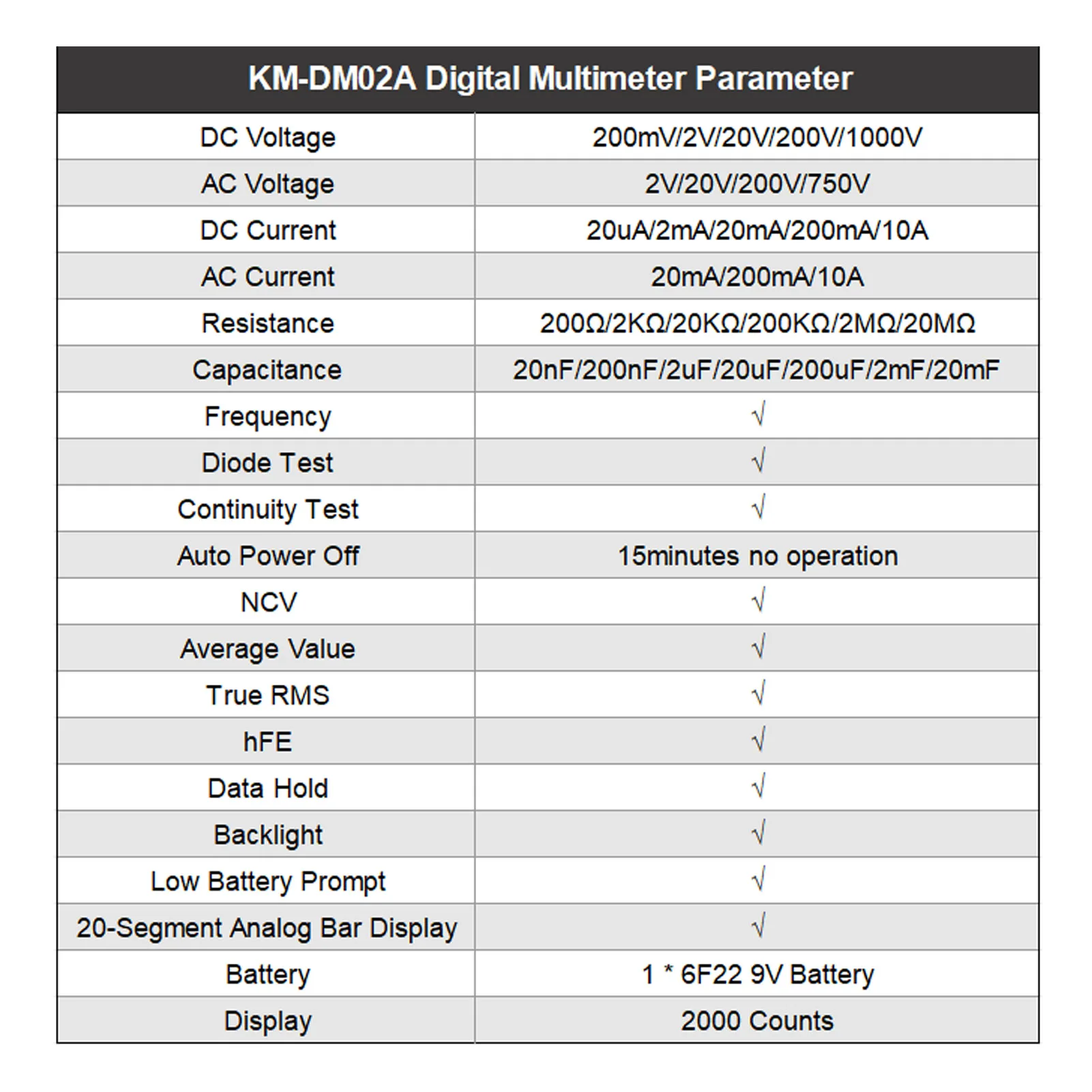

Specifications:

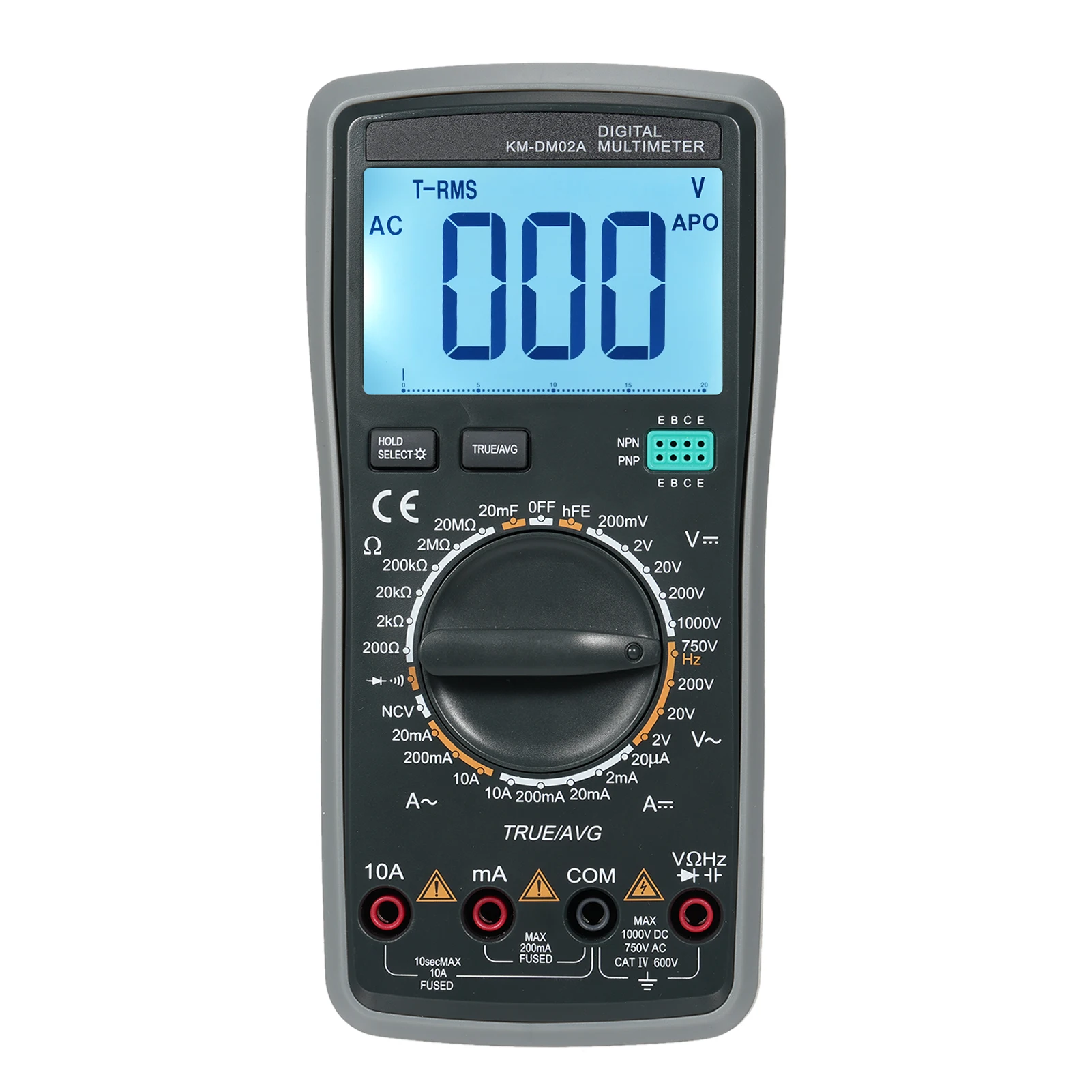

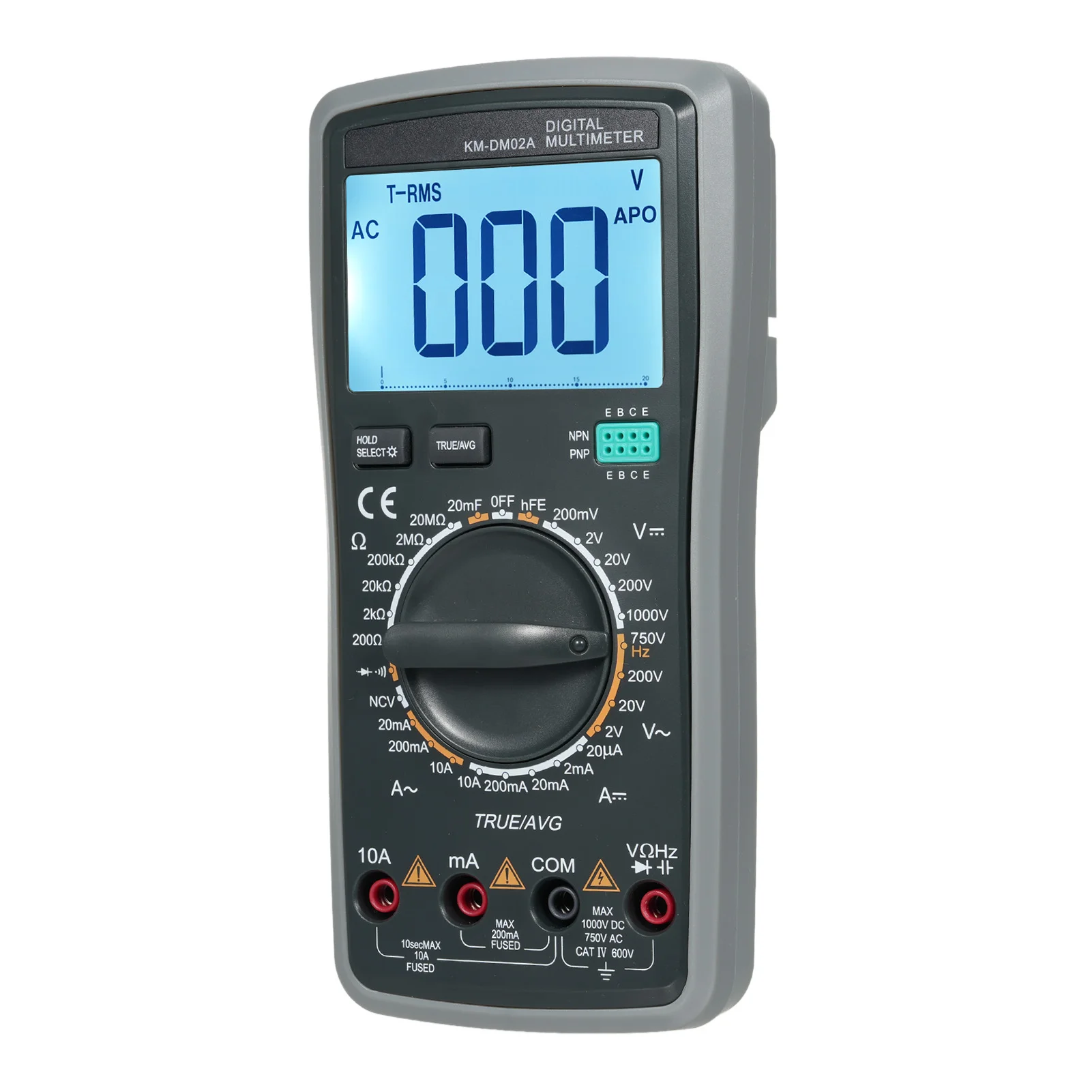

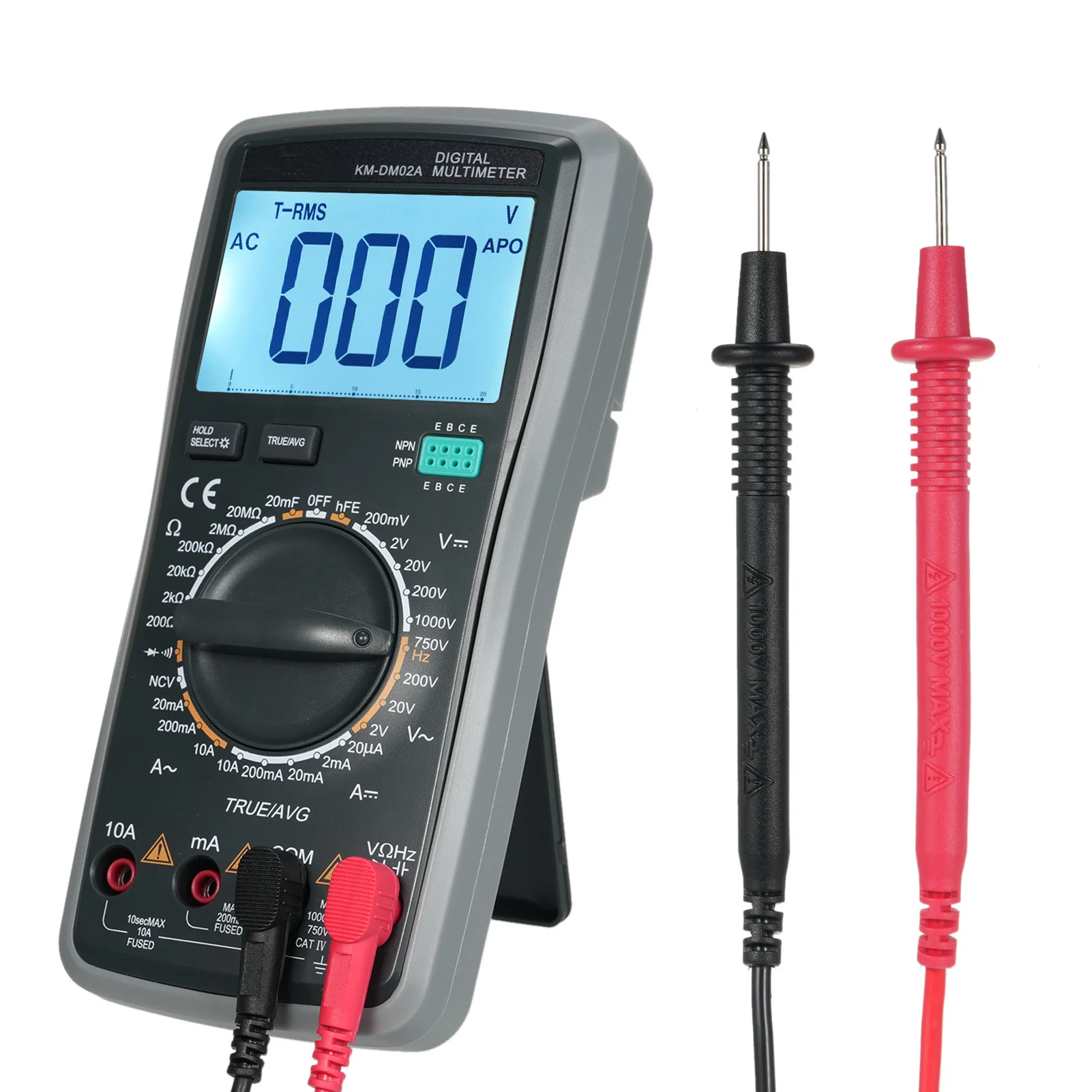

Part Name: KM-DM02A Multimeter
Material: ABS
Color: Black

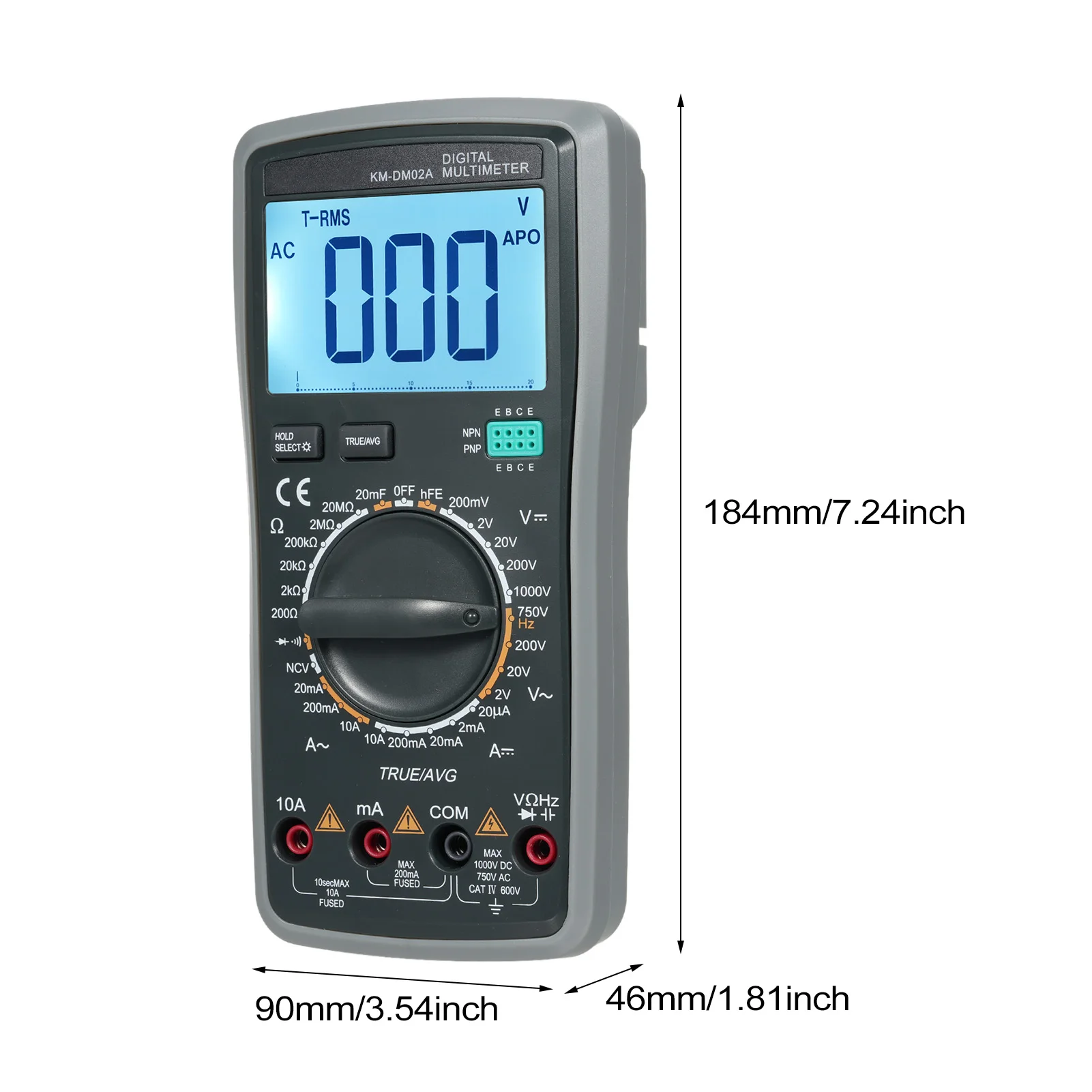

Size: 184 * 90 * 46 mm / 7.24 * 3.54 * 1.81 inches
DC Voltage: 200mV/2V/20V/200V/1000V
AC Voltage: 2V/20V/200V/750V
DC Current: 20uA/2mA/20mA/200mA/10A
AC Current: 20mA/200mA/10A
Resistance: 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ
Capacitance: 20nF/200nF/2uF/20uF/200uF/2mF/20mF
Display: LCD
Maximum Display Digits: 1999 (3.5) Automatic polarity display
Measurement: Dual-slope A/D conversion
Sampling rate: Approximately 3 times/second
Overrange display: Most significant digit is "0L"
Operating environment: 0~40℃, relative humidity <80%

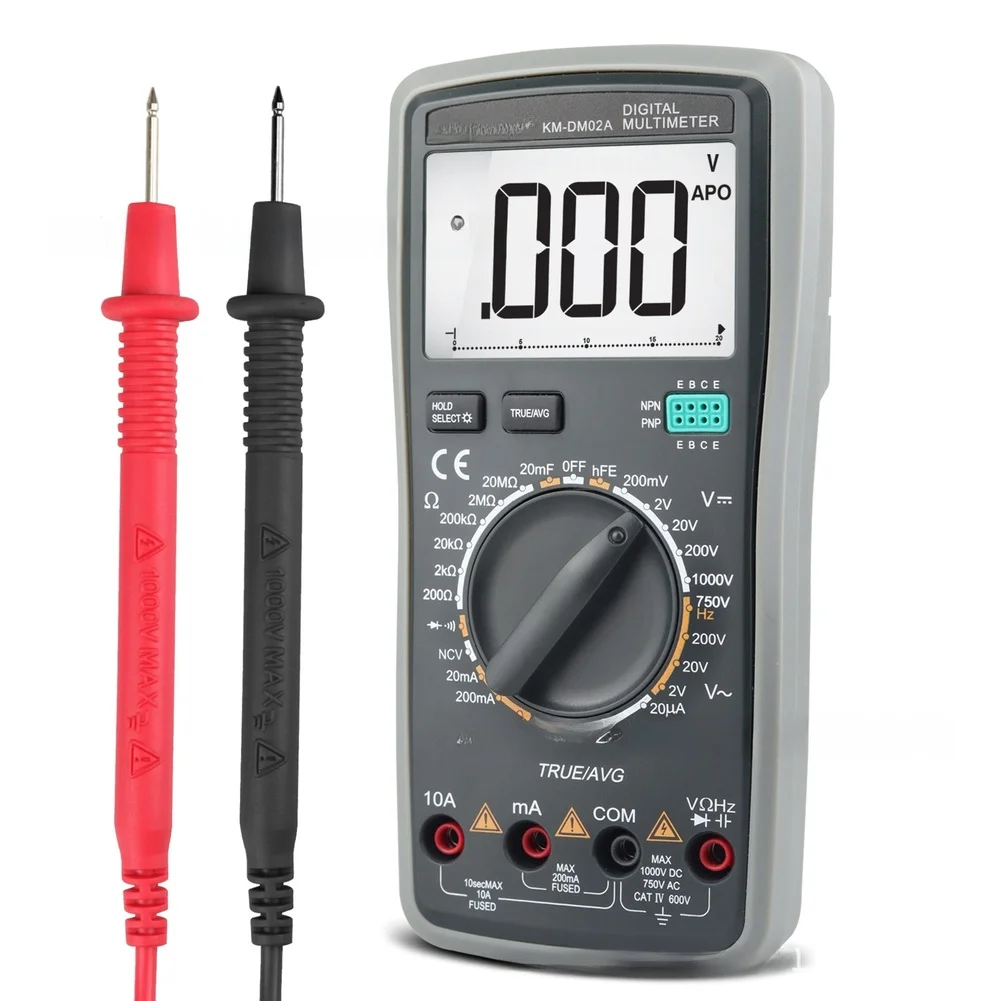

Package contents:
1*Multimeter
2*Test
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
