Description

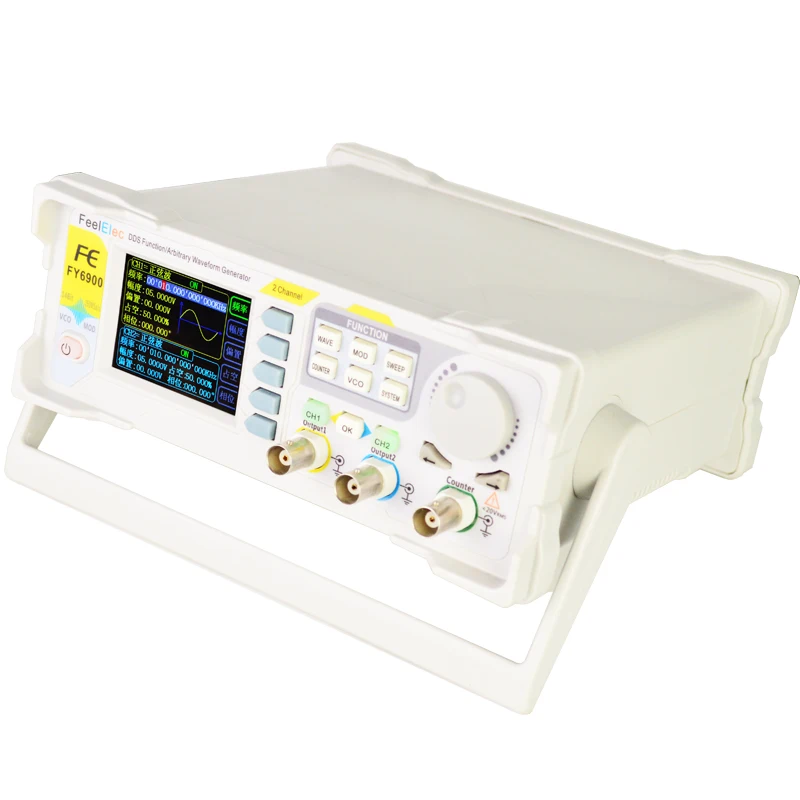

FY6900 series dual-channel function/arbitrary waveform generator is a high-performance, cost-effective, integrated function signal generator, arbitrary waveform generator, pulse signal generator, VCO, frequency sweeper, counter and frequency meter. Multifunctional signal generator. Rich shortcut keys greatly simplify the complicated operation process and greatly enhance the operability of the instrument. Users do not need to spend a lot of time to learn and familiar with the operation of the instrument, they can use it proficiently. Especially suitable for electronic enthusiasts, scientific research institutions and high-tech enterprises, automotive maintenance and other fields.
The instrument adopts DDS direct digital synthesis technology to generate accurate, stable and low-distortion output signals. All parameters are calibrated by internal programs; the standard software of the host computer is equipped, and all functions of the instrument can be controlled by the software of the host computer. The machine software edits the arbitrary waveform and saves it in the signal generator to output the waveform; the open communication protocol makes the secondary development very simple; large-scale integrated circuits, surface mount technology, high reliability, long service life; with output short circuit protection Yes, all signal output terminals can work for 60S under load short circuit.
◆ Adopt DDS direct digital synthesis technology to produce accurate, stable and low distortion output signal;
◆ Desktop design with ABS plastic shell, AC 100 ~ 240V (AC) wide voltage power supply;

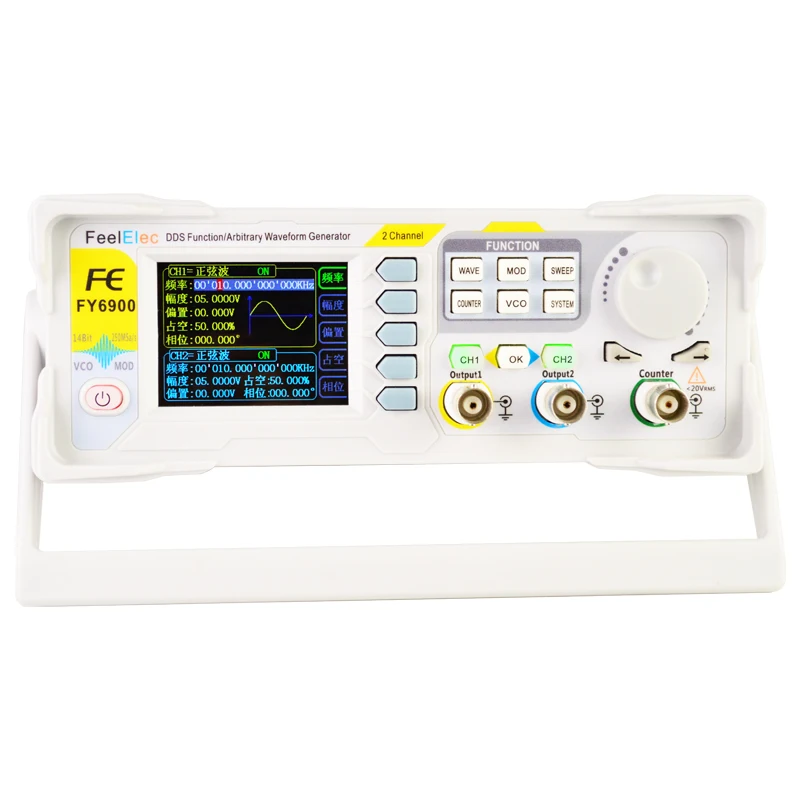

◆ Adopt a 2.4-inch (320*240) color display, and display dual-channel waveform parameters at the same time;
◆ The highest output frequency is 60MHz (sine wave), 250MSa/s sampling rate, 14bits vertical resolution;
◆ Long press the OK button during use to quickly save the parameter information currently output by the instrument, and automatically load the saved parameter next time
◆ Completely independent dual-channel output (equivalent to two independent signal sources), able to work synchronously, the phase difference is accurately adjustable;
◆ Standard channel tracking function, when tracking is turned on, all parameters of the two channels can be updated simultaneously according to the user's configuration;

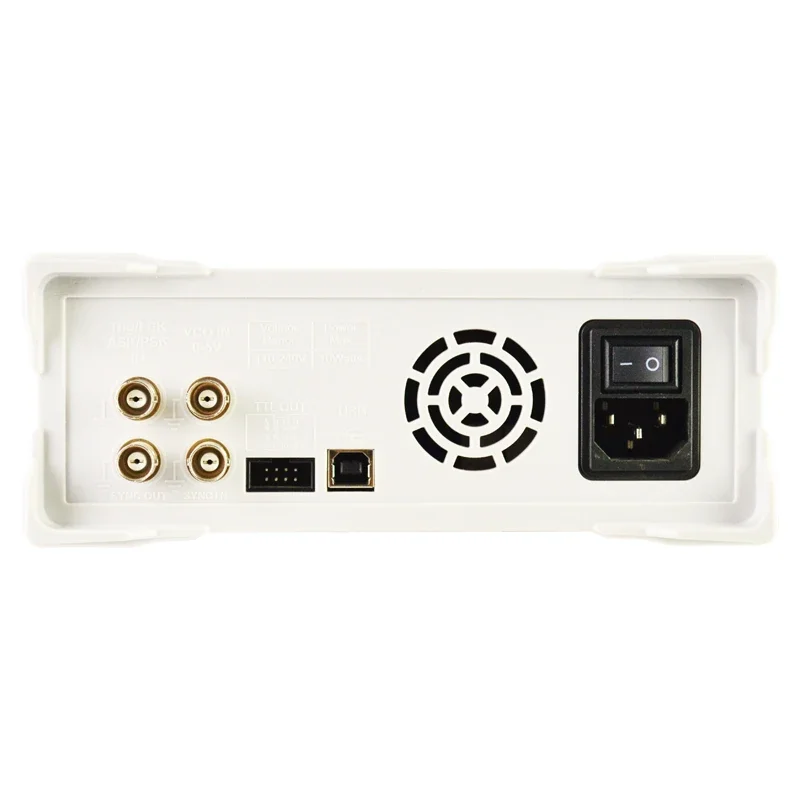

◆ Two or more machines can realize multi-machine synchronization through the SYNC port;
◆ Can output up to 98 groups of function/arbitrary waveforms, including 34 groups of preset waveforms and 64 groups of user-defined waveforms (arbitrary waveforms can be edited and downloaded to the instrument output through the arbitrary waveform editing software provided with the instrument). Preset waveforms include: sine wave, square wave, rectangular wave (duty cycle adjustable), trapezoidal wave (rising edge time and falling edge time can be set accurately), triangle wave, pulse wave (pulse width and frequency can be set accurately Fixed), ascending sawtooth wave, descending sawtooth wave, step wave, trapezoidal pulse wave, sink pulse, narrow pulse wave, noise wave, exponential rise, exponential fall, electrocardiogram, Lorentz pulse wave, multi-tone wave, CMOS (0 ~12V), four-channel TTL level and DC voltage, etc.;
◆ With 64 sets of arbitrary waveform storage bits, each set of storage depth is 8192*14bits (the longer the waveform storage depth, the more waveform details are saved, and the signal details can be restored with high accuracy);
◆ High frequency accuracy: frequency accuracy can reach 10-6 orders of magnitude;
◆ High frequency resolution: full-range frequency resolution of 1uHz (0.000001Hz);
◆ The output amplitude can be up to 24Vpp (80M and 100M models with a maximum output amplitude of 25VPP), and the amplitude resolution can be up to 1mV (0.001V);
◆ With -12V~+12V DC bias function (<20MHz), the resolution can reach 1mV;
◆ The duty ratio of the two channels can be adjusted independently, and the adjustment accuracy can reach 0.01%;
◆ Pulse wave pulse width and pulse frequency are continuously adjustable, the adjustment range is 20ns-1S. The pulse amplitude can be continuously adjusted between 0-12V, the adjustment accuracy is 0.001V;
◆ The phase adjustment range of the two channels is 0~359.99°, and the adjustment accuracy is 0.01°;
◆ No range limit: the full range of frequency is not divided, and the digital setting is direct;
◆ With digital signal output function, it can achieve any CMOS level of 0~12V;
◆ Scanning function: It can scan the four properties of the signal: frequency, amplitude, offset, and duty ratio separately. It has two scanning modes: linear scanning and logarithmic scanning. The scanning time can reach 999.99S, and the scanning start and end points can be arbitrary Set up
◆ Burst burst output function: three trigger modes: manual trigger, internal CH2 trigger and external trigger can be selected, which can make the machine output any number of bursts from 1 to 1048575;
◆ VCO function: Support the output function of each parameter of VCO voltage control signal (such as voltage controlled oscillator).
◆ Rich modulation types: AM, FM, PM, ASK, FSK and PSK modulation;
◆ Storage characteristics: can store 20 sets of user-set instrument state parameters, can be recalled at any time to reproduce;
◆ 100M frequency meter function: It has four measurement methods: frequency measurement, period measurement, positive and negative pulse width measurement, and duty cycle measurement. The maximum measurement frequency of the instrument can reach 100MHz, and the minimum measurement frequency is 0.01Hz;
◆ Counter function: It has DC and AC coupling measurement methods to effectively solve the problem of inaccurate AC coupling counting.
◆ All parameters can be calibrated by internal procedures;
◆ Standard powerful arbitrary waveform editing function, which can edit arbitrary waveform on PC and download to the instrument output waveform;
◆ Powerful communication function, you can use a PC to control the instrument. The open communication protocol makes the secondary development very simple;
◆ High reliability: large-scale integrated circuits, surface mount technology, high reliability and long service life;
◆ Output short circuit protection: all signal output terminals can work more than 60S under load short circuit;
◆ Optional our company's FYV2000 series or FPA1000 serie
