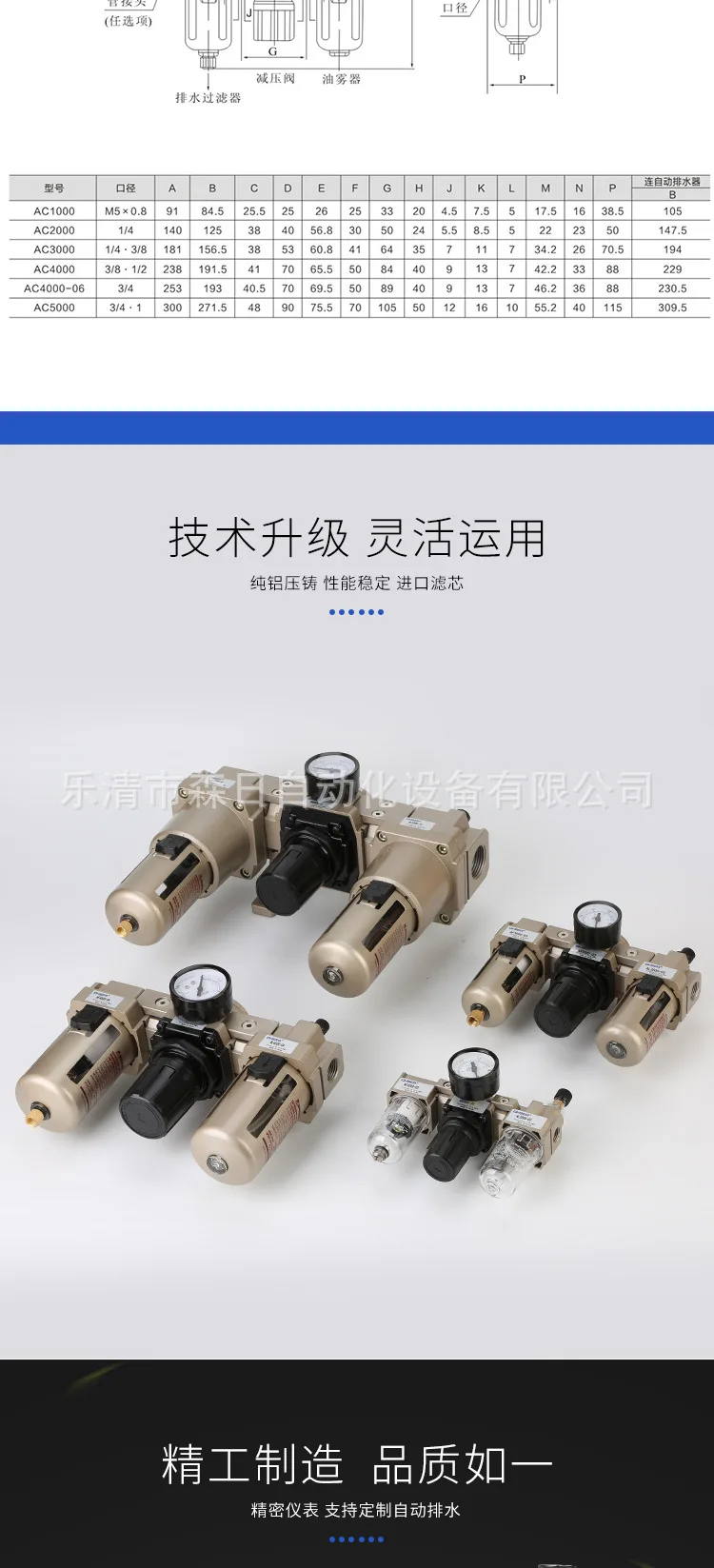

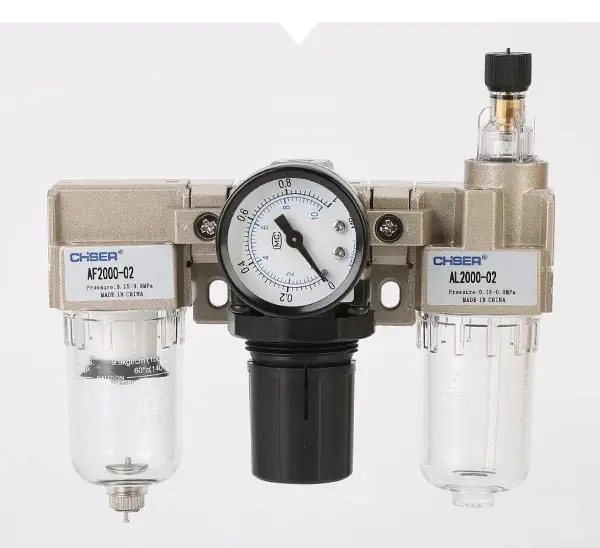

Industrial Air Filter Regulator Lubricator - AC Series Triple Unit for Compressed Air Lines & CNC Machines

The pressure gauge is already equipped, no need to buy another one.

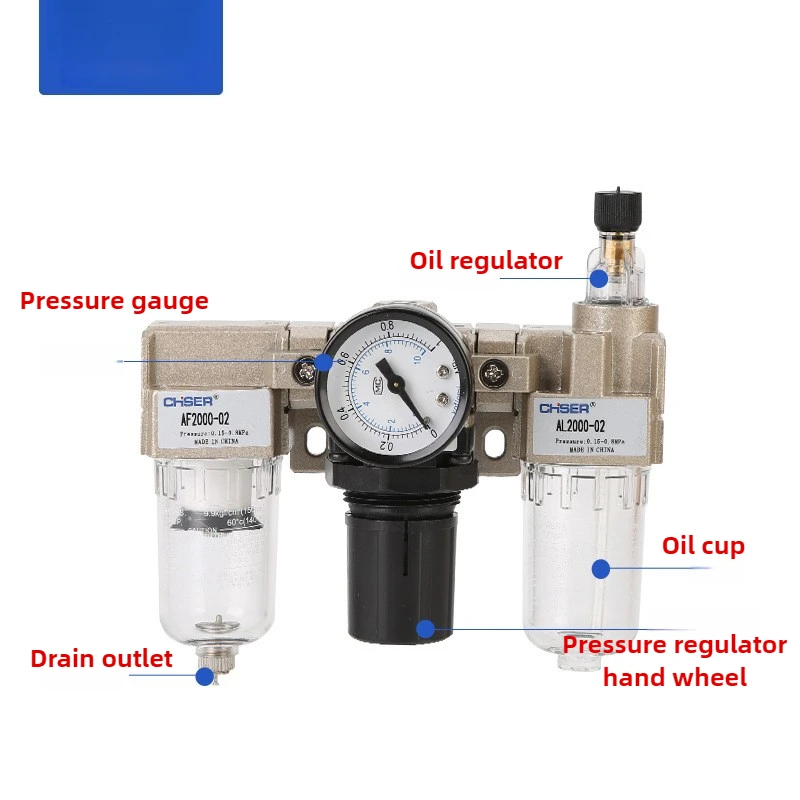

Domestic SMC specification air source processor triplet AC2000 AC3000 AC4000 AC5000 series consists of AF + AR + AL three parts, which play the role of pressure regulation, filtration and oil mist

According to the different drainage methods of the product, manual drainage and automatic drainage are divided.Under special instructions, the one with D on the back of the product model indicates automatic drainage, and the one without D indicates manual drainage.

Example: AC 2000-02 means this is a manual drain filter

AC2000-02D indicates that this is a filter for automatic drainage.

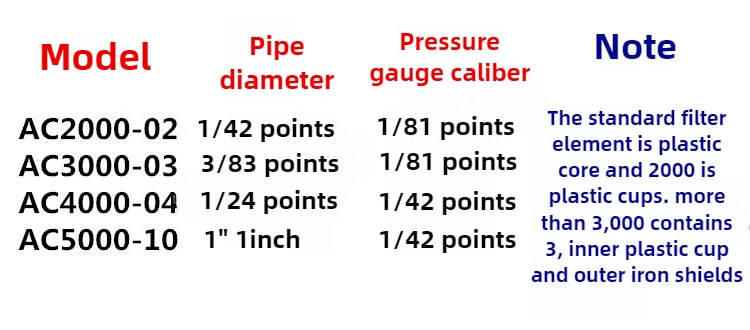

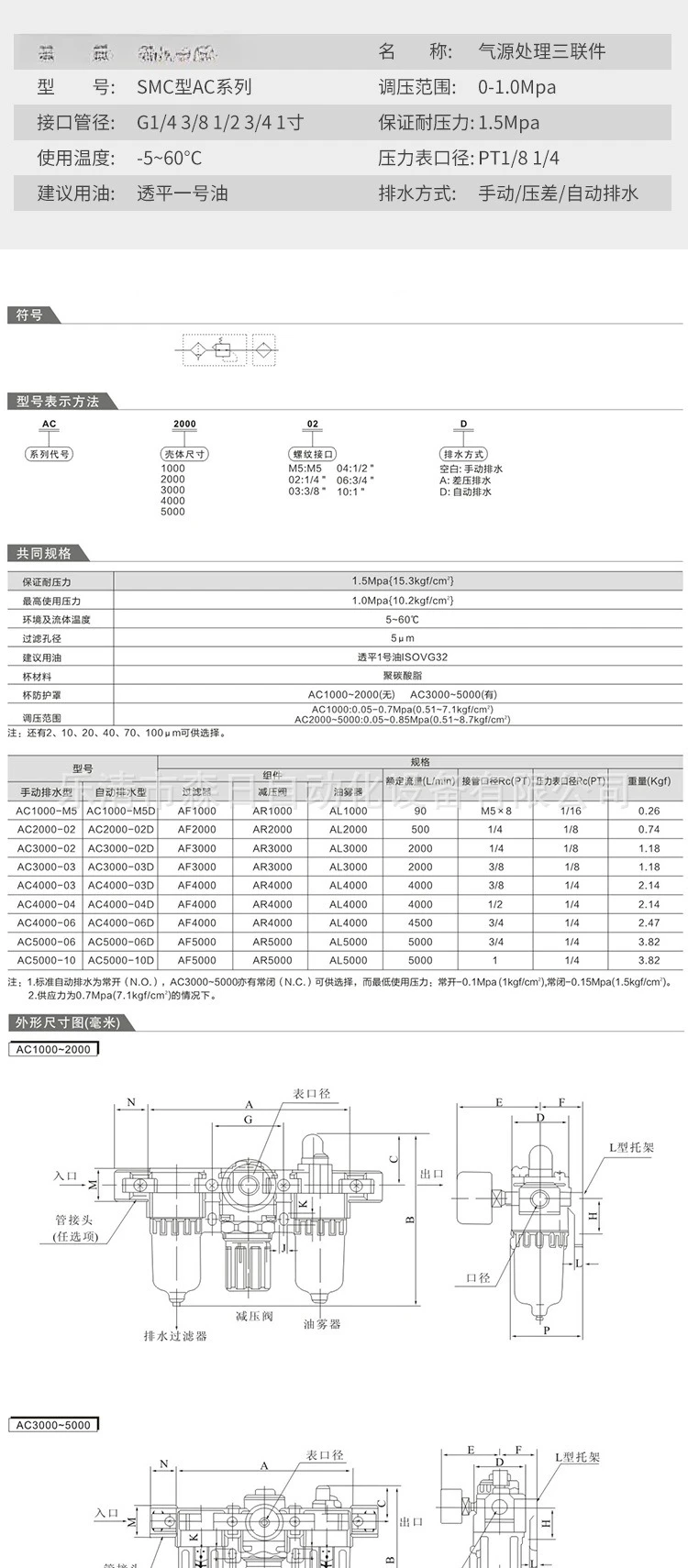

AC series air source processor connector thread sizes are as follows:

AC 2000-02/02D inlet and outlet hole thread 2 points, pressure gauge thread is 1 point

AC3000-02/02D2 points for air inlet and outlet threads, 1 point for pressure gauge threads

AC3000-03/03D3 points for air inlet and outlet threads, 1 point for pressure gauge threads

AC4000-04/04DThe inlet and outlet hole thread is 4 points, and the pressure gauge thread is 2 points.

AC4000-06/06DThe inlet and outlet hole thread is 6 points, and the pressure gauge thread is 2 points.

AC5000-06/06DThe inlet and outlet hole thread is 6 points, and the pressure gauge thread is 2 points.

AC5000-10/10DThe inlet and outlet hole thread is 1 inch, and the pressure gauge thread is 2 points.

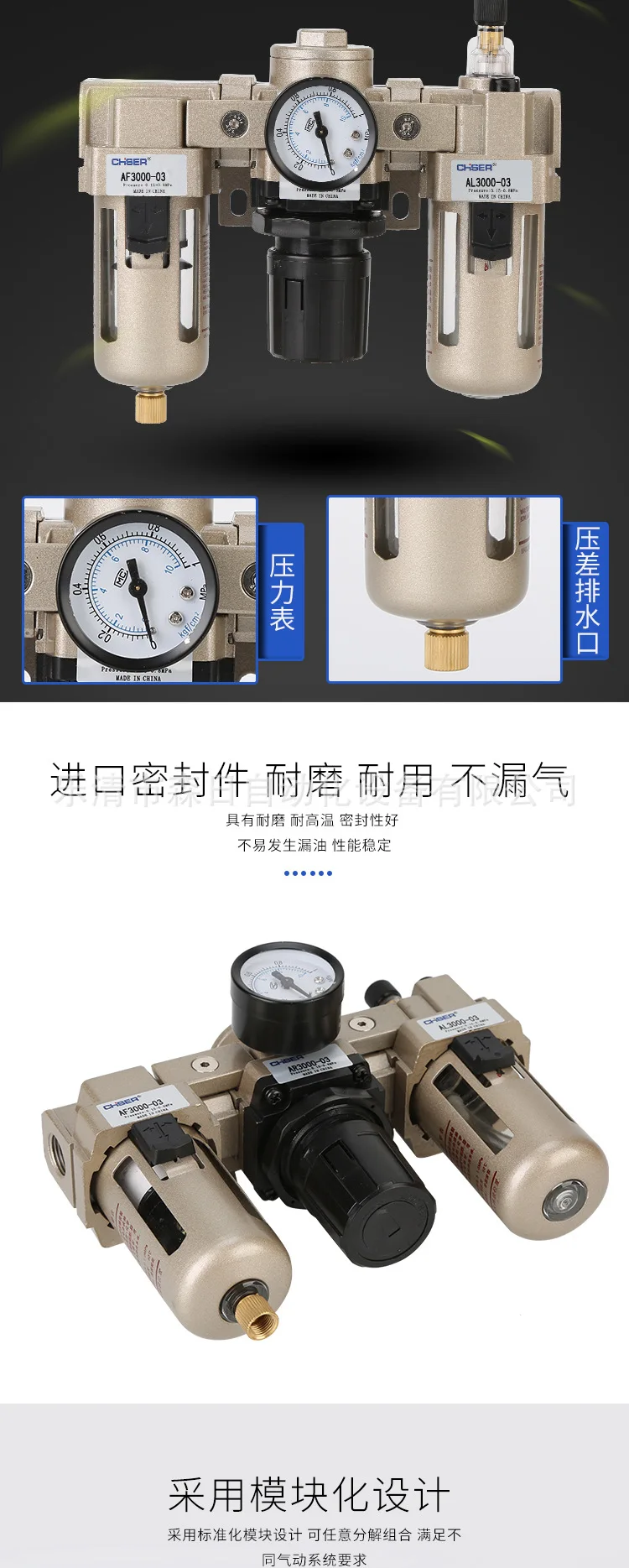

Note: The following are pictures of filters with differential pressure drainage
