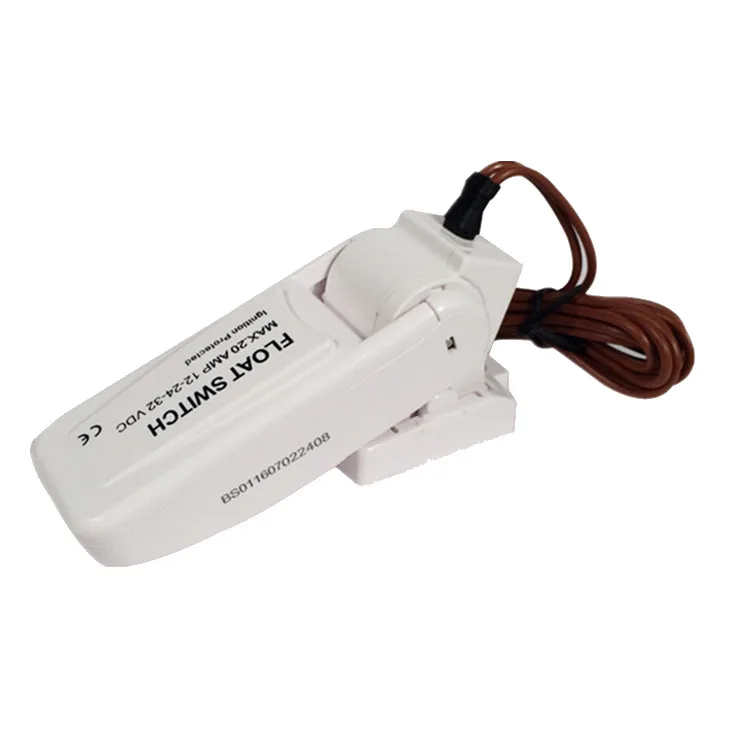

HYBS-20-01 Float Switch for Submersible Pump Automatic Switch Float Switch Bilge Water Level Automatic Controller

The main purpose:

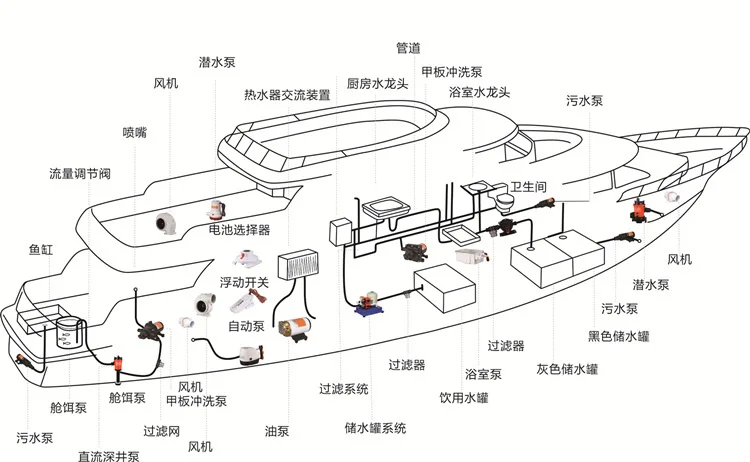

In cooperation with our micro submersible pumps, an unattended automatic drainage shutdown system can be set up, which is suitable for the following industries:
1. General industrial equipment and medical equipment;
2. Chemical equipment tourism vehicles, special vehicles, ships;
3. Industrial machinery supporting;
4. Agriculture (lawn and garden, etc.);
5. Vehicle cleaning, carpet cleaning, floor cleaning, etc.;
6. Water purification and water treatment equipment.

Product description:
1. Long service life, up to 100,000 switching times; self-contained installation card holder, providing bottom and side installation methods;

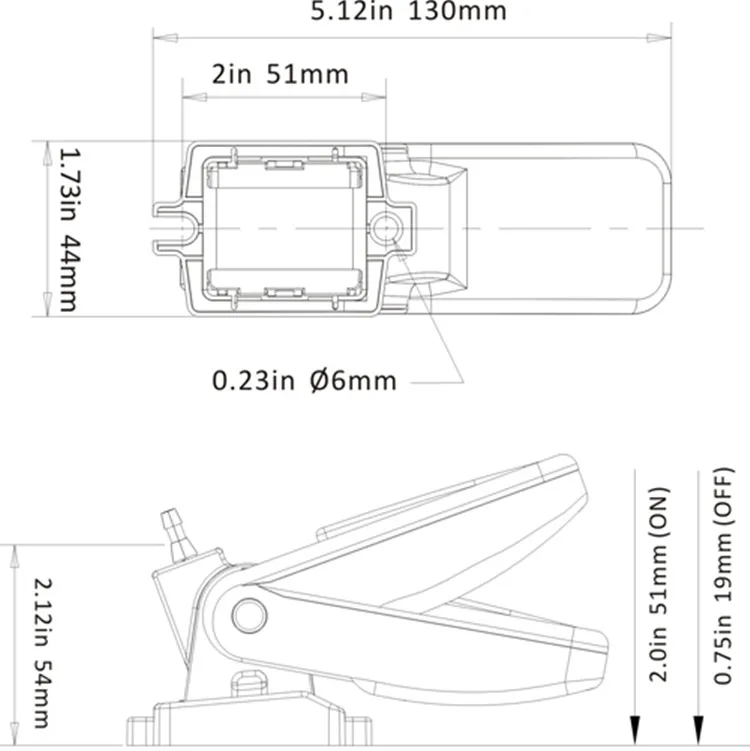

2. Automatically turn on when the horizontal plane is ≥55mm; automatically disconnect when it is less than 25mm; and can adapt to the positioning requirements of different liquid level heights by increasing/decreasing the thickness of the underlying material of the mounting base;
3. It is connected by high-quality copper cable with a diameter of 3.5mm (the diameter of the inner copper wire is up to 2mm) to ensure that it can work normally even if a large current of up to 30A passes through;
4.Using ultrasonic welding, one-time sealing molding, reliable and safe, no water leakage;
5. The shell is made of high-quality ABS material, with internal metal contacts to ensure reliable start/stop;
6. With the water pump, it can form an automatic shutdown/start system to avoid the water pump idling, dry running and burning or causing failure; it can realize automatic duty, without manual time-consuming and laborious guarding.
