Product Description
Manual mode:
Product Description

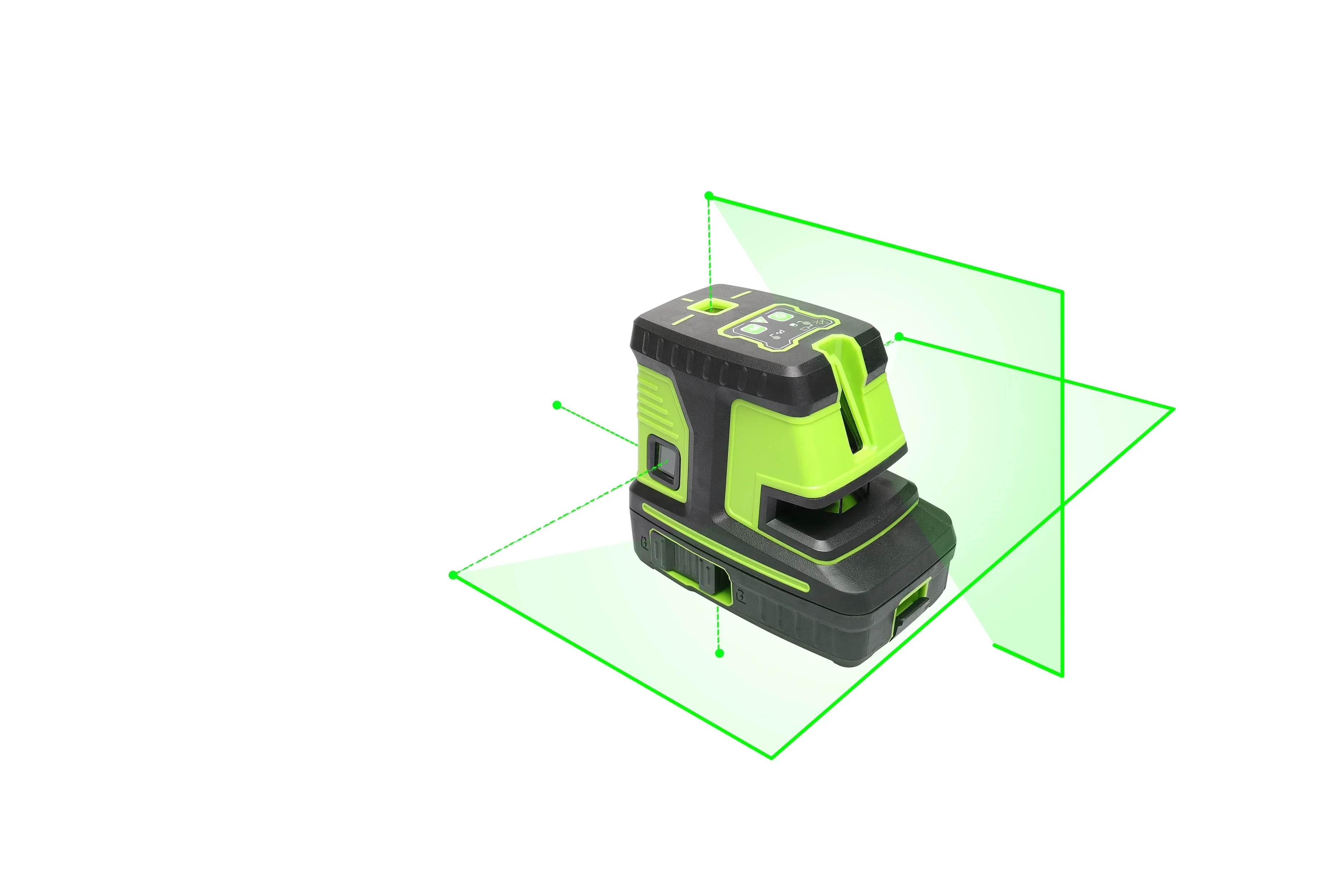

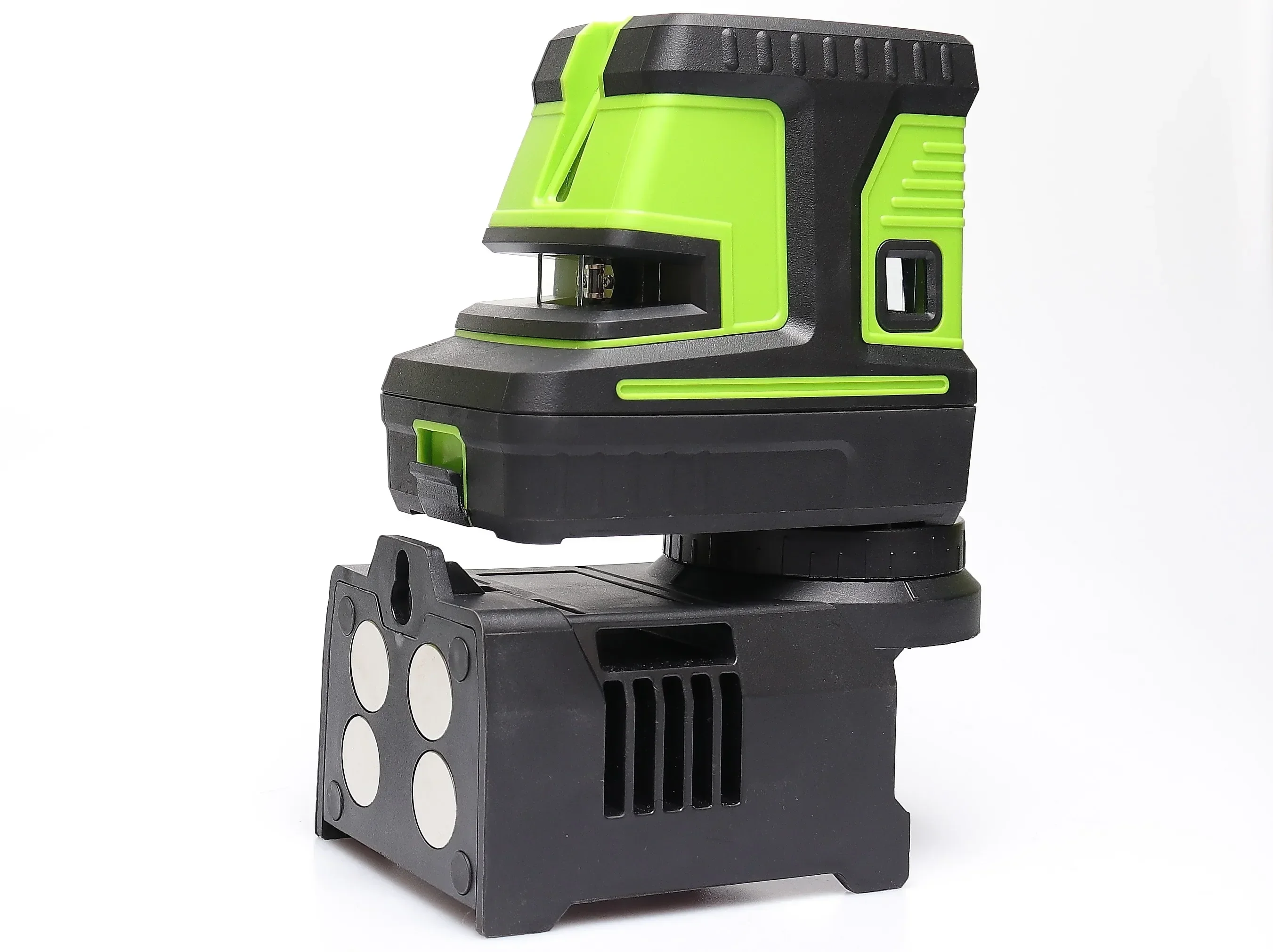

GIM5G Laser Level Features:
* Robust over-molded housing
* Ultra bright laser beams allows all possible applications
* IP54 – water/debris resistant.
* Guaranteed Reliable
* Full-time pulse mode allows use with detector
* Central locking mechanism helps protect internals, also allow use of laser tool’s manual mode
* Dot Accuracy: Up Dot 3mm/10m; Down Dot 4mm/10m
* Line Acccuracy: H/V Line ±2mm/10m
* Ultra bright laser beams allows all possible applications
* IP54 – water/debris resistant.
* Guaranteed Reliable
* Full-time pulse mode allows use with detector
* Central locking mechanism helps protect internals, also allow use of laser tool’s manual mode
* Dot Accuracy: Up Dot 3mm/10m; Down Dot 4mm/10m
* Line Acccuracy: H/V Line ±2mm/10m

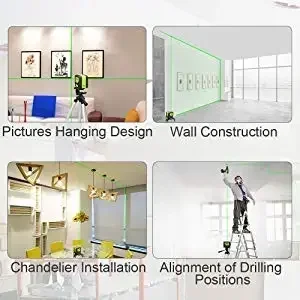

Widely used
Huepar’s laser tools can help you work effectively in home decoration, wall building, bridge construction, engineering
construction, railway construction, etc.
Huepar’s laser tools can help you work effectively in home decoration, wall building, bridge construction, engineering
construction, railway construction, etc.
Fine Positioning
GIM5G laser level offers cross-line accuracy of +/- 1/9 inch at 33 feet, up point accuracy of 1/13 inch at 33 feet and down point accuracy of 1/9 inch at 33 feet.
We adopt the latest LD blue-green laser unit, It is at least twice brighter than red lasers utilizing the same power source.
GIM5G laser level offers cross-line accuracy of +/- 1/9 inch at 33 feet, up point accuracy of 1/13 inch at 33 feet and down point accuracy of 1/9 inch at 33 feet.
We adopt the latest LD blue-green laser unit, It is at least twice brighter than red lasers utilizing the same power source.

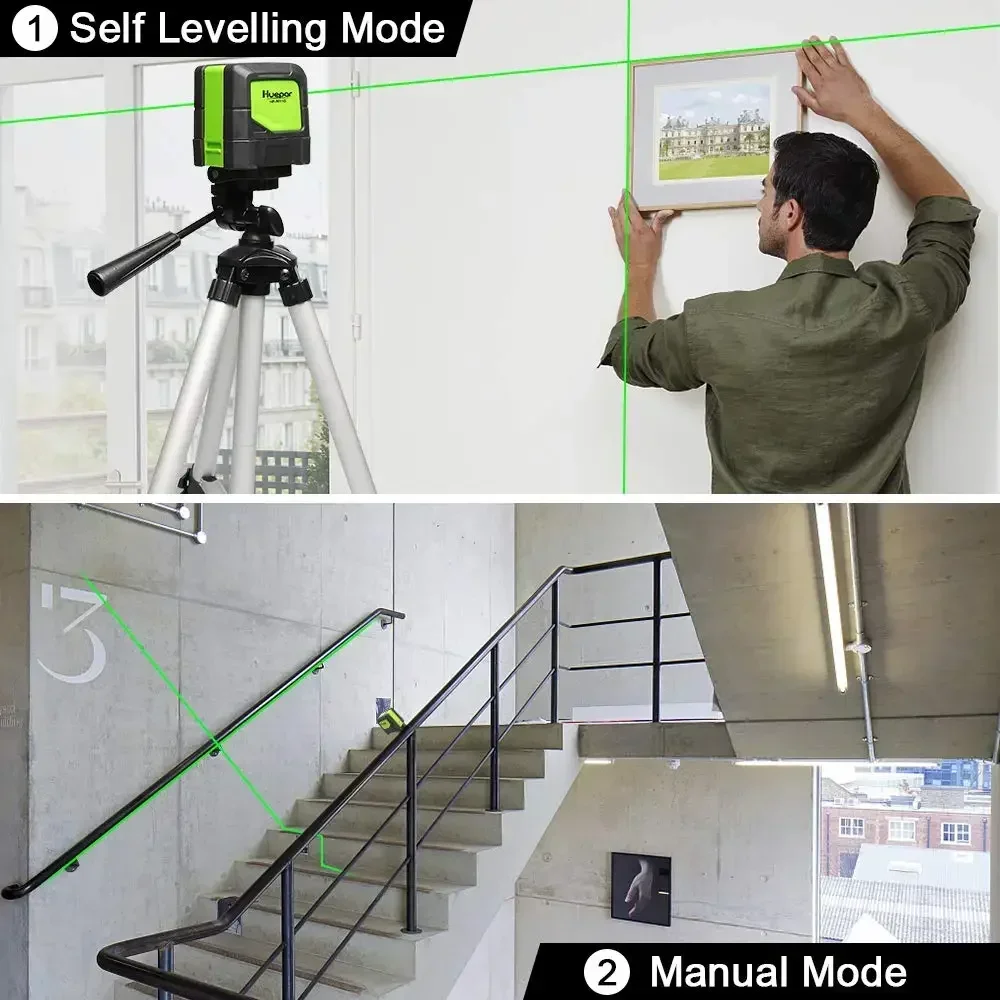

Self-leveling mode & Manual mode
Self-leveling mode:
Unlock the pendulum, self-leveling mode is enabled. The laser beam will blink continuously at 2Hz when the tool is beyond
self-leveling range (4°±1°).
self-leveling range (4°±1°).
Manual mode:
Lock the pendulum, you can place the laser tool at various angles to project non-level straight laser lines. The laser beam will blink every 3-5 seconds to remind you that it’s not self-leveling now.
Specification
|
Model No.
|
GIM5G
|
|
Type
|
1V1H with 5 Dot
|
|
Expanded Angle
|
220°
|
|
Laser class
|
Class 2
|
|
Beam source
|
Green Beam
|
|
Laser wavelength
|
520nm
|
|
H/V accuracy
|
±2mm/10m;±1/13 In. at 33 Ft.
|
|
Up beam accuracy
|
3mm/10m;1/9 In. at 33 Ft.
|
|
Down beam accuracy
|
4mm/10m;±2/13 In. at 33 Ft.
|
|
Self-leveling range
|
4°±1°
|
|
Self-leveling time
|
≤3s
|
|
Working distance (Dot)
|
60m
|
|
Working distance (Line)
|
45m,≥60m ;with detector
|
|
Operating time
|
4h(all lasers on)
|
|
Power source
|
4 * AA(LR6)
|
|
IP rating
|
IP54
|
|
Operating Temp
|
-10°C to 50°C
|
|
Storage Temp
|
-20°C to 70°C
|
|
Mount size
|
1/4” ;5/8″
|
Packing

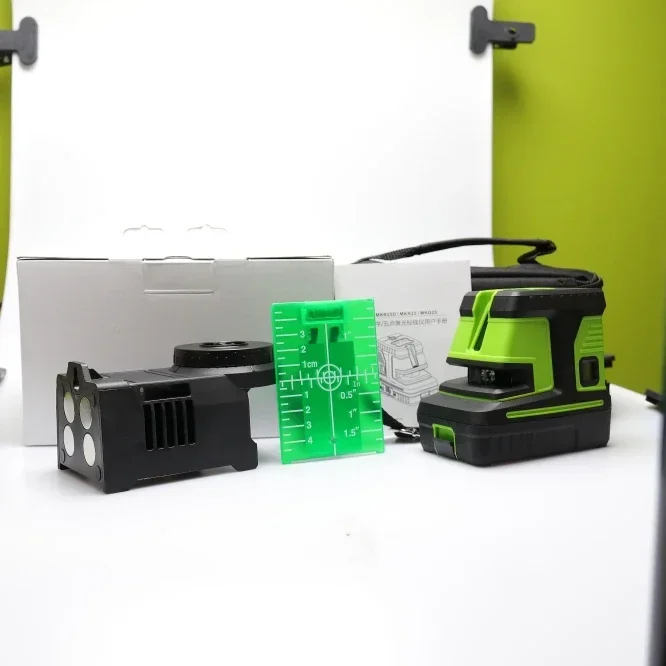

Packing Includes:
* 1 X GIM5G laser level
* 1 X 360 Degree Magnetic pivoting base
* 1 X Green laser target card
* 2 X AA Batteries
* 1 X Cloth case
* 1 X User’s Manual

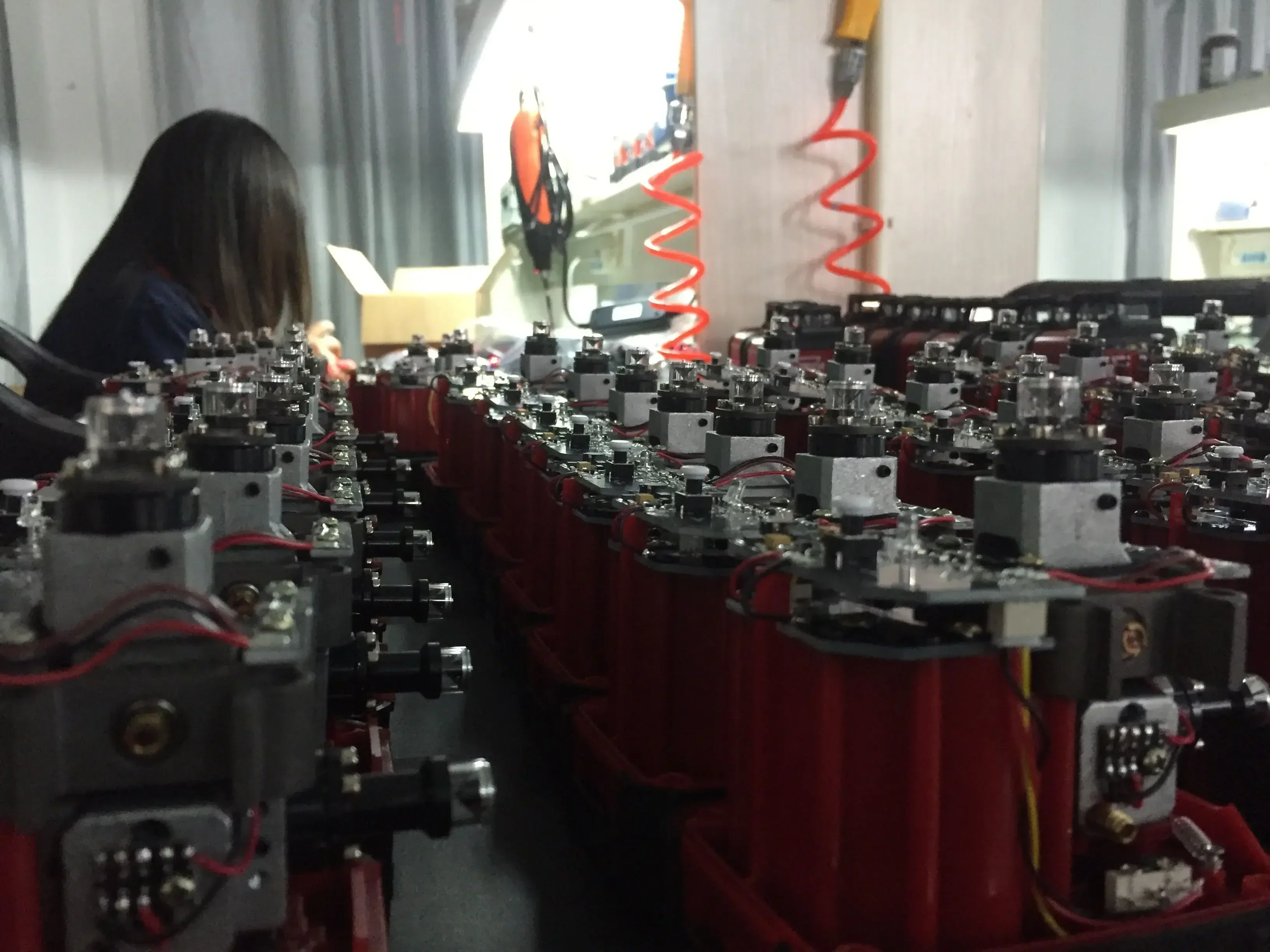

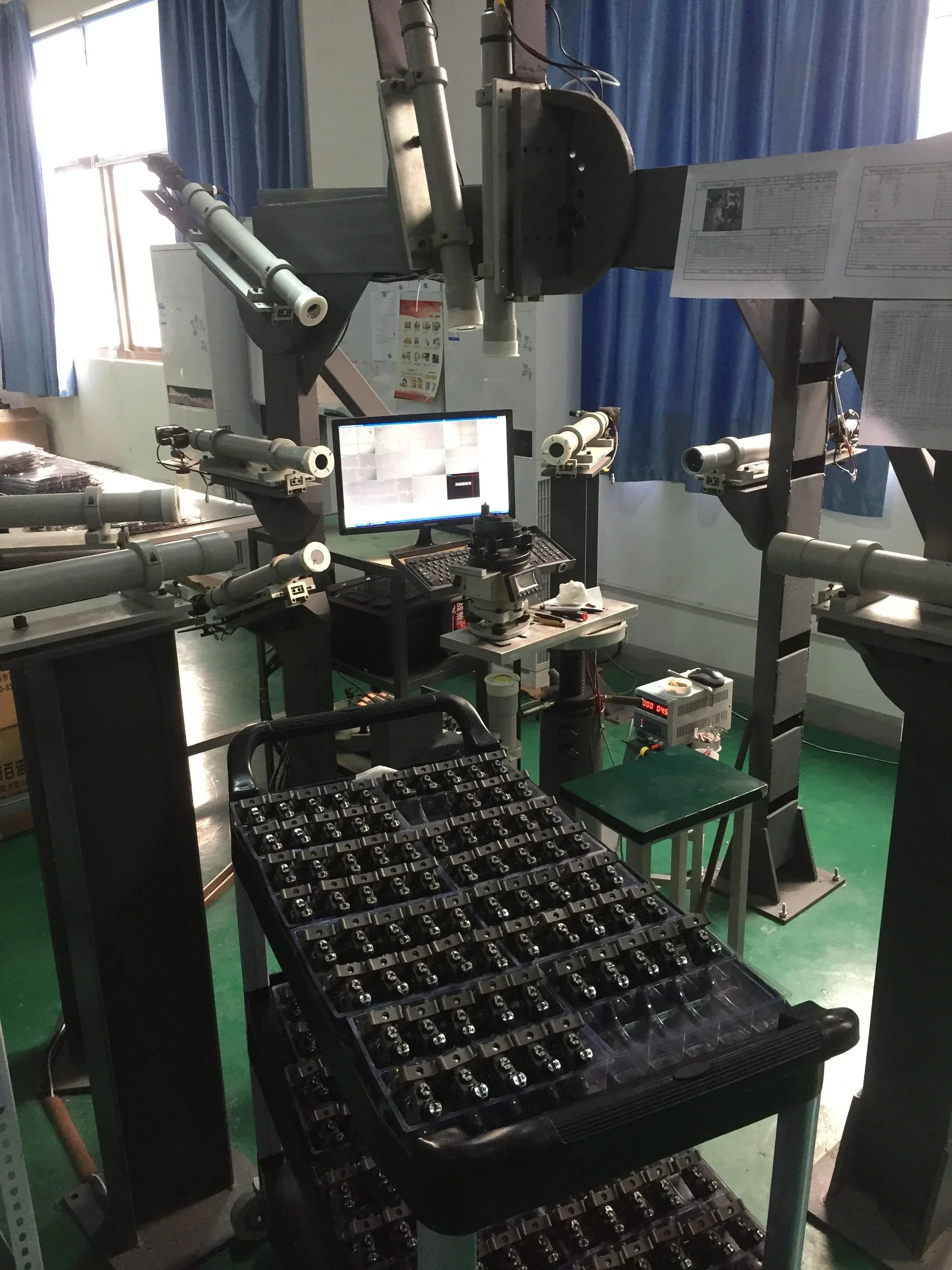

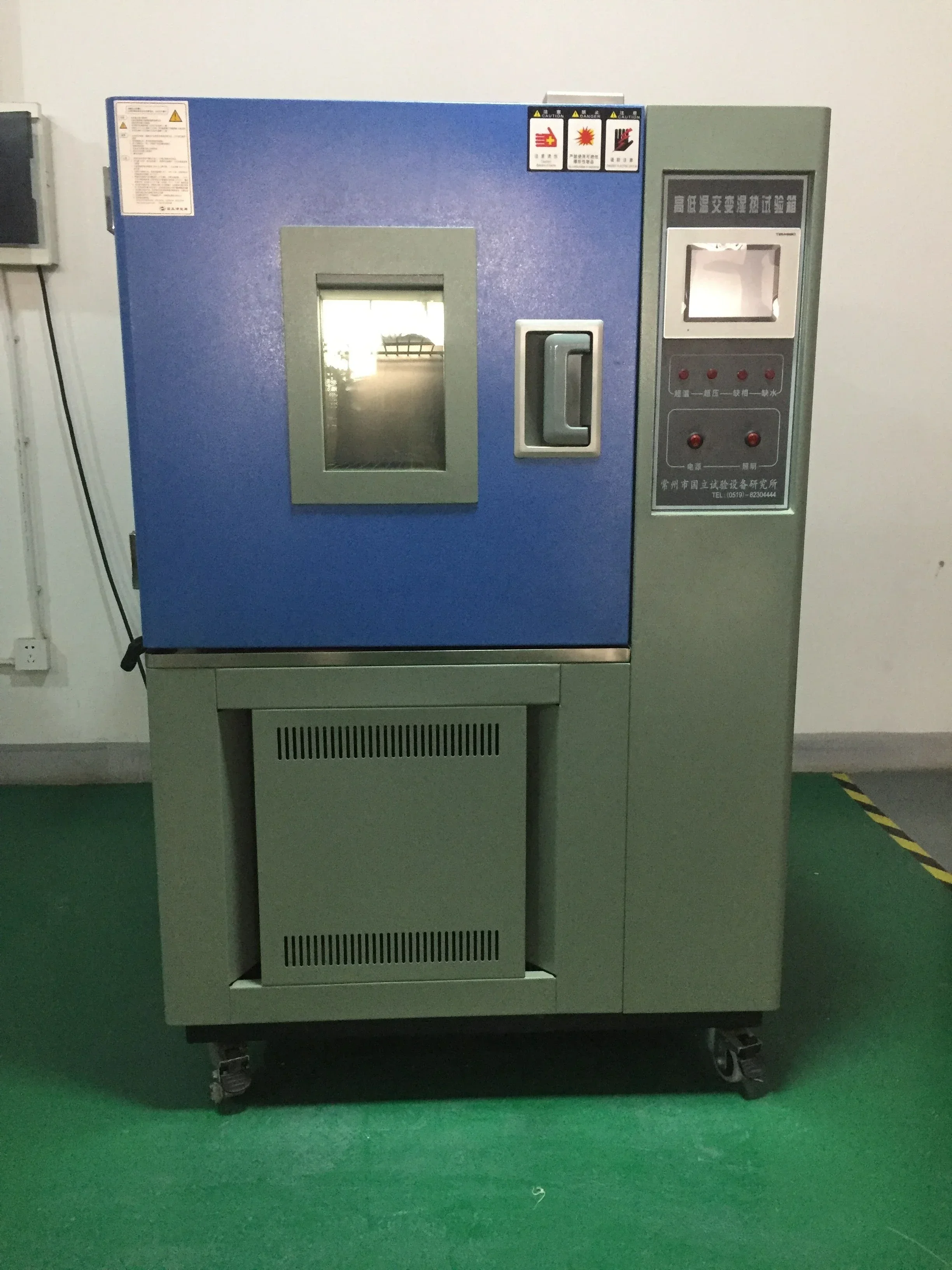

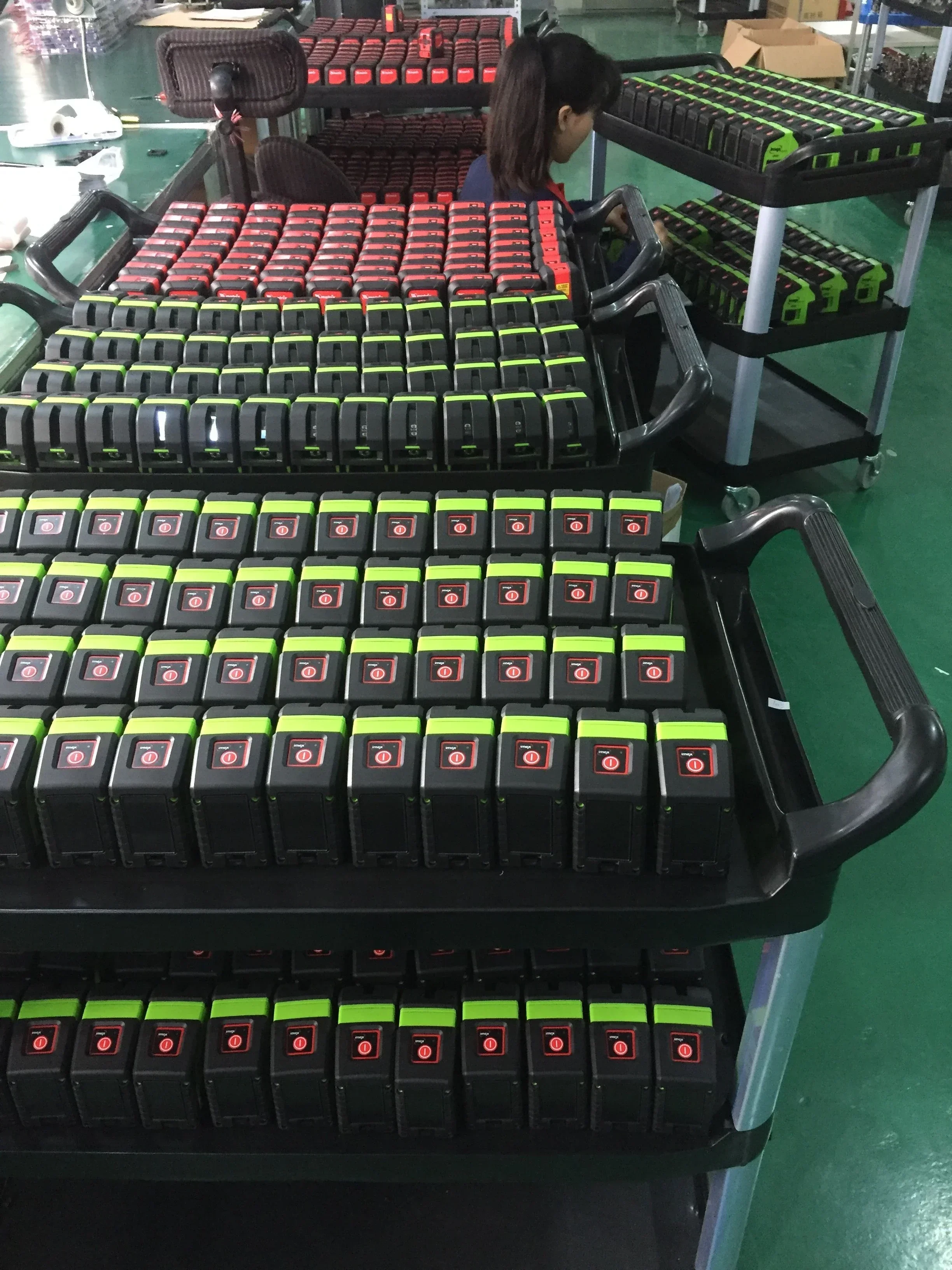

Company Profile
A quality oriented manufacturer for measuring tools that have been dedicating to supply reliable quality&high
cost-effective&satisfactory after service to the high-end market.
cost-effective&satisfactory after service to the high-end market.
