Product Description

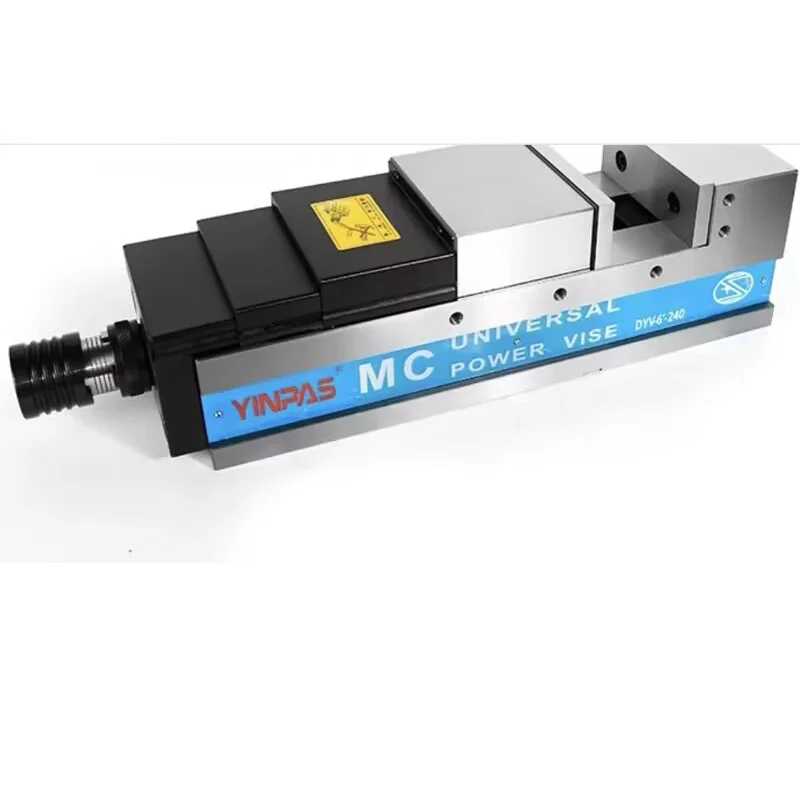

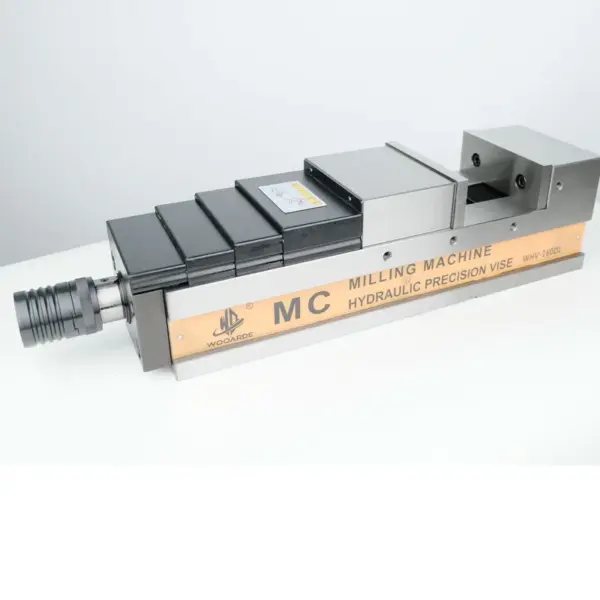

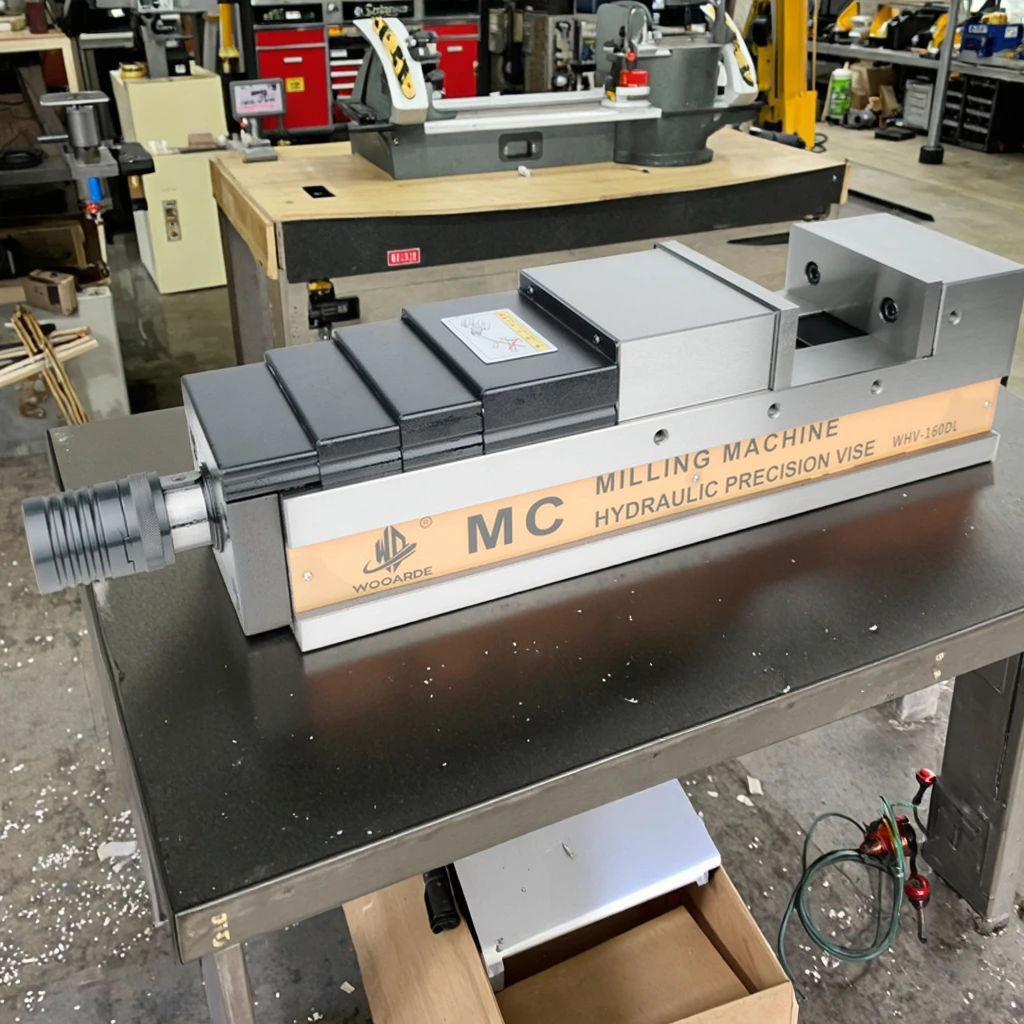

Pneumatic Vise MC Precision Power Milling Vice 6inch Hydraulic Vise Cnc Machine Tools
Performance and characterist:
The vise is made by precision processing and grinding processes,it’s suitable for vertical/horizontal machine centers to precision processing .
Vise body material is high ductility of spherical graphite cast iron (FCD600) integral product desigh,vise both sides of the slide hardened heat (HRC42) ensure high precision and high wera resistance ,high tensile strengh,
Jaw hardened heat (HARC42)
Machanism design (partent design) with rapaid pressurization and high clamping force of the unique characteristics of the pressuring mechanism (highest up to 5000kgf)
| Model | Width of jaw | Height of jaw | Max.opening | G.W./N.W. | Packing volume | Packing shape |
| (mm) | (mm) | (mm) | (kg) | (cm) | ||
| Q52150 | 152 | 52 | 320 | 44/42 | 66x26x17 | carton |
| Q52320 | 320 | 81 | 345 | 105/103 | 71x37x26 | carton |
| Q52400 | 400 | 85 | 430 | 163/159 | 83x48x30 | carton |
