Description
Features

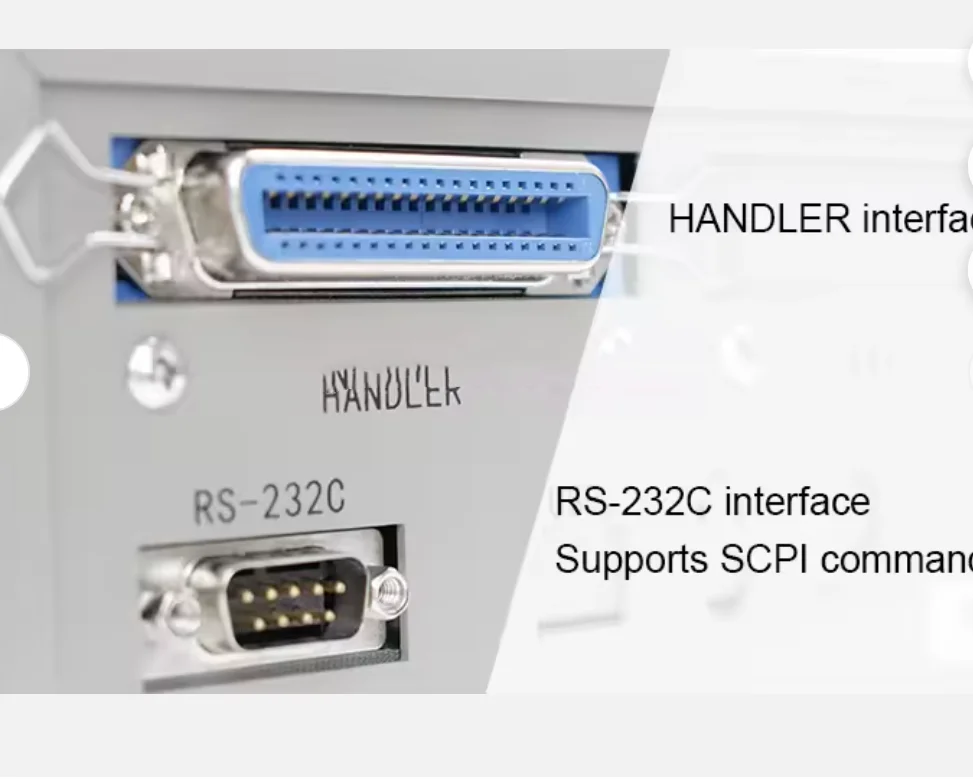

>>> 32-bit core processor >>> 5-digit 4.3-inch TFT LCD display >>> 2 signal source output impedance: 30Ω, 100Ω >>> List mode function, 10 steps >>> 100 sets memories for internal storage/save >>> 500 memories for U disk storage/save, supports FAT16 and FAT32 files >>> Save the last parameter settings before power off >>> Standard interface: RS-232, HANDLER, USB HOST
|
Specifications
|
|
|
|
|||
|
Model
|
LCR-7010
|

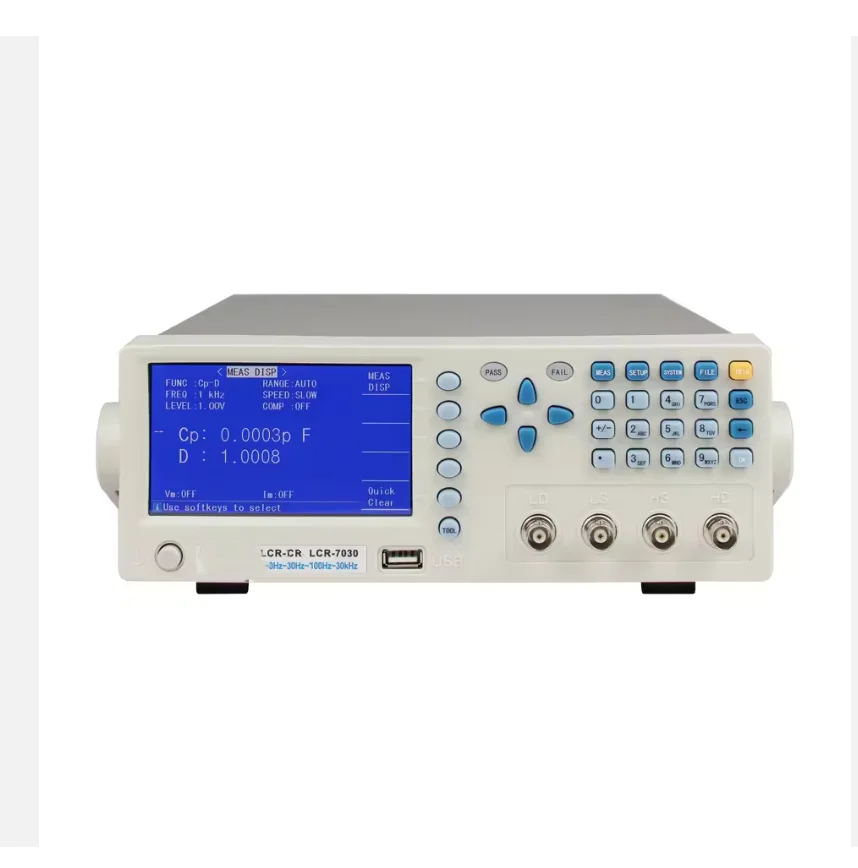

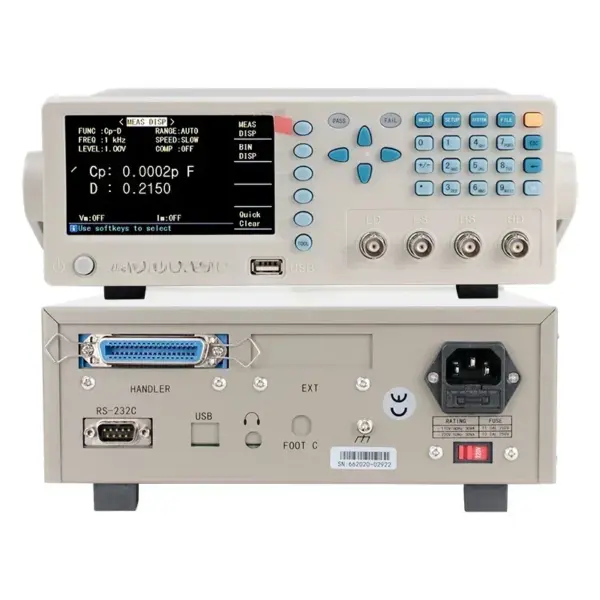

LCR-7030
|

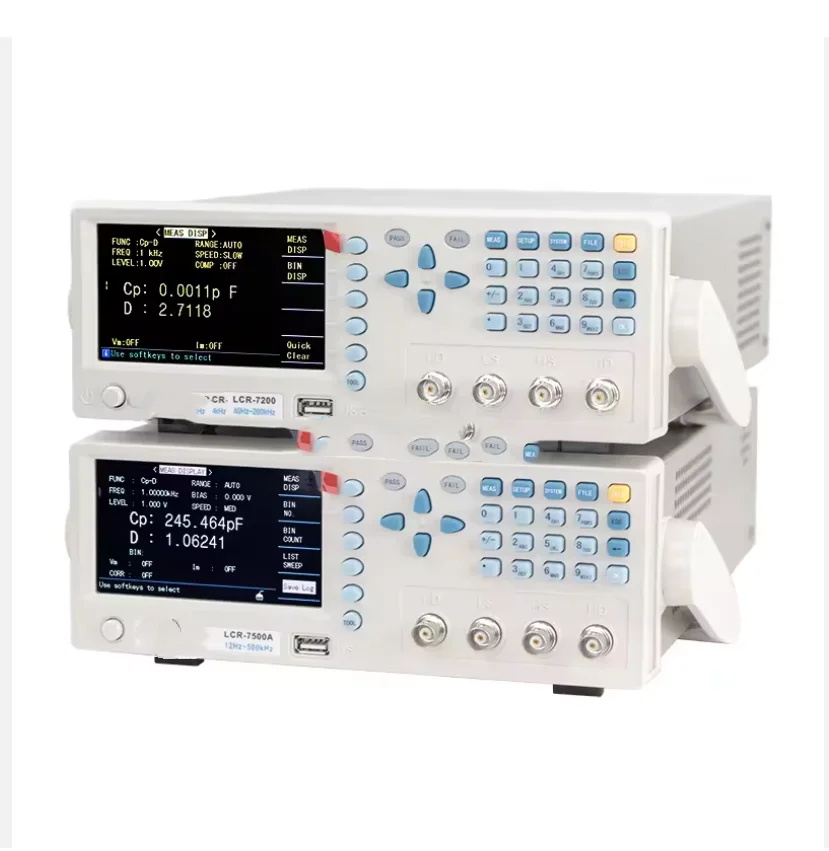

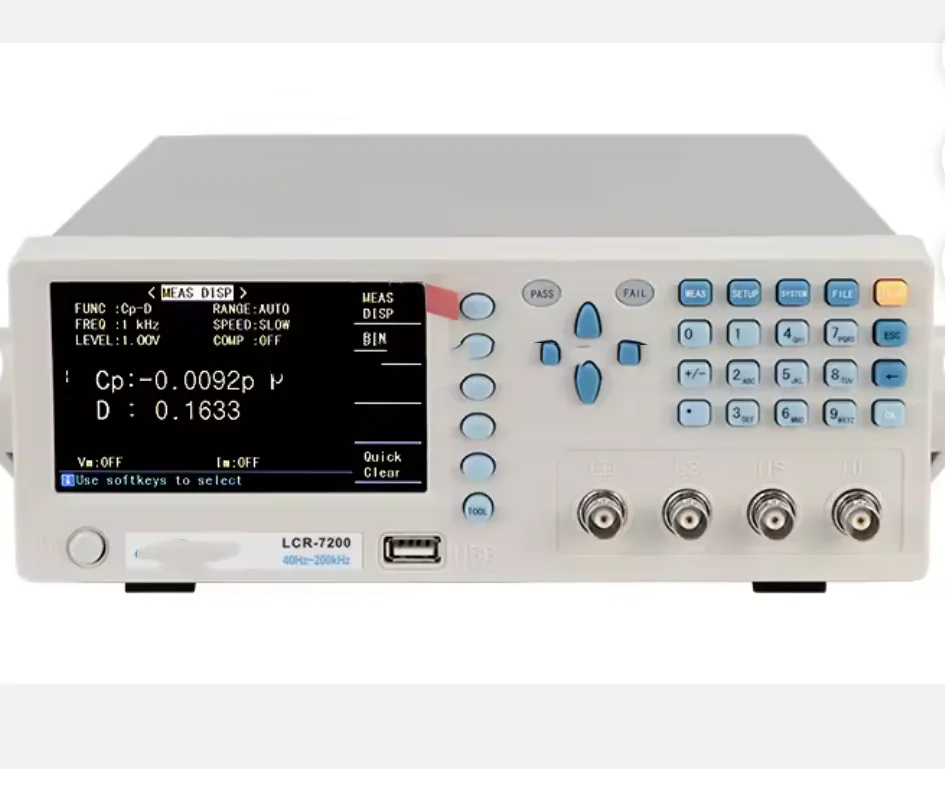

LCR-7200
|
|||
|
Measurement function
|
|
|
|
|||
|
Test parameter
|
| Z|, |Y|, C, L, X, B, R, G, D, Q, θ
|
|
|
|||
|
Test signal frequency
|
LCR-7010: 100Hz,120Hz,1kHz,10kHz
LCR-7030: 100Hz,120Hz,1kHz,10kHz, 20kHz, 30kHz LCR-7200: 40Hz, 50Hz, 60Hz, 75Hz, 100Hz, 120Hz, 150Hz, 200Hz, 250Hz, 300Hz, 400Hz, 500Hz, 600Hz, 750Hz, 800Hz, 1kHz, 1.5kHz, 2kHz, 2.5kHz, 3kHz, 4kHz, 5kHz, 6kHz, 7.5kHz, 10kHz, 12kHz, 15kHz, 15.7kHz, 16.2kHz, 20kHz, 25kHz, 30kHz, 40kHz, 50kHz, 60kHz, 66.6kHz, 75kHz, 100kHz, 120kHz, 150kHz, 200kHz (38 points) |
|
|
|||
|
Basic accuracy
|
0.15%
|
0.1%
|
0.1%
|
|||
|
Equivalent circuit
|
Series, Parallel
|
|
|
|||
|
Mathematical function
|
Absolute Deviation and Percentage Deviation
|
|
|
|||
|
Range mode
|
Auto, Hold, Manual Selection
|
|
|
|||
|
Trigger mode
|
Internal, Manual, External, BUS
|
|
|
|||
|
Measurement speed
|
Fast: max.30, Medium: 10, Slow: 3 (times/second) (≥1kHz)
|
|
|
|||
|
Average times
|
1-255
|
|
|
|||
|
Delay time
|
0-60s, step 1ms
|
|
|
|||
|
Calibration function
|
Open circuit, Short circuit, Load
|
|
|
|||
|
Measurement terminal
|
5-terminal
|
|
|
|||
|
Display mode
|
Direct, Δ, Δ%, V/I (monitoring test voltage and current)
|
|
|
|||
|
Display
|
5 digit 4.3-in LCD display
|
|
|
|||
|
List Mode
|
10 steps
|
|
|
|||
|
Measurement display range
|
|
|
|
|||
|
|Z|, R, X
|
0.01m Ω – 99.999 MΩ
|
|
|
|||
|
|Y|, G, B
|
0.0001µS – 99.999 S
|
|
|
|||
|
C
|
0.0001 pF – 9.9999 F
|
|
|
|||
|
L
|
0.0001 µH – 999.99 H
|
|
|
|||
|
D
|
0.0001 – 9.9999
|
|
|
|||
|
Q
|
0.0001 – 9999.9
|
|
|
|||
|
θ (DEG)
|
-179.99º -179.99 º
|
|
|
|||
|
θ (RAD)
|
-3.14159 – 3.14159
|
|
|
|||
|
Δ%
|
-999.99% – 999.99%
|
|
|
|||
|
Comparator and interface
|
|
|
|
|||
|
Comparator
|
N/A
|
4-bin comparator
|
5-bin comparator
|
|||
|
Memory
|
100 sets memories for internal parameter settings storage/save
500 sets for U disk parameter settings storage/save |
|
|
|||
|

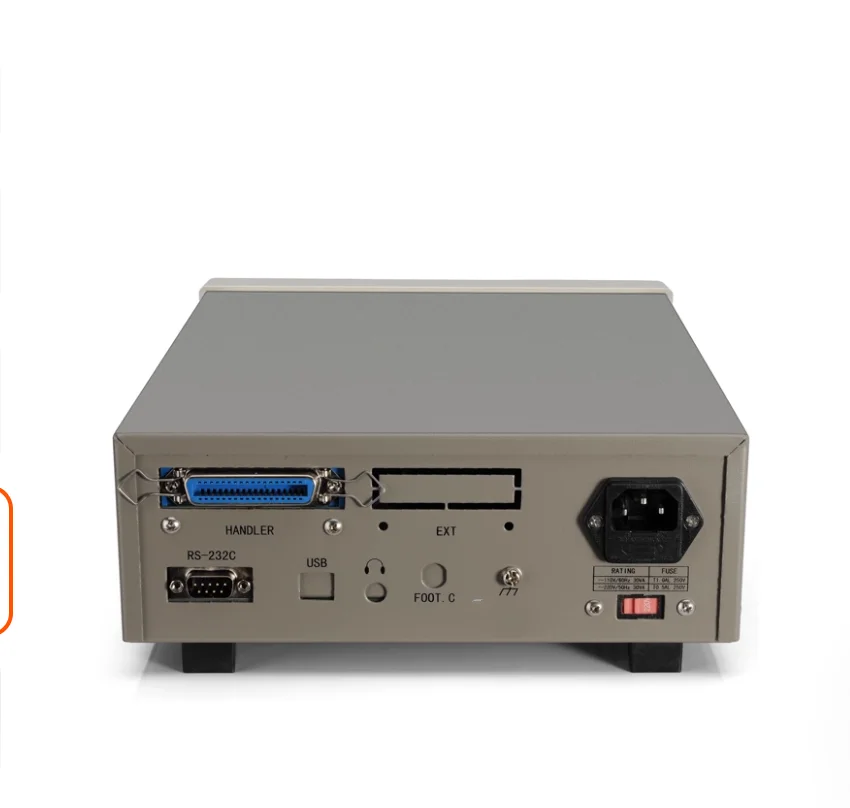

Standard interface
|
Standard: RS232, USB HOST
|
Standard: RS232, USB HOST, HANDLER
|
|
|||
|
Optional interface
|
N/A
|
|
|
|||
|
General
|
|
|
|
|||
|
Operating environment
|
0°C – 40°C, ≤80%RH
|
|
|
|||
|
Power source
|
110/220V±10%, 47~63Hz
|
|
|
|||
|
Power consumption
|
≤30VA
|
|
|
|||
|
Accessories
|
4-terminal Kelvin test clip leads, RS232 cable, power cord, operation manual
|
|
|
|||
|
Dimensions
|
265W*100H*340D mm
|
|
|
|||
|
Weight
|
Approx.3.5kg
|
|
|
|||
