Description

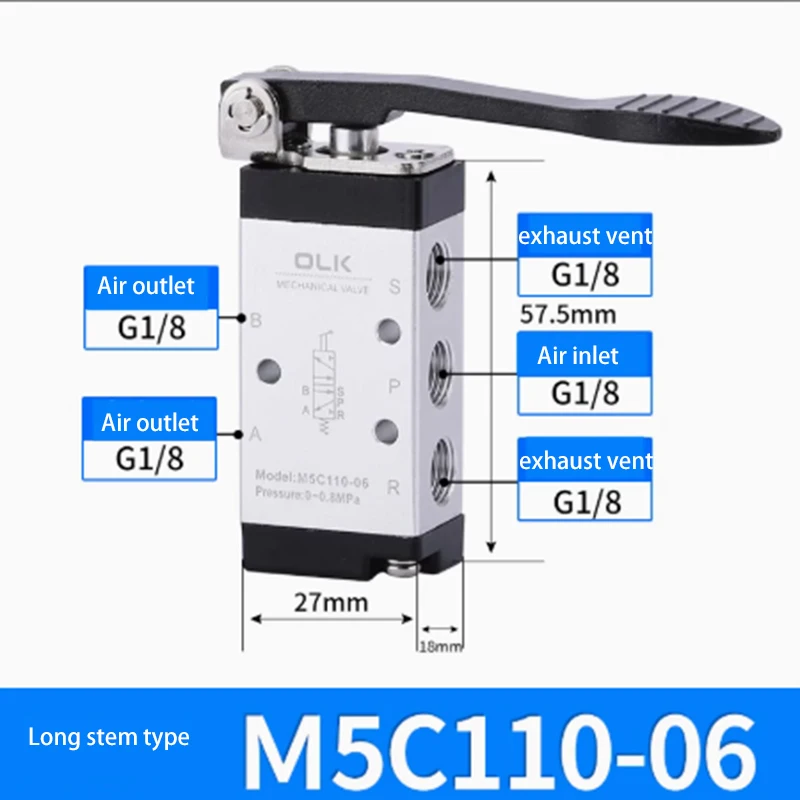

High Quality M5 Series Pneumatic Valve manual switch control mechanical valve Solenoid Valve M5B110 M5C110 M5D110 M5R110

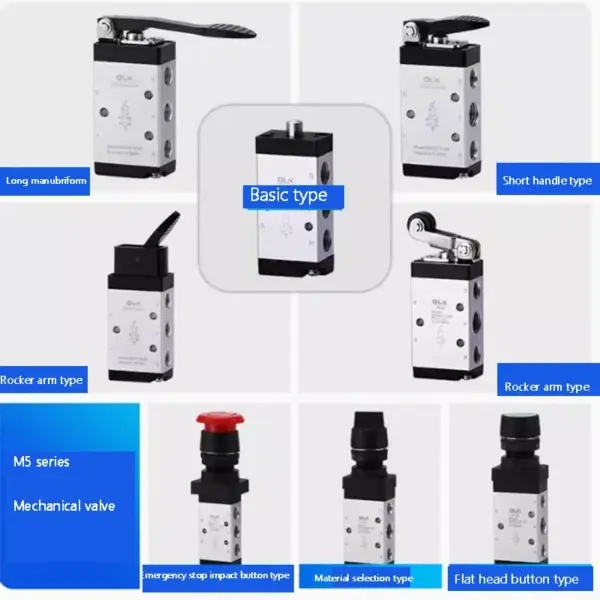

M5 mechanical valve
There are a variety of buttons for optional triggering, and the working pressure range is 0~1.0MPa
|
Model
|
M3B M3C M3D M3R M3L M3Y M3PM M3PP M3PF M3PL M3HS
|

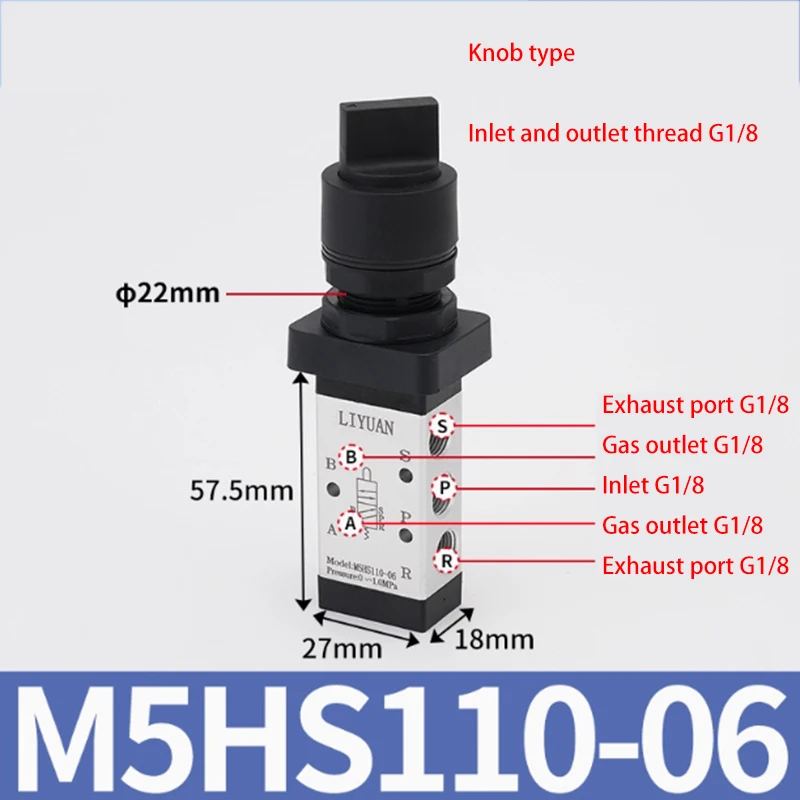

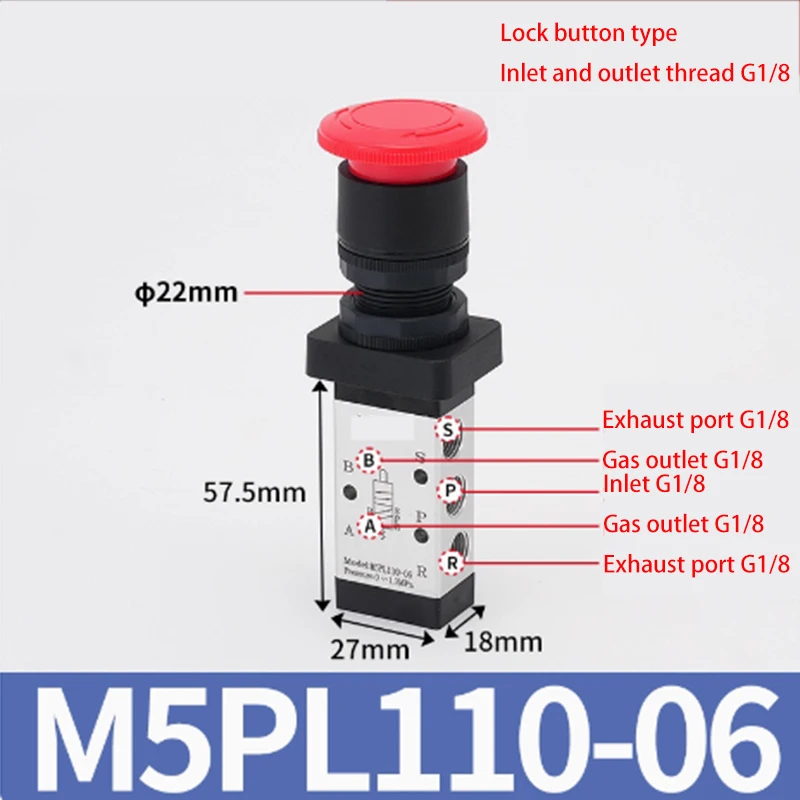

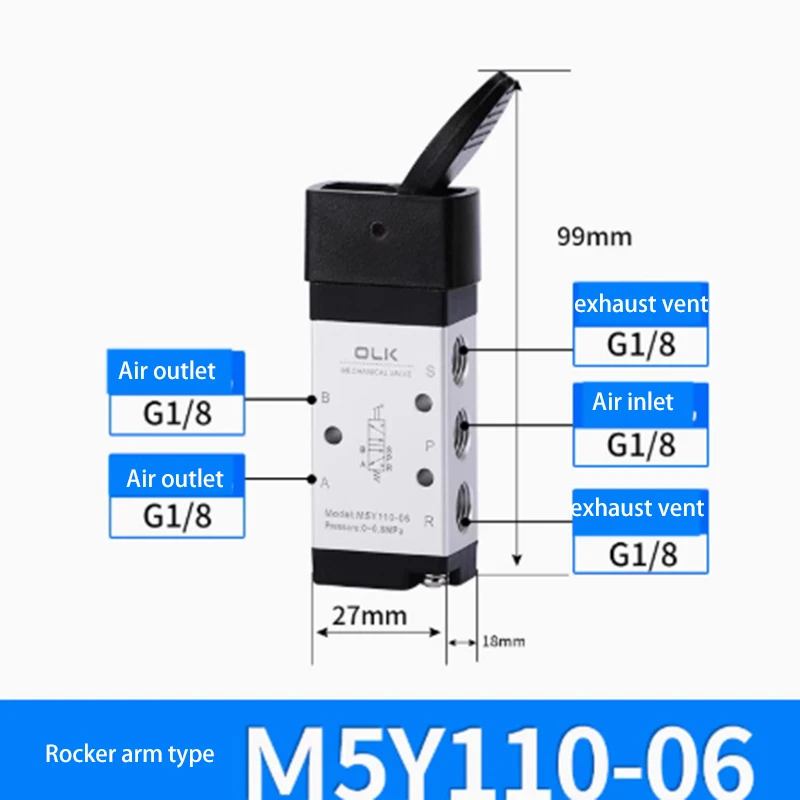

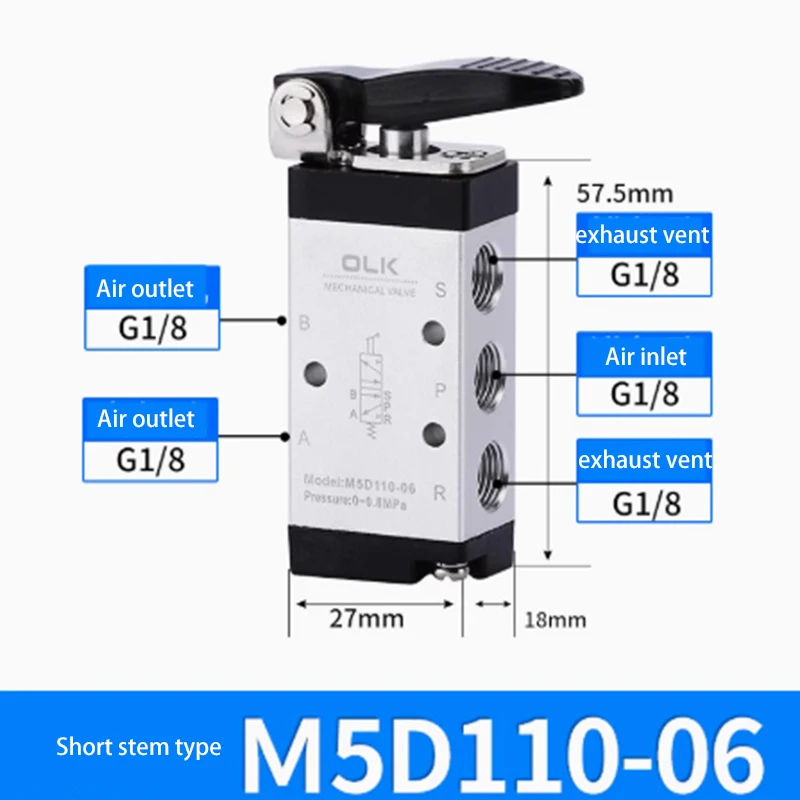

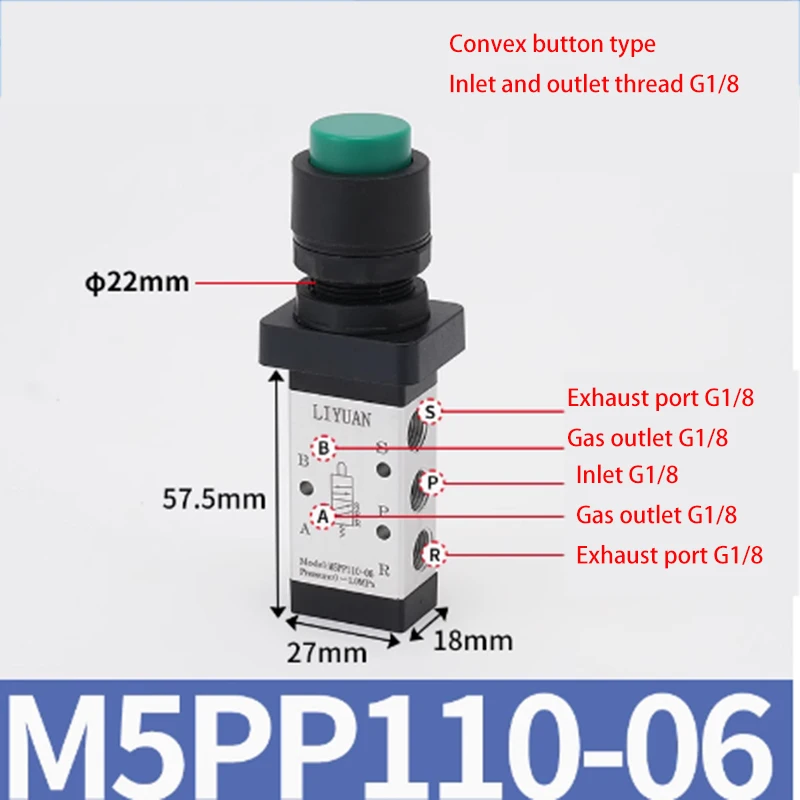

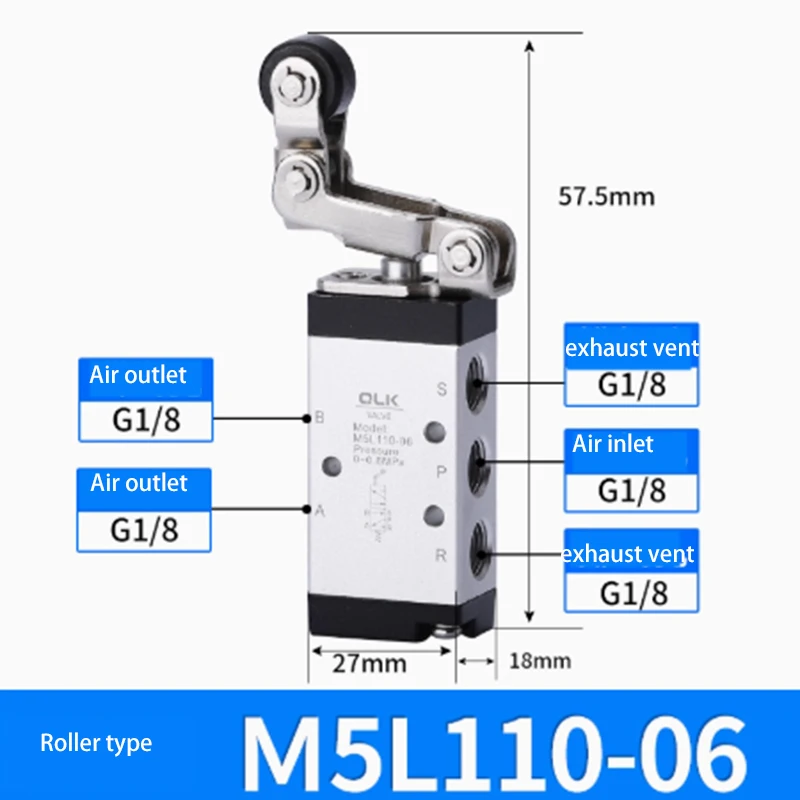

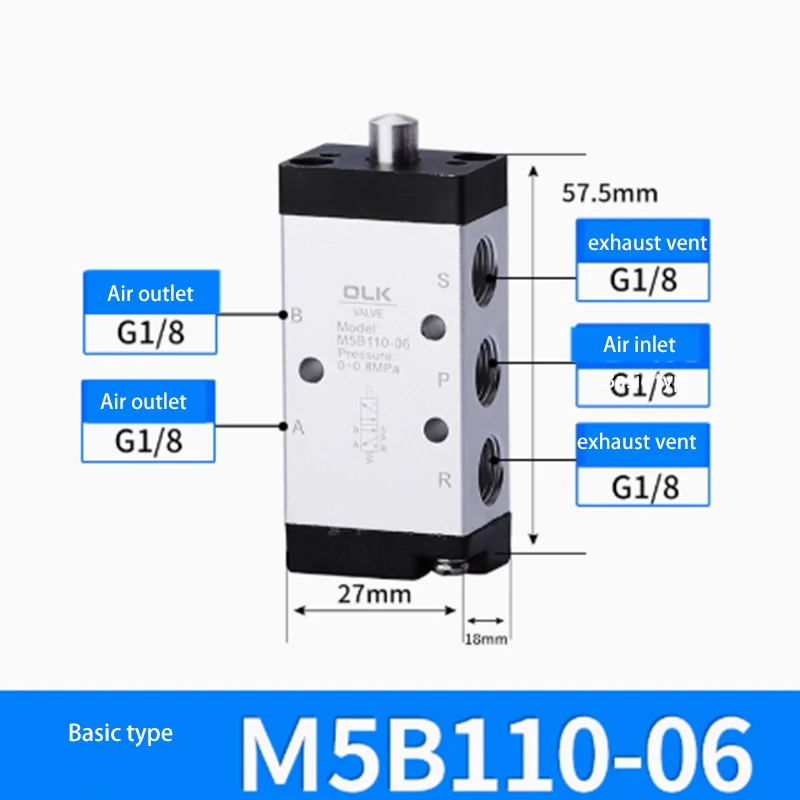

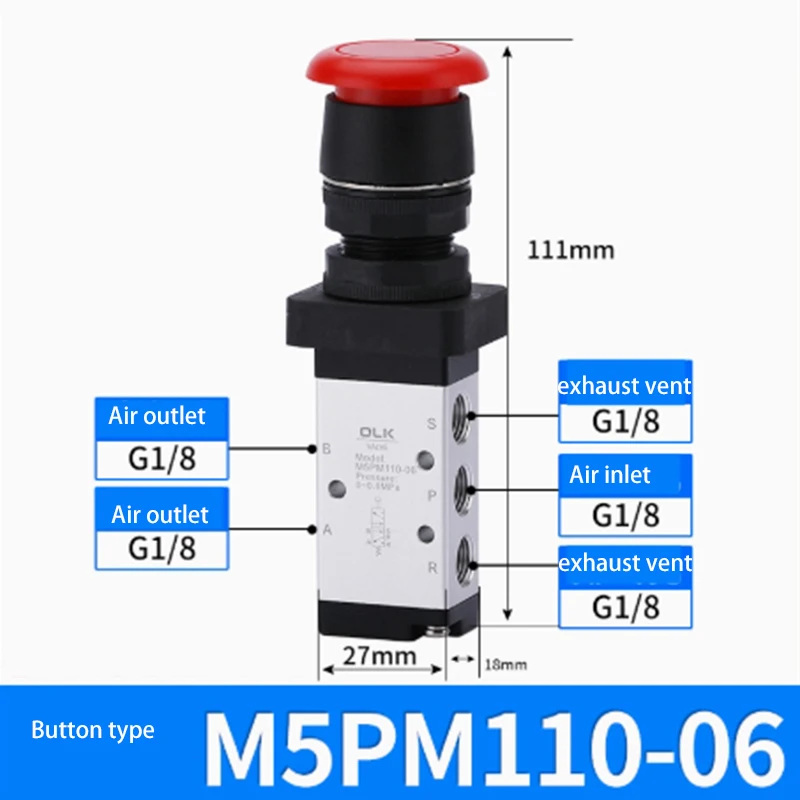

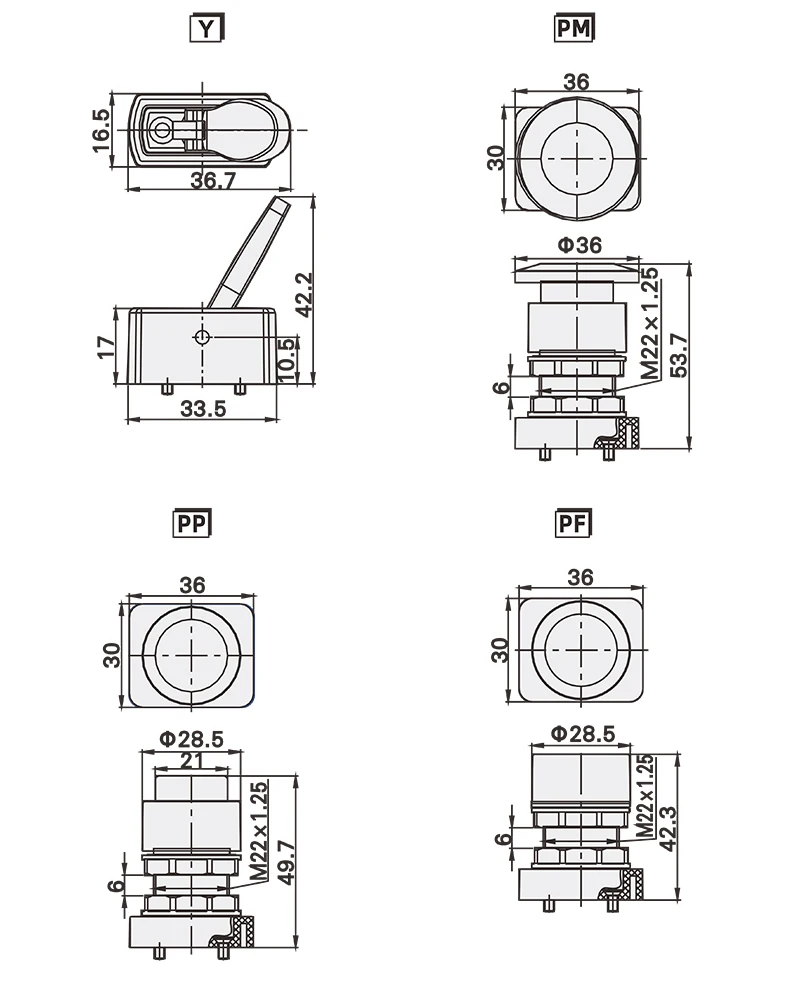

M5B M5C M5D M5R M5L M5Y M5PM M5PP M5PF M5PL M5HS
|
|
|
Working medium
|
Air
|
||
|
Action mode
|
External control direct acting type
|
||
|
port size
|
05:M5:06:G1/8:08:G1/4
|
||
|
Effective cross-sectional area
|
110
|
06:8.0mm²(CV=0.45)
|
|
|
210
|
06:9.0mm²(CV=0.50)，0.8:12.0mm²(CV=0.67)
|
||
|
Positions
|
3/2 Port
|
5/2 Port
|
|
|
ubrication
|
No Need
|
||
|
Pressure range
|
0-1.0 MPa
|
||
|
Proof pressure
|
1.5MPa
|
||
|
Woking Pressure
|
5~60℃
|
||
|
Body Material
|
Auminum Aloy
|
||
