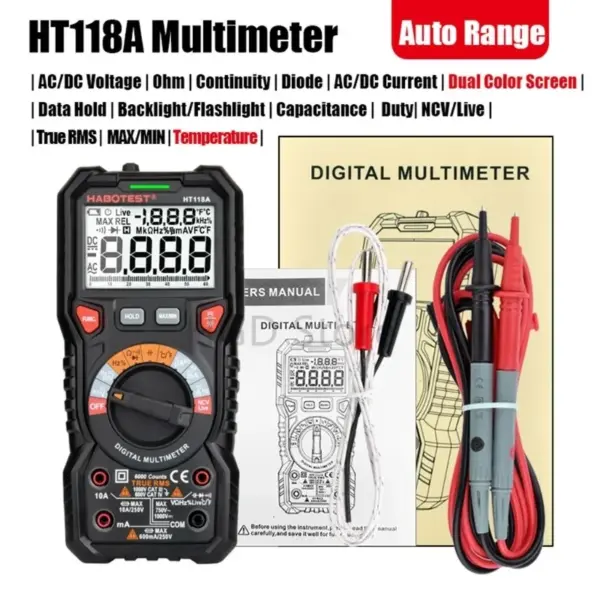

Description
Features:
Wide Measuring Range: for measuring DC/AC voltage, DC/AC current, Resistance, Capacitance, Diode test, NCV test, Live test, Frequency, Temperature, etc.
Temperature Range: testing range is -40~1000°C/-40~1832°F, °C/°F unit conversion.
2.7" Large LCD Display: 59*36mm LCD screen with large digital-readout and backlight for clear reading.
Auto Power-off: 15mins automatic shutdown if there's no operation, more power saving.
Portable Design: bracket at the back for supporting multimeter, and it also can be hanging on the wall.
Overload Protection: built-in double fuse, full protection for safe operation.
Other Functions: Bargraph, Max/Min hold, Data hold, Continuity, True RMS, Low battery indication, Double color backlight, Input jack LED indicate, work light, etc.
Specifications:
Material: ABS
Display: 6000 counts
Range: Auto range
Display: LCD
Bandwidth: 1kHz
Safety Rating: EN61010-1, -2-030 EN61010-2-033, EN61326-1 CAT III 1000V, CATIV 600V
DC Voltage: 60mV/600mV/6V/60V/600V/1000V
AC Voltage: 60mV/600mV/6V/60V/600V/750V
DC Current: 600uA/6000uA/60mA/600mA/6A/10A
AC Current: 600uA/6000uA/60mA/600mA/6A/10A
Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Capacitance: 10nF/100nF/1μF/10μF/100μF/1mF/10mF/100mF
Frequency: 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz
Duty: 1~99%
Temperature: -40~1000°C / -40~1832°F
Power Supply: 2 * AA battery (NOT included)
Screen Size: 59 * 36mm / 2.32 * 1.42in
Item Size: 88 * 58 * 188mm / 3.46 * 2.28 * 7.40in
Item Weight: 417g / 14.73oz
Package Weight: 490g / 17.30oz
Package Size: 20.5 * 13 * 6cm / 8.07 * 5.12 * 2.36in
