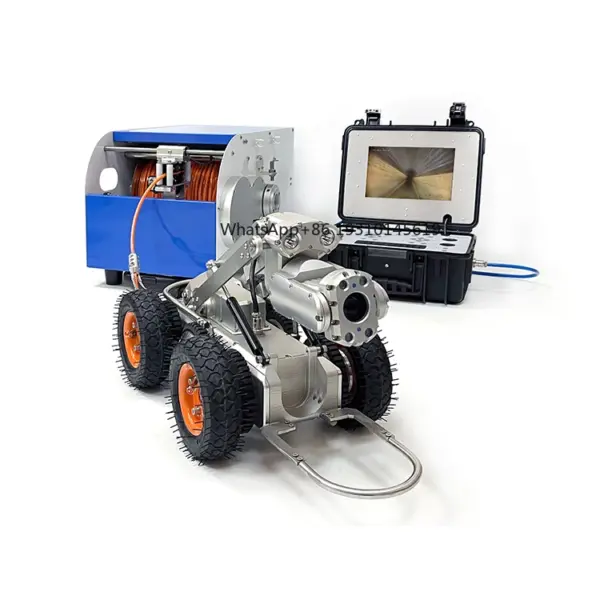

GT108 Series Sewer pipe inspection robot crawler camera
Product Introduction

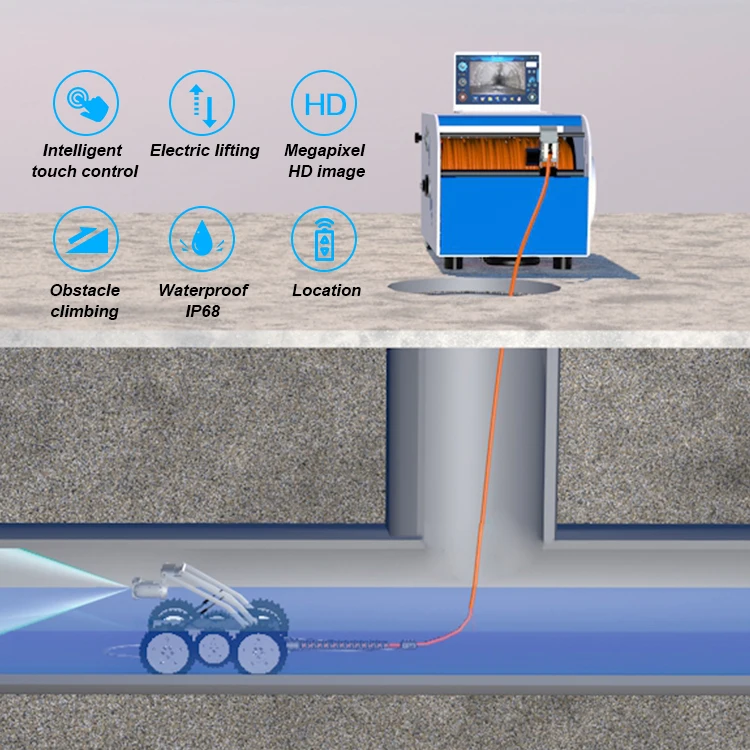

Sewer Pipe Inspection Cralwers Camera Feature:
1. Waterproof ,anti-corrosion,Special for municipal pipe line inspection.
2.Forward ,backward,turn freely and adjustable speed.
3.With ambient light and adjustable illumination.
4.Lens 360 degree rotation and 220 degree flip without death angle.
5.IP68 Waterproof.
6.10 times zoom function.
7.Electrical lift camera head
8.Electrical barrow, and the cable reel can be automatica .

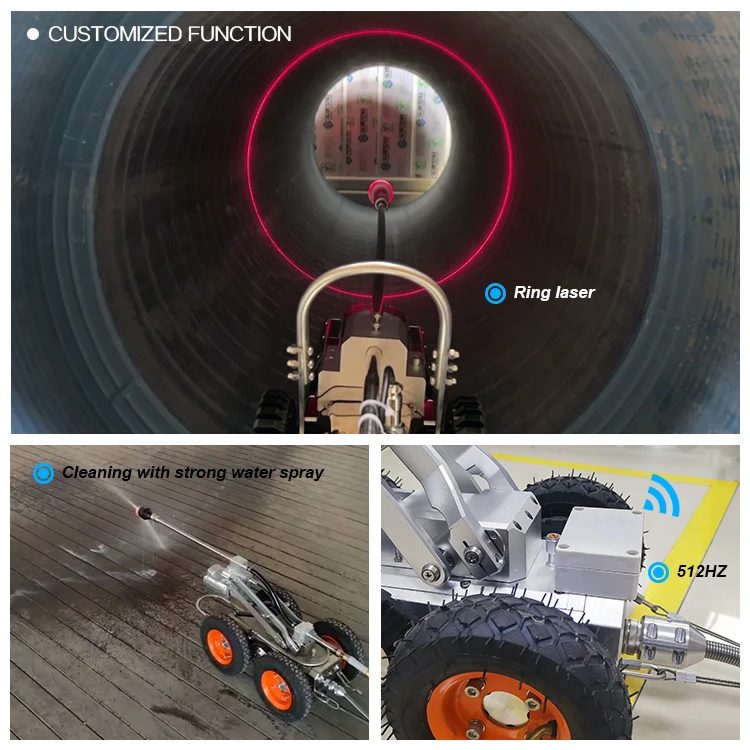

9.512 HZ customized
10. HDMI, Inspection report
2.Forward ,backward,turn freely and adjustable speed.
3.With ambient light and adjustable illumination.
4.Lens 360 degree rotation and 220 degree flip without death angle.
5.IP68 Waterproof.
6.10 times zoom function.
7.Electrical lift camera head
8.Electrical barrow, and the cable reel can be automatica .
9.512 HZ customized
10. HDMI, Inspection report

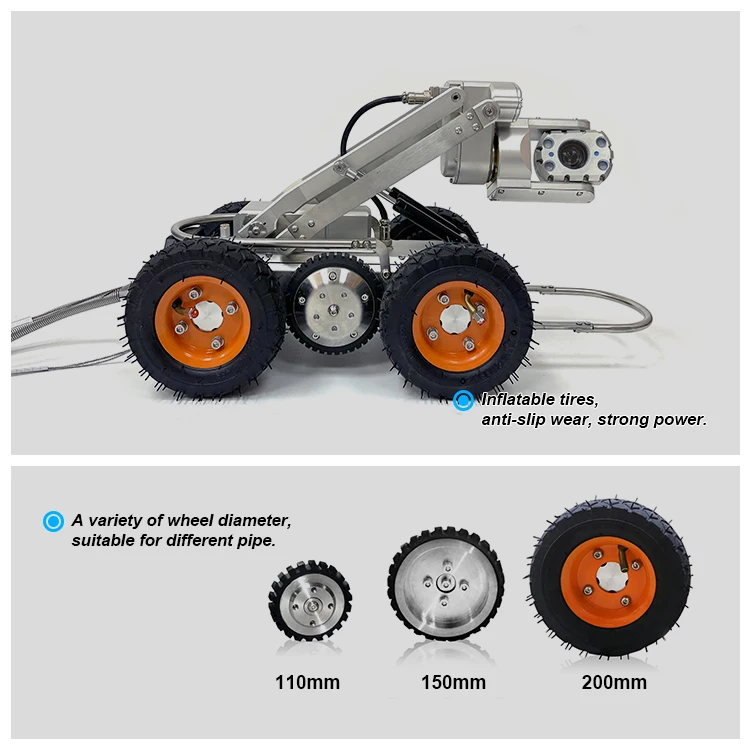

11.For pipes diameter of 200mm-3000mm equipped with the tires in different sizes.
12.Can slop and super obstacle.

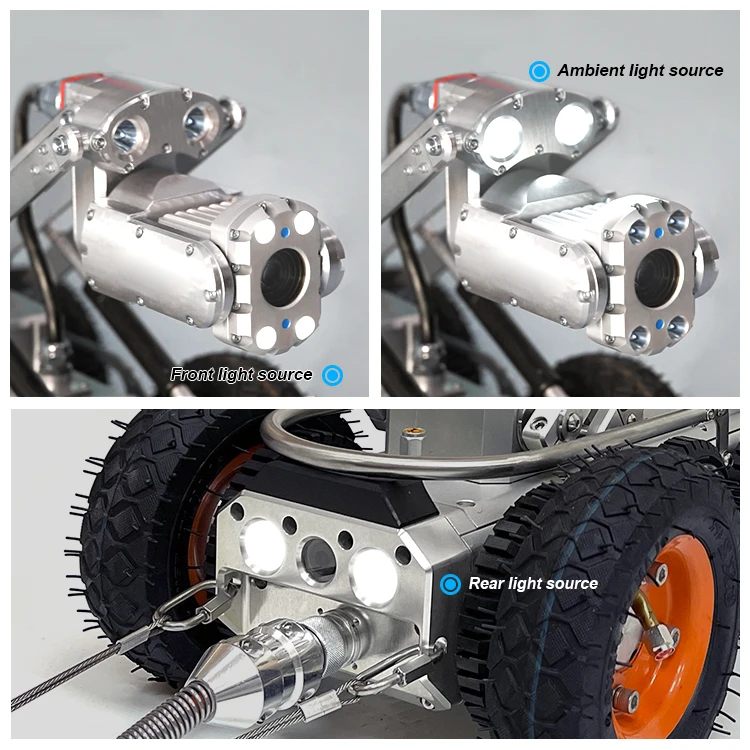

2 MGP Real -time diaplay of inspection screen with high-brightness ambient light,the brightness can be adjusted freely Front and rear dual camera lens Meet various detection working conditions;
Lens material alloy steel lens strong wear and corrosion resistence;

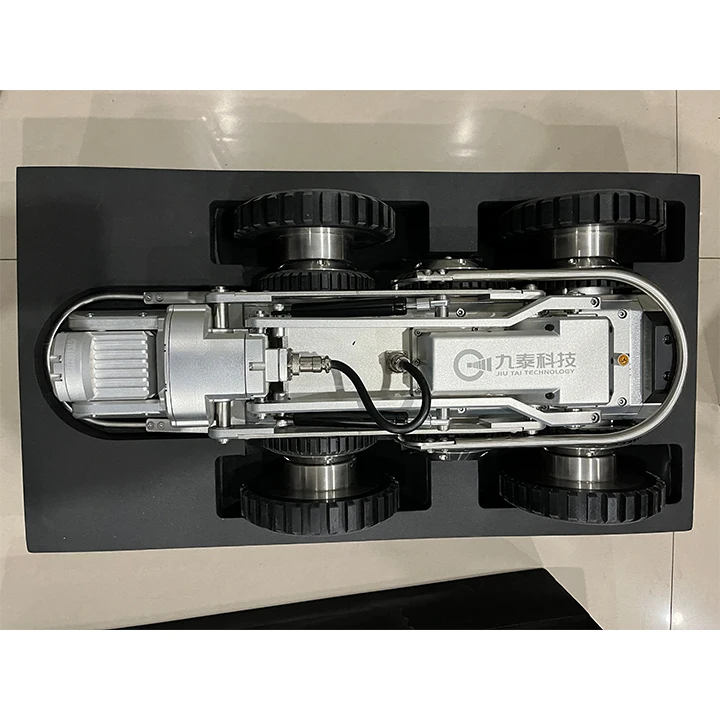

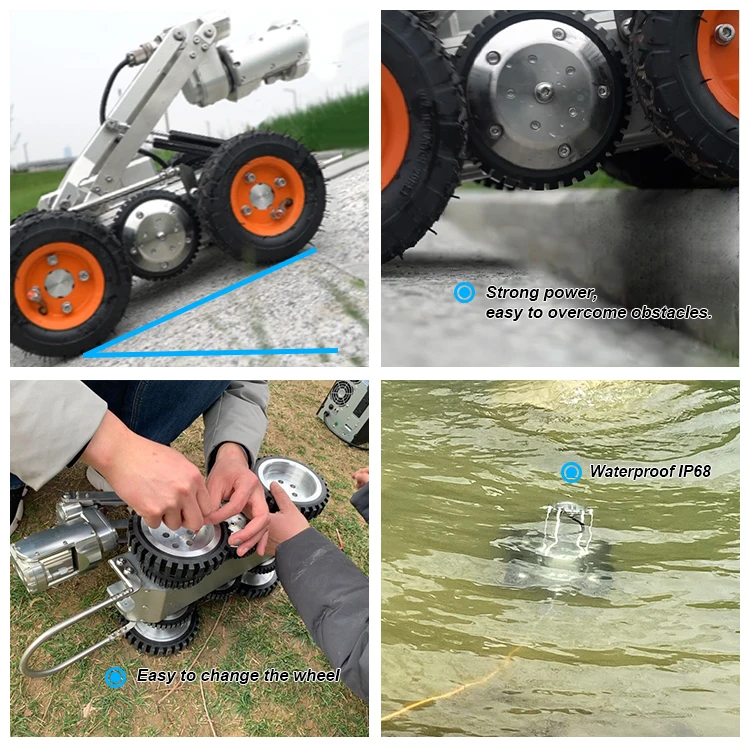

Super driving force different wheels size can be replacement freely, six-wheel drive,larger wheels, super obstacle,bumper；
Electric lifting；
IP68 Waterproof；
IP68 Waterproof；

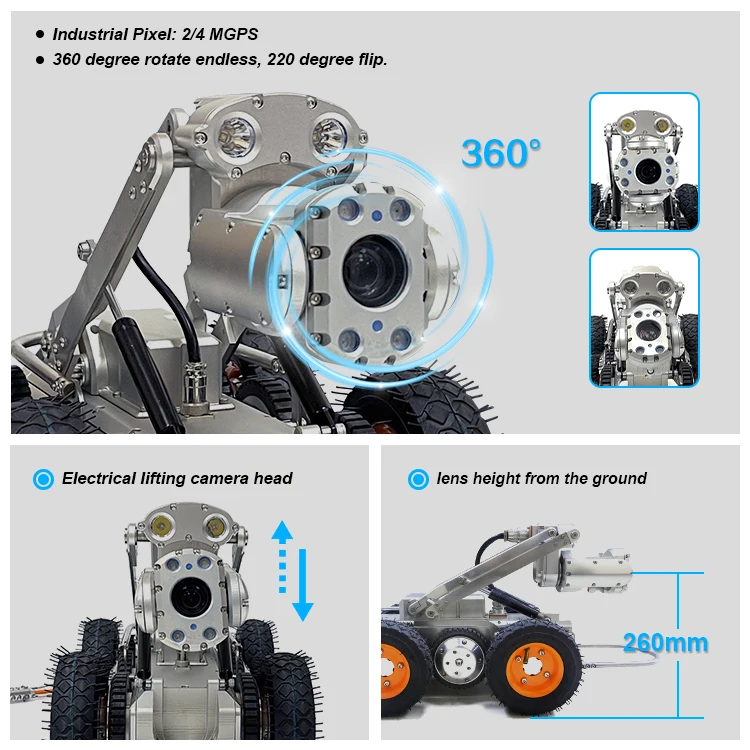

Pan And Tilt Zoom camera；
360 degree endless rotation,220 degree flip；
Auto fucusing.
360 degree endless rotation,220 degree flip；
Auto fucusing.

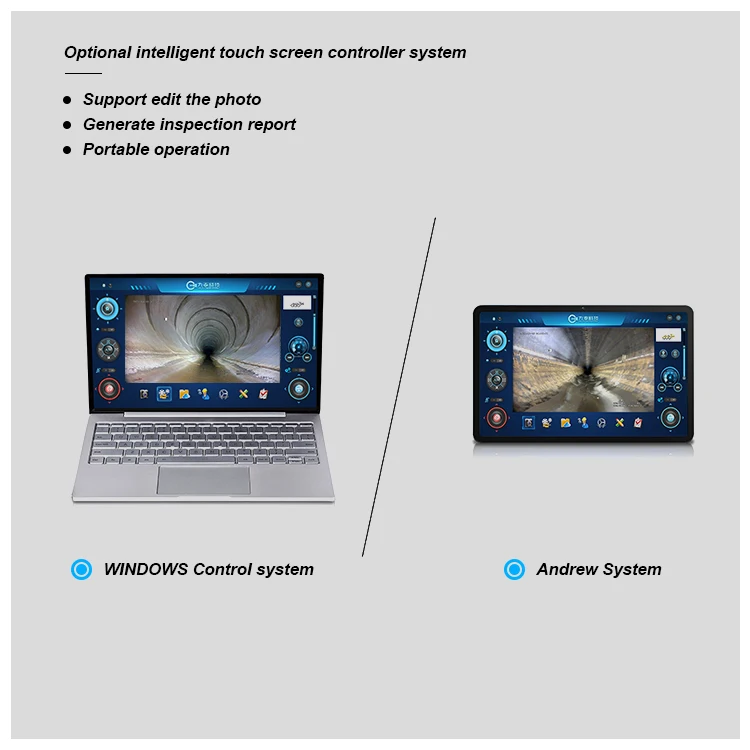

Highlight Color LCD Resoulution:
1920*1080 Keyboard integration, Real-time recording Support photo,video,will see and other
functions Dust control panel Intelligent control of lens dimming,focusing,doubling,rotation,fliping and other functions
functions Dust control panel Intelligent control of lens dimming,focusing,doubling,rotation,fliping and other functions

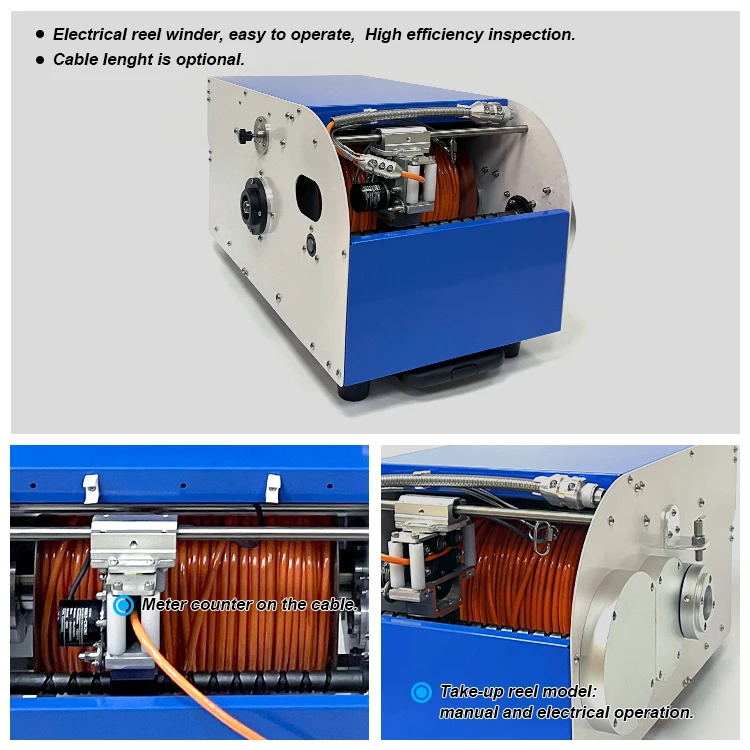

Electric barrow: Detecting cable wear resistance, corrosion resistance. Manual and electrical take-up,pay-off the cable,suitable for inspection the longer pipeline.
Specification
|
Channels
|
4
|
|
Warranty
|
1 Year
|
|
Network
|
SD memory card
|
|
Function
|
IP68 Waterproof / Weatherproof
|
|
Application
|
pipe inner inspection
|
|
Customized support
|
OEM, ODM
|
|
Model Number
|
GT108
|
|
Certification
|
CE
|
|
Camera Lens Feature
|
360 degree endless rotation 220 degree flip
|
|
Video Compression Format
|
H.264
|
|
Waterproof
|
IP68 Waterproof
|
|
Keyword
|
CCTV Sewer Drain Pipe Inspection Crawler Robot For Sale
|
|
Light
|
Adjustable LED lights
|
|
512hz transmitter
|
Optional
|
|
wheel
|
100mm/150mm/180mm(Optional)
|
|
Cable
|
100m(Standard)-Customized
|
|
Feature
|
Auto focusing
|
|
camera head
|
electrical lifting
|
|
Storage
|
32-64G
|
|
Pixel
|
2 MGP/4MGP
|
|
suitable pipe
|
200-3500mm
|
|
Electric lifting
|
Up to 150mm
|
|
Focus
|
10 times zoom
|
Remark:our stand configuration is 100m, if client want 150m or more, will be discuss all the details including price

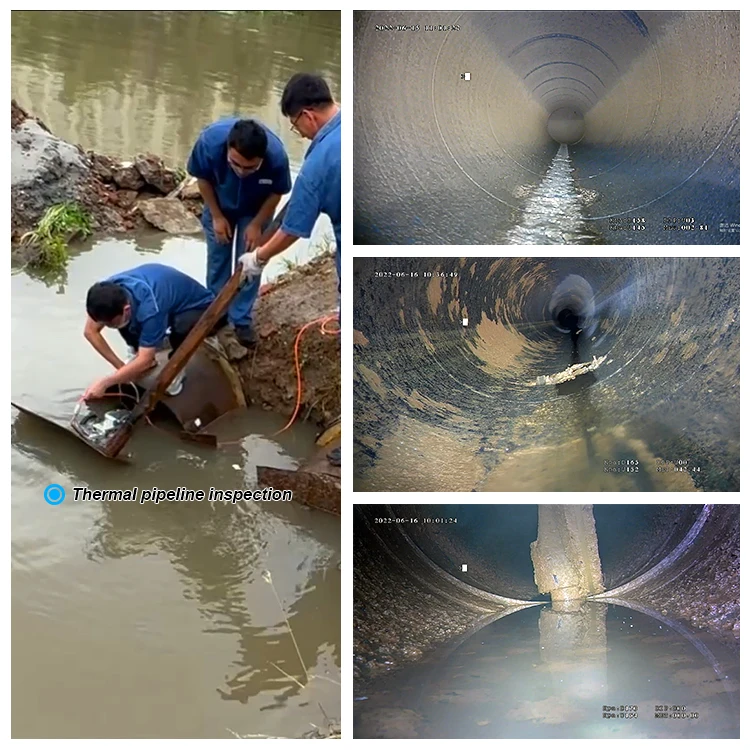

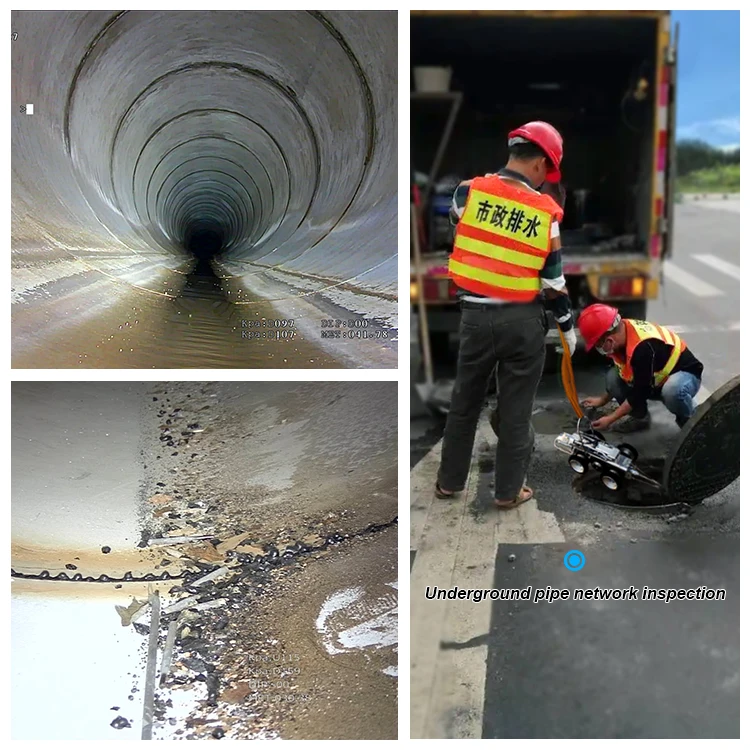

Field Test Image
Pipe Inspection Cralwers Application:
* This Pipe Inspection Crawler is suitable for pipe diameter 200-3500mm,with max cable 300m.
This sewer camera can go into the pipe to check the inner pipe condition,such as cracks, defects, damage detection, blockage ,and so on. This sewer crawler is widely used in many field ,such as Gas pipe, Oil pipe, petroleum, chemical industry, nuclear power,high corrosion pipeline video detection.
This sewer camera can go into the pipe to check the inner pipe condition,such as cracks, defects, damage detection, blockage ,and so on. This sewer crawler is widely used in many field ,such as Gas pipe, Oil pipe, petroleum, chemical industry, nuclear power,high corrosion pipeline video detection.
Our Customers
Packing&Shipping
We can Provide Various Packaging Design and Customization Services for Free Customers can customize different packaging types according to their own requirements, of course, there are MOQ requirements. For details, please consult our staff. Whether it is simple and cheap packaging, carton boxes, wooden box etc., we can provide them.
Company Introduction
Zhengzhou JiuTai Technology Co.ltd is a high-tech enterprise specializing in research and development, production, sales of endoscopes in the industrial and providing customized solutions for customers , established in 2010. Our company focuses on the international high industrial technology,up to now company apply for more than 60 patents,Since the company established has been successful in many endoscope series, such as industrial pipe endoscope series,vessel endoscope series,car endoscope series,crawling robot series,Police endoscope series,wind power vane inspection series.
Order Process and Synchronized Information Services:
We will synchronize the production progress of the order to the customer, so that the customer can know the production status of
the order at any time.
1.We can accept Factory Audit requirements from third parties or customers.
2.We can accept Order Inspection requirements from third parties or customers.
3.In-depth technical cooperation, Project research and development is welcome.
4.Provide cost-effective transportation channels (of course customers can choose their own shipping forwarders).
After-Sales Service:
1. Warranty period: 12 months. During the warranty period, we will provide repair, replacement parts and other services for any
problems.
2.Force majeure risk: double consultation.
3. Human-induced damage: not covered by the warranty.
We will synchronize the production progress of the order to the customer, so that the customer can know the production status of
the order at any time.
1.We can accept Factory Audit requirements from third parties or customers.
2.We can accept Order Inspection requirements from third parties or customers.
3.In-depth technical cooperation, Project research and development is welcome.
4.Provide cost-effective transportation channels (of course customers can choose their own shipping forwarders).
After-Sales Service:
1. Warranty period: 12 months. During the warranty period, we will provide repair, replacement parts and other services for any
problems.
2.Force majeure risk: double consultation.
3. Human-induced damage: not covered by the warranty.
FAQ
1. Why choose us?
We are factory directly sales,Set R & D, production, sales, warranty one-stop service.so we will give you the best price and aftersale service.
OEM&ODM. We can customize the products as your requirement.
We are factory directly sales,Set R & D, production, sales, warranty one-stop service.so we will give you the best price and aftersale service.
OEM&ODM. We can customize the products as your requirement.
2. What is the advantage of your products?
We are professional manufacturer in this field with lots of years R&D and market research experience.
We are professional manufacturer in this field with lots of years R&D and market research experience.
3. What can you buy from us?
Pipeinspection camera,CCTV Sewer crawling robot,Videoscope camera,Portable Push rod camera.
Pipeinspection camera,CCTV Sewer crawling robot,Videoscope camera,Portable Push rod camera.
4. What is your MOQ?
No limited,Big order or sample all accepted in our company.
No limited,Big order or sample all accepted in our company.
5. What is the warranty?
We provide 1-2 years warranty after shipment date. Support one year remote warranty service (fault diagnosis, online guidance, parts delivery, etc.)
We provide 1-2 years warranty after shipment date. Support one year remote warranty service (fault diagnosis, online guidance, parts delivery, etc.)
6. What’s your delivery time?
Around 7-20 working days according to exact order quality and stock situation.
Around 7-20 working days according to exact order quality and stock situation.
7. What’s payment methods i can choose?
Paypal or T/T(Bank transfer) or western union also Ali trade assurance.
Paypal or T/T(Bank transfer) or western union also Ali trade assurance.
