Description
Description

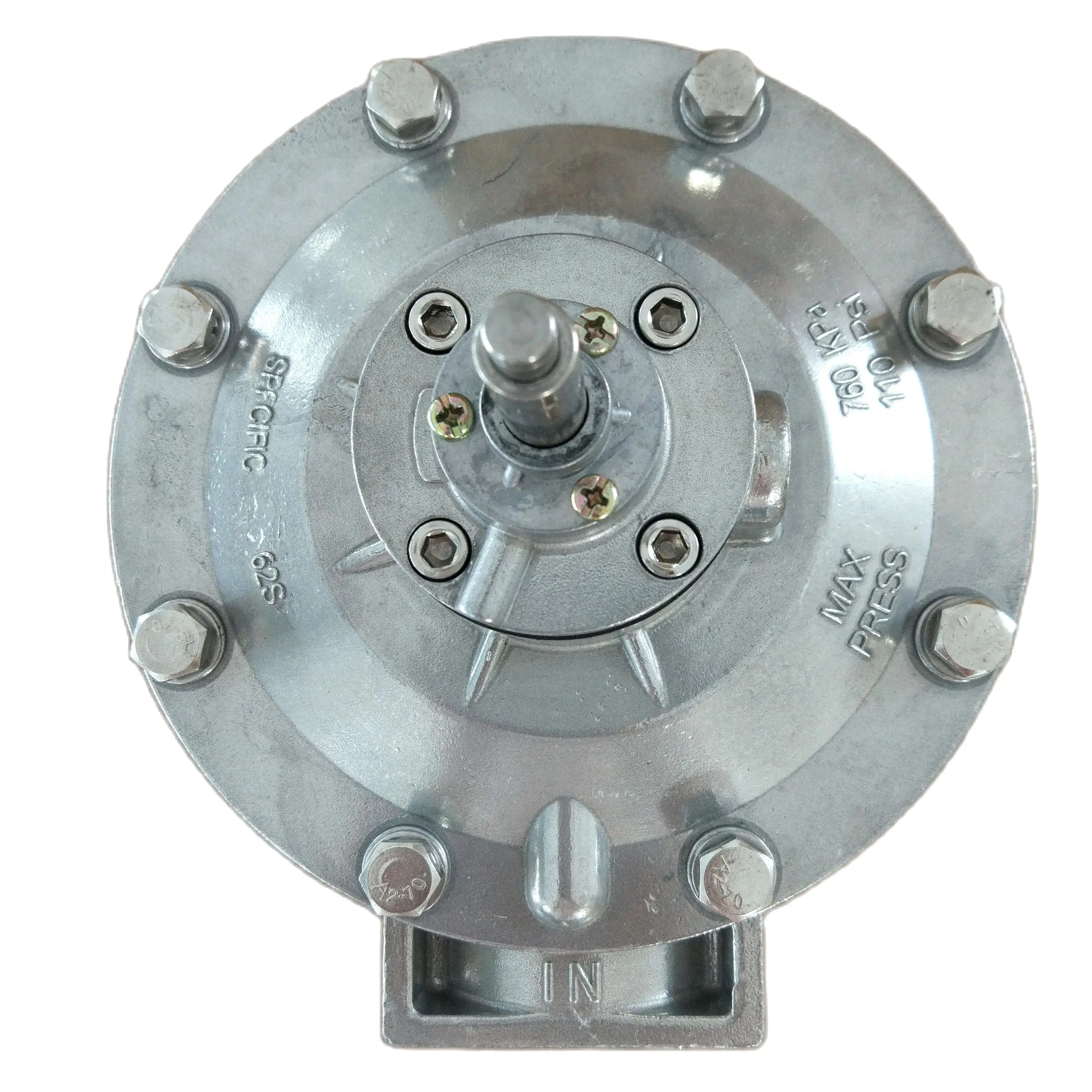

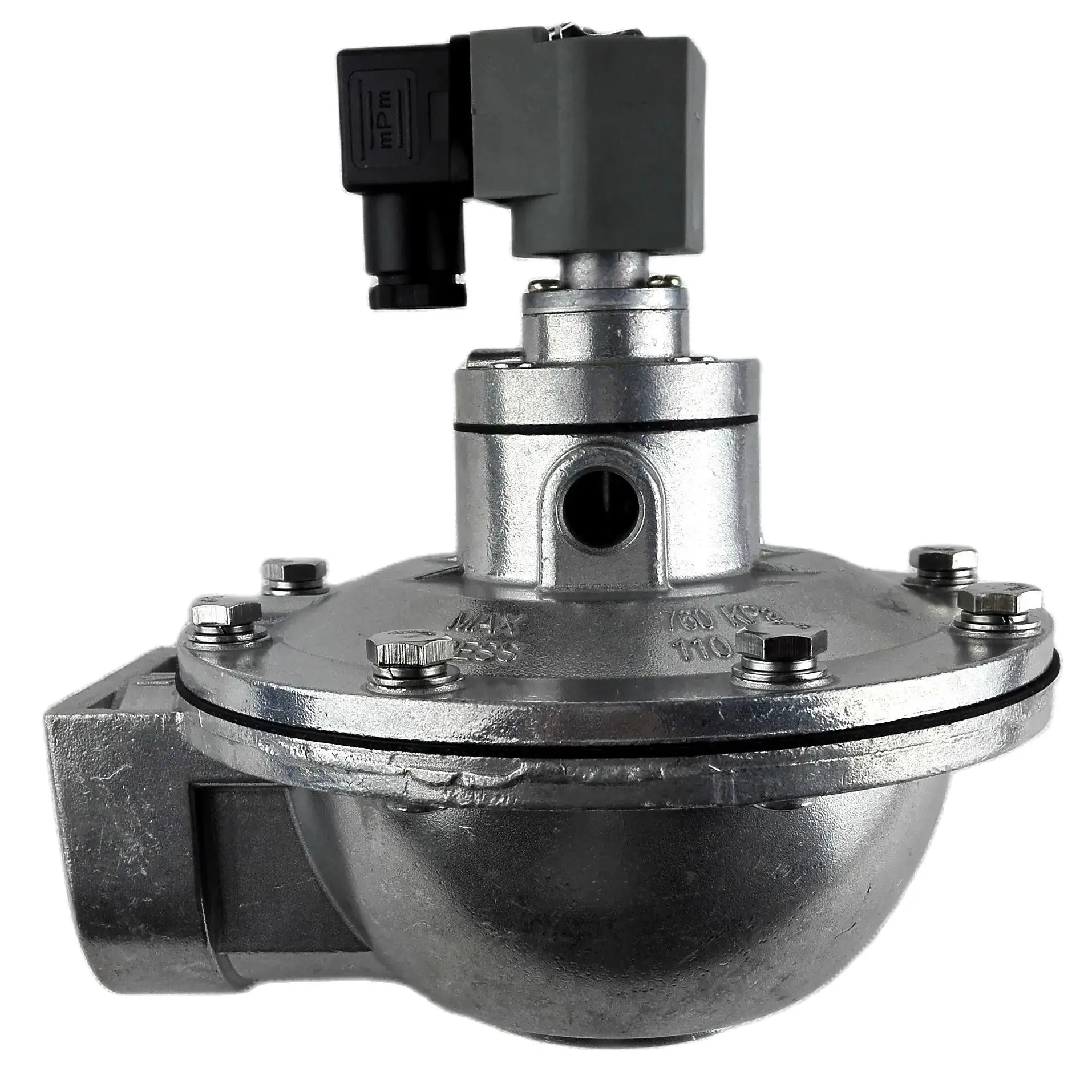

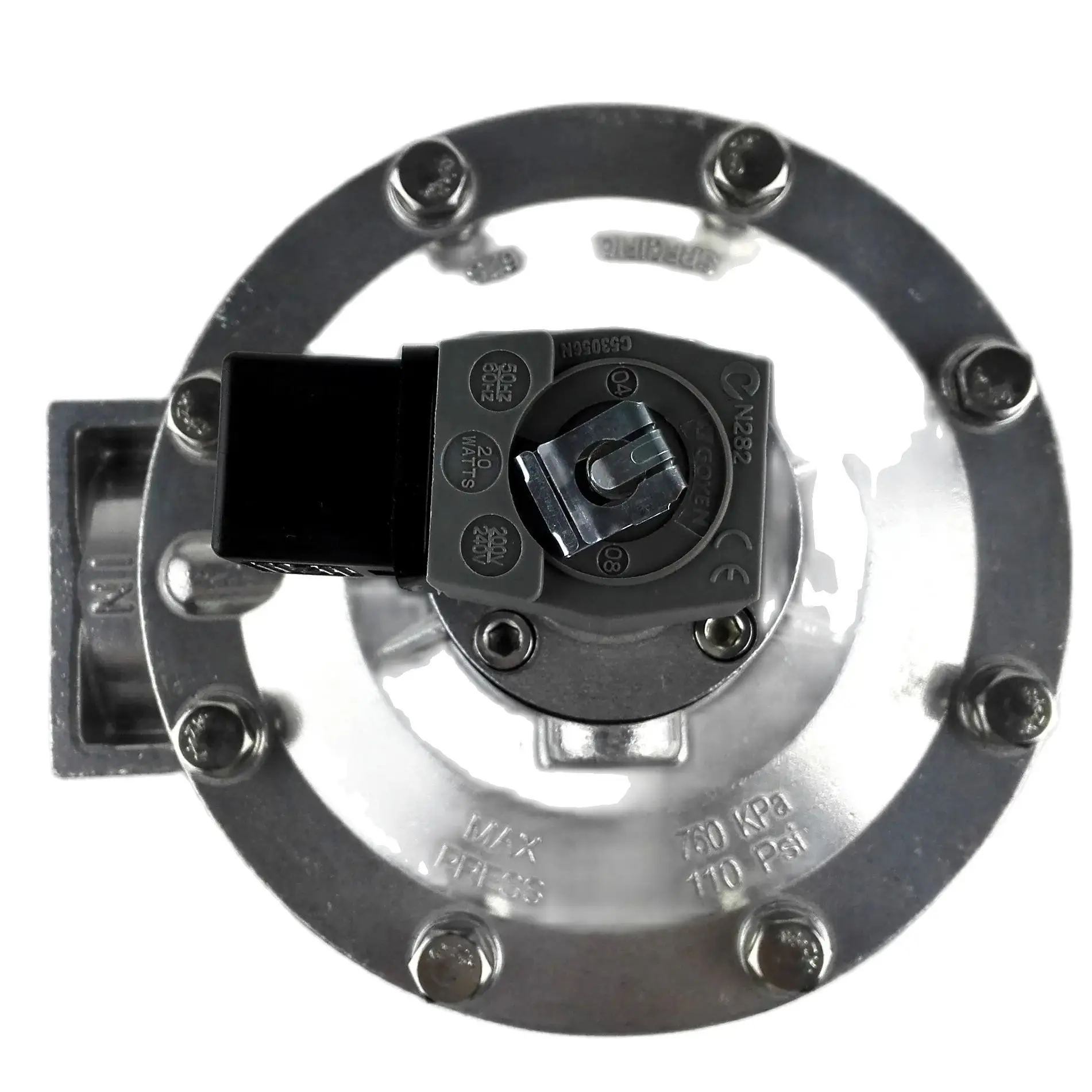

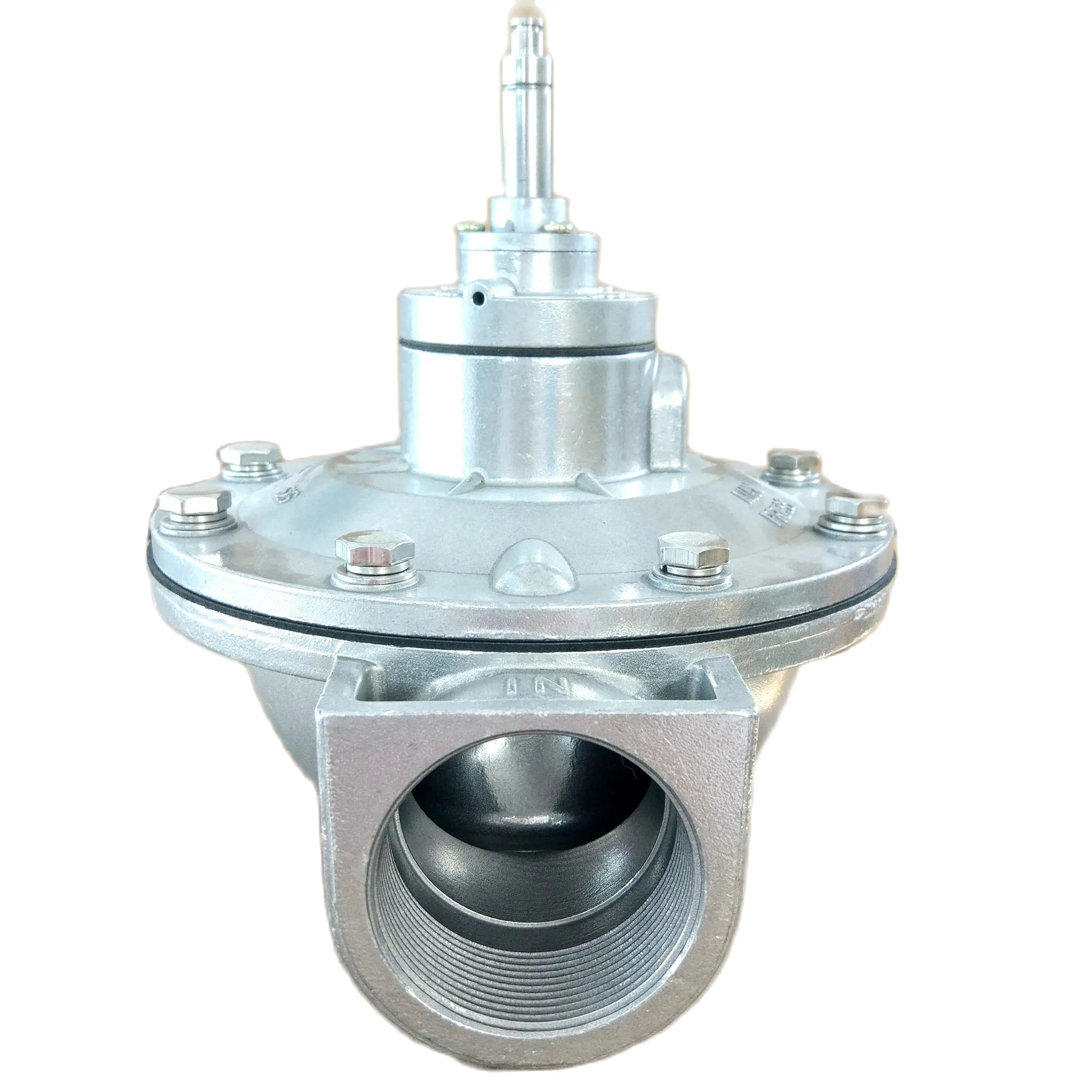

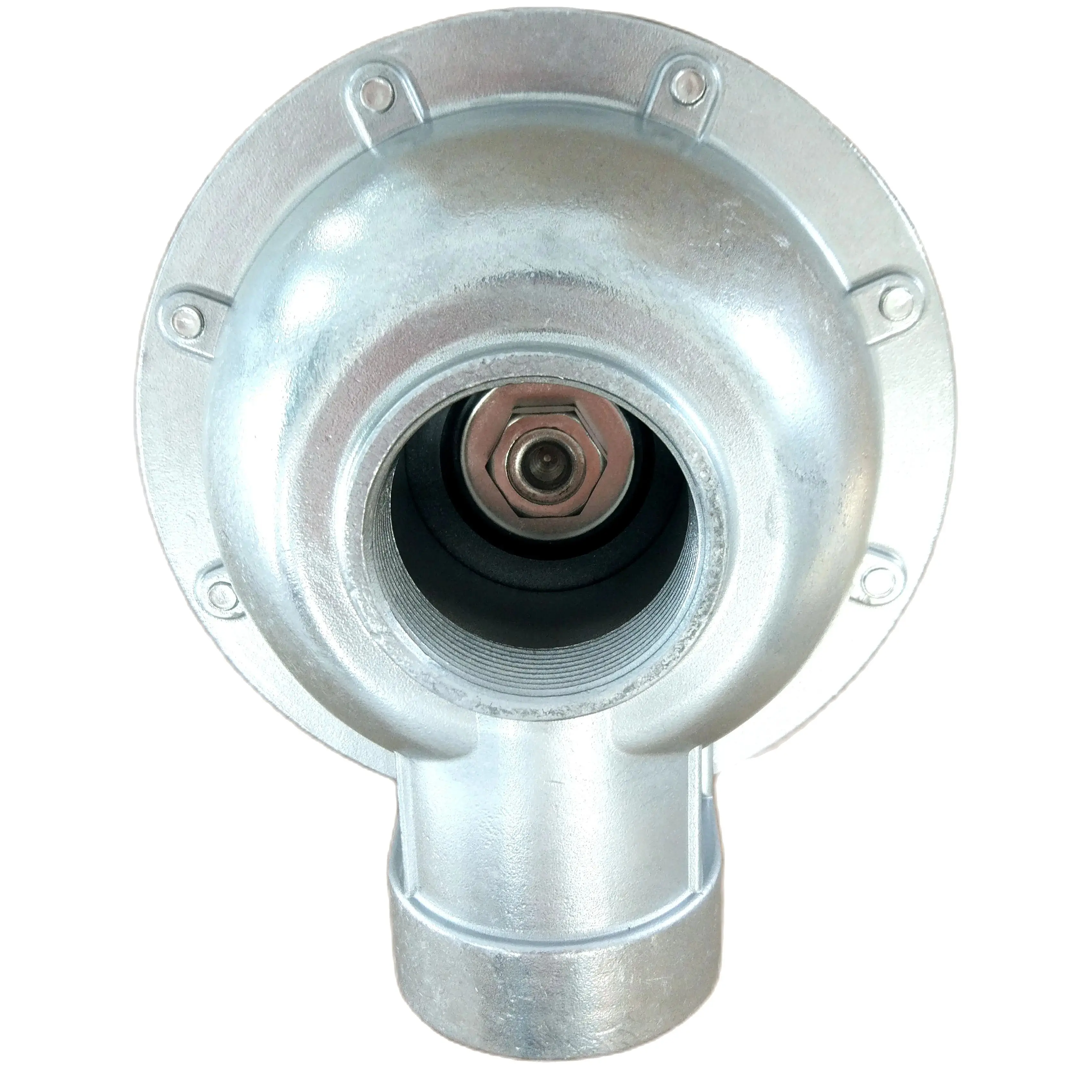

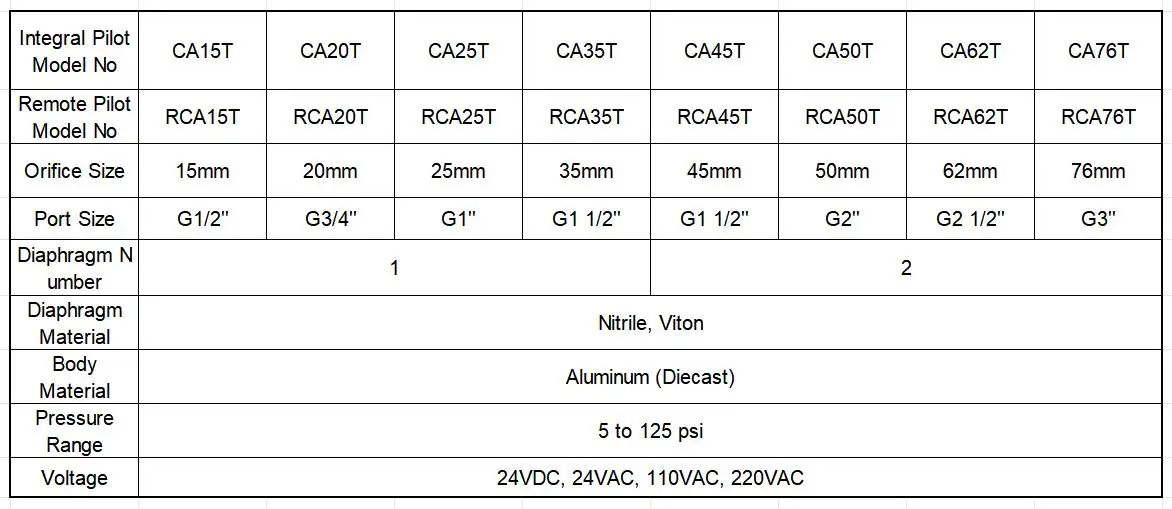

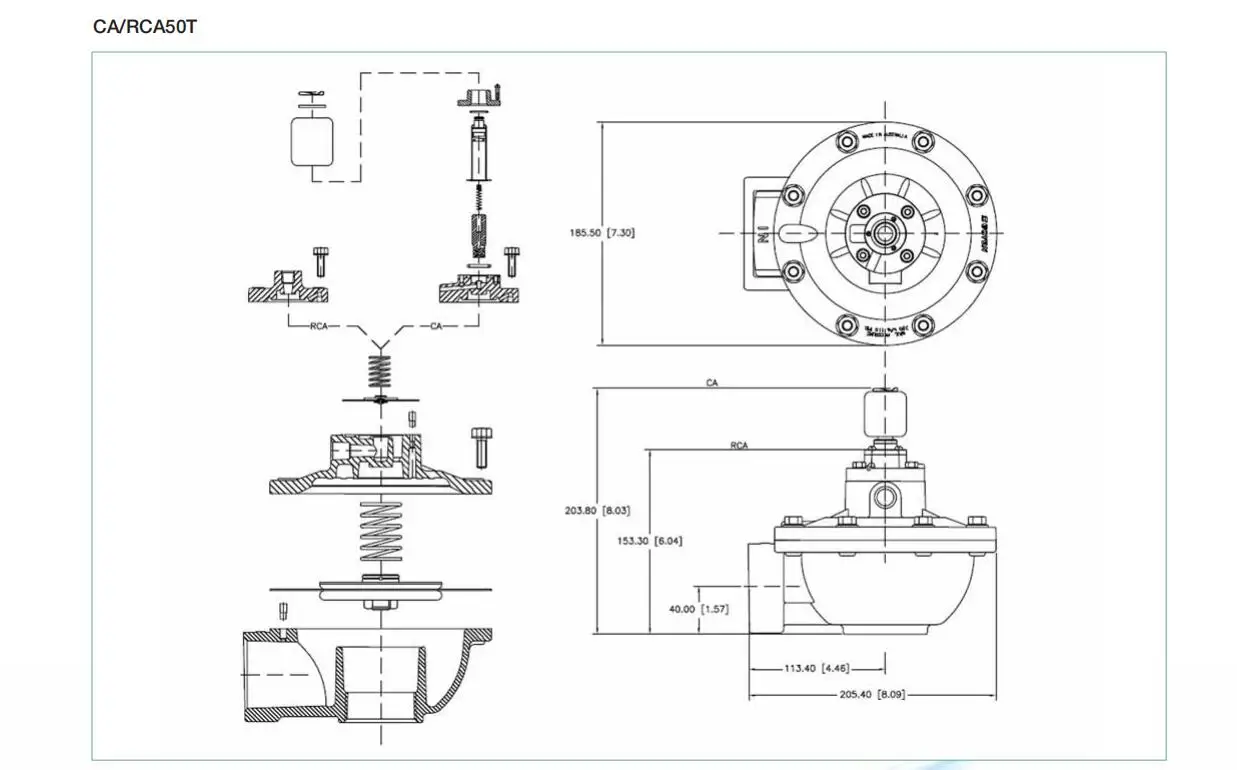

High performance diaphragm valve with threaded ports. Available with integral pilot or as remotely piloted valve. Outlet at 90° to inlet.
Suitable For
Dust collector applications, in particular for reverse pulse jet filter cleaning including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.
Construction
Body: Aluminium (diecast)
Ferrule: 304 SS
Armature: 430FR SS
Seals: Nitrile or Viton (reinforced)
Spring: 304 SS
Screws: 302 SS
Diaphragm Seat: PA-6 (standard), Viton
coated mild steel or High Density PE
Refer to Q Series Solenoid product data
sheet for solenoid construction details.
Installation
1. Prepare supply and blowtube pipes to suit valve specification. Avoid installing
valves underneath the tank.
2. Ensure tank and pipes are free from dirt, rust or other particulate.
3. Ensure supply air is clean and dry.
4, Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread
sealant can enter the valve itself.
5. Make electrical connections to solenoid or connect RCA pilot port to pilot valve
(RCA valves only).
6. Apply moderate pressure to system and check for installation leaks.
7. Fully pressurise system.
8. Test fire and listen for proper actuation and crisp pulse noise.
Support and Services:
The Pulse Jet Valves product technical support and services include:
– Installation assistance and guidance
– Troubleshooting and problem-solving
– Maintenance and repair services
– Technical documentation and manuals
– Training and education on product operation and maintenance
– Customized solutions for specific applications and requirements
Packing and Shipping:
Product Packaging:
Each Pulse Jet Valve will be packed in a sturdy corrugated box.
Inside the box, the valve will be wrapped in bubble wrap for extra protection during shipping.
The box will be labeled with the product name, quantity, and any other necessary information.
Shipping:
Shipping will be done through a reliable courier service.
The shipping charges will be calculated based on the weight and destination of the package.
The estimated delivery time will be provided to the customer along with a tracking number for their convenience.
Our team will ensure that the package is properly sealed and labeled before shipping to avoid any damage or loss during transit.
