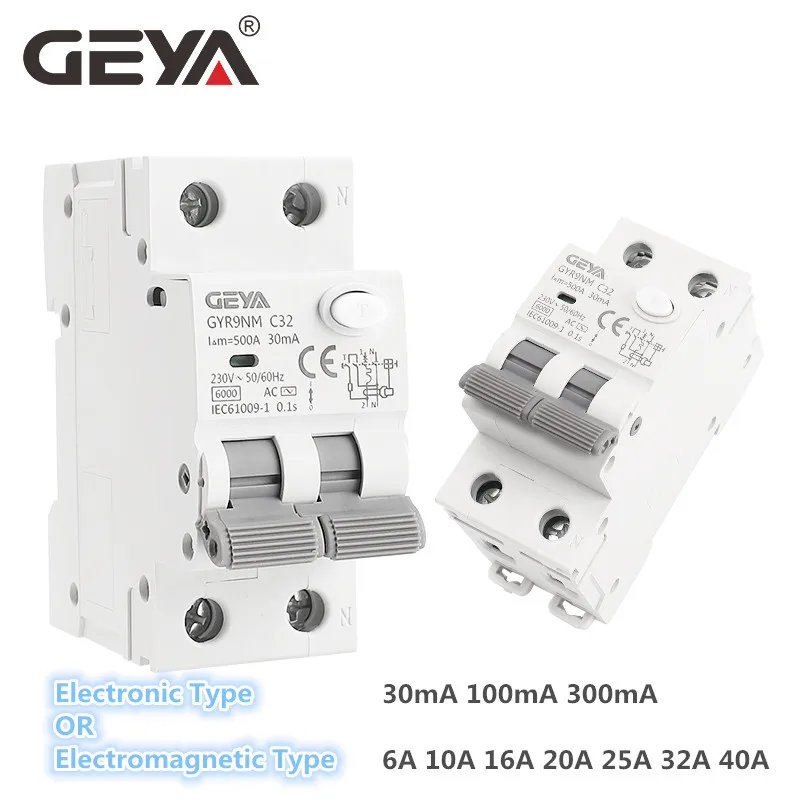

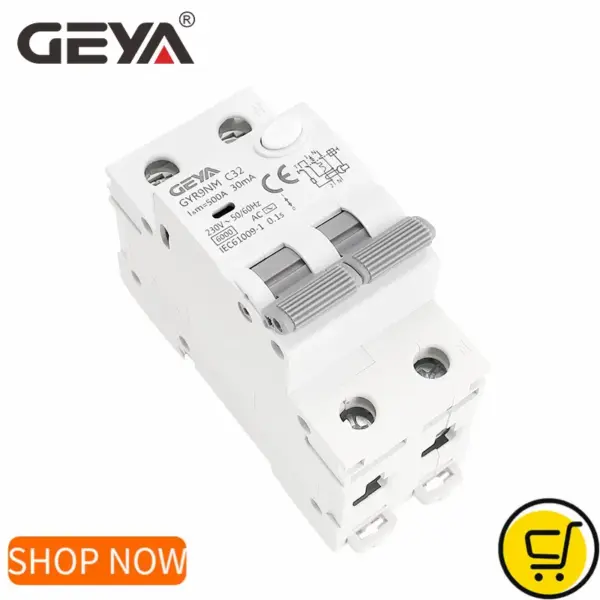

GEYA GYR9NM 230V 2P 4P Residual Current Circuit Breaker with Over and Short current Leakage Protection RCBO MCB Din Rail Max 40A

General

***It is AC type RCBO 2P 4P 10A 16A 25A 32A 40A 30mA***

**If two handles are all on OFF position, means exist residual current!
**If left handle on OFF position, means MCB failure!

GYR9NM Series RCBO- Residual current circuit breaker with over-current protection are mainly used in lines with AC 50Hz or 60Hz, rated voltage of 240V and rated current to 40A. It has the functions of leakage, overload and short circuit protection.
When the personal contact or the leakage current of the power grid exceeds the specified value, the product can cut off the fault current within 0.1s, protect the personal safety and prevent the equipment from failure caused by leakage current, and can be used to protect the fault The overload and short circuit of the protective line.
RCBO can also be used as the infrequent breaking and switching of the line under normal conditions, and it is mainly used for the protection of building lighting and distribution system, it also be used as the lower road board for infrequent breaking and switching of lines, mainly used in the protection of building lighting and power distribution system.

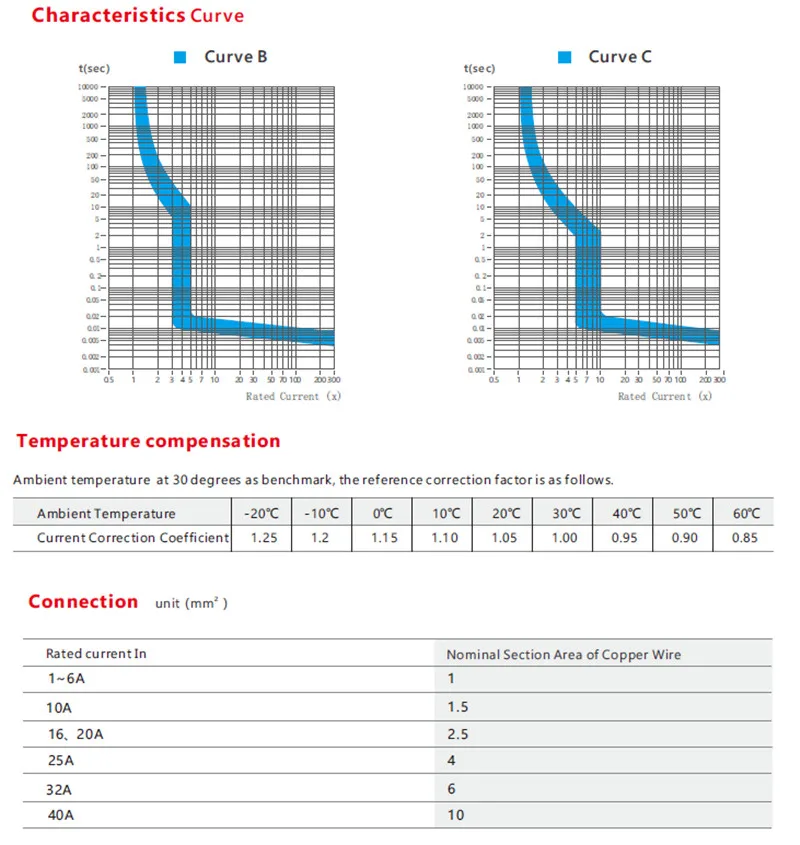

Technical Data

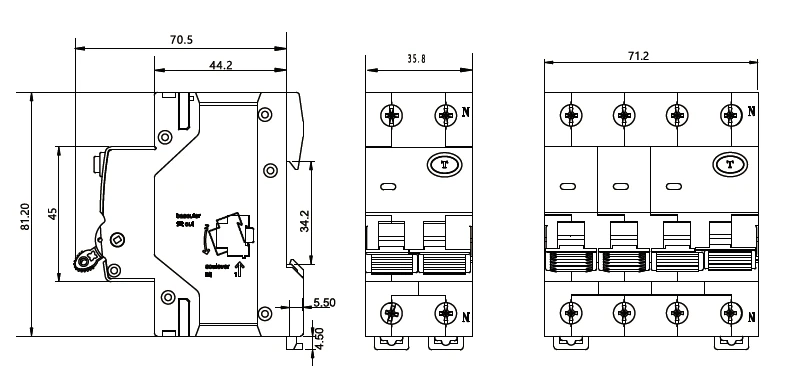

Installing Dimensions
