Description
Features:
* and
* Small size, easy to disassemble and assemble.
* The valve body is made of aluminum alloy, with strong pressure resistance, good sealing, safe and reliable use.
* The inner hole is treated with special process, with small friction resistance, low starting air pressure and long service life.
* Pay attention to the air direction and correct connection during installation. Be careful of . It is recommended to install a muffler at the exhaust port.
* The air solenoid valve is a single-control solenoid valve with for pilot operation structure and valve core structure, with good sealing performance and sensitive response.
Specifications：

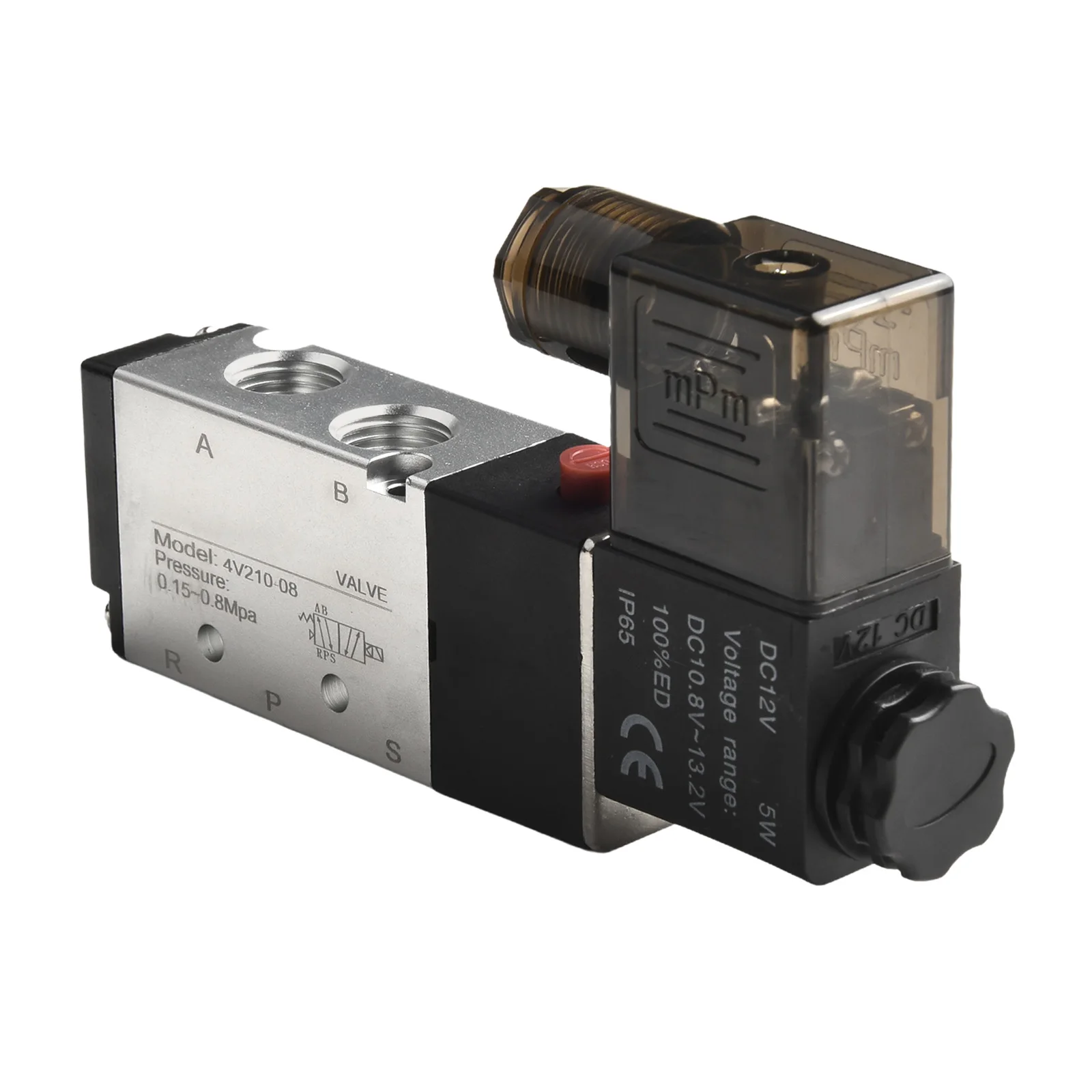

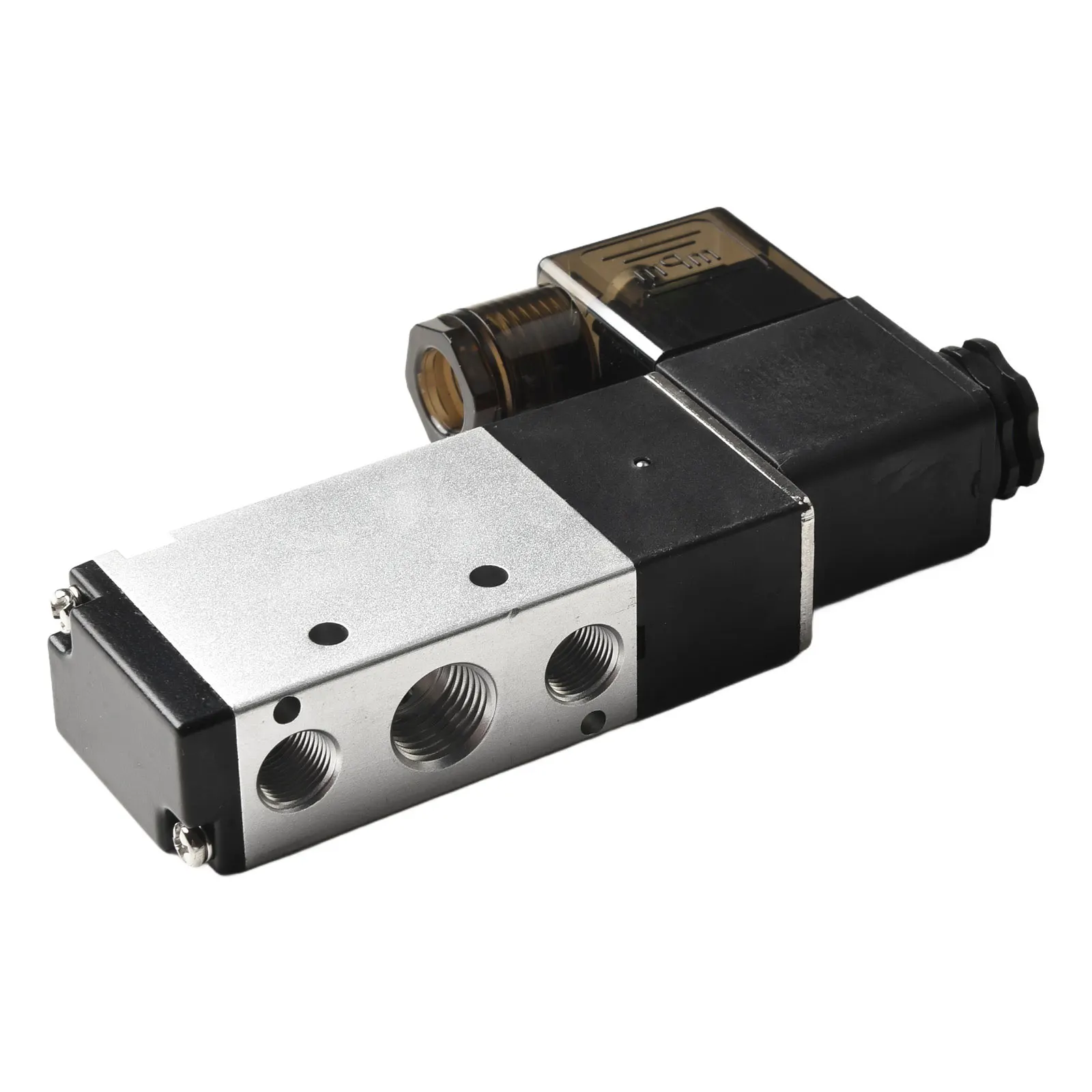

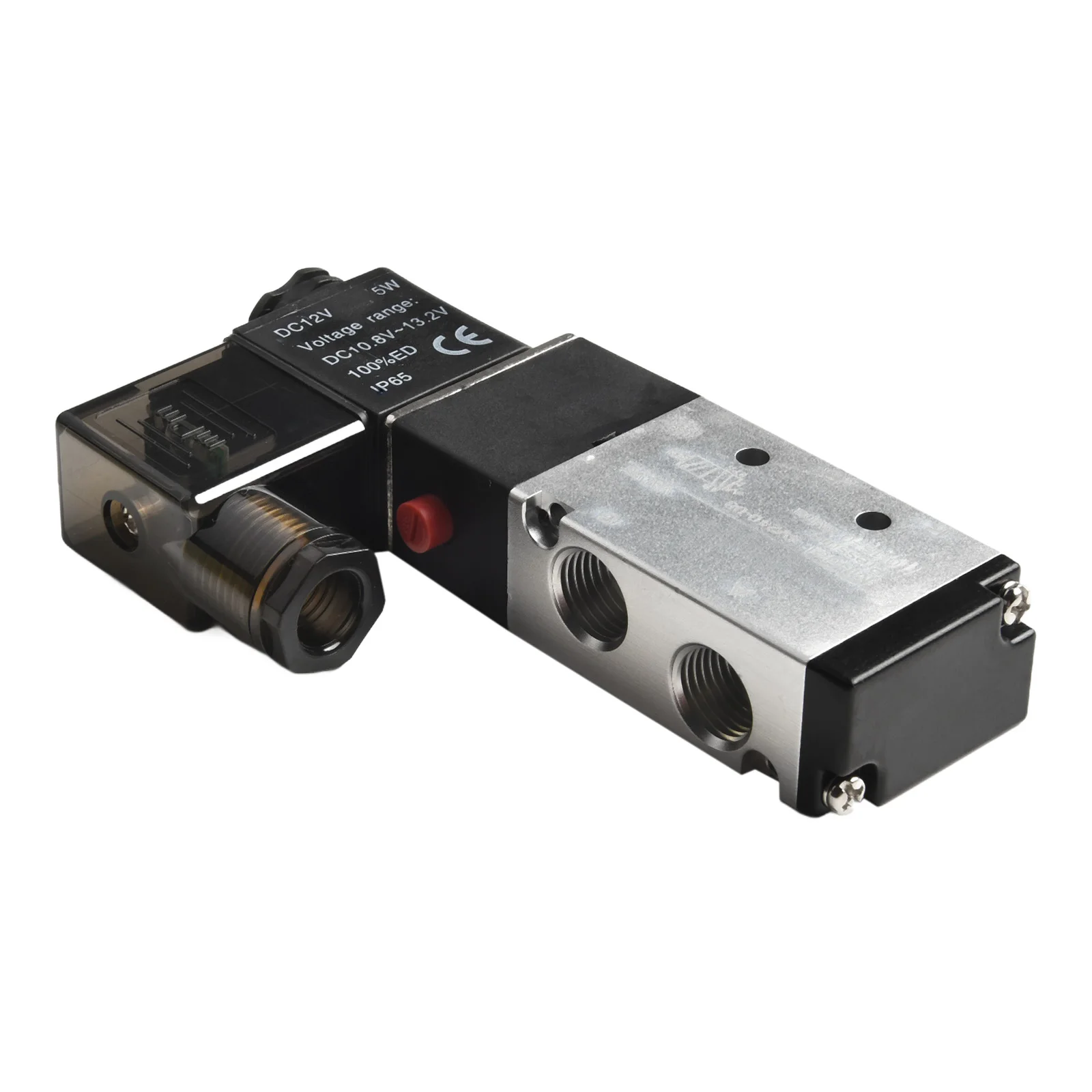

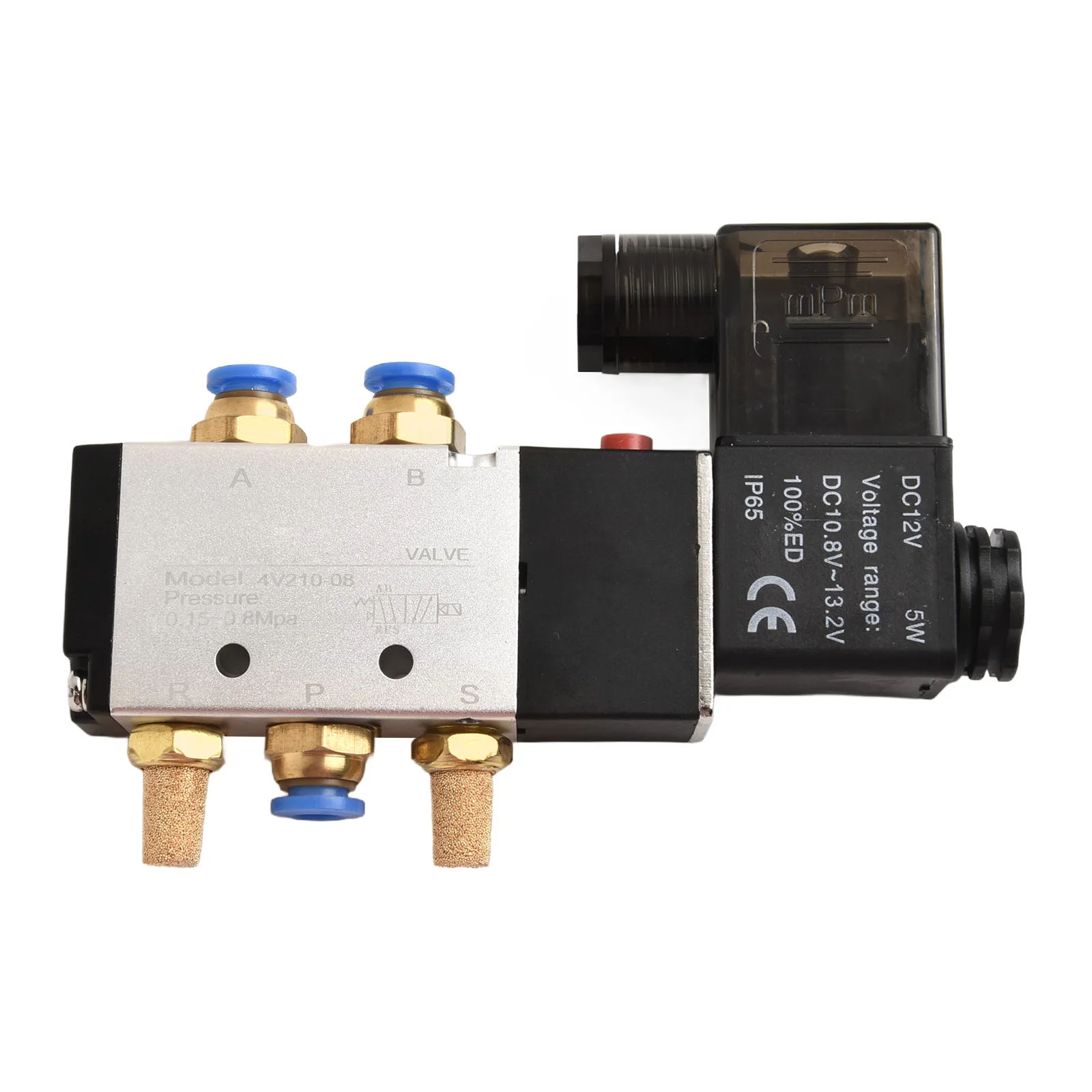

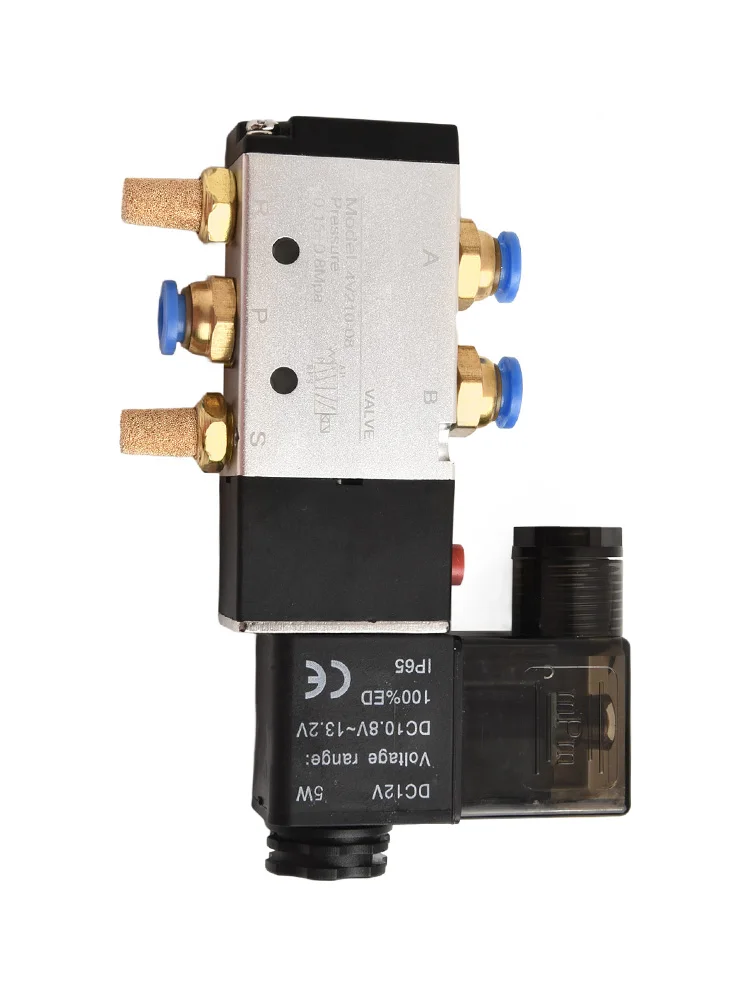

Part name: Solenoid valve
Model: 4V210-08
Material: Metal + Plastic
Color: As shown in the figure
Working pressure: 0 – 150 PSI / 0 – 990 kpa
Vacuum: 0 – 29.5 inHg / 750 mmHg
Thread diameter: Suitable for BSPT G1/4
diameter: 6mm
Working temperature: 0 – 60 °C / 32 to 140F
Max. Pressure resistance: 1.2Mpa
Working temperature: -5~50°C
Power consumption: DC 12V
Current: 29mA
Insulation and for protection: Class F, IP65
Maximum operating frequency: 4
Excitation time: 0.05 seconds
Effective cross-sectional area: 16mm2 (CV=0.89)
Connector diameter: inlet=outlet=1/4'', exhaust=1/8"

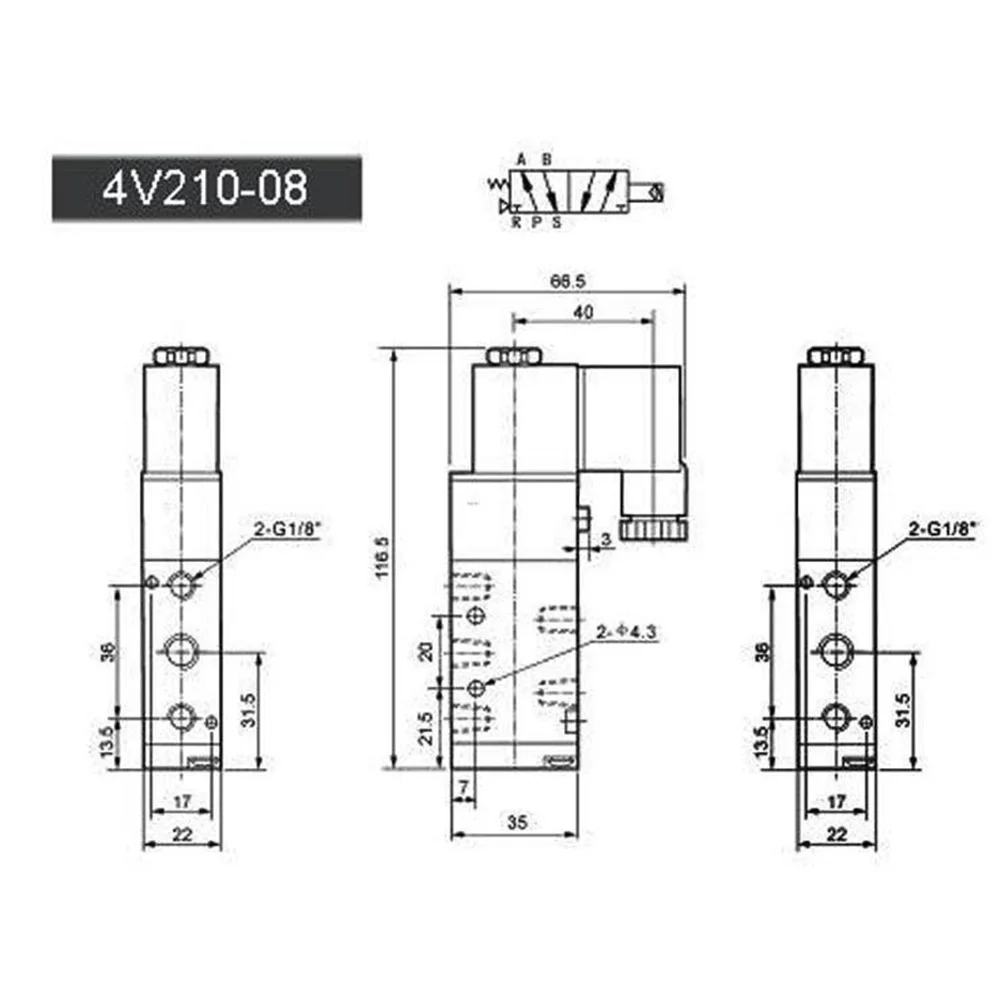

Size: 11.8*6.6*2.1cm/4.6*2.6*0.8 inches (length*width*height)
Position and number of ways: two, five

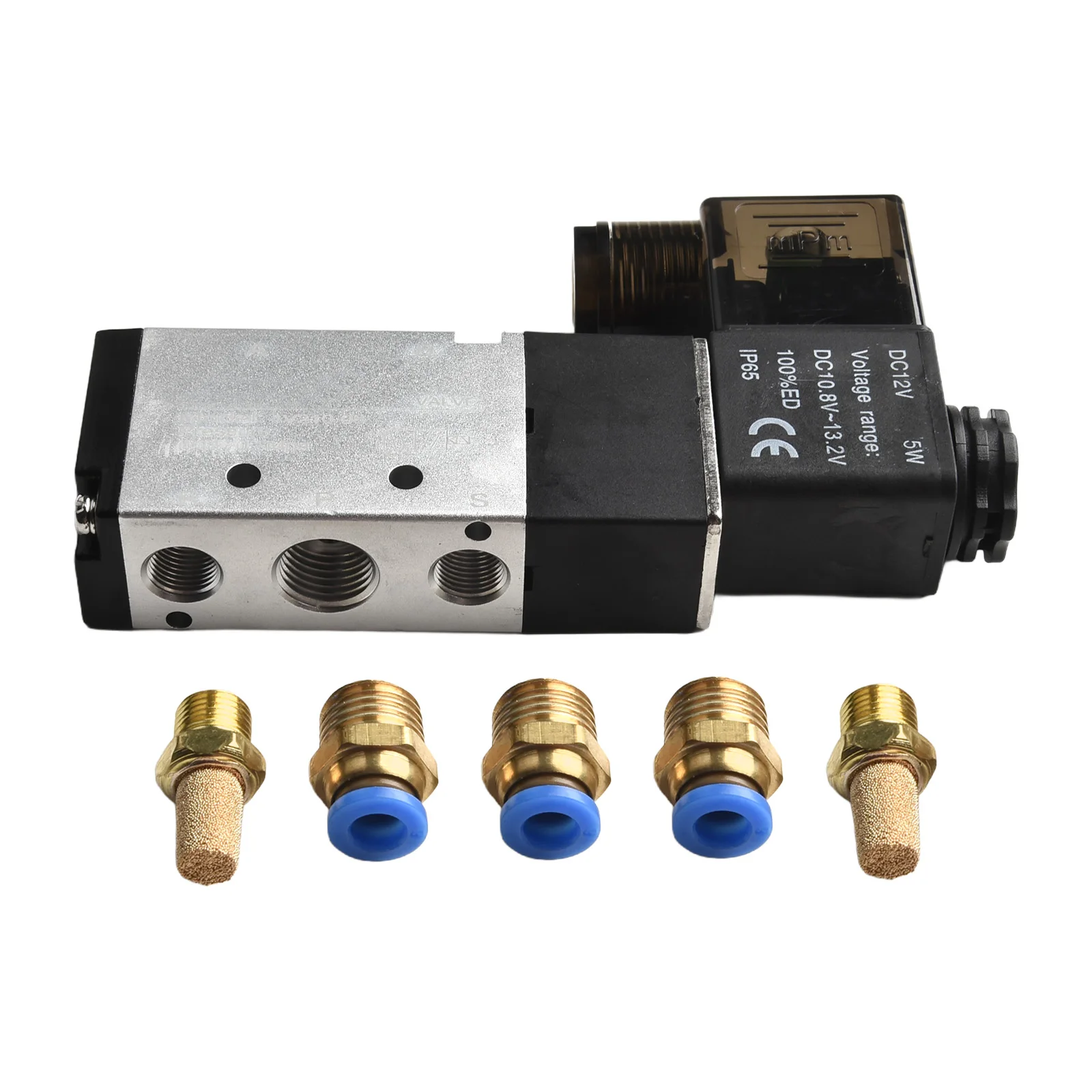

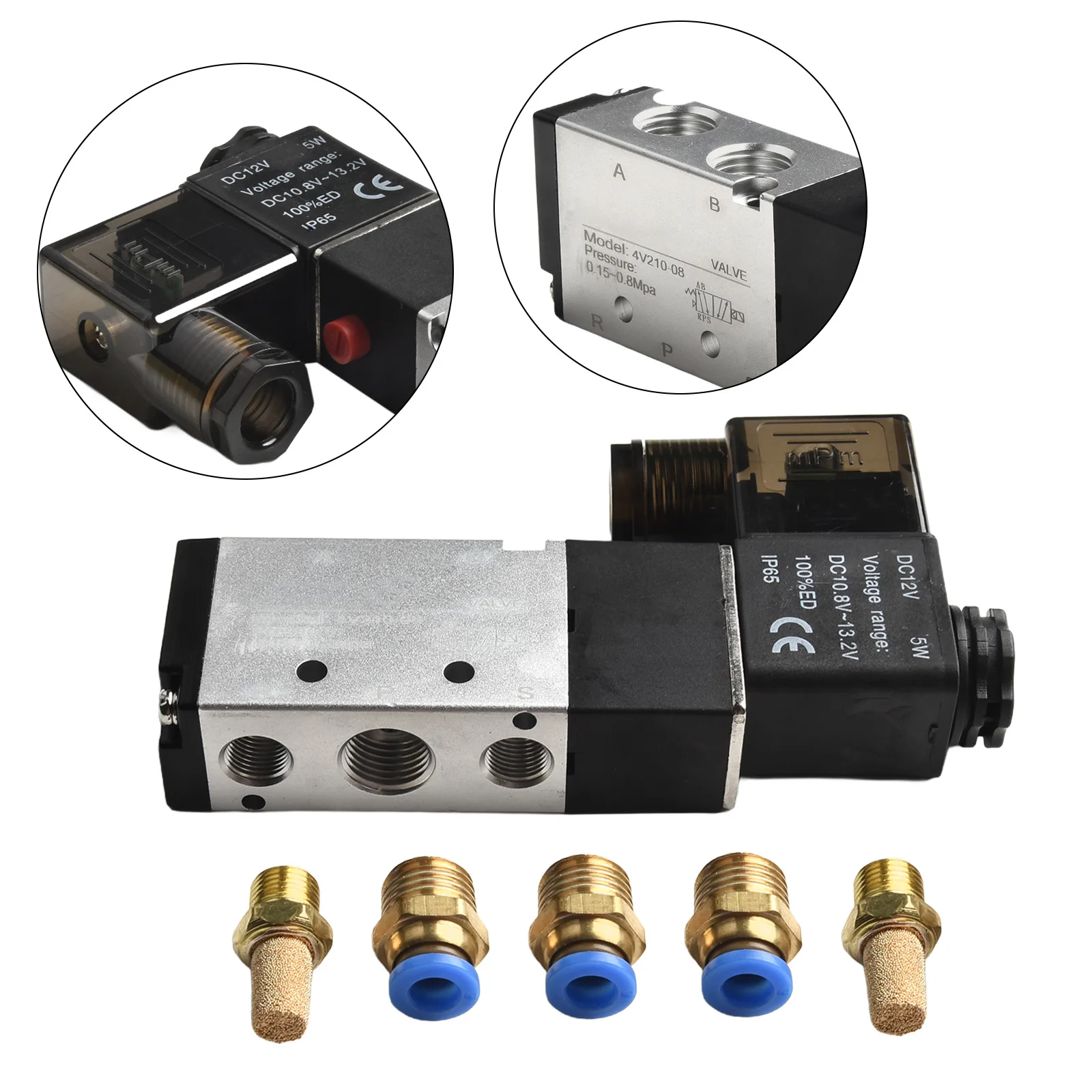

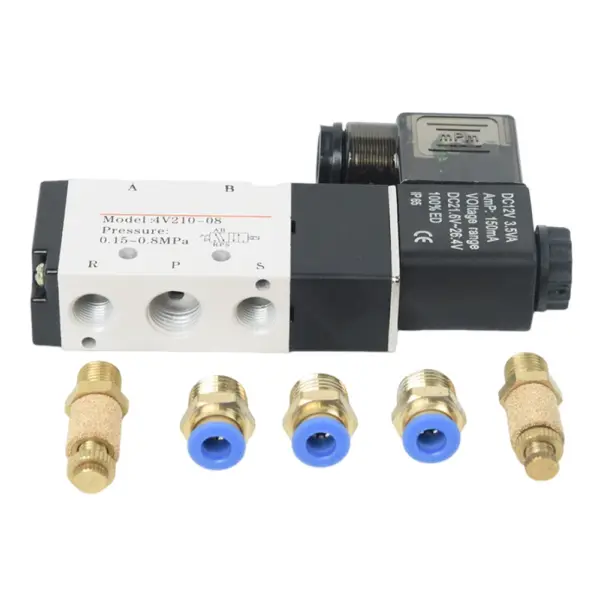

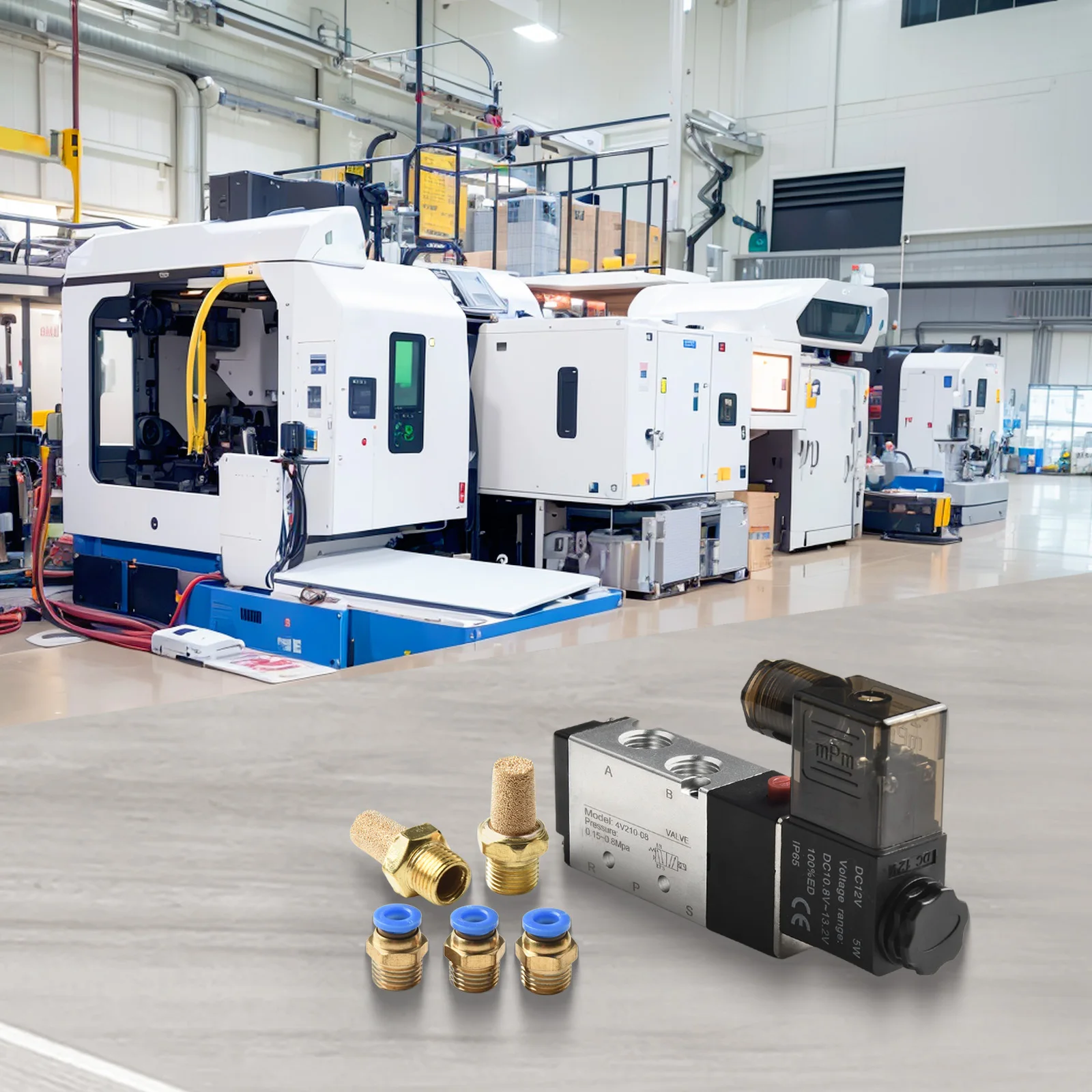

Package contents:
1 x solenoid valve

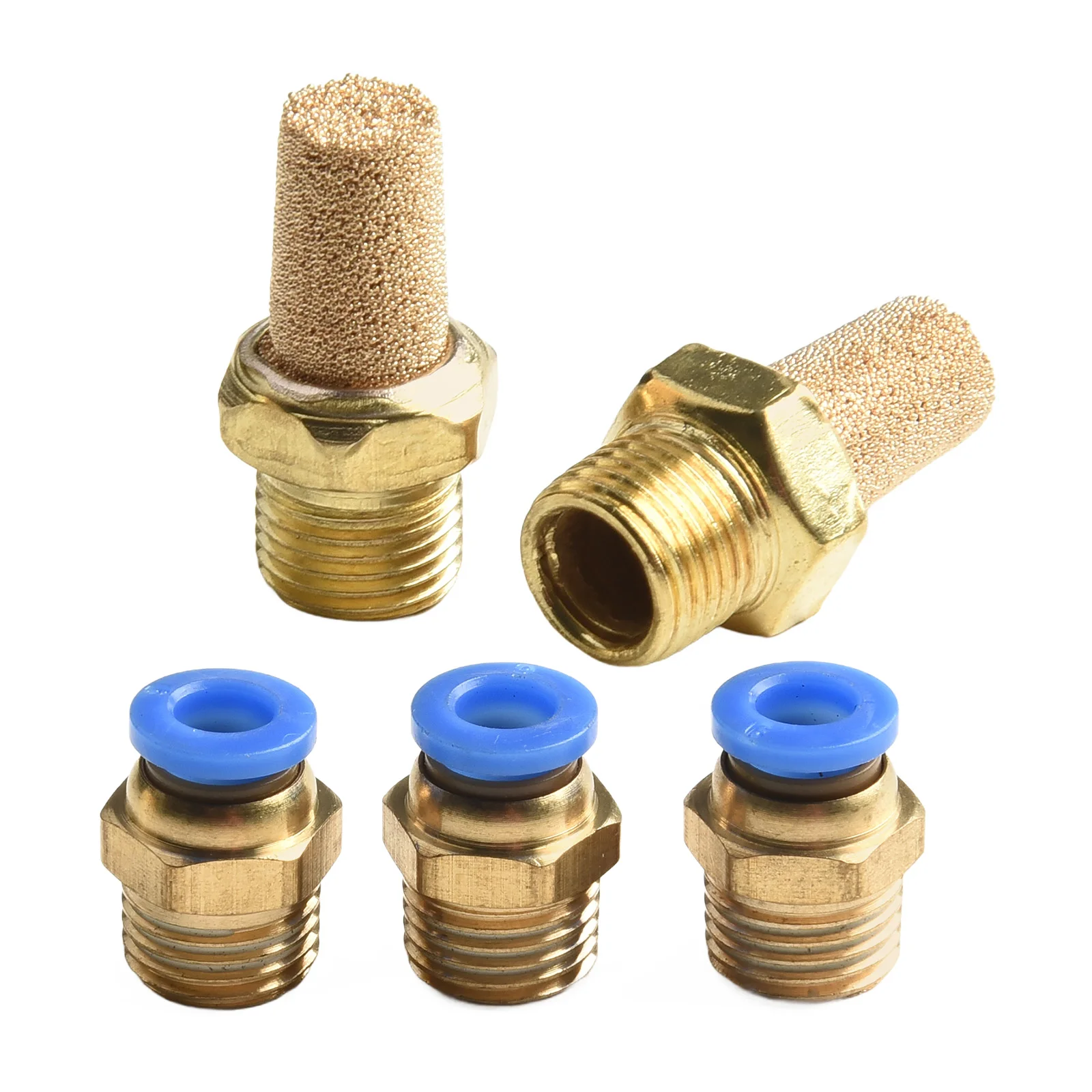

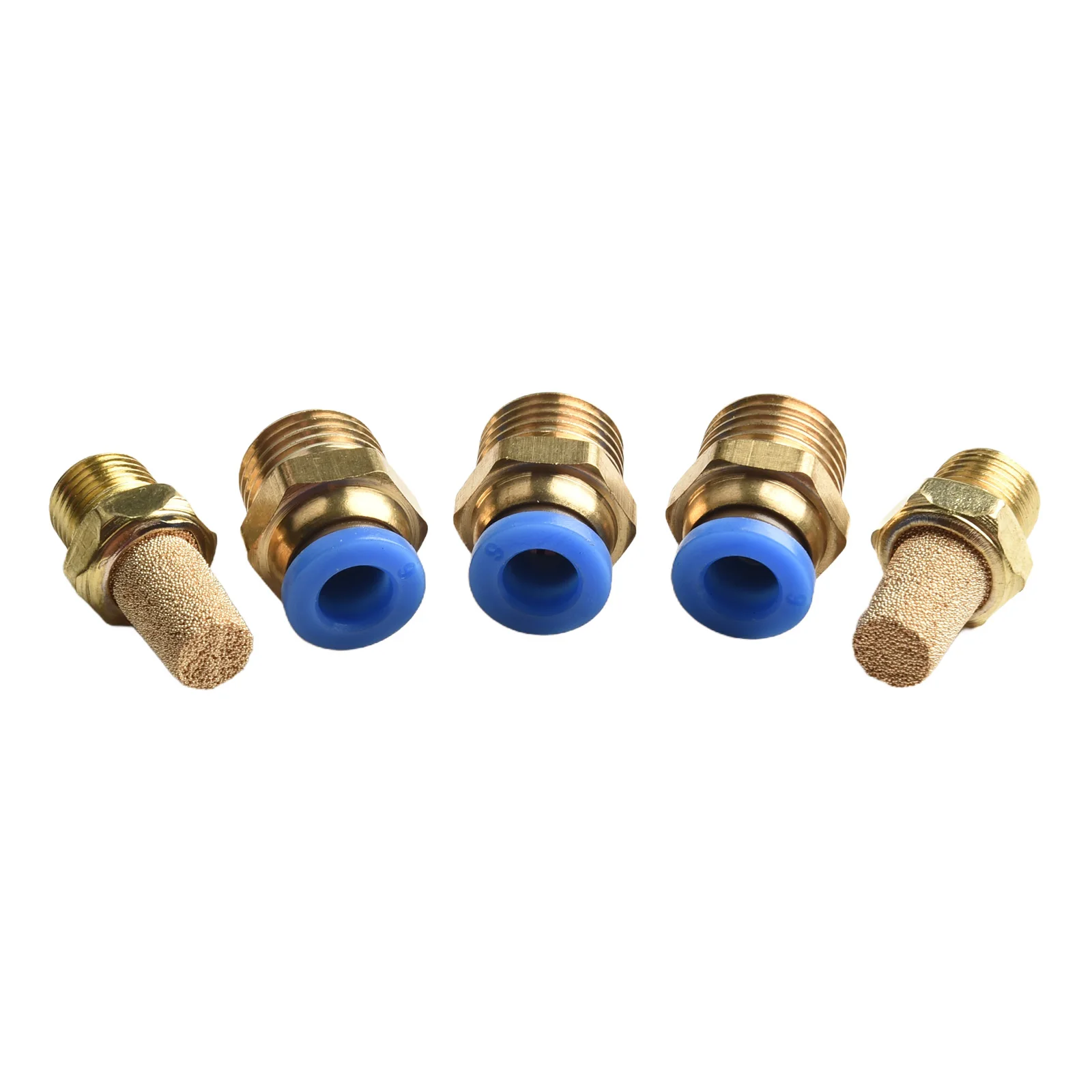

3 x connectors
2 x mufflers
Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
