Product Description

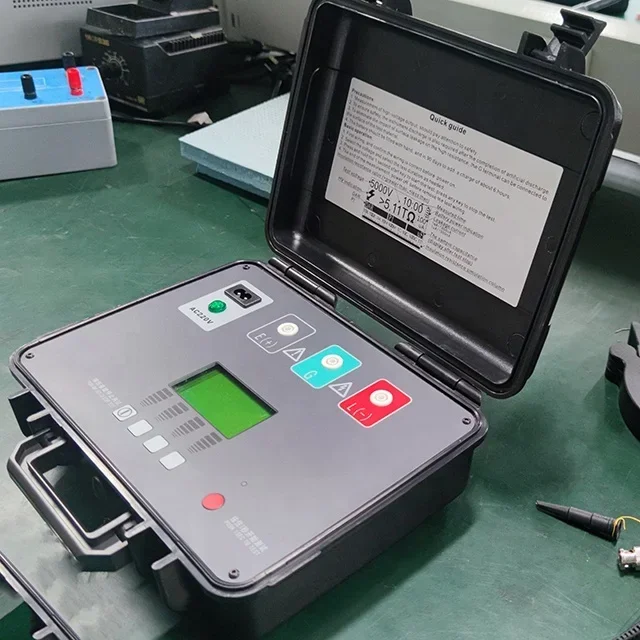

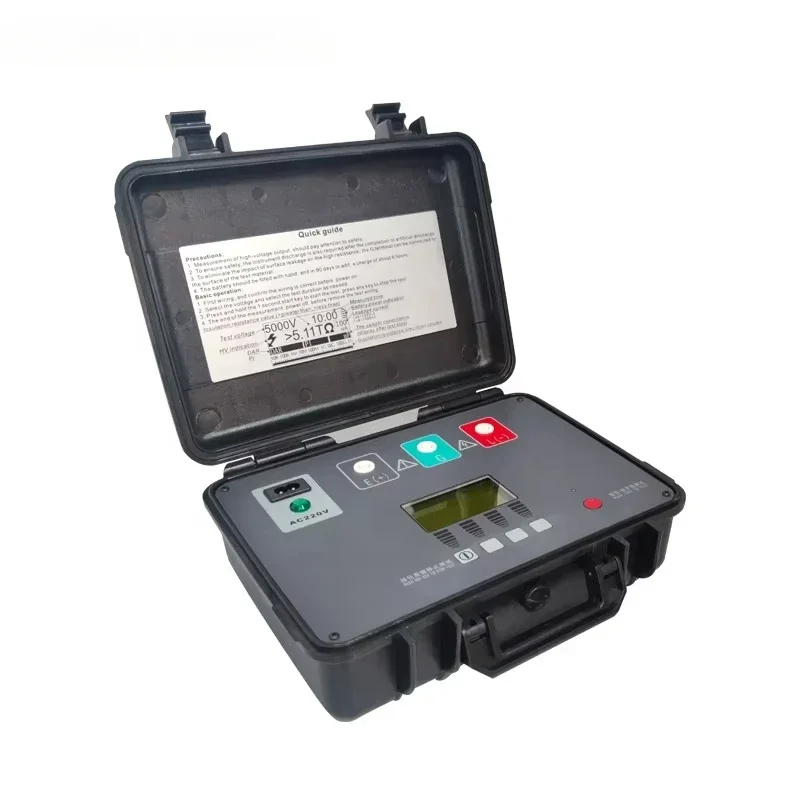

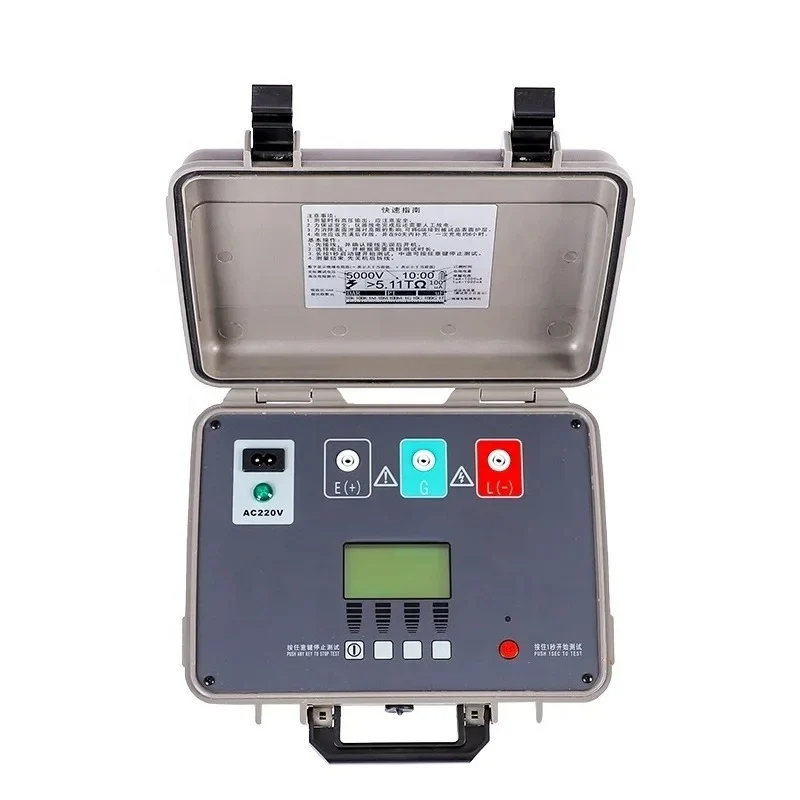

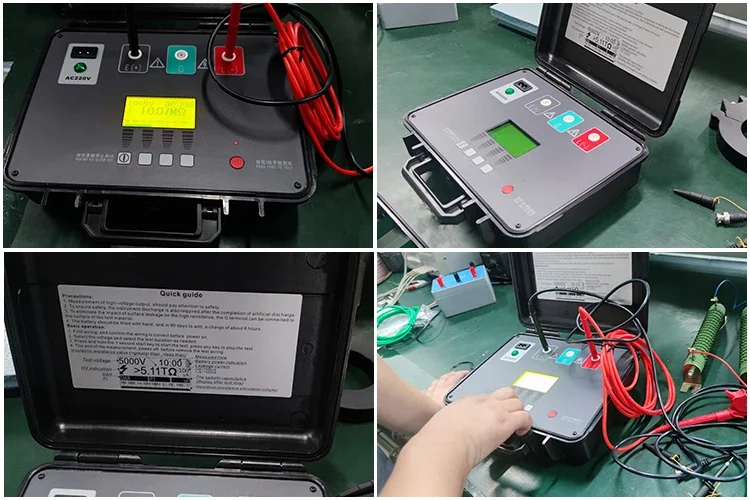

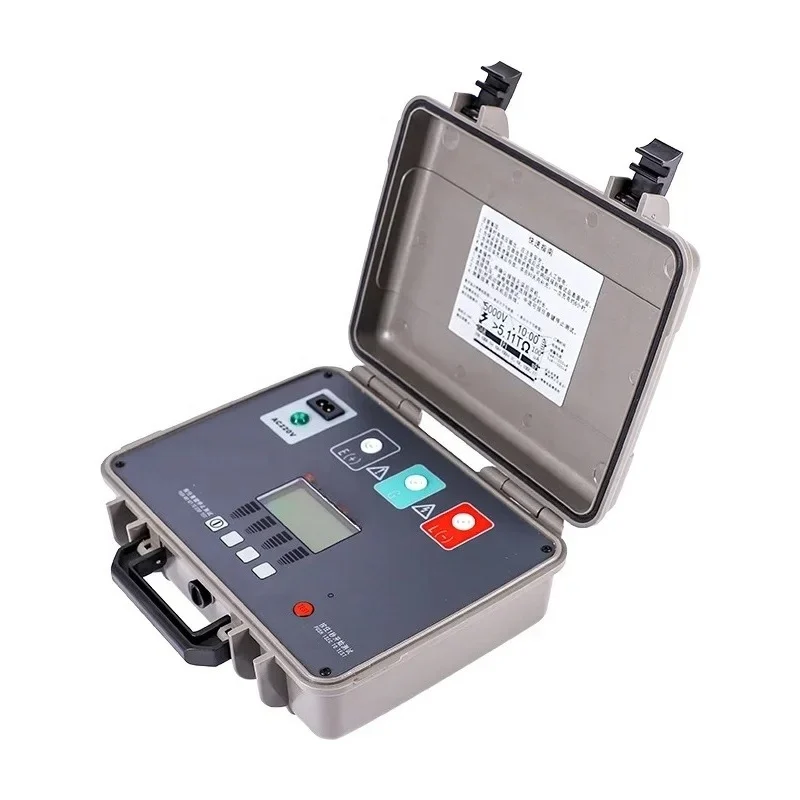

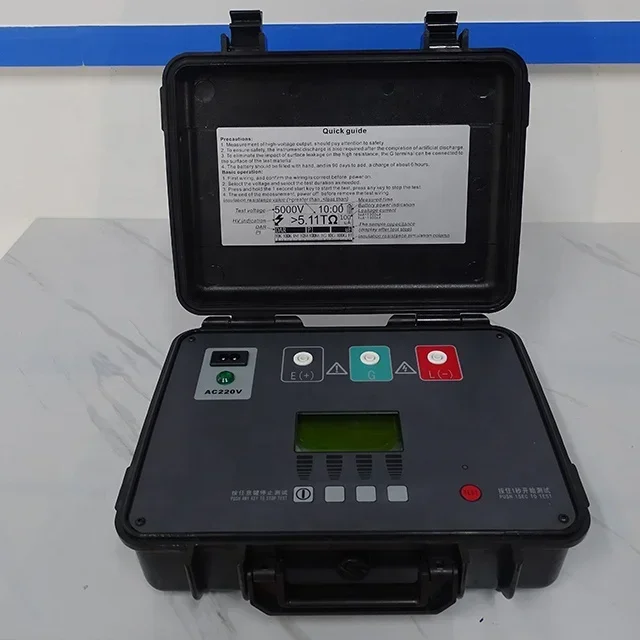

Fast test high precision intelligent high-voltage Ohm Meter 5 kv insulation resistance Measuring Instrument tester
Intelligent high-voltage insulation resistance tester, with 4 ranges: 500V, 1000V, 2500V, 5000V, the maximum test can reach 2TΩ.
Feature :
● Insulation resistance range 2TΩ@5kV
● The short-circuit current can be adjusted up to 3mA.
● Automatically display the test values of polarization index (PI) and dielectric absorption ratio (DAR), which can test leakage current and capacitance.
● Excellent anti-interference performance, the test accuracy can be guaranteed even when interference current reaches 2mA.
● The capacitive test sample discharges quickly to avoid the danger of sparks caused by artificial discharge during cable testing.
● The instrument has the traditional automatic discharge function, and can display the discharge voltage in real time (there is also an improved product with independent rapid discharge).
● 2 kinds of power supply methods: when using lithium-ion battery power supply, battery life up to 5 hours (2500V@100M test resistance).
● it can be charged in use. In the event of a power failure, it can automatically switch from AC power supply to battery power supply.
Feature :
● Insulation resistance range 2TΩ@5kV
● The short-circuit current can be adjusted up to 3mA.
● Automatically display the test values of polarization index (PI) and dielectric absorption ratio (DAR), which can test leakage current and capacitance.
● Excellent anti-interference performance, the test accuracy can be guaranteed even when interference current reaches 2mA.
● The capacitive test sample discharges quickly to avoid the danger of sparks caused by artificial discharge during cable testing.
● The instrument has the traditional automatic discharge function, and can display the discharge voltage in real time (there is also an improved product with independent rapid discharge).
● 2 kinds of power supply methods: when using lithium-ion battery power supply, battery life up to 5 hours (2500V@100M test resistance).
● it can be charged in use. In the event of a power failure, it can automatically switch from AC power supply to battery power supply.
Specification
|
AC power supply
|
220V±10%, 50/60 HZ, 20VA
|
|
Battery power supply
|
8.4V lithium ion rechargeable battery
|
|
Battery life time
|
2500V@100M, about 5 hours
|
|
Dimensions
|
260*200*100 mm
|
|
Weight
|
2.6kg
|
|
Test voltage accuracy
|
100% to 110% of the nominal value
|
|
Current test range
|
10mA
|
|
Current measurement accuracy
|
5%+0.2nA
|
|
Short circuit current
|
3mA
|
|
Insulation resistance test range and accuracy
|
temperature: 23±5ºC, relative temperature: 45 – 75%RH
|
|
Accuracy
|
Range
|
|
|
|
|||
|
|
500V
|
1000V
|
2500V
|
5000V
|
|||
|
Unspecified
|
<100k
|
<100k
|
<100k
|
<100k
|
|||
|
5%
|
100k-10G
|
100k-20G
|
100k-50G
|
100k-100G
|
|||
|
20%
|
10G -100G
|
20G-200G
|
50G-500G
|
100G-1T
|
|||
|
Unspecified
|
> 100G
|
> 200G
|
> 500G
|
> 1T
|
|||
