Description
Hello dear customer, this product is a customized product and the price may vary depending on your needs. Please consult customer service for more details.
#detail_decorate_root .magic-0{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:451px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:750px;height:451px}#detail_decorate_root .magic-4{overflow:hidden;width:750px;height:41.51943462897527px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-5{margin-top:0;margin-left:0;width:750.0000000000001px;height:41.51943462897527px}#detail_decorate_root .magic-6{overflow:hidden;width:750px;height:430px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-7{margin-top:-48px;margin-left:10px;width:750px;height:528.4290738569754px}#detail_decorate_root .magic-8{width:750px;border-collapse:collapse}#detail_decorate_root .magic-9{min-height:28px;padding:5px 10px;width:720px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-10{display:none}#detail_decorate_root .magic-11{min-height:28px;padding:5px 10px;width:534px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-12{min-height:28px;padding:5px 10px;width:167px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-13{min-height:28px;padding:5px 10px;width:533px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-14{min-height:28px;padding:5px 10px;width:534.4px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-15{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-16{margin-bottom:0}#detail_decorate_root .magic-17{position:relative;width:100%}#detail_decorate_root .magic-18{overflow:hidden;width:750px;height:39.79952830188679px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:0;margin-left:0;width:750px;height:39.79952830188679px}#detail_decorate_root .magic-20{width:446px}#detail_decorate_root .magic-21{overflow:hidden;width:446px;height:334.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-22{margin-top:0;margin-left:0;width:446px;height:334px}#detail_decorate_root .magic-23{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-24{font-size:16px}#detail_decorate_root .magic-25{vertical-align:top}#detail_decorate_root .magic-26{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-27{font-size:18px}#detail_decorate_root .magic-28{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-29{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-30{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-31{overflow:hidden;width:247.33333333333334px;height:185.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:0;margin-left:0;width:247px;height:185px}#detail_decorate_root .magic-33{overflow:hidden;width:247.33333333333334px;height:185.2496626180837px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-34{overflow:hidden;width:750px;height:304.83870967741933px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:750px;height:304.83870967741933px}#detail_decorate_root .magic-36{overflow:hidden;width:750px;height:42.40282685512368px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-37{margin-top:0;margin-left:0;width:750.0000000000001px;height:42.40282685512368px}#detail_decorate_root .magic-38{overflow:hidden;width:750px;height:73.21041214750542px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-39{margin-top:0;margin-left:0;width:750px;height:73.21041214750542px}#detail_decorate_root .magic-40{overflow:hidden;width:750px;height:77.8688524590164px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-41{margin-top:0;margin-left:0;width:750px;height:77.8688524590164px}#detail_decorate_root .magic-43{font-size:24px}#detail_decorate_root .magic-44{font-size:20px}#detail_decorate_root .magic-45{overflow:hidden;width:750px;height:402.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-46{margin-top:0;margin-left:0;width:750px;height:402.5px}#detail_decorate_root .magic-47{overflow:hidden;width:750px;height:43.91100702576112px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-48{margin-top:0;margin-left:0;width:750px;height:43.91100702576112px}#detail_decorate_root .magic-49{overflow:hidden;width:750px;height:67.16417910447761px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-50{margin-top:0;margin-left:0;width:750px;height:67.16417910447761px}#detail_decorate_root .magic-51{overflow:hidden;width:750px;height:79.87668161434978px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-52{margin-top:0;margin-left:0;width:750px;height:79.87668161434978px}#detail_decorate_root .magic-53{overflow:hidden;width:750px;height:242.4496644295302px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-54{margin-top:0;margin-left:0;width:750px;height:242.4496644295302px}#detail_decorate_root .magic-55{overflow:hidden;width:750px;height:43.96248534583822px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-56{margin-top:0;margin-left:0;width:750px;height:43.96248534583822px}#detail_decorate_root .magic-57{overflow:hidden;width:446px;height:281.9227642276423px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-58{margin-top:0;margin-left:0;width:446px;height:281px}#detail_decorate_root .magic-59{font-size:13px}
|

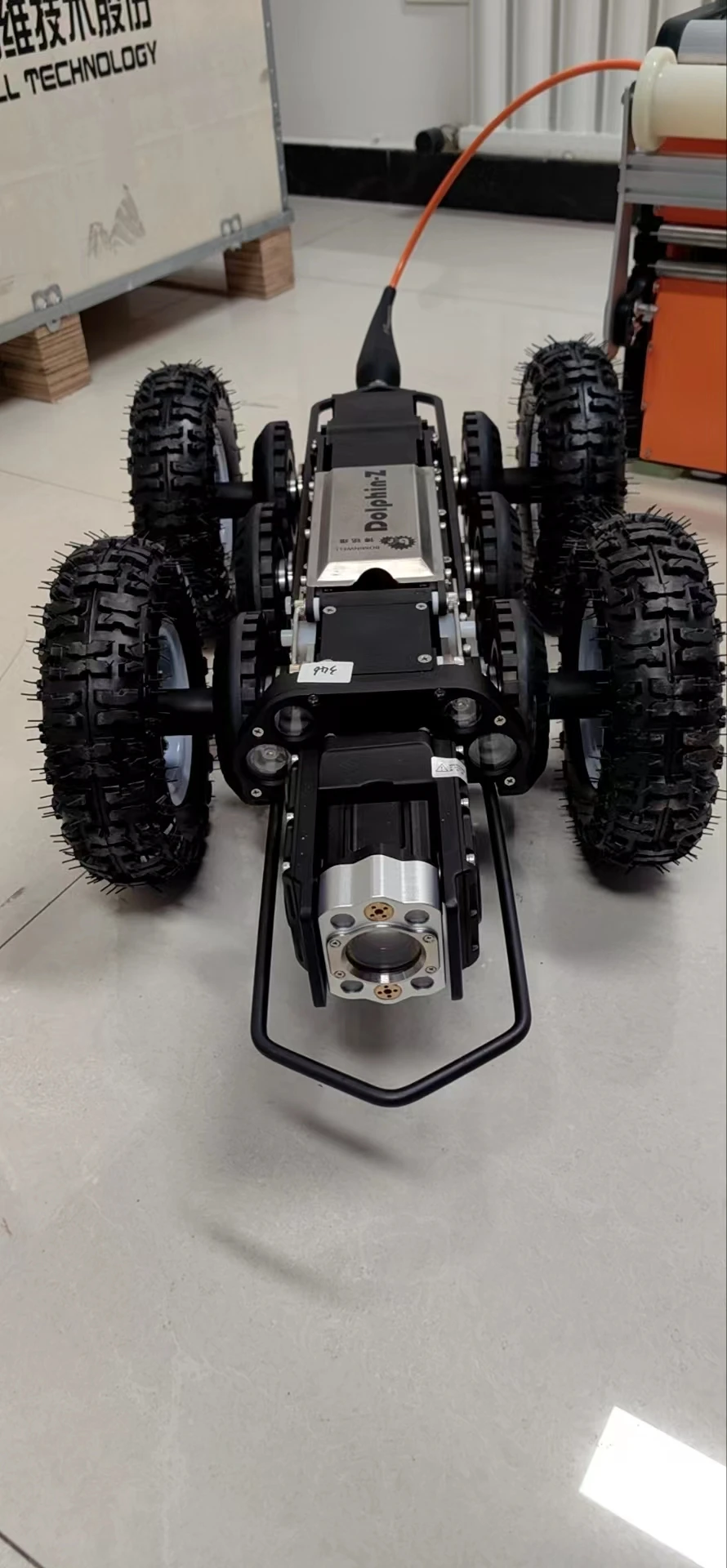

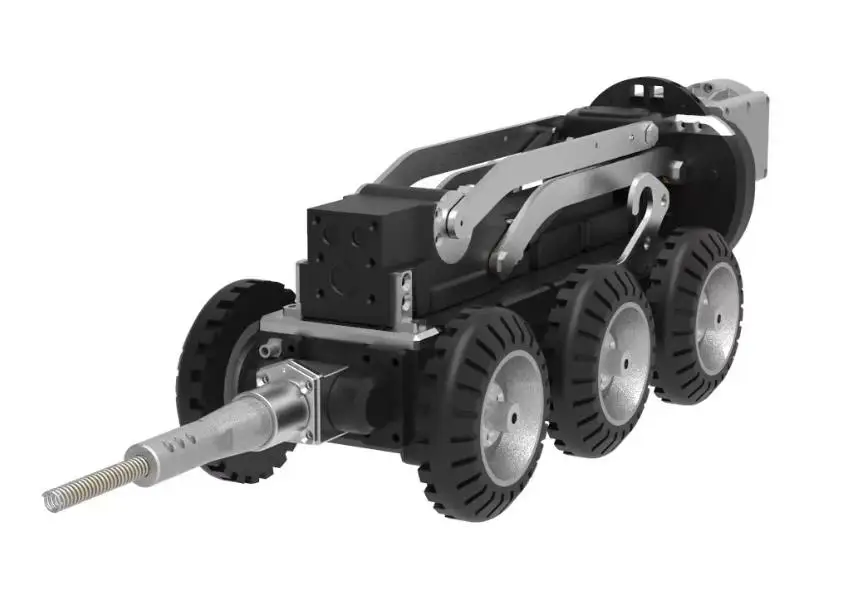

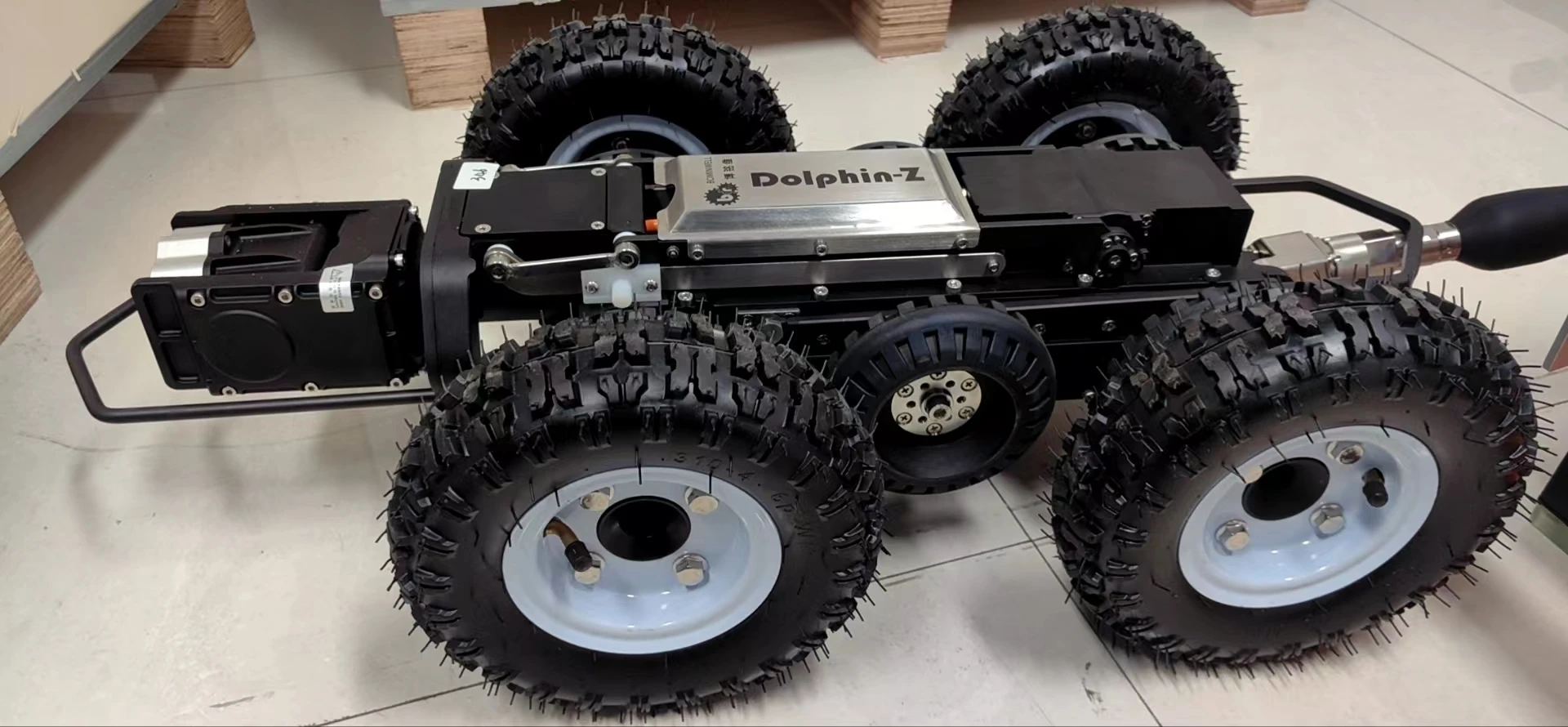

Crawler
|
|
|
|
Dimension
|
808*420*481mm(9inch wheel)
808*189*114mm(4inch wheel)
|
|
|
Applicable pipe diameter
|
DN200-3000
|
|
|
Protection class
|
IP68, waterproof, dustproof, explosion-proof
|
|
|
Lens rotation
|
360°axial rotation, 180°radial rotation
|
|
|
Camera head
|
Pixel: 2 million pixels
Resolution: 1920*1080
Zoom : 10x optical zoom |
|
|
Rear camera
|
2 million pixels , 1920*1080
|
|
|
Lens protection
|
Heating and defogging function, anti-fog, anti-scratch, anti-condensation
|
|
|
Steering
|
Dual motor differential design, 360° in site steering
|
|
|
Camera lifting
|
Electric lifting frame can be directly connected to the crawler after being disassembled
|
|
|
Operating temperature
|
-10deg ~ 55deg
|
|
|
Drive
|
6-wheel drive; Imported motor drive
|
|
|
Communication
|
Robot and cable car communicate via 2-core cable
|
|
|

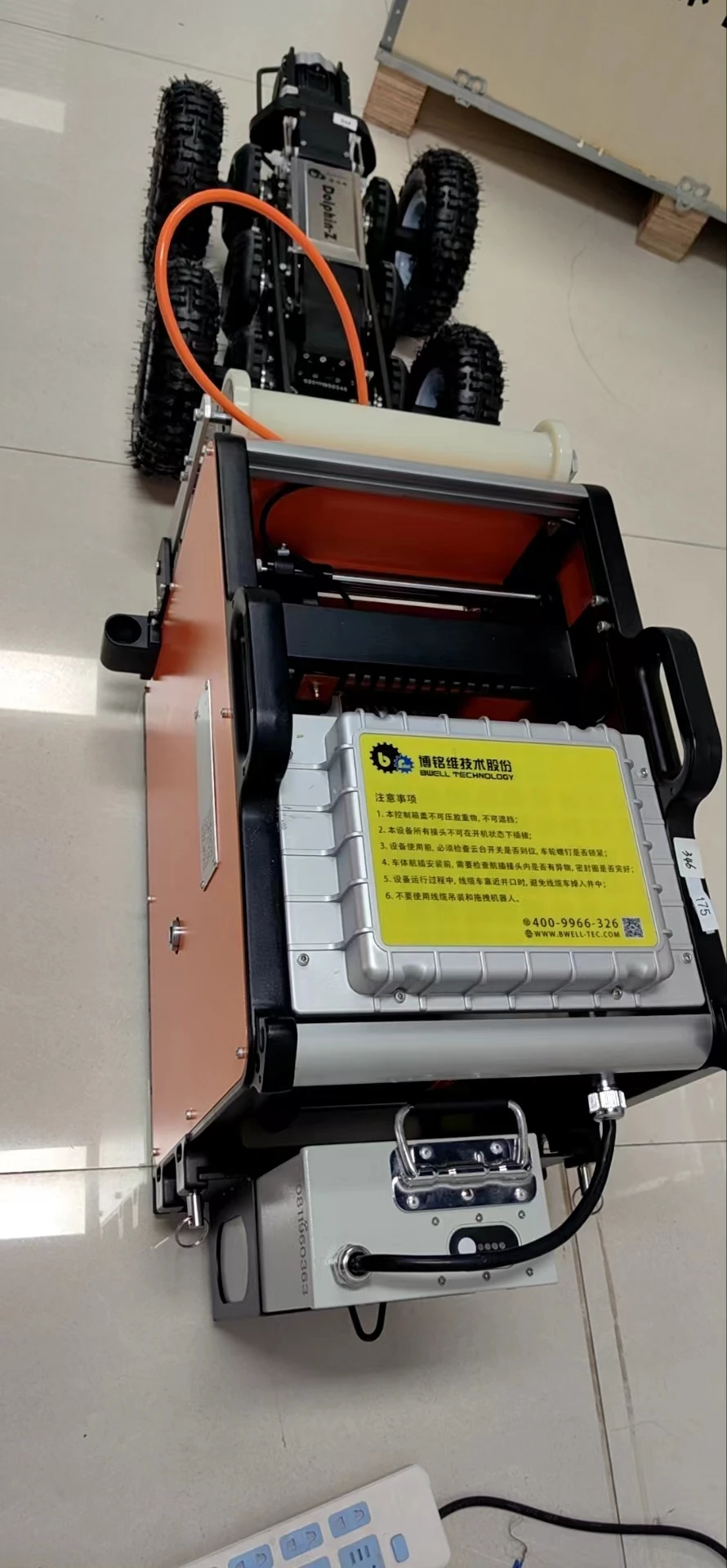

Cable Car
|
|
|
|
Dimension&Weight
|
710*390*480mm, 41kgs( without battery)
|
|
|
Data communication
|
Cable car to terminal via wifi connection or cable connection
|
|
|
Protection class
|
IP65
|
|
|
Cable length
|
Standard: 120m cables
|
|
|
Cable tension
|
250kgs
|
|
|
Meter function
|
100m counting accuracy ±5mm
|
|
|
Power supply
|
Power cable car power supply, over 8 hours battery life
|
|
|
Tablet Controller
|
|
|
|
Man-robot control mode
|
Touch screen operation with the app, match up with the hand-grip controller
|
|
|
Storage
|
64G
|
|
|
Display unit
|
HD display, professional eye protection mode
Anti-glare, anti-reflective |
|
|
Hand-grip Controller
|
|
|
|
Dimension&Weight
|
102*153*63mm, handheld, 280g
|
|
|
Wireless type
|
Bluetooth 6m (under normal condition)
|
|
|
Controlling Software
|
|
|
|
Information display
|
Real-time display of date and time, crawler inclination (pipe slope), air pressure, distance counter (released cable length), inspection video, camera azimuth, lens height, anti-overturn alarm, air pressure alarm, customized text writing on video, calculate the pipe diameter, the slop curve, etc., detecting pipeline defects and generate reports according to relevant standards
|
|
|
Inspection analysis
|
Pipe defects analysis; use controller to capture the defects images manually
|
|
|
Control function
|
It controls the forward, backward, steering, stop, speed of the crawler, automatic retracting cable, automated robot driving; lifting, lowering, lighting adjustment of the lens holder; horizontal, vertical rotation, and the center position returning of the lens ; focusing and zooming of camera; simultaneous display of front and rear camera, camera preset motion, defect length laser calibration, lens defogging, etc.
|
|
Shaanxi Granfoo Intelligent Technology Co., Ltd. is a High-tech intelligent enterprise. Specialized in designing, R&D,manufacturing and exporting : pipe inspection cameras, underwater cameras,water well inspection cameras,underwater connectors,and water quality monitor muti-parameter sensor, etc.
Our company established in 2009 ,with 12 years exporting experiences. we have obtained CE, ISO ,TUV & Patent Certificate,etc.
Ourproducts are mainly exported to Europe, North America, South America, Japan, Korea, Australia, etc.
We have an independent factories, professional engineers, excellent sales staff , 24- hour after-service. Customer satisfaction is our aim.
Ourproducts are mainly exported to Europe, North America, South America, Japan, Korea, Australia, etc.
We have an independent factories, professional engineers, excellent sales staff , 24- hour after-service. Customer satisfaction is our aim.

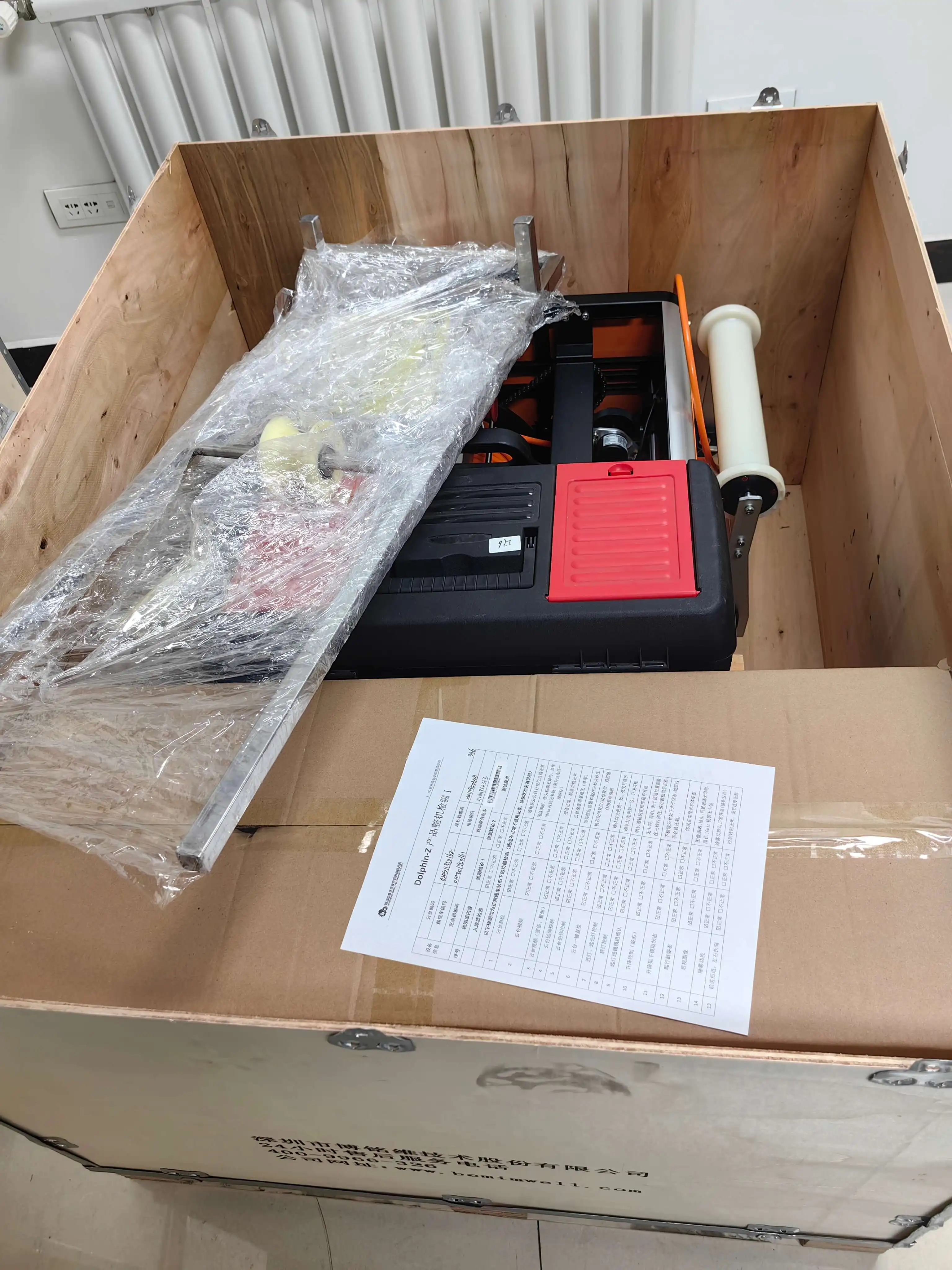

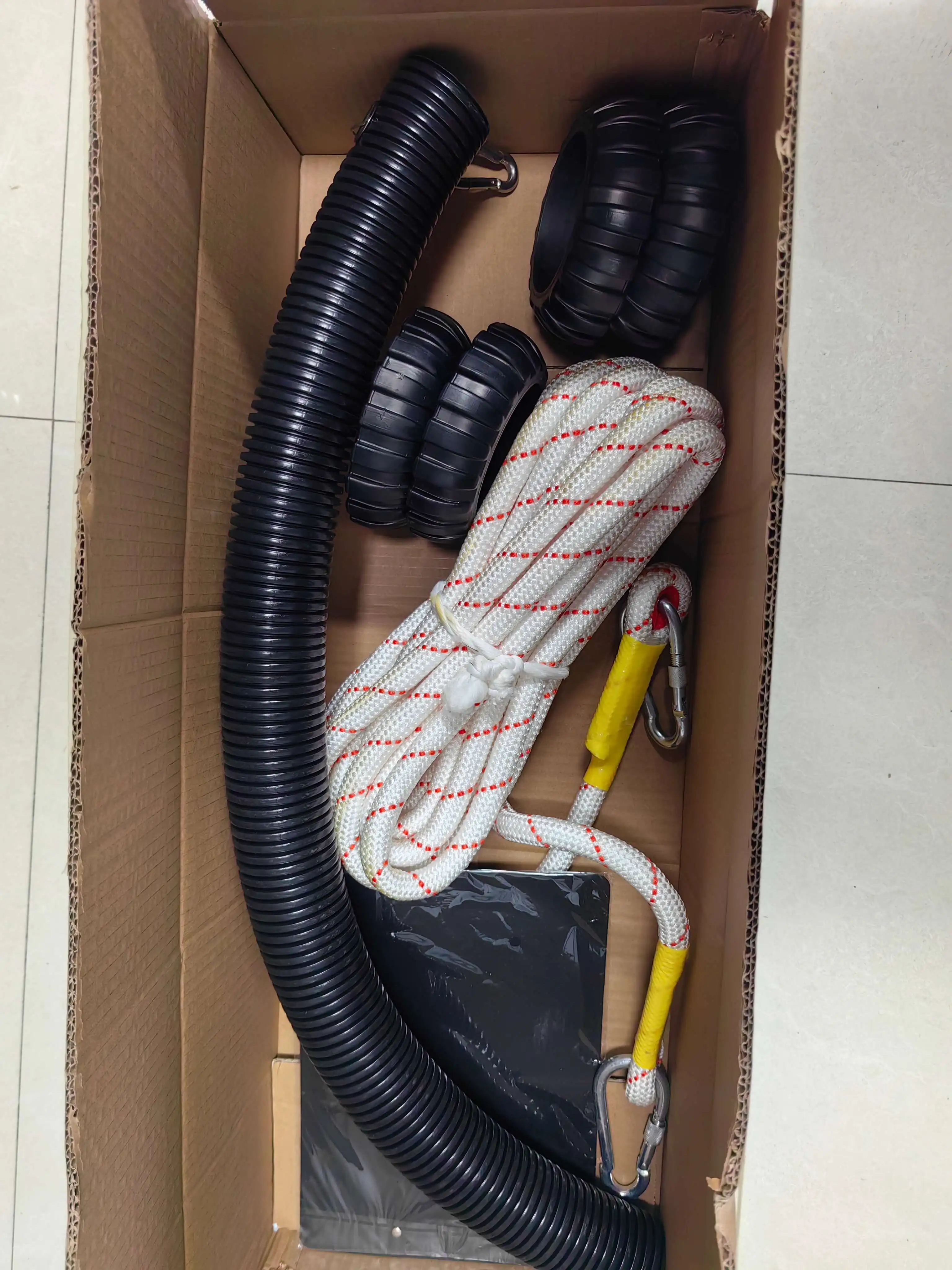

More Photos:
Safety certifications: ETL(North America）GS, CE, EMC,CB,SAA (Europe and other markets)
Chemical certifications: RoHS, REACH, AZO, OKOTEX (Europe and other markets)
Factory certifications: BSCI, IS09001
ORDERS ALL OVER THE WORLD
ASIA, AUSTRALIA, EUROPE AND AMERICA ,
ASIA, AUSTRALIA, EUROPE AND AMERICA ,
SO FAR EXPORTED TO MORE THAN 50 COUNTRIES.
PAYMENT:
1.We usually use T/T.
2.T/T 30% deposit before production and balance 70% before delivery or against B/L copy if sea shipment.
3.100%L/C sight of sea shipment.
4.Westunion.
3.100%L/C sight of sea shipment.
4.Westunion.
SHIPPING:
1.If the quantity of order is not very big,we could send them to you by express delivery,such as TNT, DHL,
UPS OR EMS etc.
2.If order is big ,We will advise you use Air Shipping or Sea Shipping through your nominated forwarder
2.If order is big ,We will advise you use Air Shipping or Sea Shipping through your nominated forwarder
agent.Our long-term cooperated agent also available.
FOB port is Shenzhen.
3.Freight collect if bulk shipment.
Shaan xi Granfoo Intelligent Technology Co.,Ltd
………………………………………………………………..
Mobile: +86 18192979488(Whatsapp)
E-mail : sales08@granfoo-cn.com
Address:1111,Block A,Lvdi Lanhai,Jinye Road, Xi’an,Shaanxi,China
1. Q: Are you a manufacturer?
A: Yes, we have been offering specialized products in this field for 15 years.

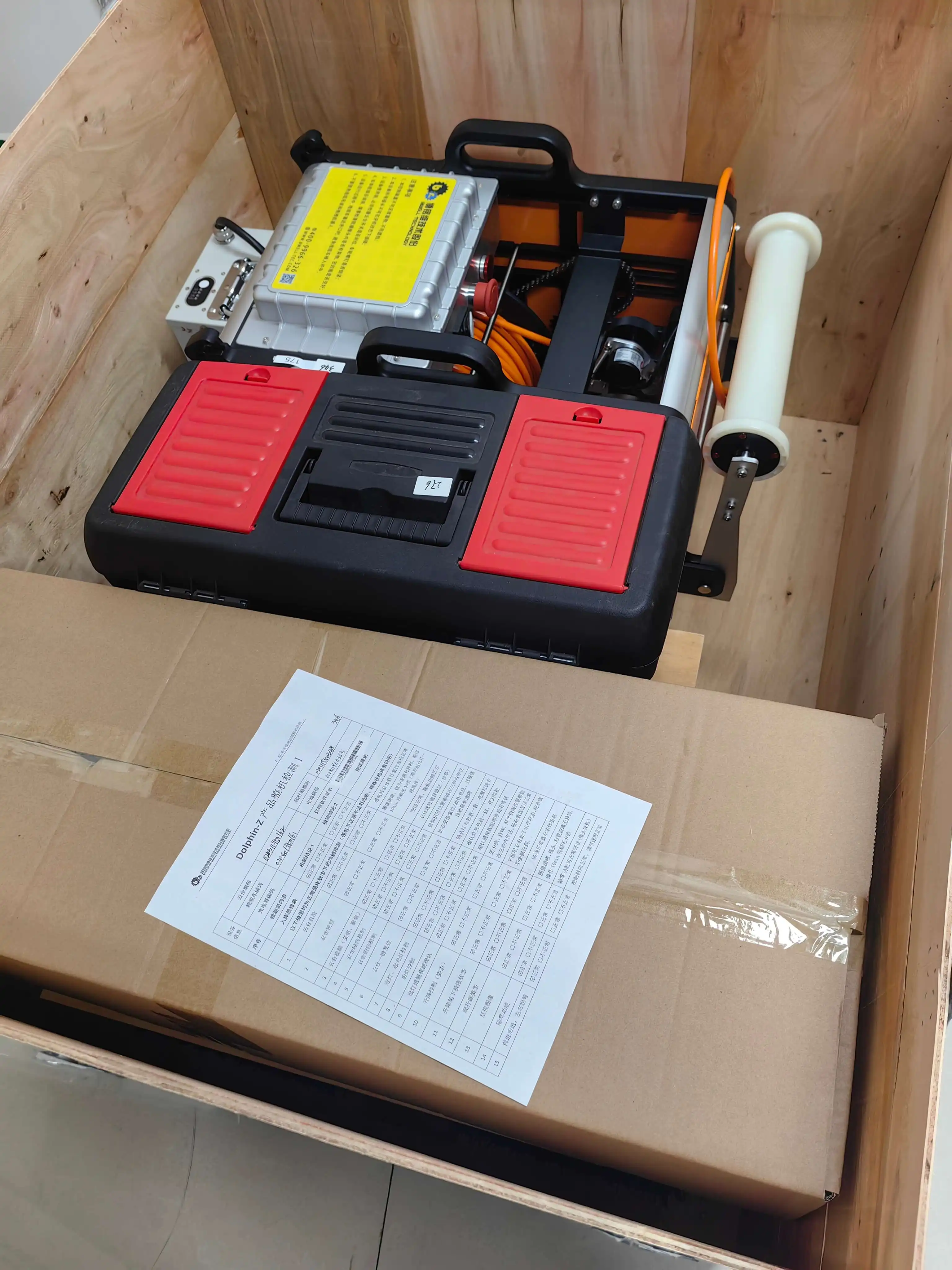

2. Q: How do you packthese products?
