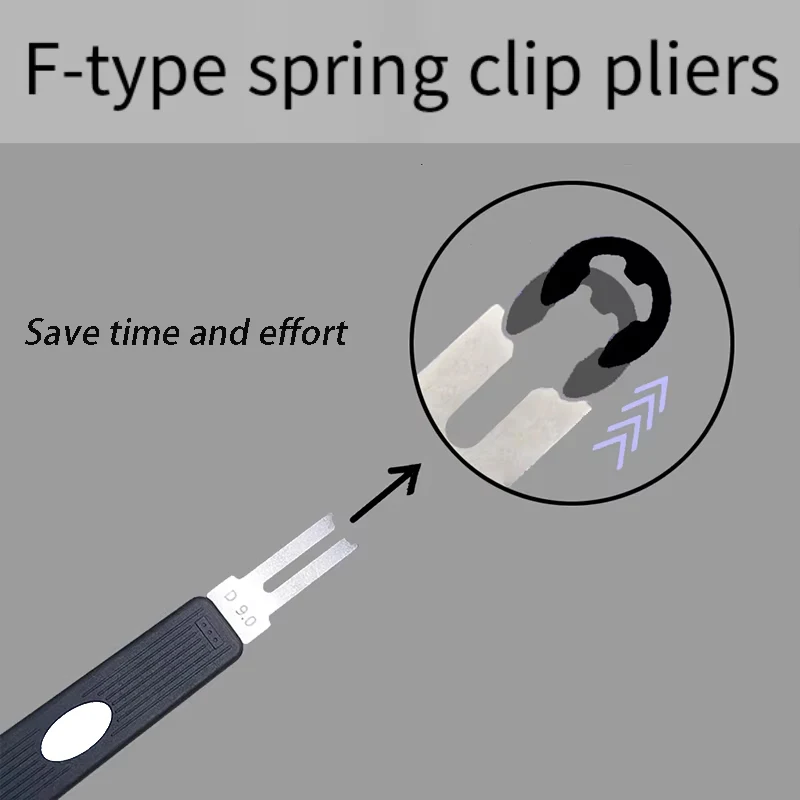

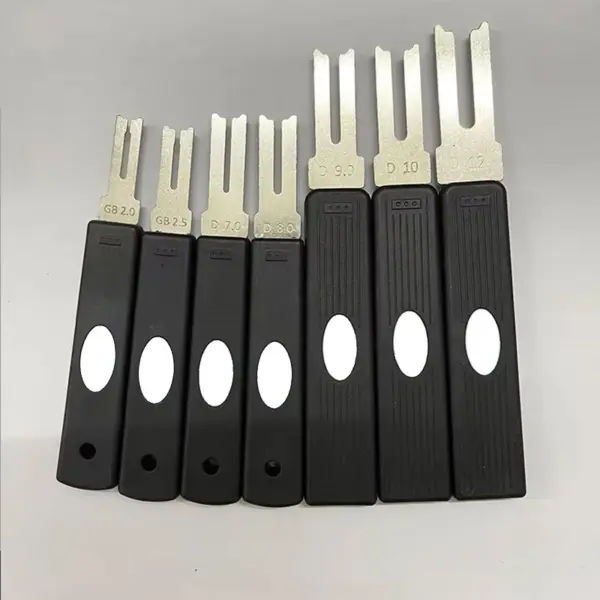

ETH-1.2 E-Shaped Fork Circlip Pliers Retaining Ring Pliers Fixed Ring Disassembly Fixture - Retain And Remove Rings with Ease
Rp505.350

ETH-1.2 E-Shaped Fork Circlip Pliers Retaining Ring Pliers Fixed Ring Disassembly Fixture - Retain And Remove Rings with Ease

SKU: 1005012213044897 Categories: ,
Toko: HengWang Store
🕐 Pre-Order · Estimasi 30 Hari
Color
Inner Diameter
Outer Diameter

Pilihan varian akan disertakan dalam pesan WhatsApp Anda.

🚚
Pengiriman ke seluruh Indonesia Estimasi 2–7 hari kerja via ekspedisi terpercaya
💬
Konsultasi gratis via WhatsApp Tim kami siap membantu Anda memilih produk
🏷️
Harga terbaik & transparan Harga sudah termasuk pajak, tanpa biaya tersembunyi

Description



Product Information

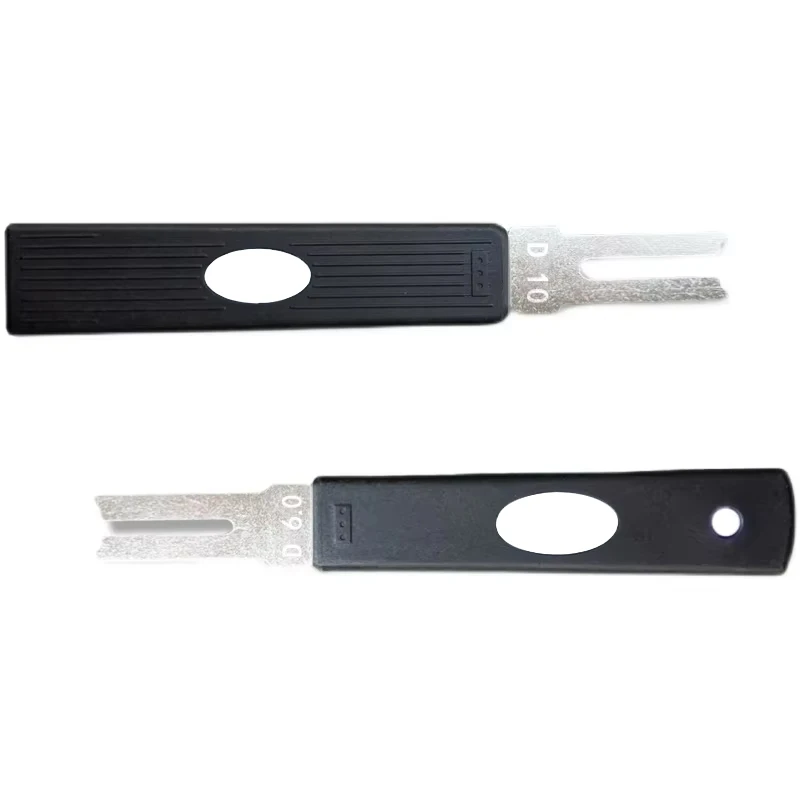

Name:E-type fixed ring disassembly fixture
Surface: Untreated
Packaging: Plastic bags/paper boxes
The outer diameter of the retaining spring is 3mm. Use [M1.2]

The outer diameter of the retaining spring is 4mm. Use [M1.5]
For removing the outer diameter of the retaining spring, use [M2.0].
The outer diameter of the retaining spring is 6mm. Use [M2.5]
The outer diameter of the retaining spring is 7mm. Use [M3.0]
The outer diameter of the retaining spring is 8mm. Use [M3.5]
The outer diameter of the retaining spring is 9mm. Use [M4.0]
The outer diameter of the retaining spring is 10mm. Use the [M5 national standard]
The outer diameter of the retaining spring is 11mm. Use the [M5 Japanese standard]
The outer diameter of the retaining spring is 12mm. Use [M6.0]
The outer diameter of the retaining spring is 14mm. Use [M7.0]
The outer diameter of the retaining spring is 16mm. Use [M8.0]
For removing the outer diameter of the retaining spring with 18mm, use [M9.0]
For removing the outer diameter of the retaining spring with 20mm, use [M10]
The outer diameter of the retaining spring is 23mm, and the [M12] Japanese standard is used
The outer diameter of the retaining spring is 24mm, in accordance with the national standard [M12]
For the outer diameter of the retaining spring that is 29mm, use the [M15] Japanese standard
For the outer diameter of 30mm of the retaining spring, use the national standard [M15]


Application Scenarios :

  • Automotive/Motorcycle Repair & Maintenance: Removing and installing circlips in transmissions, engines, wheel hubs, piston pins, etc. (Keywords: Auto Repair Tool, Motorcycle Maintenance)

  • Industrial Machinery Maintenance: Servicing circlips in motors, gearboxes, pumps, bearing housings, etc. (Keywords: Mechanical Repair)

  • Bicycle Repair: Removing and installing circlips in bottom brackets, hubs, etc.

  • Electronics Assembly/Repair: Handling small circlips inside precision devices.

  • DIY Projects & Model Making: Ideal for various crafts and model assemblies requiring circlip installation/removal. (Keywords: DIY Tool)

  • General Hardware Repair: Solving repair tasks involving circlip-fastened mechanisms.

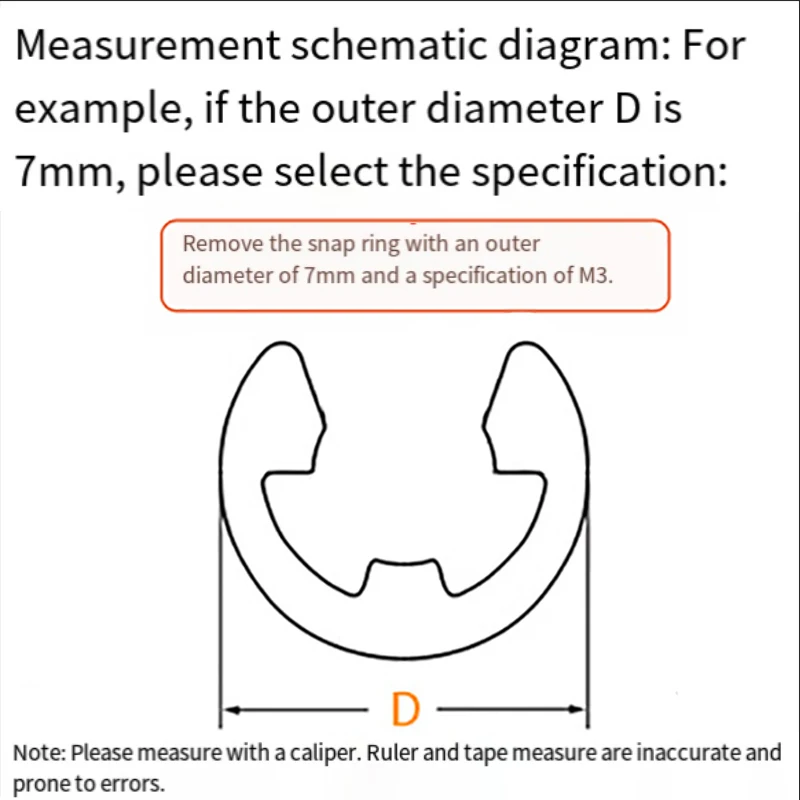

Measurement schematic diagram
For example, the outer diameter D is 7mm.
Please select the specification: Outer diameter D7mm spring clip [M3] Note: Please use a caliper for measurement. A ruler or tape measure can be inaccurate and may lead to incorrect selection.

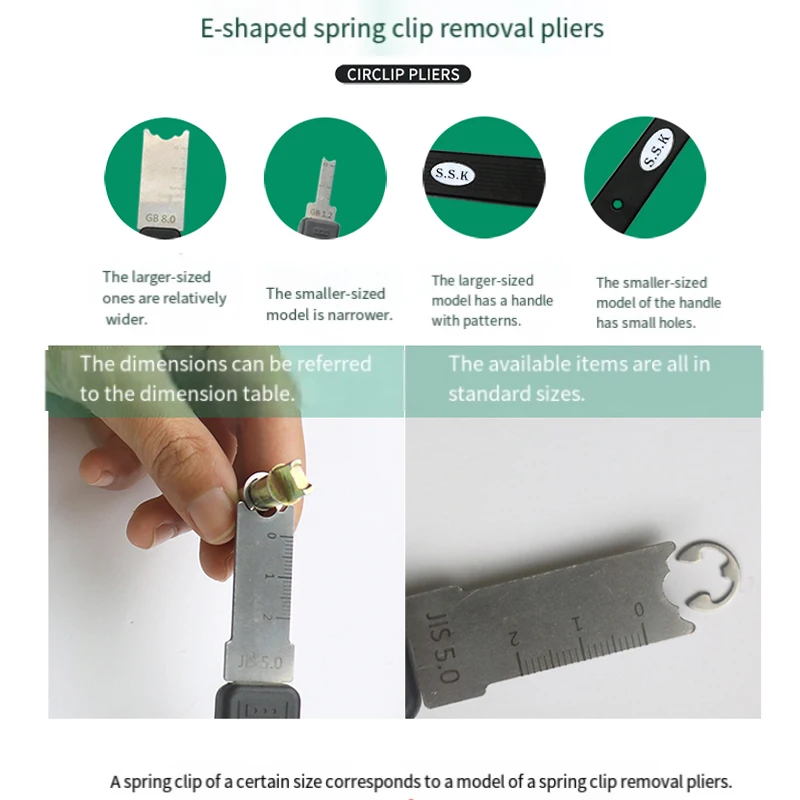

Measurement Chart Note: This model can only be disassembled, not assembled. It is only suitable for E-type spring clips.










Additional information

Color

Remove Tool
Inner Diameter

1 Pcs
Outer Diameter

3mm M1.2, 10mm M5, 8mm 3.5, 9mm M4.0, 29mm M15, 4mm M1.5, 18mm M9.0, 23mm M12, 7mm M3.0, 14mm M7.0, 30mm M15, 20mm M10, 11mm M5, 16mm M8.0, 6mm M2.5, 5mm M2.0, 24mm M12, 12mm M6.0
