Description:

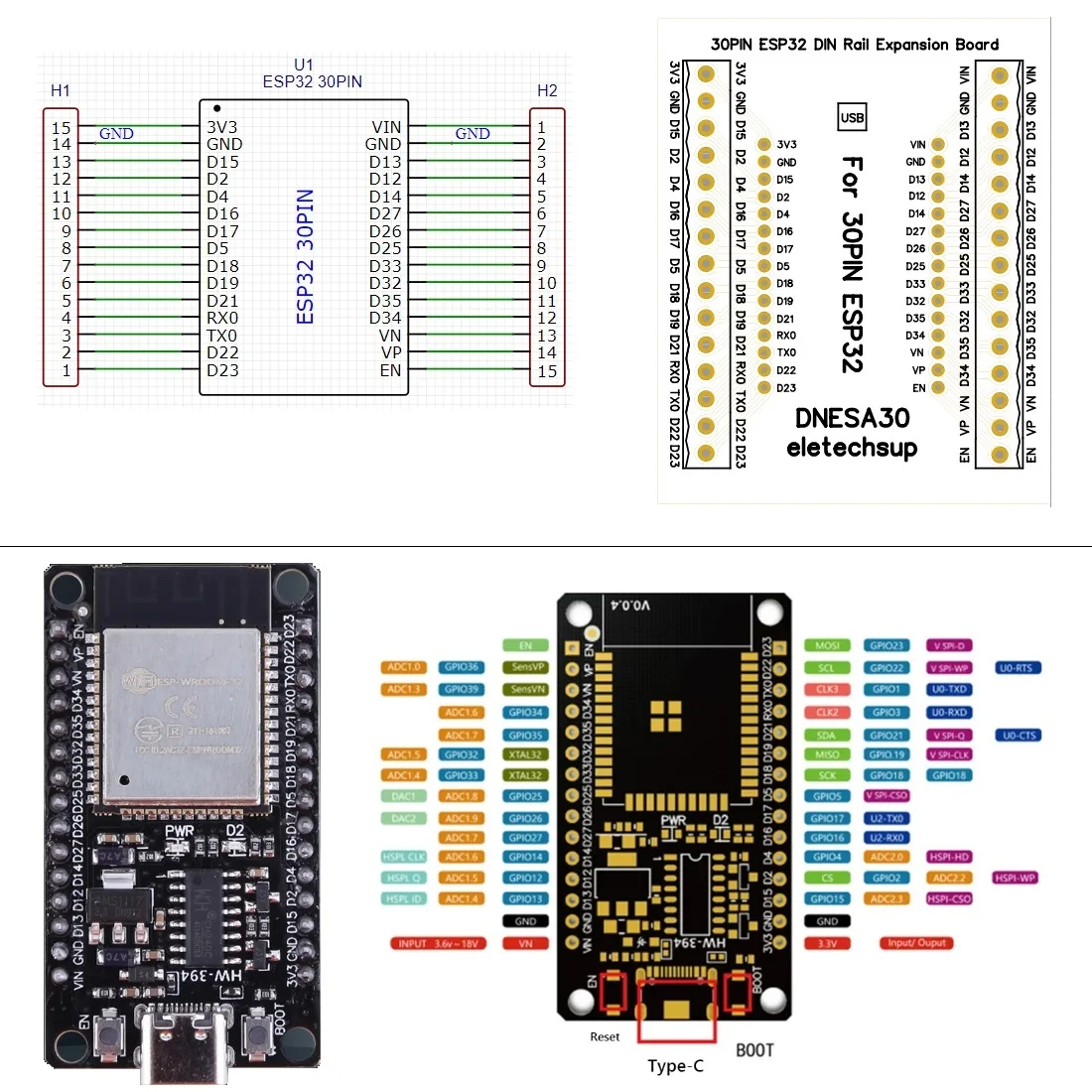

This is a 30PIN ESP32 DIN Rail expansion board, which leads out all the IO ports. Using this expansion board, it is easy to embed the ESP32 board into a device with a DIN rail.
Terminal Blocks: Wire Range 26-16AWG, Strip Length 3.96mm, Metric M2/M2.5 Slotted Screws.
Size: 72 *58 * 9mm(only Board),86 *60 * 35mm(with Rail Box)
Weight: 30g(only Board),80g(with Rail Box)
Use:
DIN Rail Mount Screw Terminal Adapter Module for 30 PIN ESP32 Board.
With this adapter modules, you can easily extend your ESP32 projects to industrial control applications.
Notice:
1 This product does not include the ESP32 Board

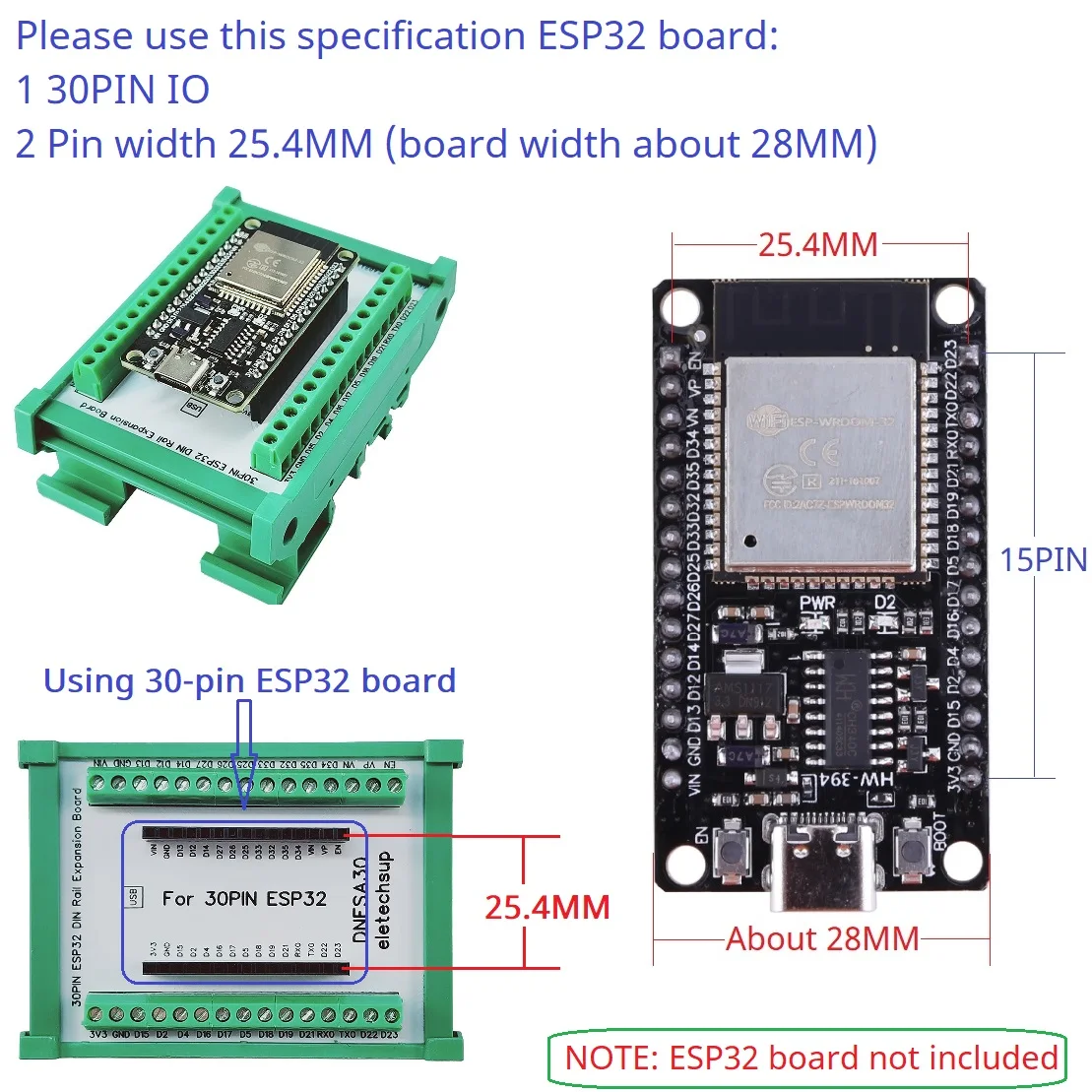

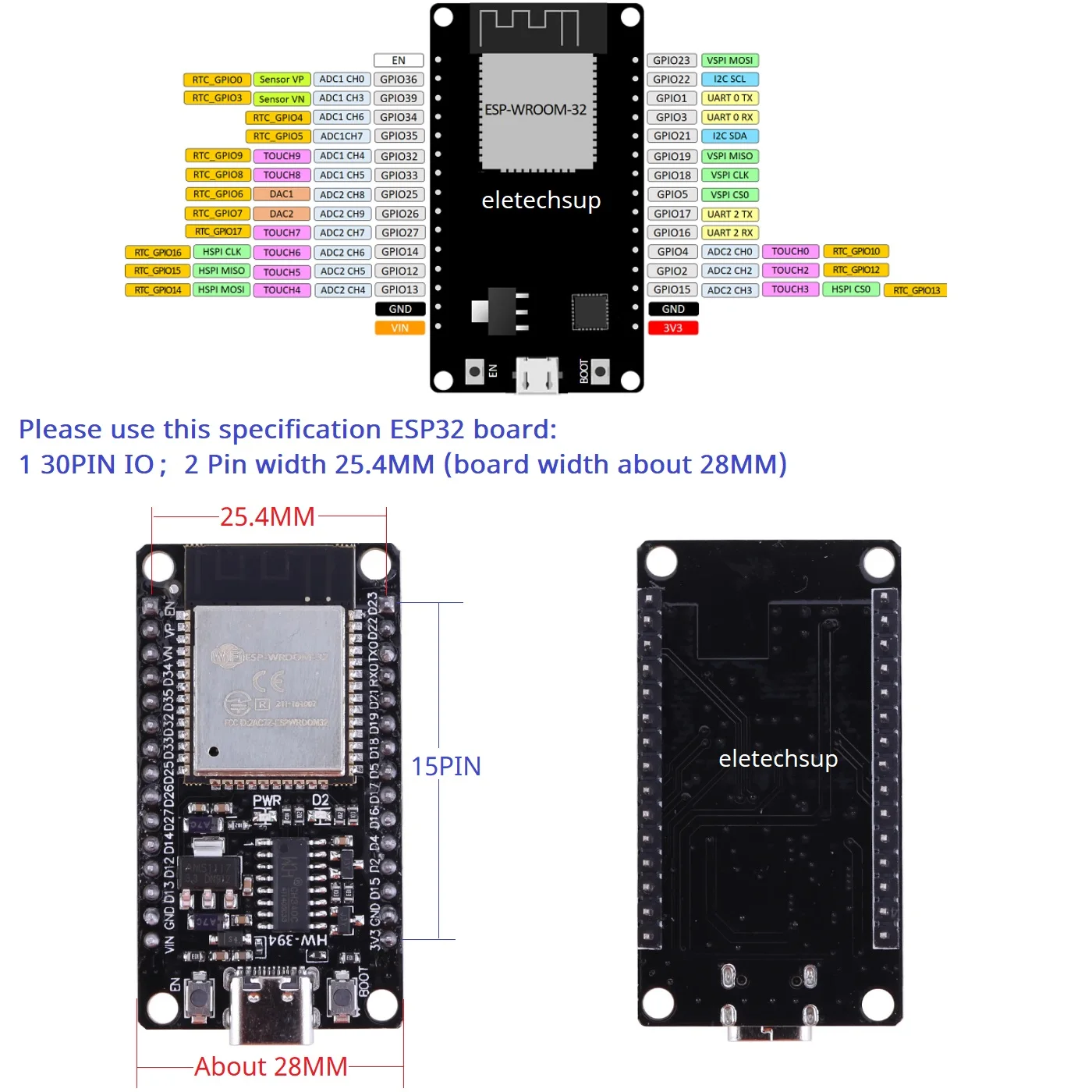

2 Please use 30PIN ESP32,Pin width 25.4MM (Board width about 28MM)
DIN rail Box parameters:
Product model: UM72
Color: Green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 58 mm PCB boards
Net weight: 48g
Installation: DIN35 and C45 rail
