Description
Description
Default PT interface, providing NPT interface (customer service needs to be contacted)

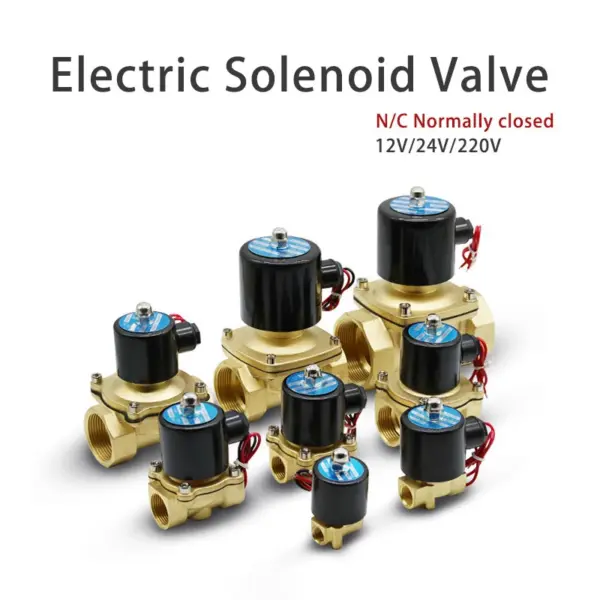

Features: – Two-position, one-way, normal close switch, magnetic solenoid water valve.casting,corrosive, the product has the direction of water inlet and outlet. – Can be installed at any angle, but it is a good choice when the horizontal tube keep upward. – Easily replaces broken valves for use with pipelines in water, air and diesel-gas applications.
|
Medium |
Air, water, oil, etc |
|
Temperature |
-5~80℃ |
|
Pressure |
0~1.0MPa |
|

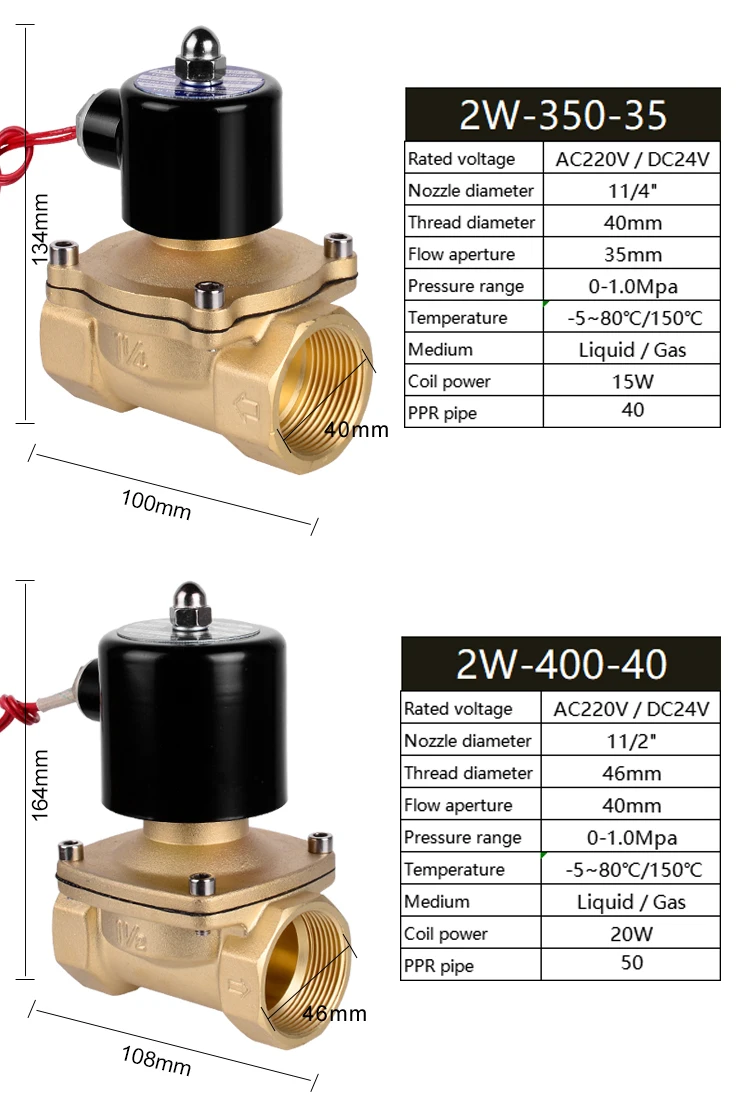

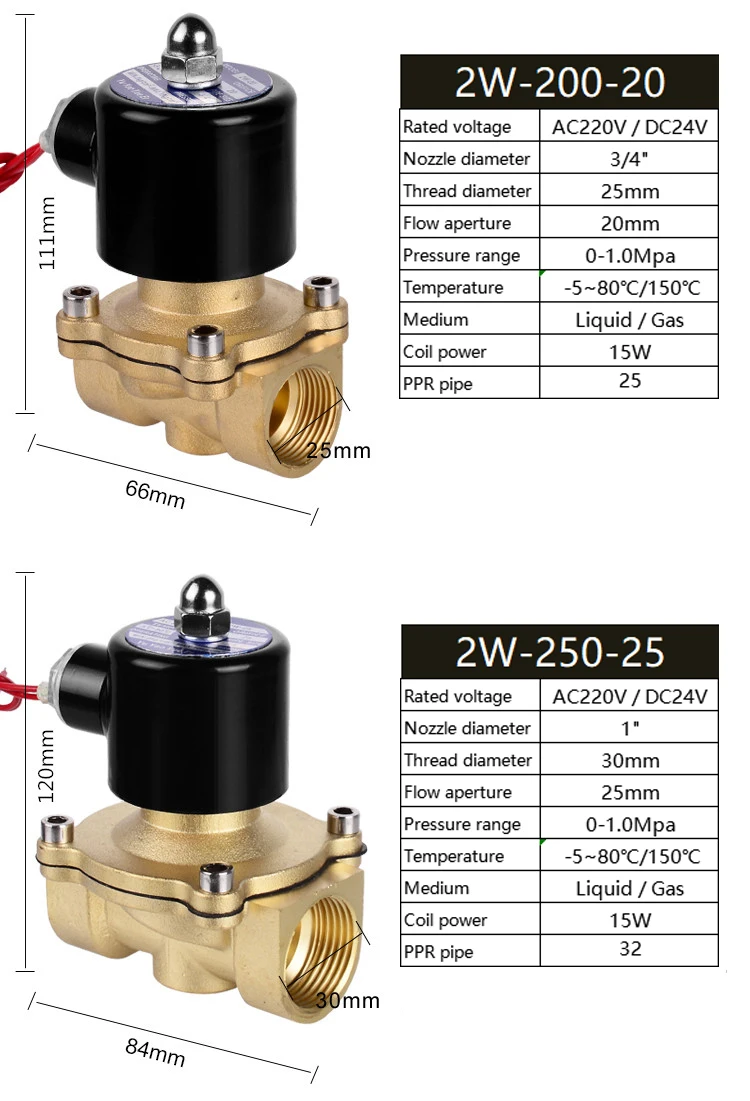

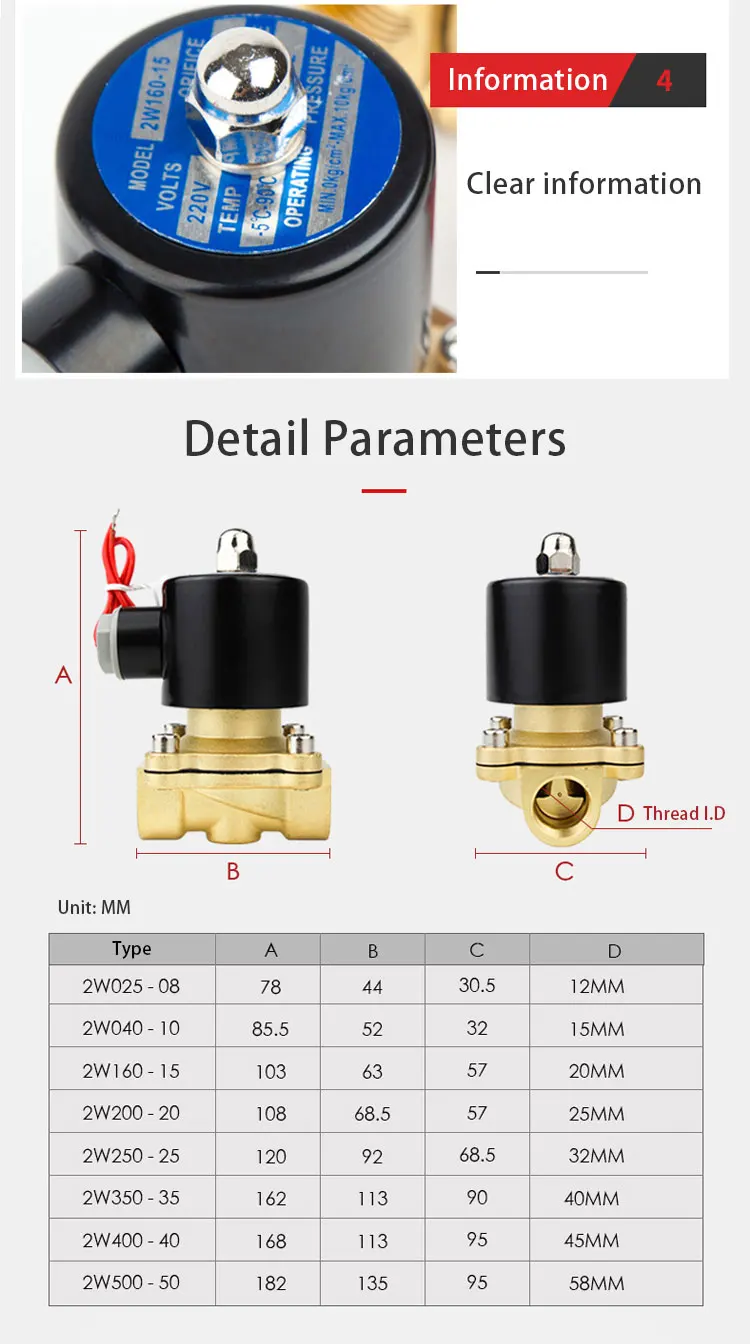

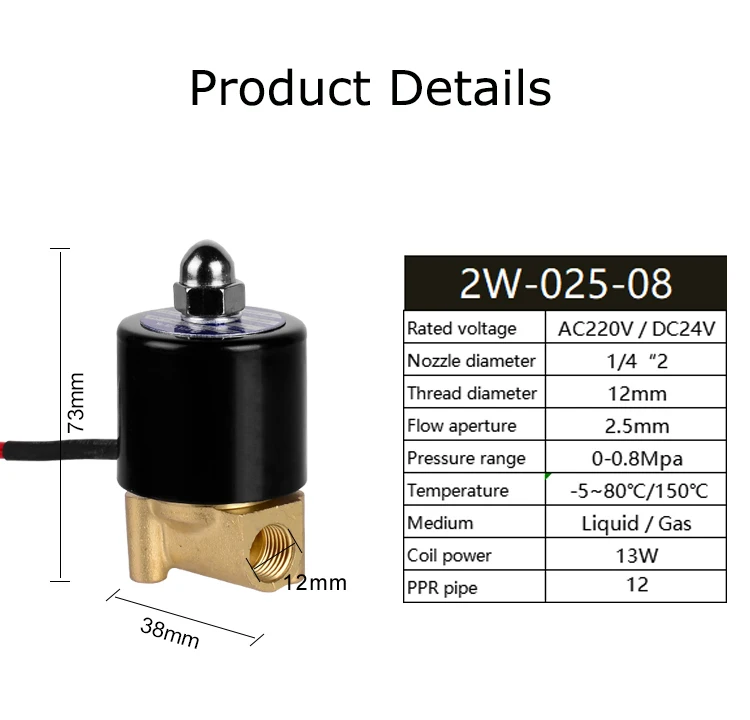

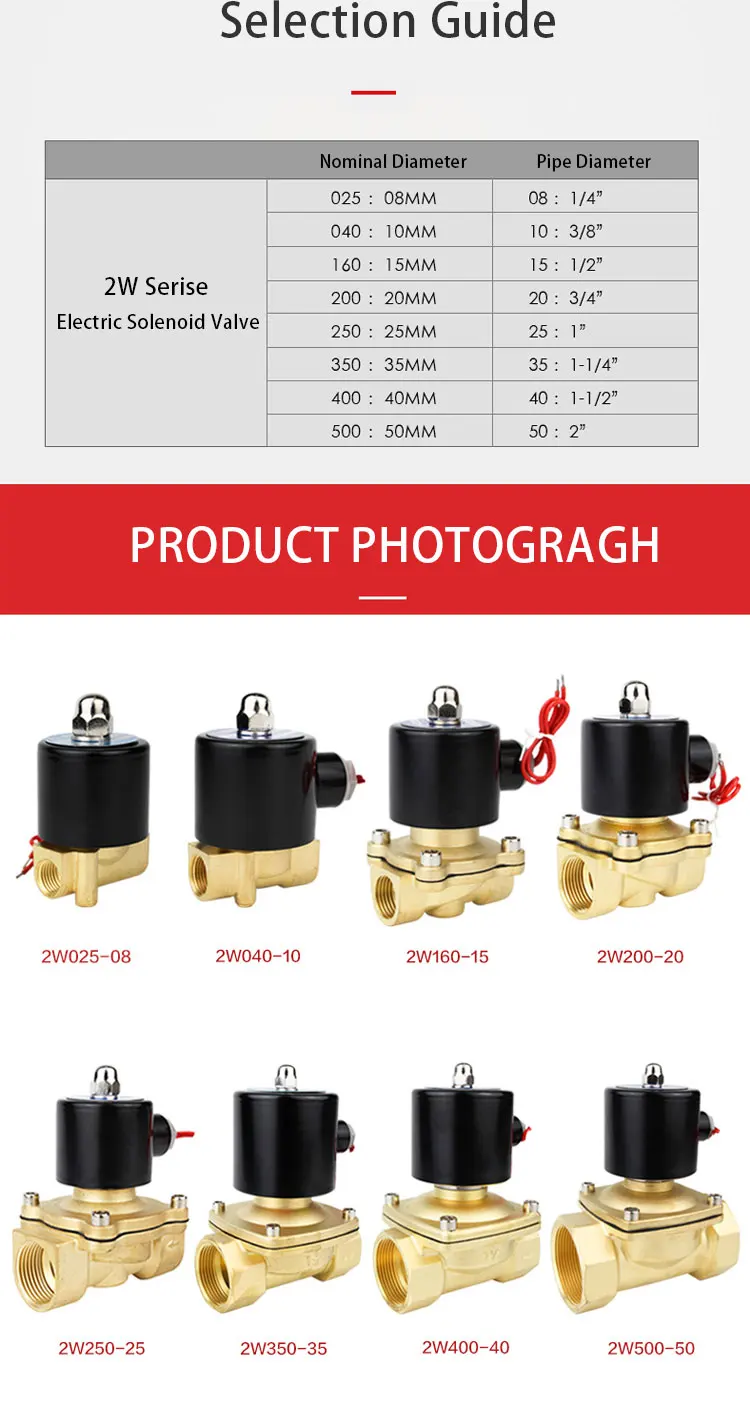

Size Range |
DN8 to DN50, 1/4" to 2" |
|
Number of Ways |
One Ways Two Position |
|
Valve Operation Type |
Normally Closed (NC) |
|
Connection |
PT |
|

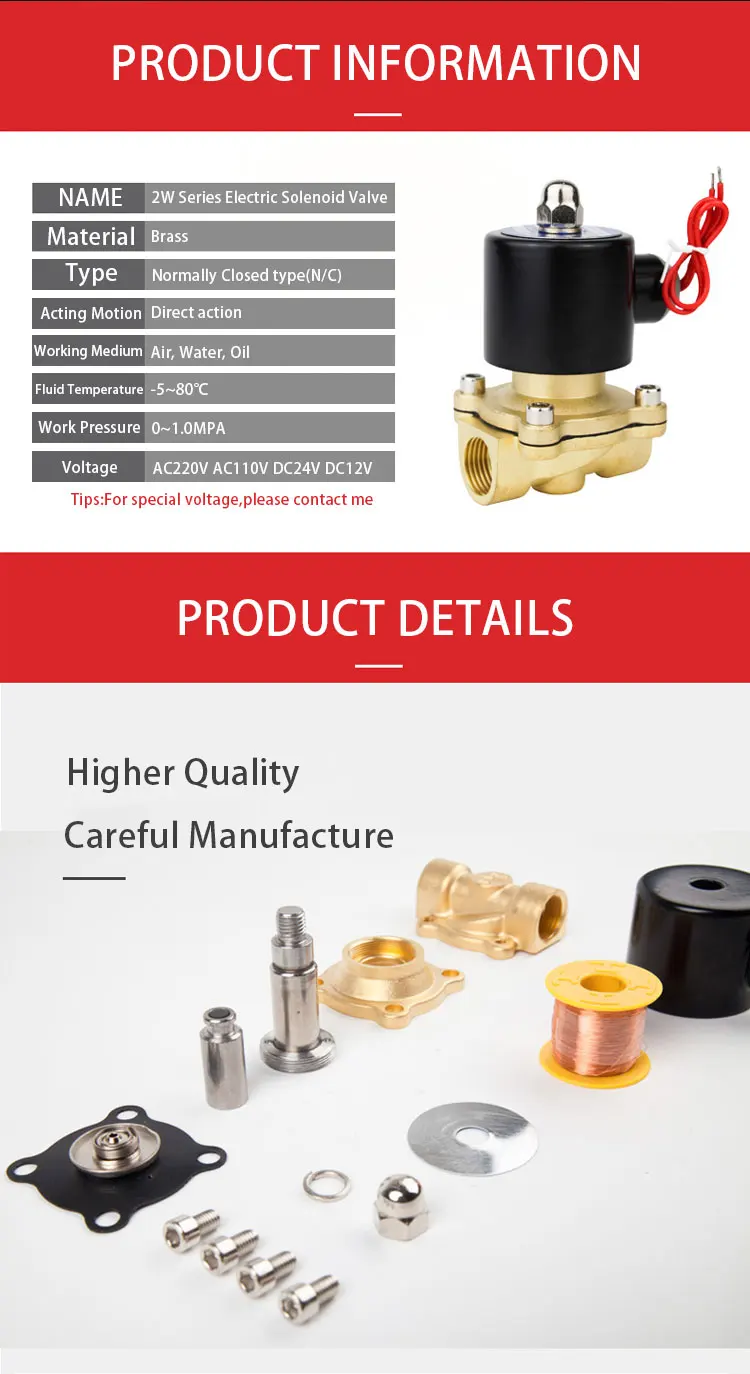

Structure |
Diaphragm Solenoid Valve |
|
Voltage |
DC12V, DC24V,AC 220V, |
|
Coils |
Y32B, 40VA(AC), 18W(DC), IP65, 100%ED |
|

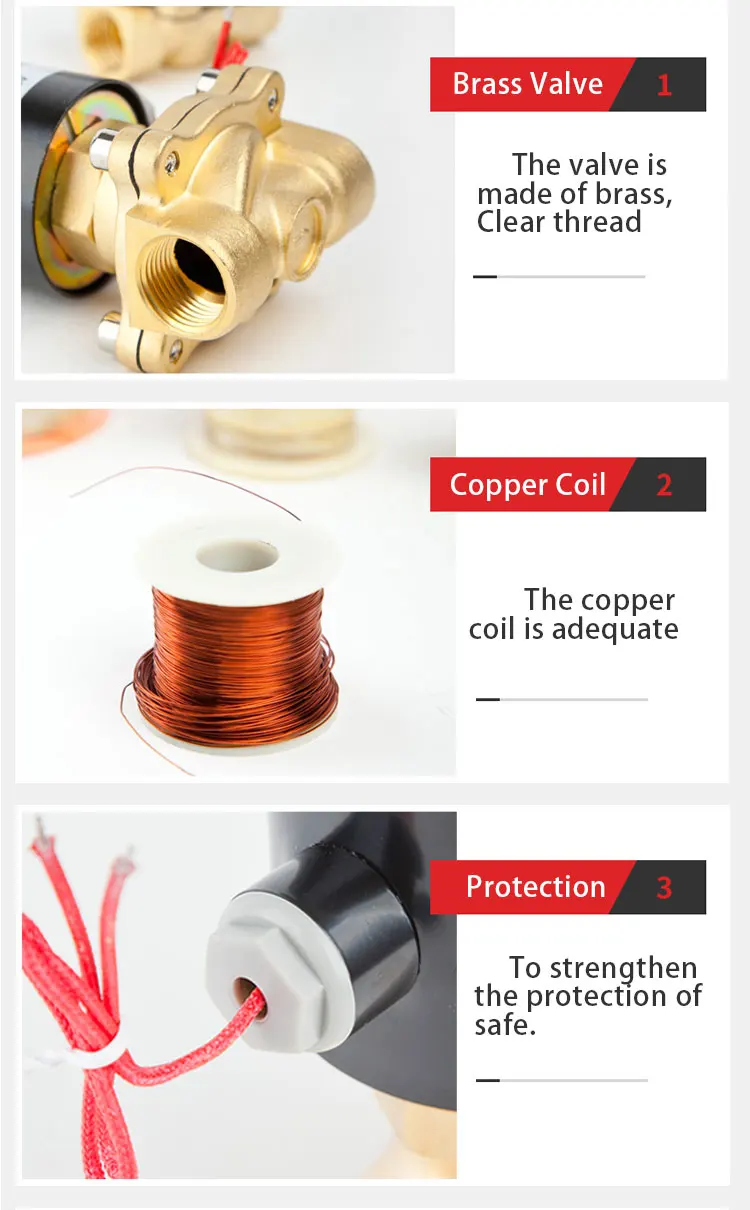

Material |
Body Material: Brass |
|
Application |
Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries |
