Description

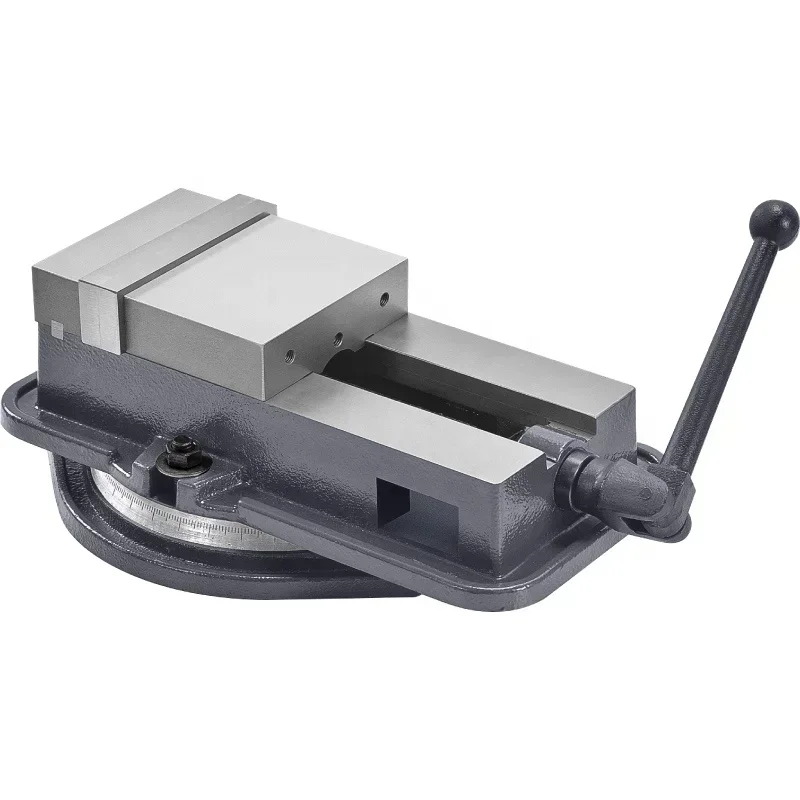

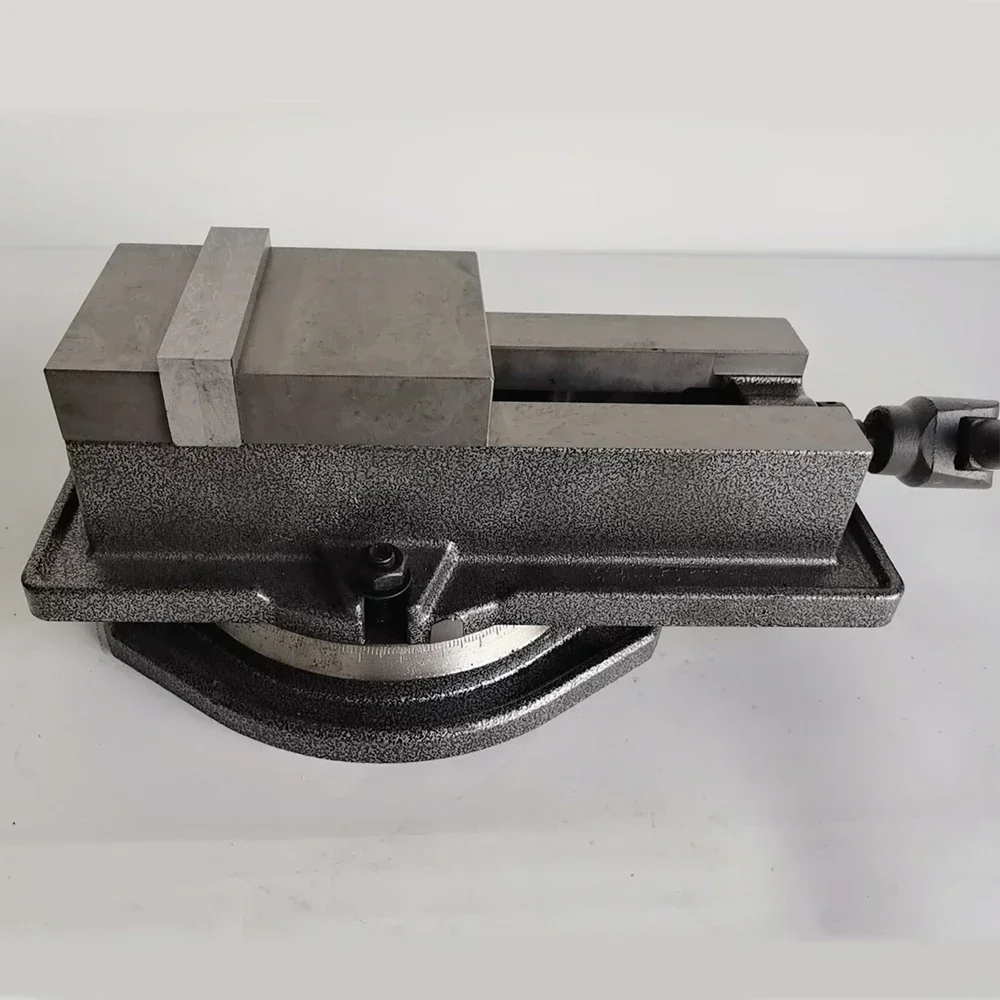

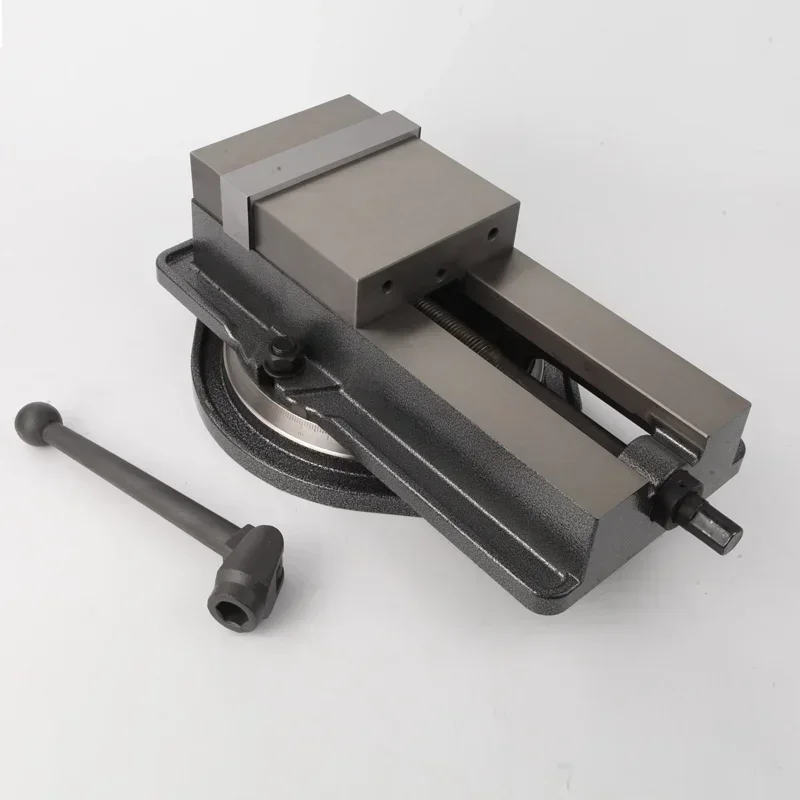

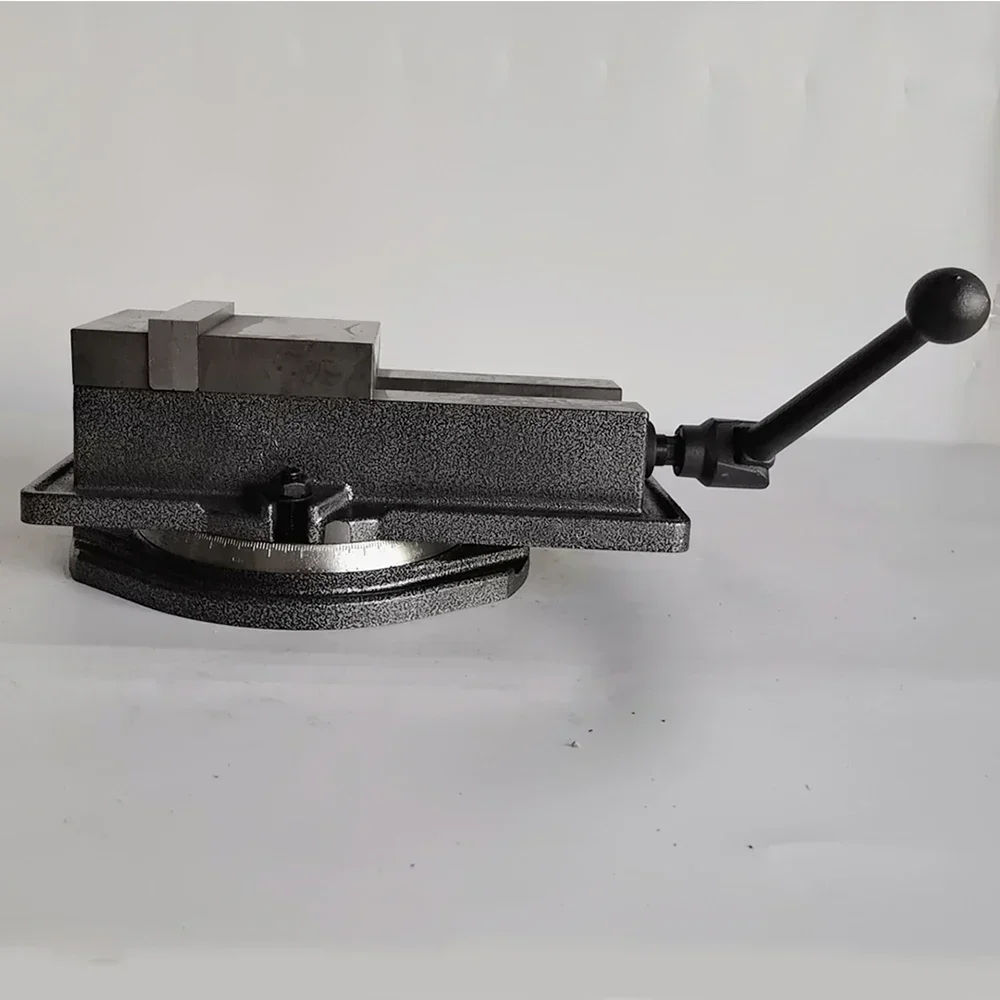

Accurate lock bench mahcine vice QM16160
It is one of main attachments for milling, drilling machine, it is particularly suitable for the finishing of precision parts.
The accuracy of vice (parallelism and squareness) is 0.025mm/mm.
The special segment in the movable jaw forces the vertical pressure downward when the horrizontal pressure works, so that this jaw does not lift the workpiece.
Four positions allow extra capacity to change open of jaw .
|
MODEL |
WIDTH OF JAW |
HEIGHT OF JAW |
TOTAL HEIGHT |
MAX. OPENING |
G./N.WEIGHT |
Q'TY |
PACKING SIZE |
|
QM16100 |
100 |
32 |
125 |
100 |
17/16 |
1 |
360*250*150 |
|
QM16125 |
125 |
40 |
140 |
125 |
22/21 |
1 |
410*270*170 |
|
QM16160 |
160 |
45 |
165 |
160 |
35/34 |
1 |
450*320*180 |
|
QM16160L |
160 |
45 |
160 |
200 |
37/36 |
1 |
480*320*180 |
|
QM16200 |
200 |
50 |
185 |
220 |
51/50 |
1 |
560*360*200 |
