Description
Note:
A. B. P Port : 1/4" BSP Female (ID≈12mm)
R, S Port : 1/8" BSP Female (ID≈9mm)
P Port: Input Port,
A. B Port: Output Port
R. S Port: Exhaust Port
Status ① : P Port →A Port, B Port → S Port
Status ②: P Port →B Port, A Port → R Port
Power on the valve or Power off the valve,
to control the valve status: ① <===> ②
NC:Normally Closed
NO:Normally Open

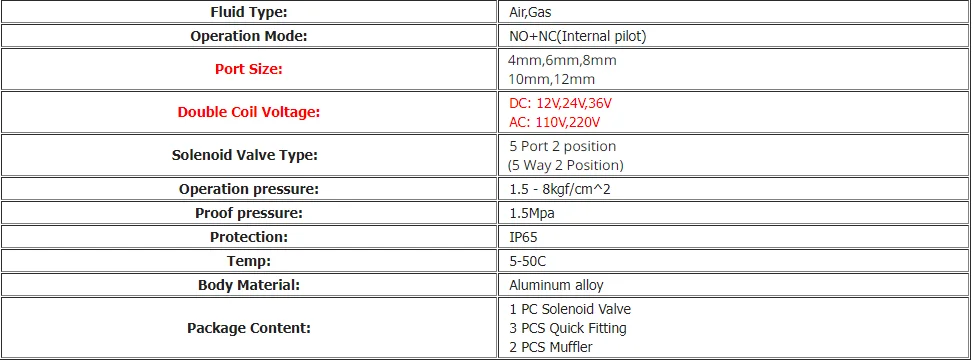

Operation pressure: about 1.47~7.84 bar
Can not work without air pressure
