Din Rail Terminal Block PTTB 2.5 Push-in Double Level Electrical Connector 2 Layer 2.5mm² Connection Plug Wire PTTB2.5 – toolsindo.id

Detail Produk

Rp385.650

Din Rail Terminal Block PTTB 2.5 Push-in Double Level Electrical Connector 2 Layer 2.5mm² Connection Plug Wire PTTB2.5

Name: Din Rail Terminal Block PTTB 2.5 Push-in Double Level Electrical Connector 2 Layer 2.5mm² Connection Plug Wire PTTB2.5
Brand: Toolsindo.id
SKU: 1005001767742940
Price: 385650 IDR
Availability: InStock

26 terjual

SKU: 1005001767742940 Categories: Electrical Equipment & Supplies, Home Improvement

Terjual: 26+ | Toko: WONKEDQ Official Store

🕐 Pre-Order · Estimasi 30 Hari

Color

Pins

Pilihan varian akan disertakan dalam pesan WhatsApp Anda.

🚚

Pengiriman ke seluruh Indonesia Estimasi 2–7 hari kerja via ekspedisi terpercaya

💬

Konsultasi gratis via WhatsApp Tim kami siap membantu Anda memilih produk

🏷️

Harga terbaik & transparan Harga sudah termasuk pajak, tanpa biaya tersembunyi

Description

DESCRIPTION

ACCESSORIES ( Click the pictures to the links)


END COVER D-PTTB 2.5	JUMPERS BRIDGE FBS 2/3/4/5/10-5	MARKER STRIPS ZBFM-5	END STOP E-UK

MARKER CARRIER B1	MARKER CLIPS KLM-A	DIN RAIL NS35-S	GROUND TERMINAL BLOCK PTTB 2.5-PE

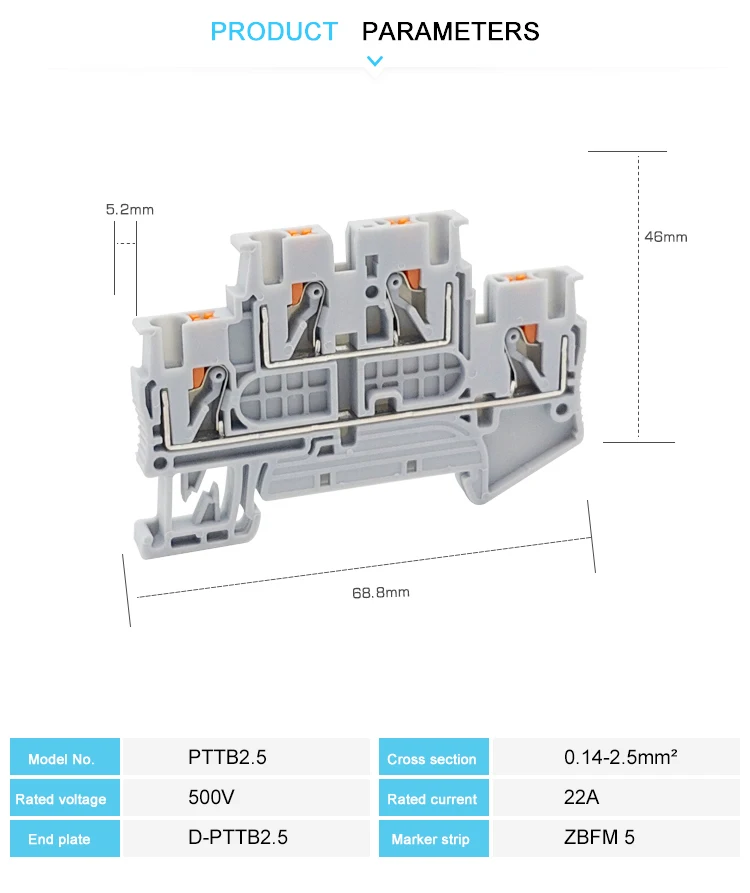

TECHNICAL PARAMETERS

Type No.	Details	Accessories
PTTB 2.5	500V/22A 0.14-4mm2/0.14-2.5mm2 L68/H47.5/W5.2 mm	End cover: D-PTTB 2.5
		Plug-in bridge: FBS 2-5,3-5,4-5,5-5,10-5
		Marker strip: ZBFM 5

Model Number	PTTB 2.5
Color	Grey, Blue, other color can be customized
Length/Wide/Height (mm)	68/47.5/5.2
Connection method	Spring-cage connection
Material	Nylon PA66
Rated Voltage/Current	500V/22A
Cross section, solid/soft Cable	0.14-4mm2/ 0.14-2.5 mm2
Conductor Size	26-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	10.23g/pc, 50PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001
