Description

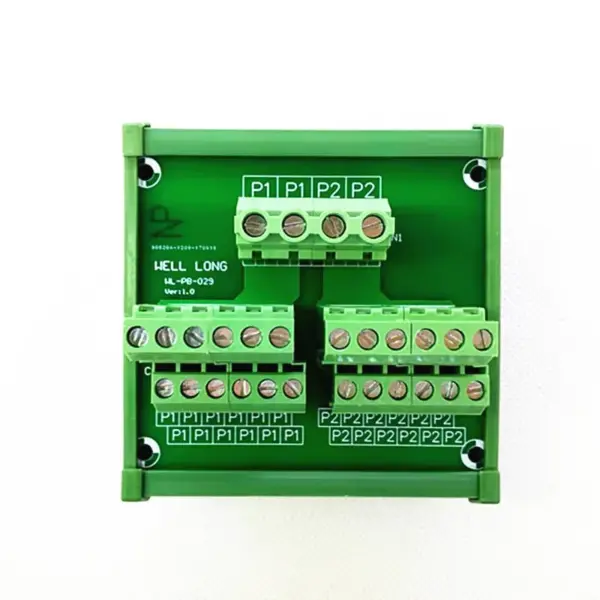

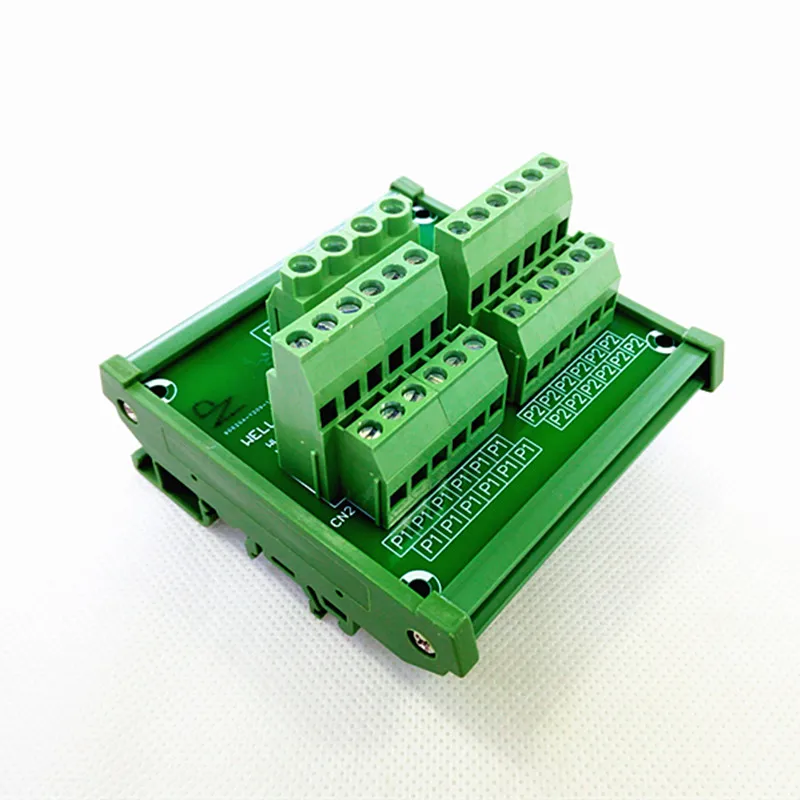

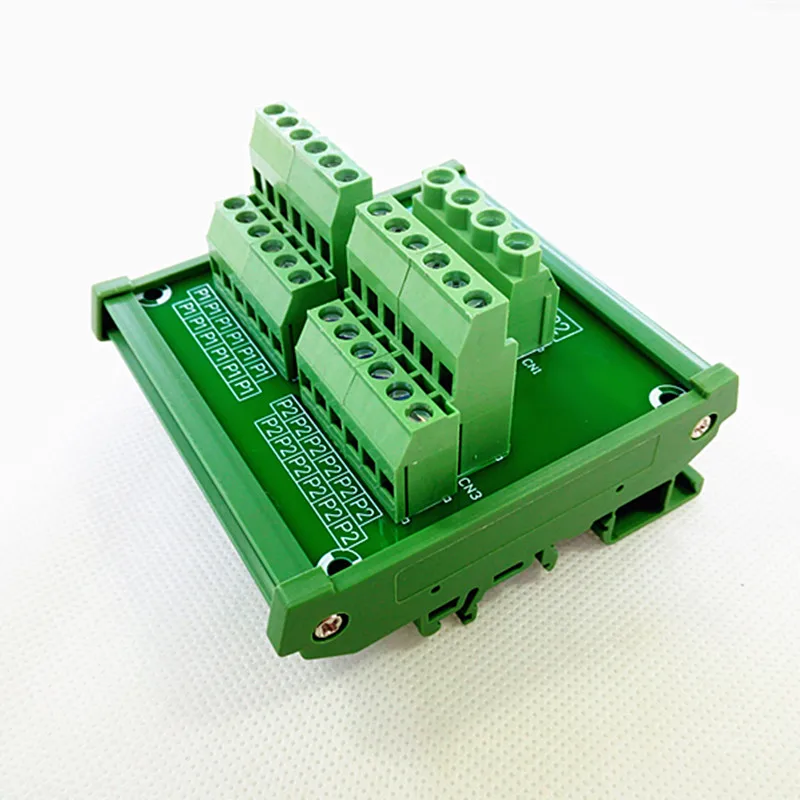

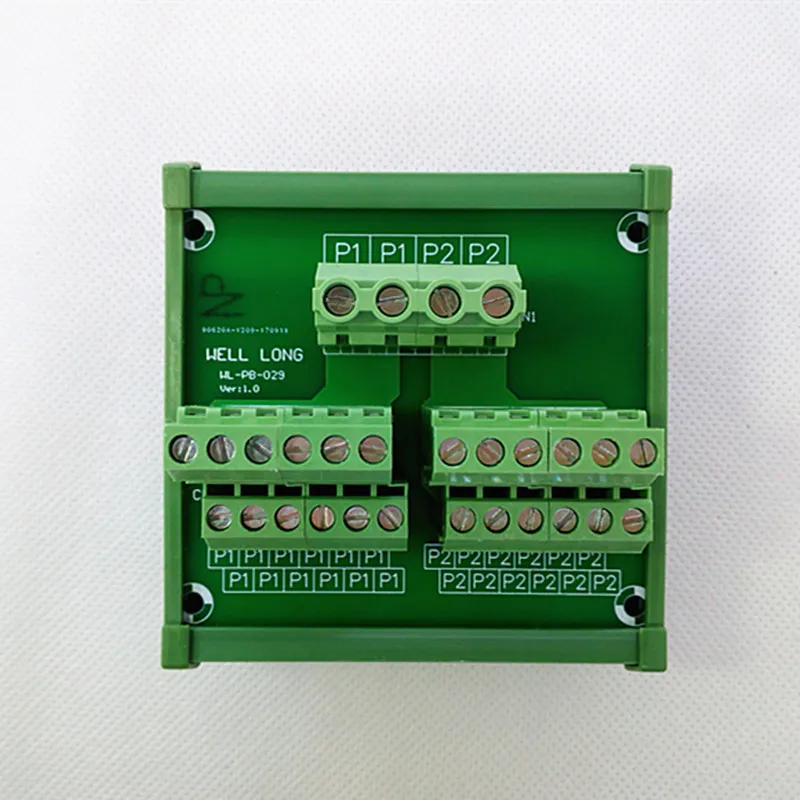

DIN Rail Mount 12 Position Power Distribution Module Board.
Specification:
FR-4 fiber glass PCB, dual copper layers.
Voltage:250Vac/dc.
Current Rating :30A

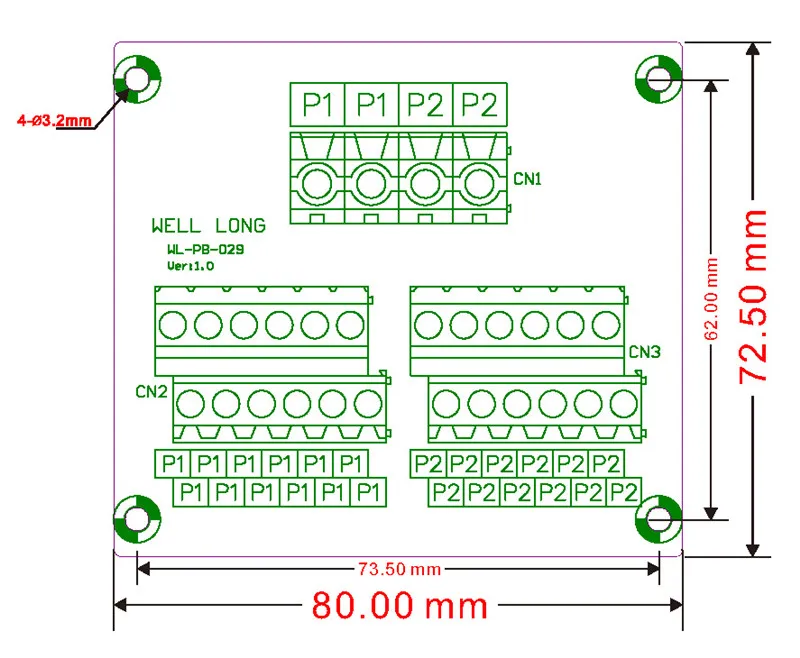

Dimensions:80x 72.5x 58mm(W x L x H).
Input terminals: pitch – 7.62mm/0.3", current 30A for per position, wire size 26~12 AWG, stripping length 8mm, Metric M3 slotted screw.
Output terminals: pitch – 5.08mm/0.2", current 28A for per position, wire size 26~12 AWG, stripping length 8mm, Metric M2.5 slotted screw.
Shipping:
1. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility.
2. Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying.
Return Policy:
If the item is defective, please contact us within 30 days, you can choice money back or item exchange.
Contact us:
Any questions, please feel free to contact us. due to time zone differences, we may not immediately answer you, but we promise to answer you within 24 hours.
