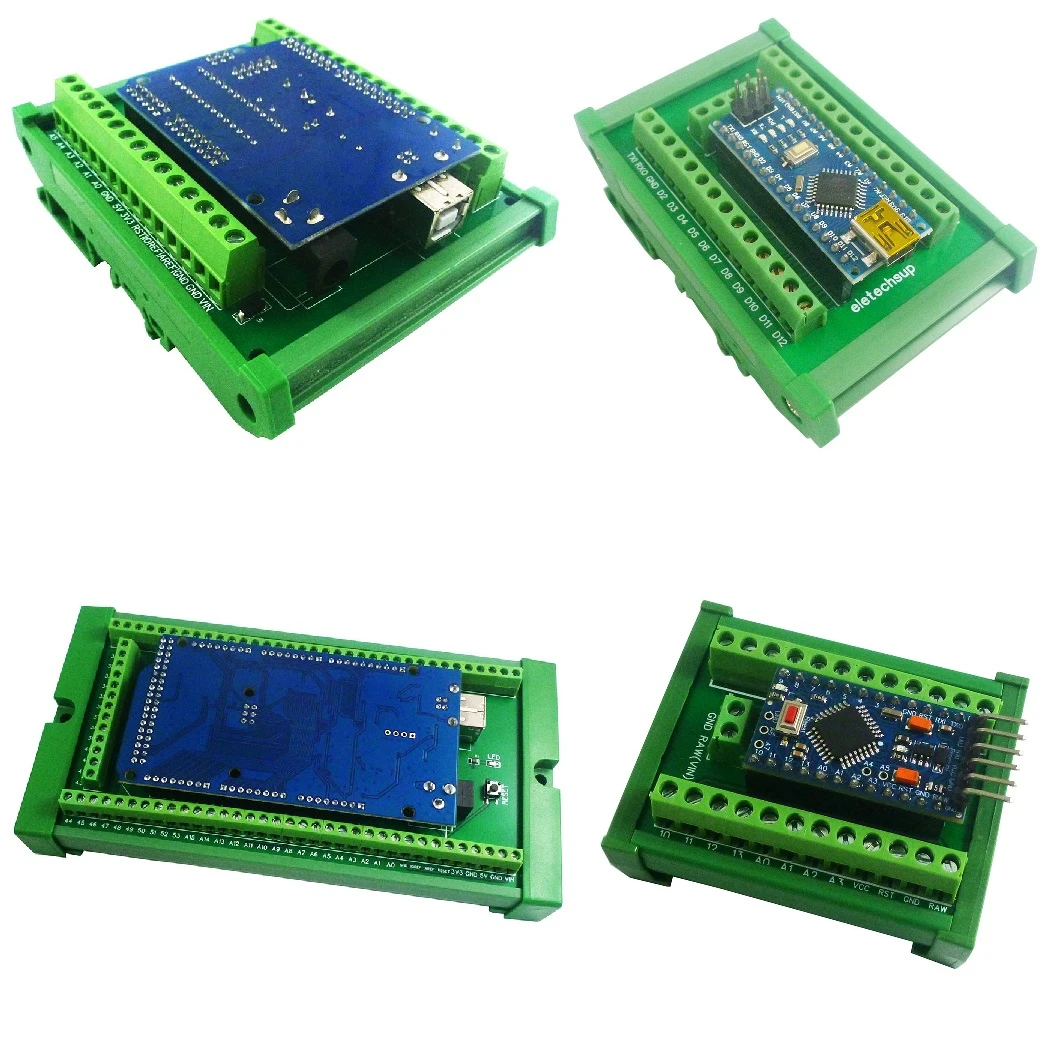

DIN Rail Mount Screw Terminal Block Adapter Module For Arduino UNO/MEGA2560/NANO/Pro mini Board

1 Pcs DIN PinBoard for Arduino
UNO /MEGA2560/NANO/
Pro mini ( with shell)

(does not include the UN0/MEGA2560/NANO/
Pro mini
Module)

Illustrate:

Terminal spacing: 3.96mm.

Terminal Blocks: Wire Range 26-16AWG, Strip Length 3.96mm, Metric M2/M2.5 Slotted Screws.

For Arduino UNO :

Size:110*85 *41mm(with Rail Box)

Weight:145g(with Rail Box)

For Arduino MEGA2560:

Size:
165*85 *25mm
(with Rail Box)

Weight:
192g
(with Rail Box)

For Arduino NANO:

Size:
85*54 *25mm
(with Rail Box)

Weight:
77g
(with Rail Box)

For Arduino Pro Mini:

Size: 68*48 *28mm(with Rail Box)

Weight: 44g(with Rail Box)

Use:

DIN Rail Mount Screw Terminal Adapter Module for Arduino
UNO /MEGA2560/NANO/
Pro mini Development Board.

With this adapter modules, you can easily extend your
UN0/MEGA2560/NANO/
Pro mini projects to industrial control applications.

Notice:

This product does not include the UN0
/MEGA2560/NANO/Pro mini
Board

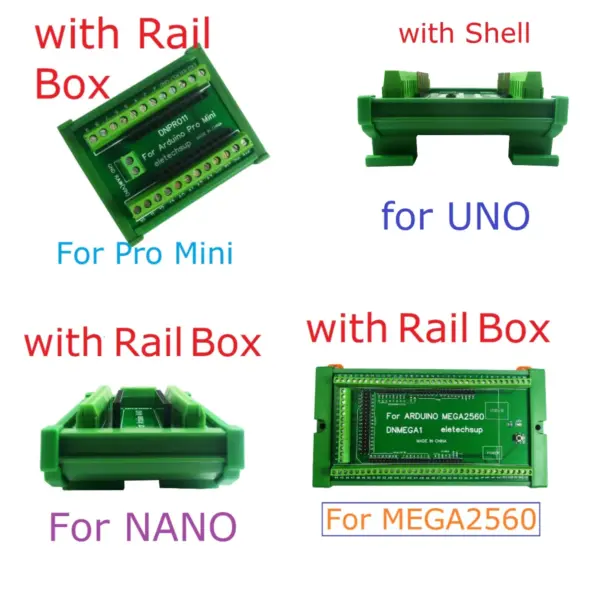

DIN rail Box parameters:

Product model: UM72

Color:
Green

Width: suitable for PCB board width UM72(42mm)

Insulation grade: flame-retardant VO grade

Backplane length: suitable for 54 mm PCB boards

Net weight: 21g

Installation: DIN35 and C45 rail
