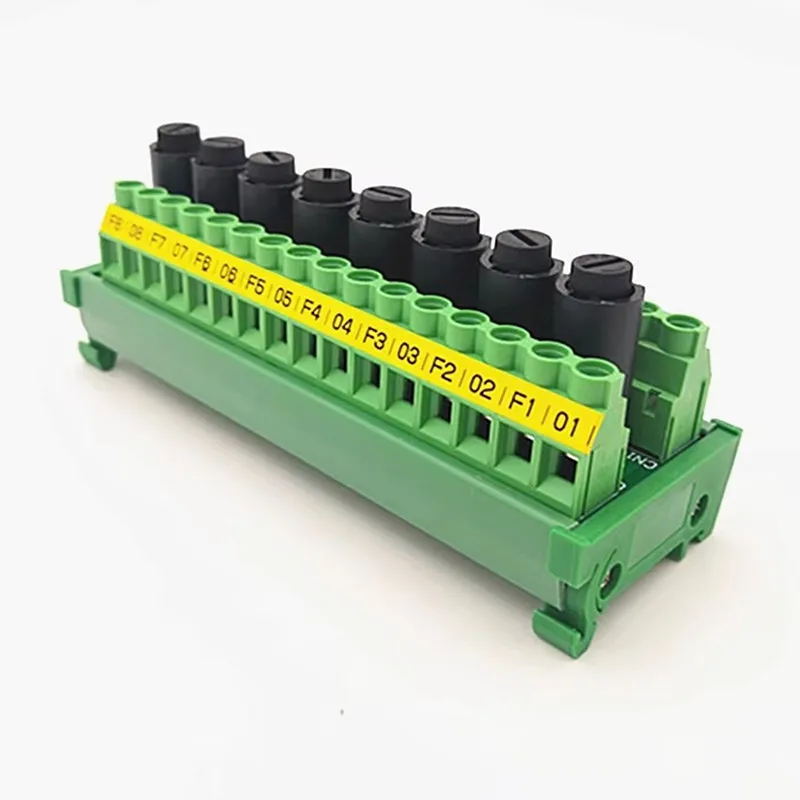

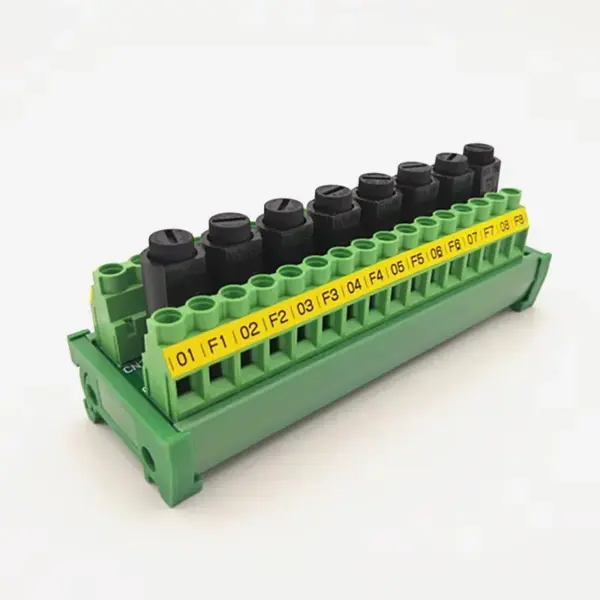

DIN Rail Mount 8 Channel Fuses 16 Position Screw Terminal Block Distribution Module 10A 5x20mm Black fuse holder.

DIN Rail Mount 16 Position Screw Terminal Block Distribution Module with 8 Channel Fuses.

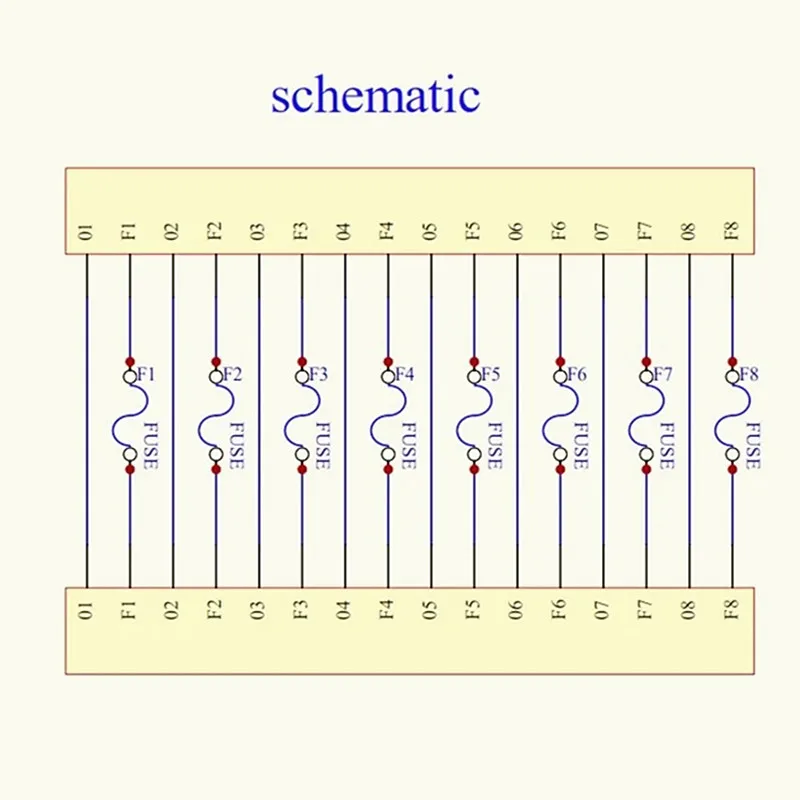

Screw Terminal 01~ 01, 02~-02……,08~08 direct connected, rated current 30Amp for per channel.

Screw Terminal F1 ~ F1, F2 ~ F2 ……, F8~F8 connect via fuses, rated current 10Amp for per channel.

Upright fuse holder for easy fuse replacement, Apply to D5mm x L20mm fuse, Factory installed 10Amp slow blow fuse.

Terminal Block: Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4.0mm square. Rated voltage 300V. Strip length 8mm. Screws – M3, steel, Cr3+ Zn plated. Pin header and Cage – Brass.

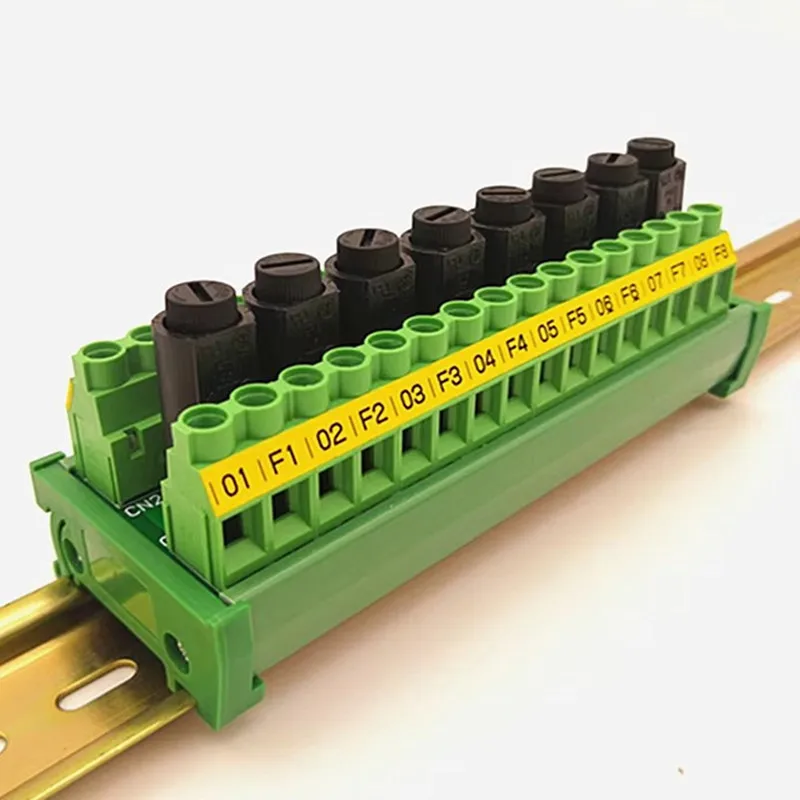

High quality fireproof nylon material DIN rail mount carrier ,can support width 35mm rail.
