DIKD 1.5 Triple Level Screw Terminal Block Din Rail Electrical Connectors Sensor Actuator 6-Conductors 3 Three Level DIKD1.5 – toolsindo.id

Detail Produk

Rp700.650

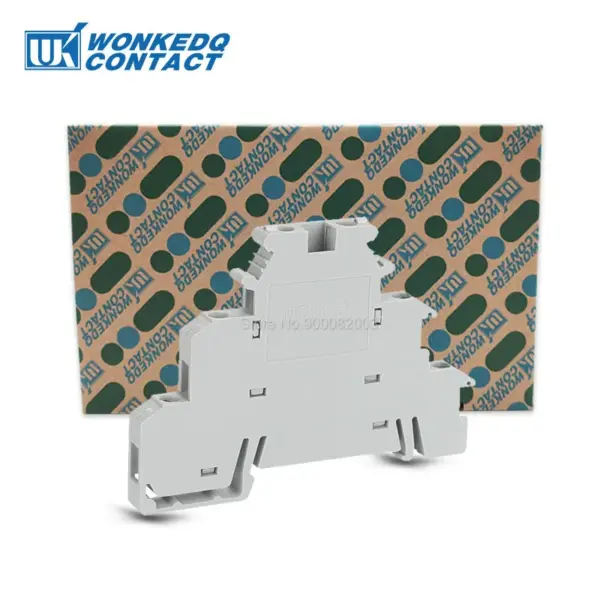

DIKD 1.5 Triple Level Screw Terminal Block Din Rail Electrical Connectors Sensor Actuator 6-Conductors 3 Three Level DIKD1.5

Name: DIKD 1.5 Triple Level Screw Terminal Block Din Rail Electrical Connectors Sensor Actuator 6-Conductors 3 Three Level DIKD1.5
Brand: Toolsindo.id
SKU: 1005003181280663
Price: 700650 IDR
Availability: InStock

13 terjual

SKU: 1005003181280663 Categories: Electrical Equipment & Supplies, Home Improvement

Terjual: 13+ | Toko: WONKEDQ Official Store

🕐 Pre-Order · Estimasi 30 Hari

Color

Pins

Pilihan varian akan disertakan dalam pesan WhatsApp Anda.

🚚

Pengiriman ke seluruh Indonesia Estimasi 2–7 hari kerja via ekspedisi terpercaya

💬

Konsultasi gratis via WhatsApp Tim kami siap membantu Anda memilih produk

🏷️

Harga terbaik & transparan Harga sudah termasuk pajak, tanpa biaya tersembunyi

Description

DESCRIPTION

ACCESSORIES ( Click the pictures to the links)


INSERTION BRIDGE EB 10-6	MARKER STRIP ZB 6	END STOP E-UK	MARKER CARRIER B1

MARKER CLIPS KLM-A	DIN RAIL NS35-S	FIXED BRIDGE FBI 10-6	80 SEATS BRIDGE EB 80-DIK

TECHNICAL PARAMETERS

Type No.	Details	Accessories
DIKD1.5	250V/30A 0.2-4mm2/0.2-2.5mm2 L73/H54.5/W6.2 mm	End cover: NONE
		Fixed bridge: FBI 10-6
		Insertion bridge: EB 10-6
		Marker strip: ZB6

Model No.	DIKD 1.5, Sensor/actuator terminal block
Color	Grey, Blue,Orange
Length/Height/Wide (mm)	73/54.5/6.2
Connection method	Screw connection
Material	Nylon PA66
Rated Voltage/Current	250V/30A
Cross section, solid/soft Cable	0.2-4 mm² / 0.2-2.5 mm²
Conductor Size	24-12 AWG
Mounting Type	NS 35mm
International Standard	IEC 60947-7-1
LOGO	Customized logo are available
Packing Detail	20.96g/pc, 50PCS/BOX, 1000PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
