Description
Features:

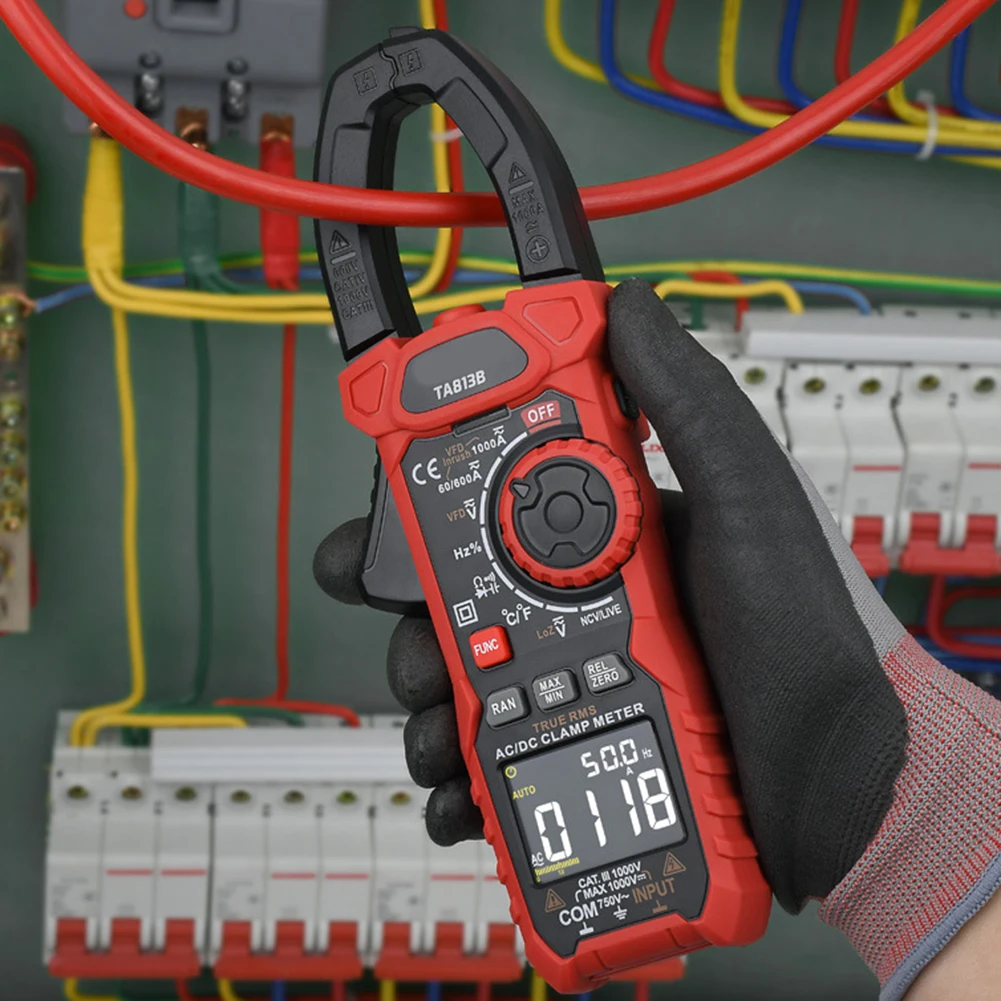

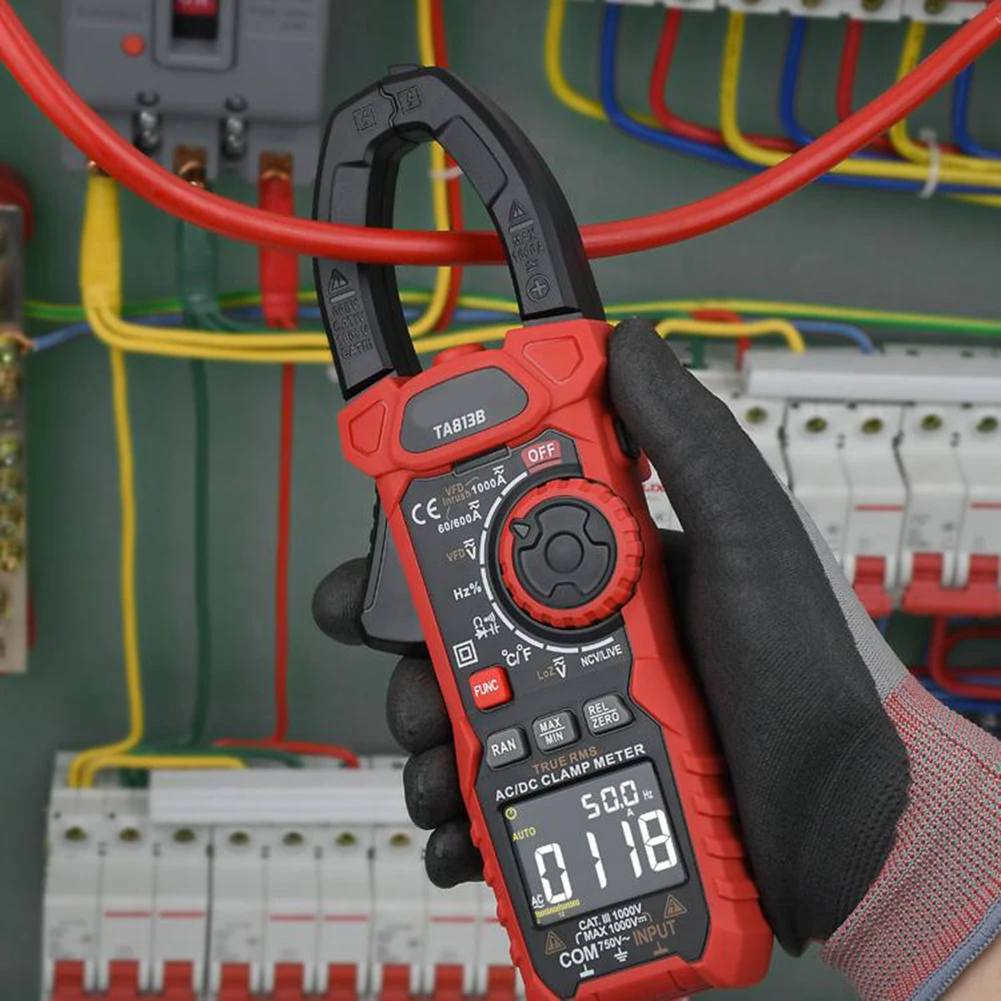

1. High: Accurately measures AC current up to 1000A, enabling reliable electrical diagnostics.

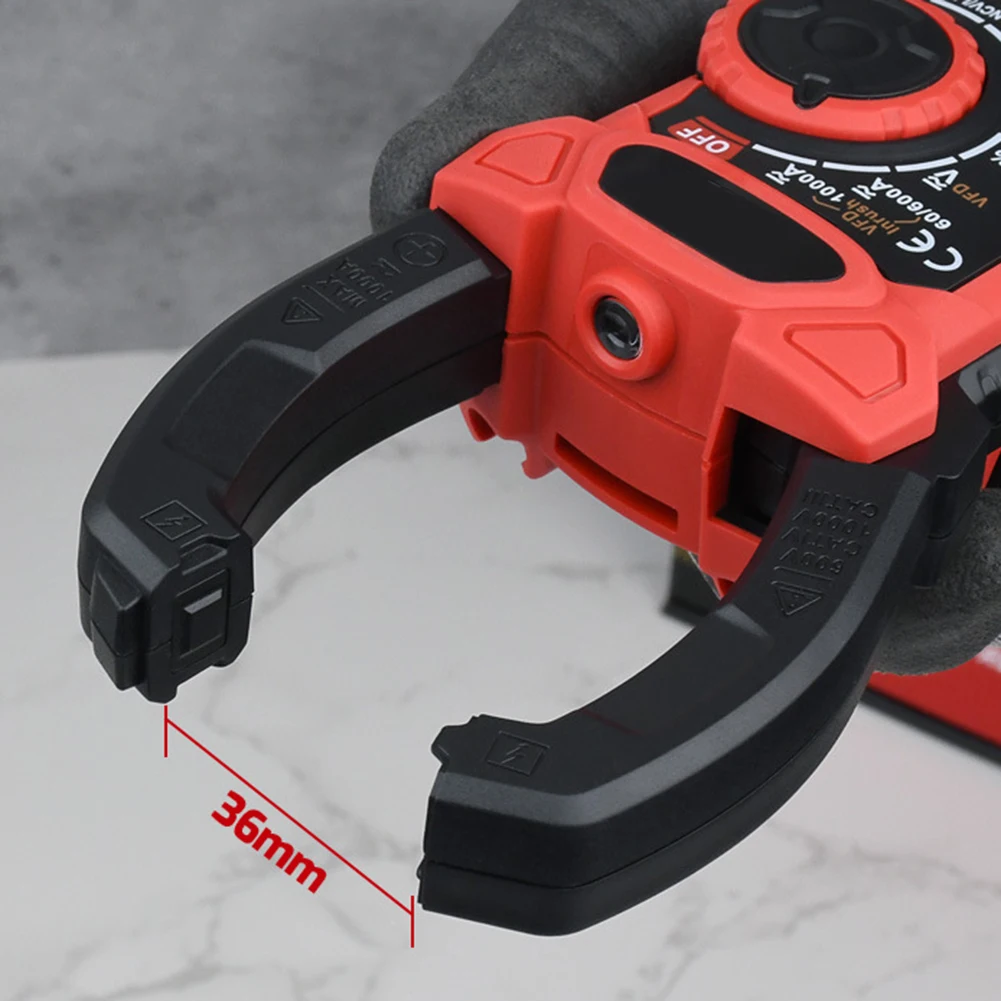

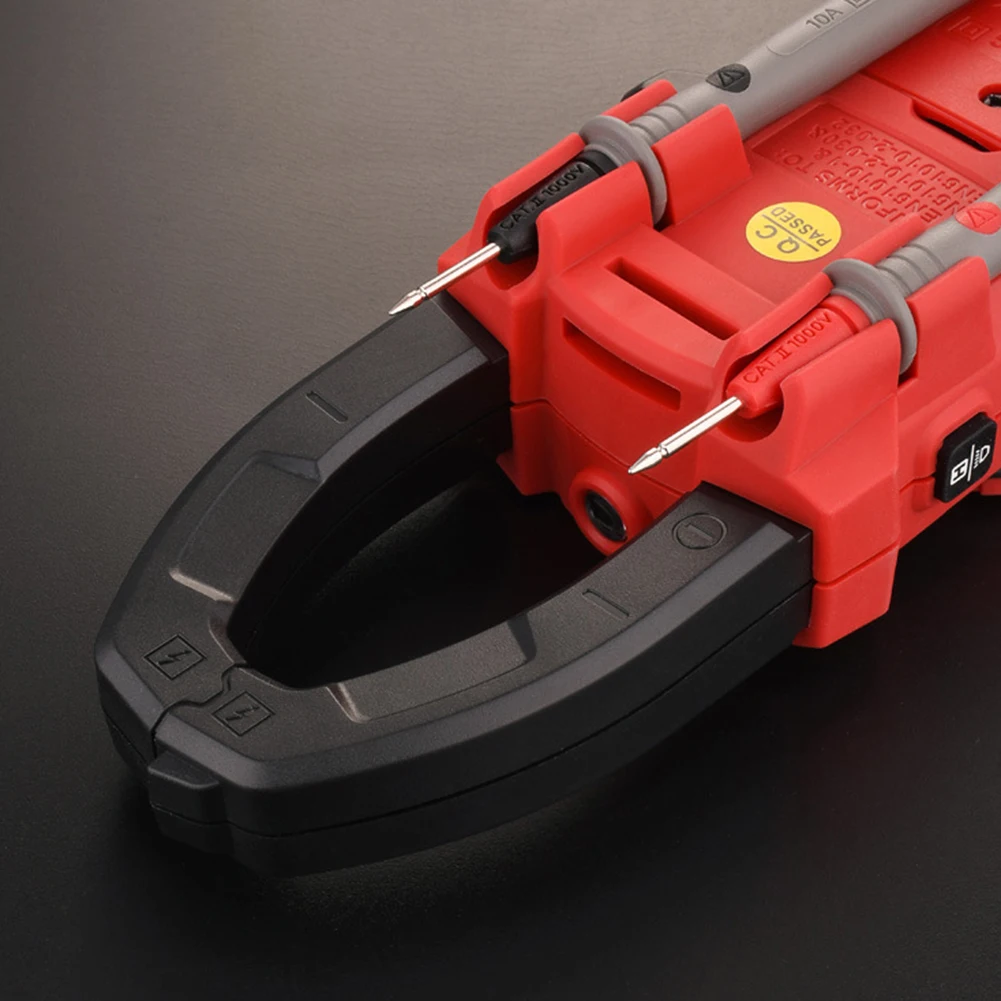

2. Large Jaw Design: 36mm jaw opening easily grips thick cables and conductors.

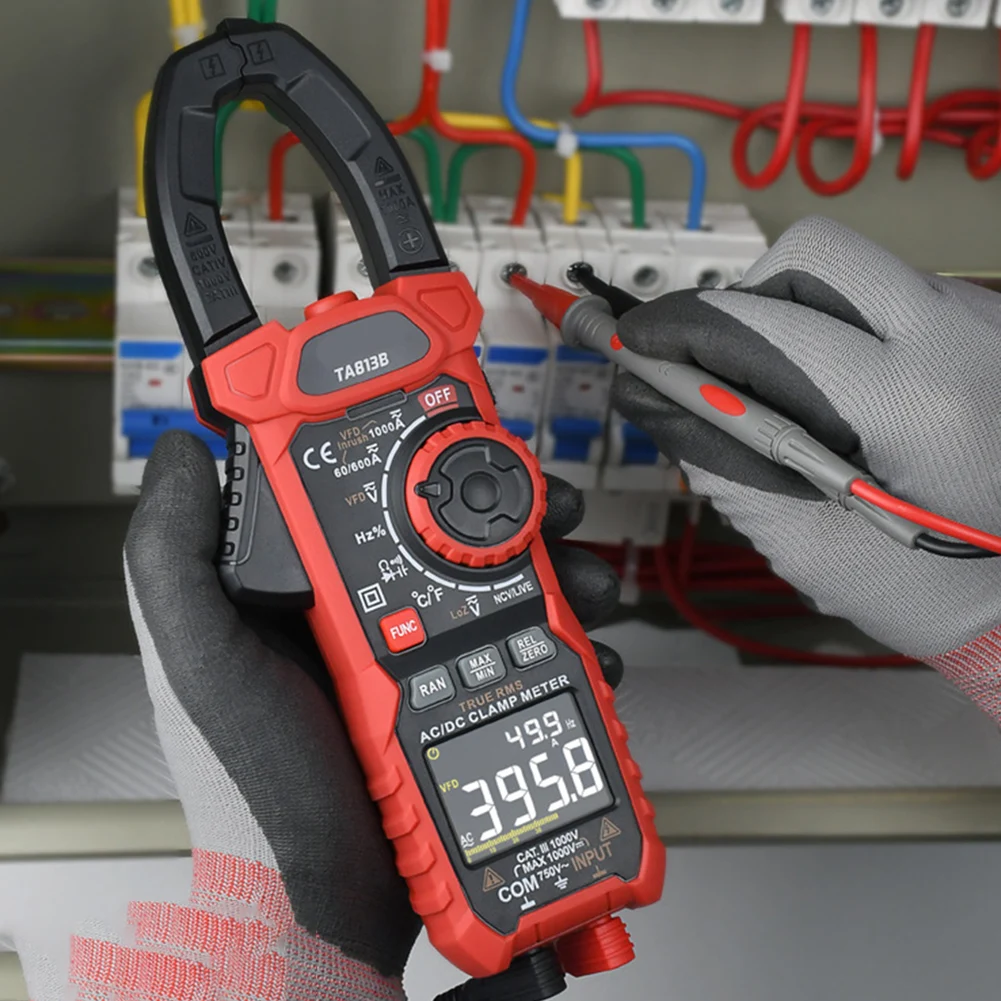

3. Multifunctional: Tests voltage, resistance, capacitance, frequency, and temperature for comprehensive electrical analysis.

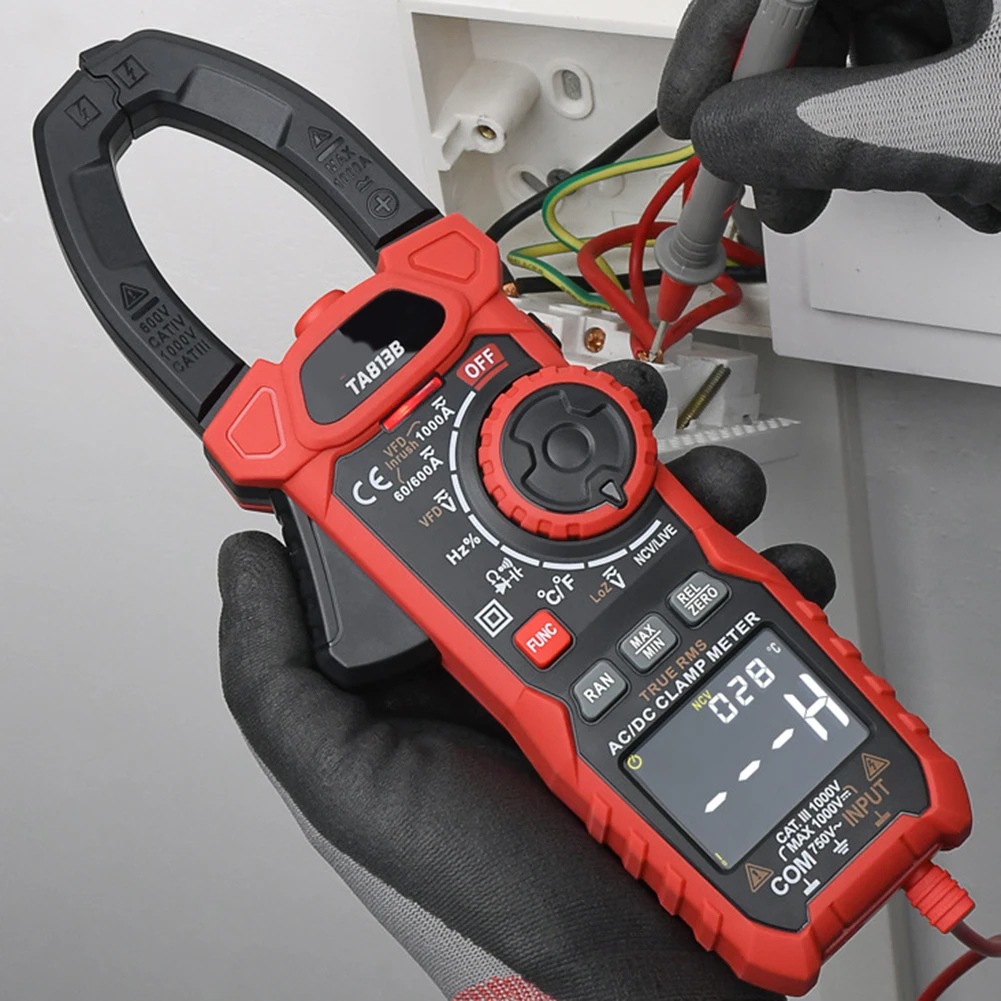

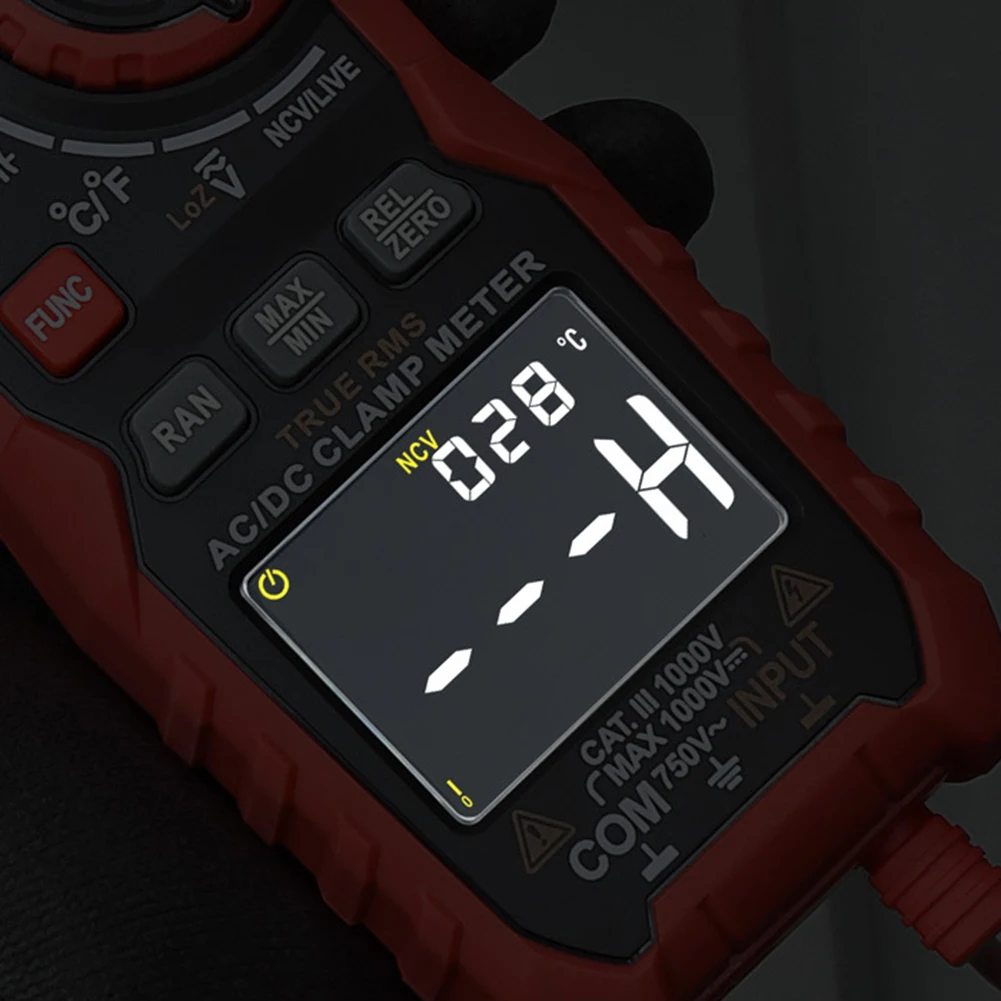

4. Non-Contact Voltage Detection: Non-contact voltage detection with audible and visual alarms, enhancing safety during testing.
5. Backlit Display: Equipped with a VA color screen for clear display under various lighting conditions.
Specifications:
Part Name: Clamp Meter
Material: ABS
Color: Red and Black
Size: 24*8.5*4.8cm
DC Voltage: 0.1mV~1000V ±(0.5%+3)
AC Voltage: 0.1mV~1000V ±(0.8%+3)
DC Current: 0.1A~1000A ±(2.5%+5)
AC Current: 0.1A~1000A ±(2.5%+5)
Resistance: 0.1Ω~60MΩ ±(0.8%+3)
Capacitance: 1nF~100000μF ±(3.0%+3)
Frequency: 10Hz~10MHz ±(0.5%+5)
Duty Cycle: 1%~99% ±(1.0%+2)

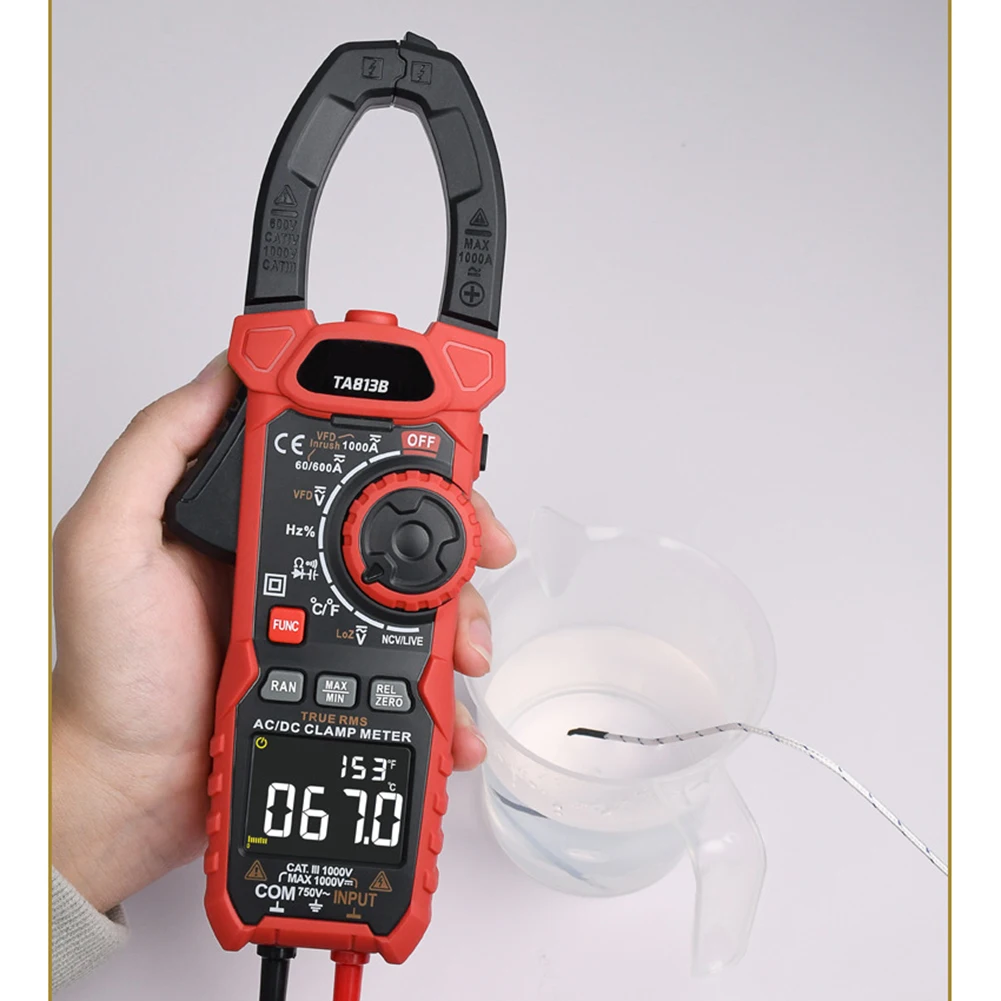

Temperature: -40°C~1000°C (-40F~1832°F) ±(1.0%+2)
Maximum Count: 6000 Counts Auto/Manual Range Continuity Test: √ Diode Test: √
Data Hold: √

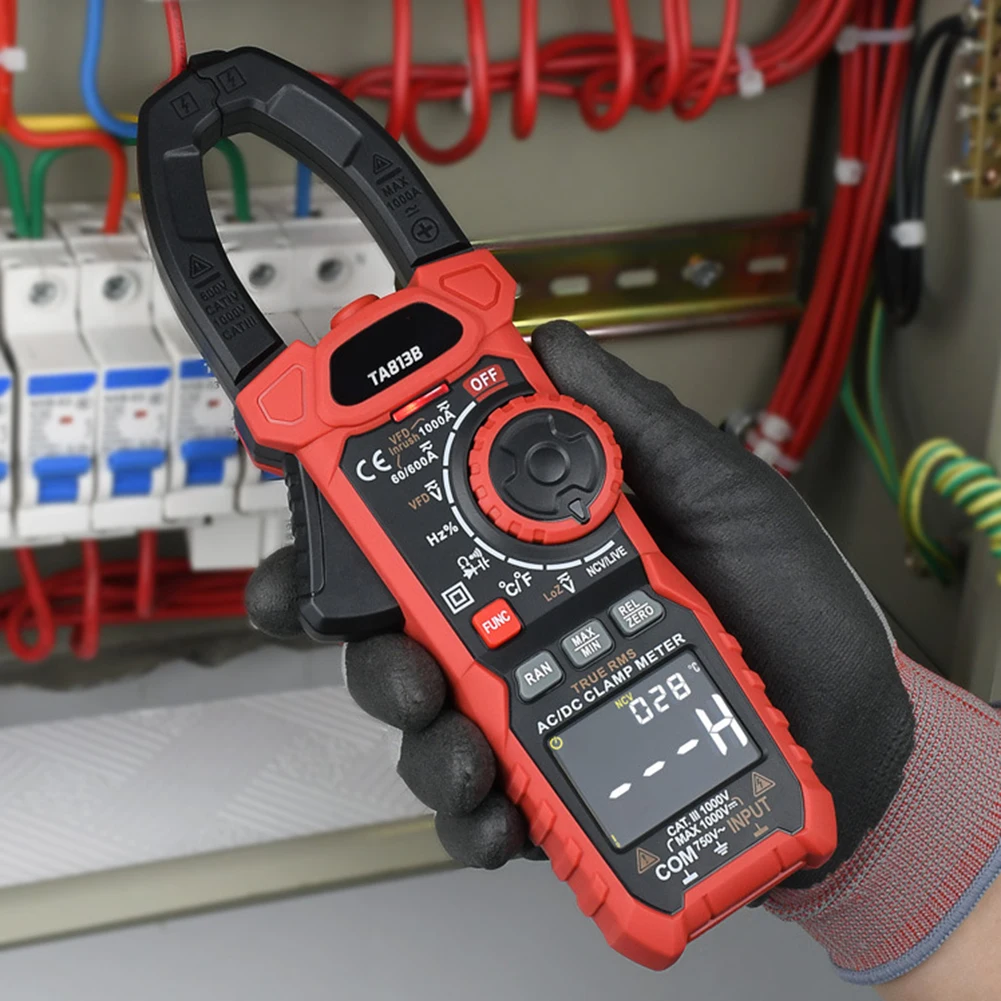

NCV Non-Contact Induction: √
Screen Display: √

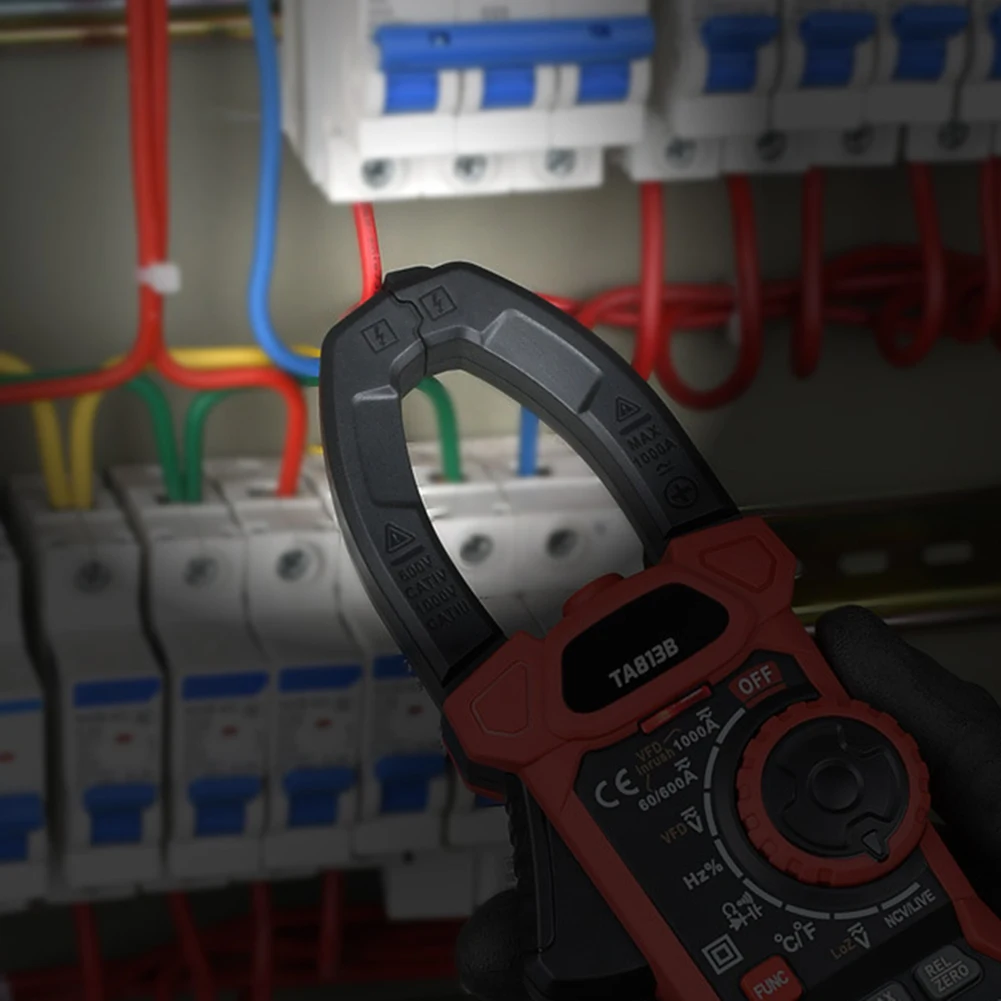

Flashlight: √
DCAZERO Function: √

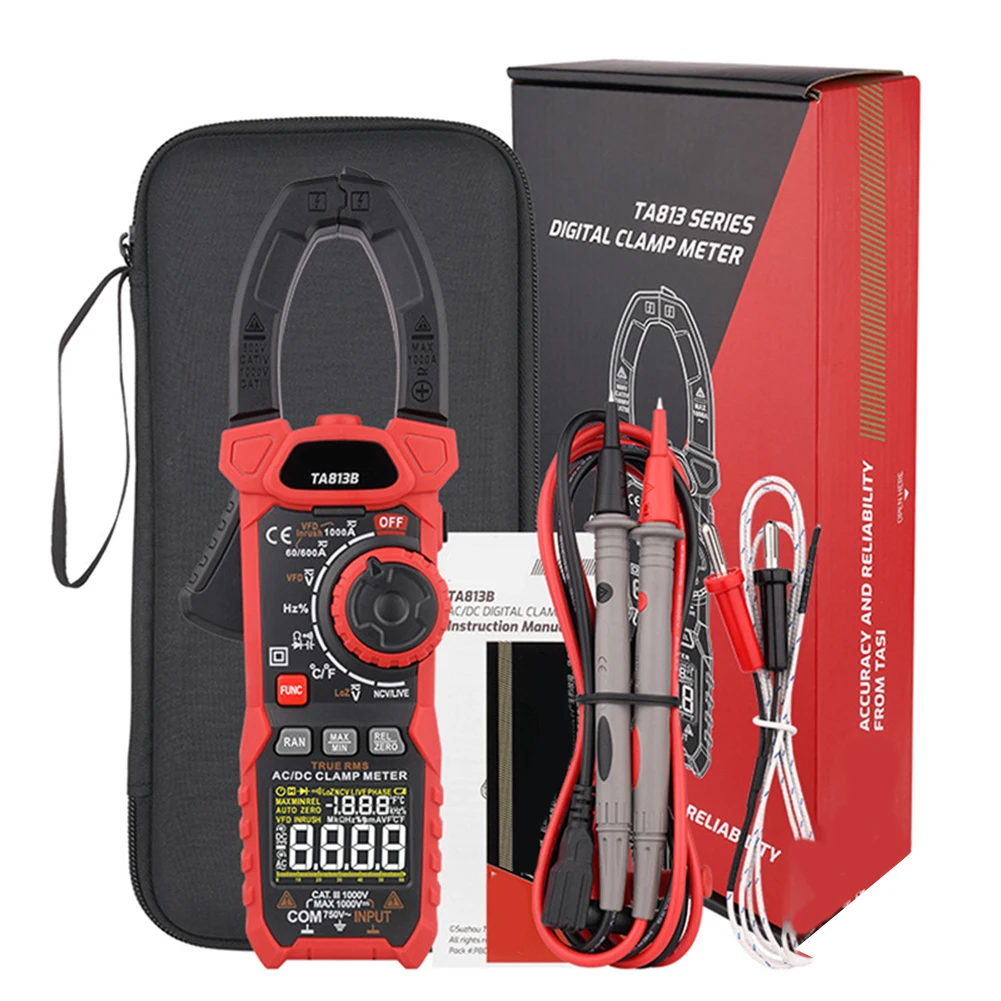

Package Contents:
1* Clamp Meter
2* Test Pen
1* Connecting Cable
1* Carrying Bag
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
