Description
All FRL units will send by randomly the color and filter,Normally color is black ,orange ,blue botton .Normally filter is white (plastic) or Brass.

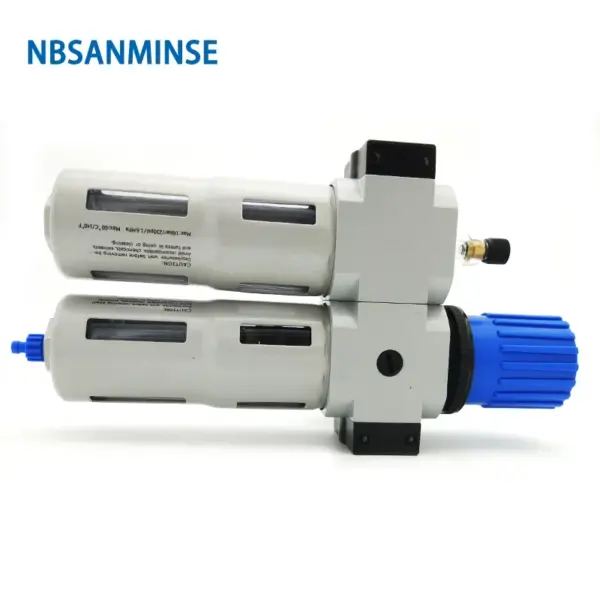

NBSANMINSE DC201 M5 1/8 1/4 3/8 1/2 3/4 1 Air Compressor Oil Lubricator Water Separator Air Filter Regulator Valve
The images shown are not all the actual item and are for your reference only
Specification
|
Type
|
DC101-M5,01
|
DC201-01,02,03
|
DC401-03,04,06
|
DC601-06,08
|
|
Port Size G
|
M5 , 1/8”
|
1/8” , 1/4” , 3/8”
|
3/8” , 1/2” , 3/4”
|
3/4” , 1”
|
|
Gauge Thread G
|
M5
|
1/8”
|
1/4”
|
|
|
Fluid
|
Compressed Air
|
|||
|
Operating Pressure range MPa
|
0.15 ~ 0.85
|
0.15 ~ 1.2
|
||
|
Max . Flow rate L/min
|
500
|
1700
|
3500
|
11500
|
|
Ambient Temperature
|
-10 ~ 60
|
|||
|
Filter Precision
|
5 um or 40 um
|
|||
|
Structure
|
Overflow type
|
|||
|
Differential Pressure Type
|
Manual drain standard
|
Automatic drain option
|
|
Adopting Pressure Differential for automatic drain , drain automatically when the air depletion and make up produce differential
|
Also placed the left to be differential pressure type
|
Use float switch valve , drain automatically when water level over the float , close automatically after completely drain
|
Warning:
Confirm the air line and power in turned off before serving , prevent injury and damage while disassembly for maintenance.
Danger :
Pay attention to the direction of the air source while installing, never used in reversed air direction .
