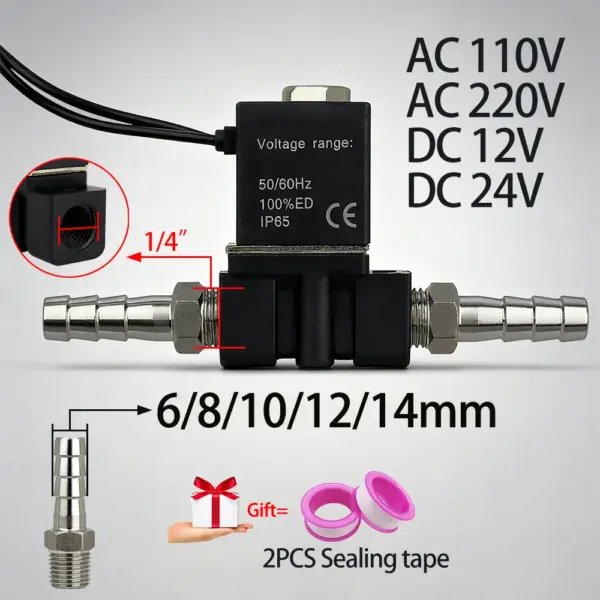

DC12/24V AC110/220V Normally Closed 1/4"Silent Oil Free Bidirectional NormallyClosed Pneumatic Solenoid Valve 304 Joint

Description

Specifications:

• Valve Type: 2 Way Normally Closed (Valve opens with energized)

• Port Size: 1/4" Female Port

• Diameter of the outlet of the brass joint: 4/6/8/10/12/14/16MM

• Coil Voltage: DC12V/DC24V/AC110V/AC220V

Material:

• Body Material: Engineering plastics

• Seal Material: NBR (Buna N)

• Armature Tube Material: Brass

• Plunger & Spring Material: Stainless Steel

• Working temperature: 0~60℃

• Applying pressure: 0.15~0.8Mpa

• Ensure pressure: 1.0Mpa

• Protection level: IP65

• Working method: Internal leading approach

• The selected material for the tower connector: 304 stainless steel
