DC Miniature Circuit Breaker 2 Pole 1000V 32 Amp Isolator DC Disnnect Switch For DC Power Supply Solar Photovoltaic System

Features:

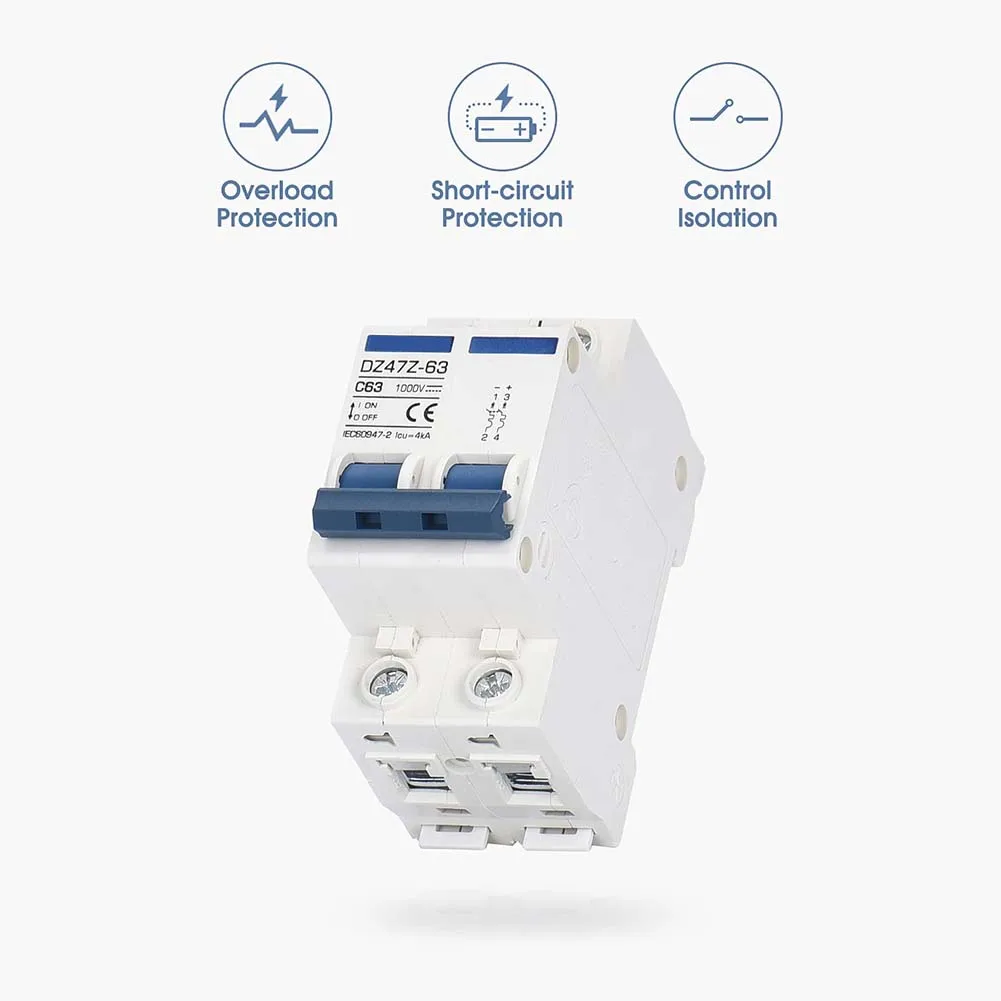

* Used to protect power distribution facilities from overload and short circuit damage, and can also be used for control and isolation.
* Quick tripping: The electromagnetic tripper can trip immediately when the circuit is short-circuited to protect the circuit safety.

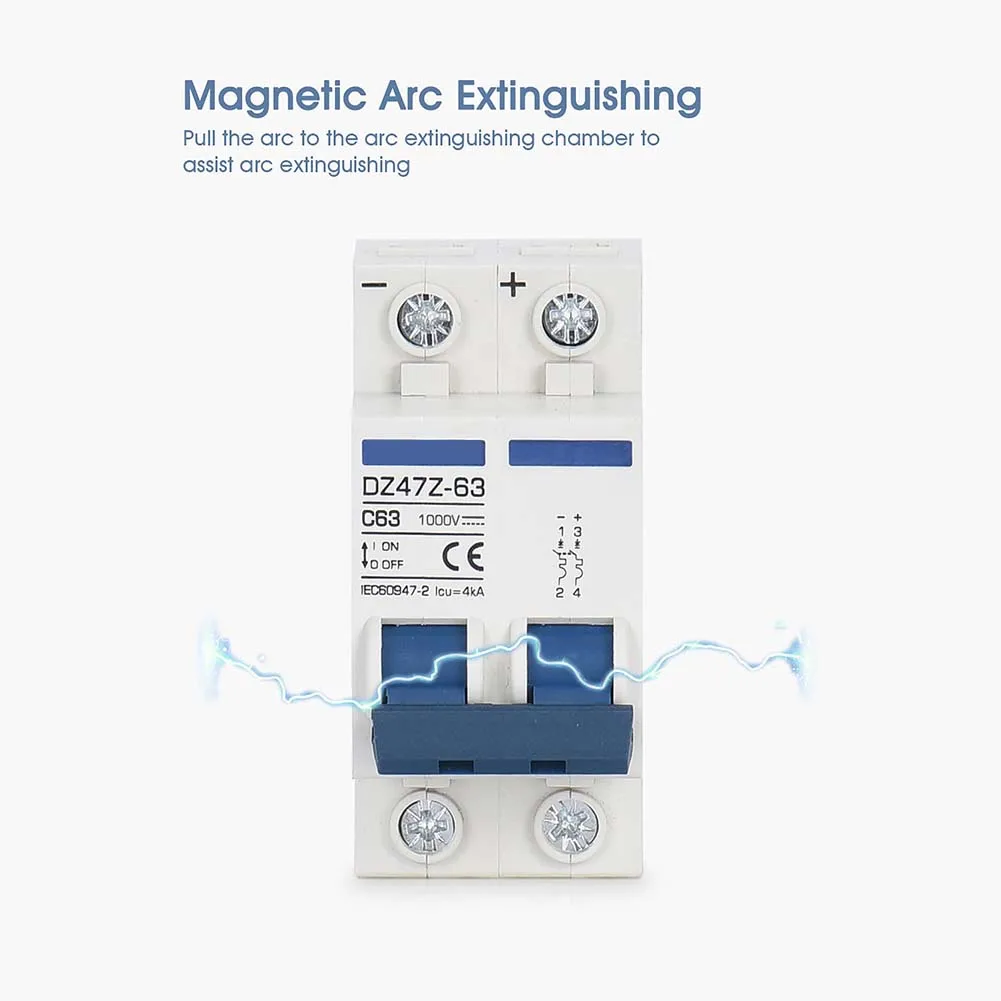

* DC circuit breakers are more difficult to extinguish than AC circuit breakers. DC miniature circuit breakers are equipped with magnetic devices for auxiliary extinguishing.
* Suitable for DC power supply, ship power supply, solar photovoltaic system or other DC power supply.
* Installation: Screw clamp wire, 35mm DIN rail installation.

Specifications:
Part Name: DC Miniature Circuit Breaker
Material: ABS, Metal
Body Color: White
Rated Operating Voltage: 1000V DC
Rated Current [In]: 10A / 16A / 20A / 25A / 32A / 40A / 50A / 63A (optional)
Two-stage: 2 P
Trip Technology: Thermal Magnetic
Curve de: C
Breaking Capacity: 4kA Ics=Icu
Uimp: 4kV
Mechanical Life: 10000 Times
Electrical Life: Times
Operating Temperature: -25°C (-13°F) ~ 60°C (140°F)
Mounting Bracket: 35 mm DIN Rail
Tightening Torque: 2.5 N.m
Standard: IEC60898-2

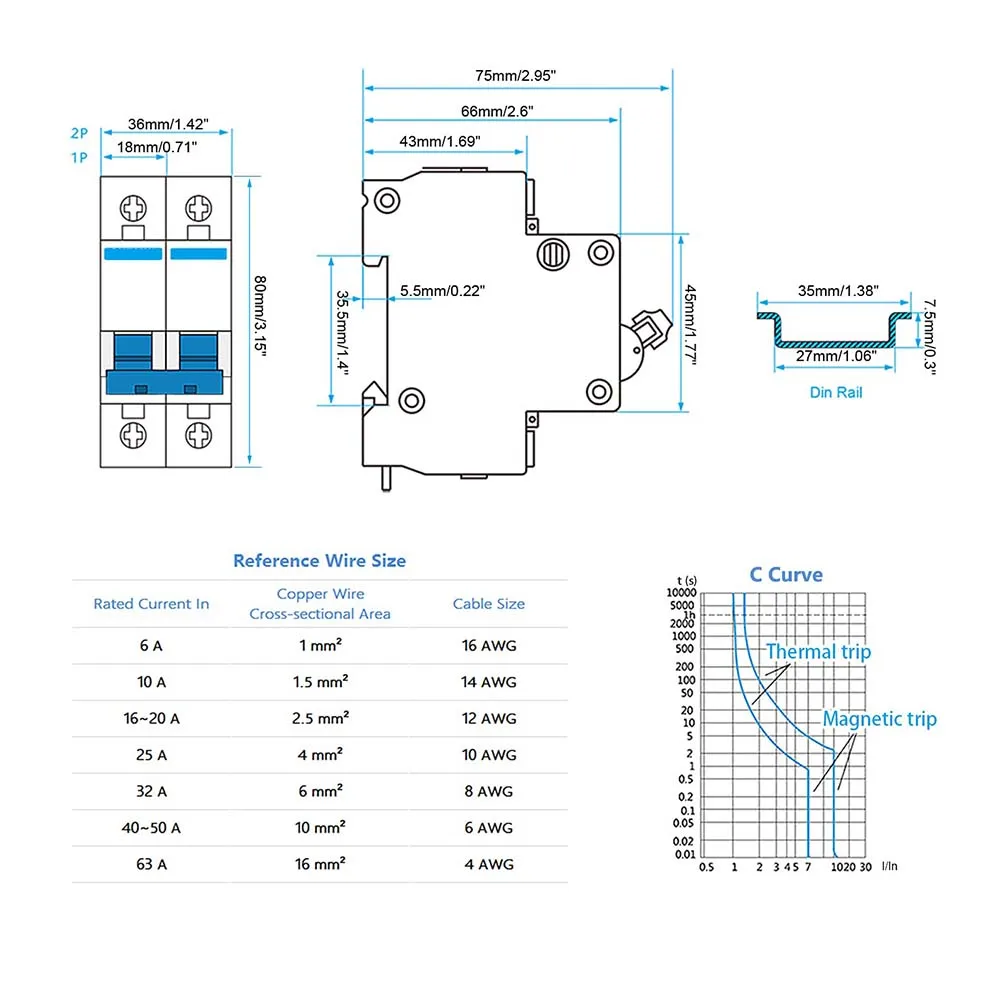

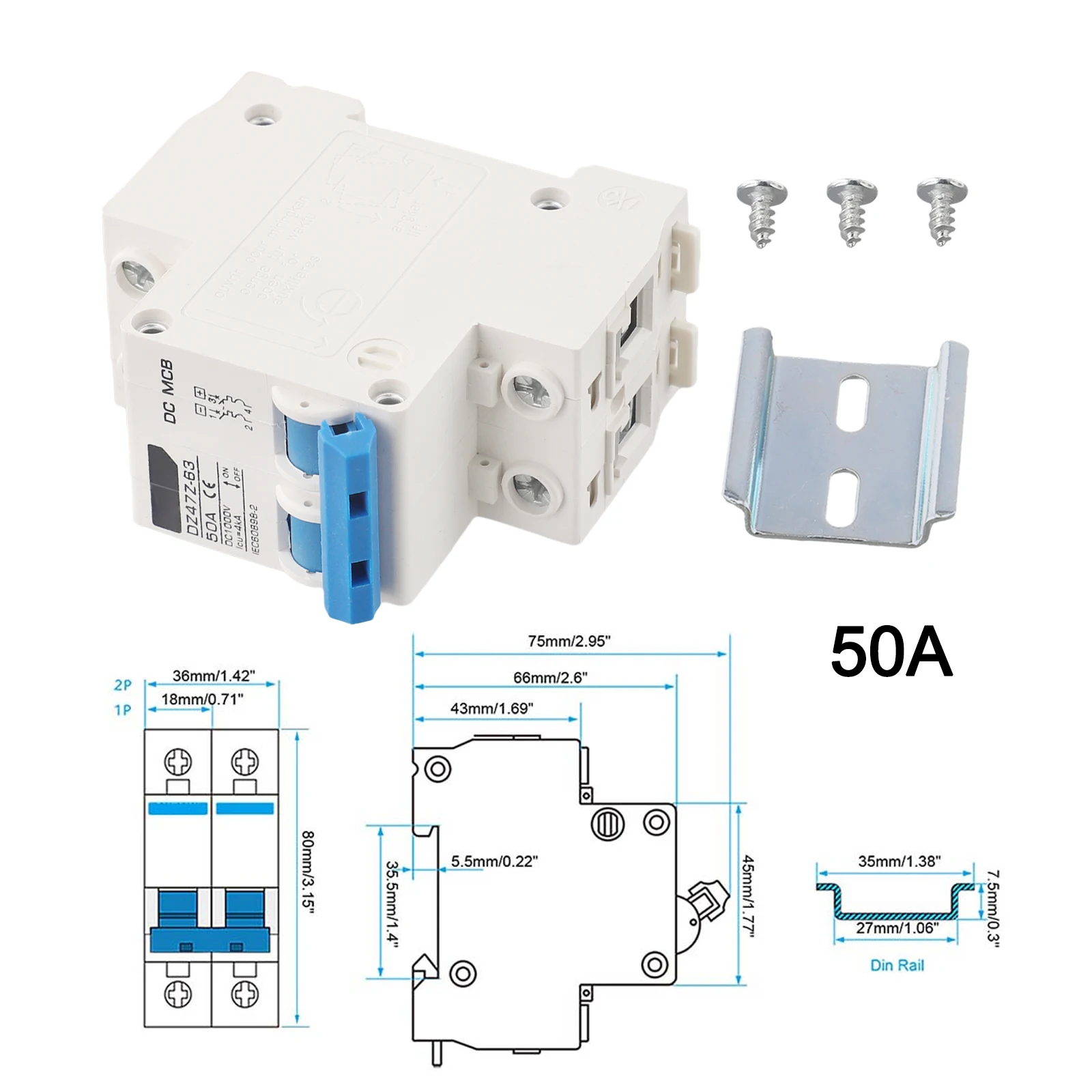

Size: L x W x H: 1.42 x 2.95 x 3.15 inches

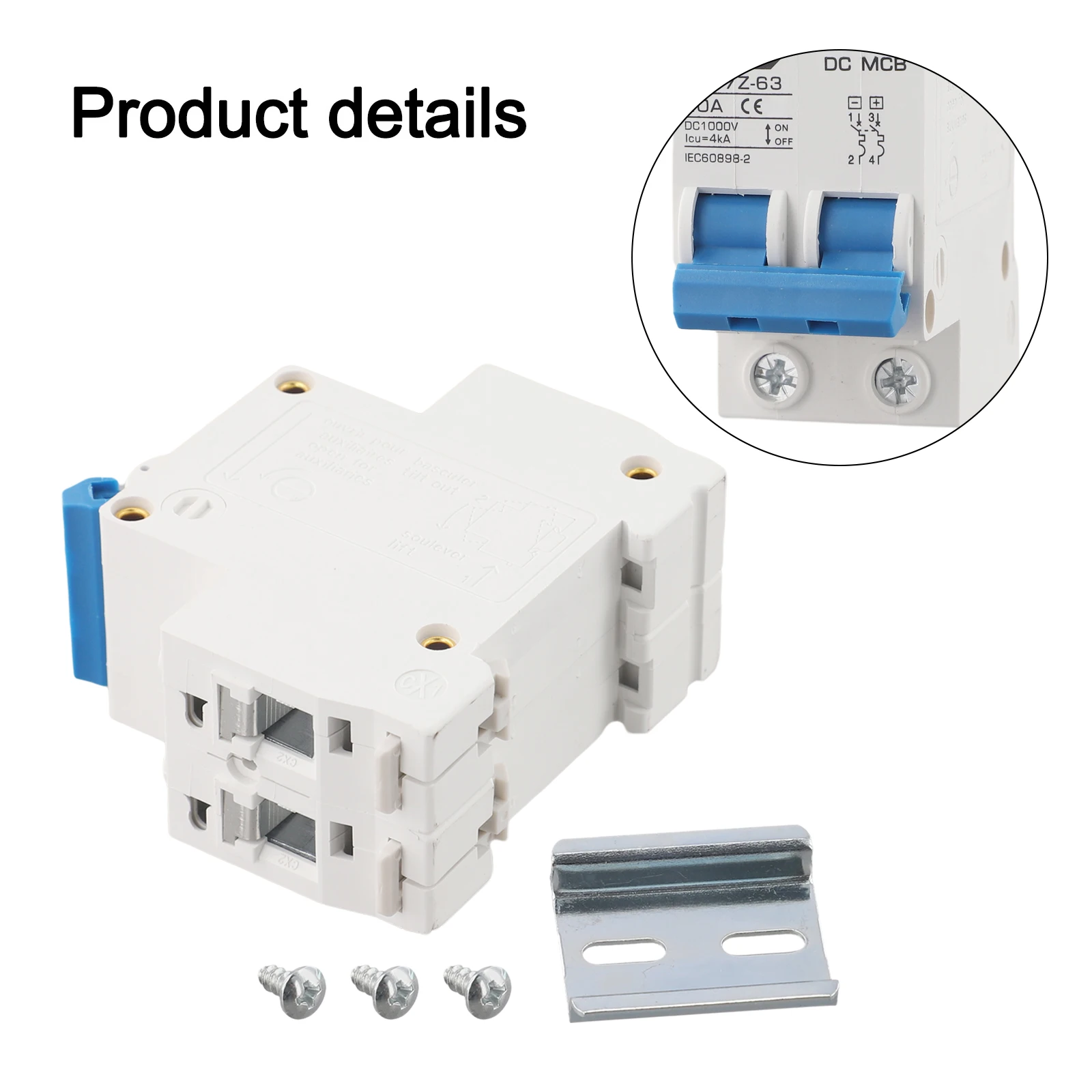

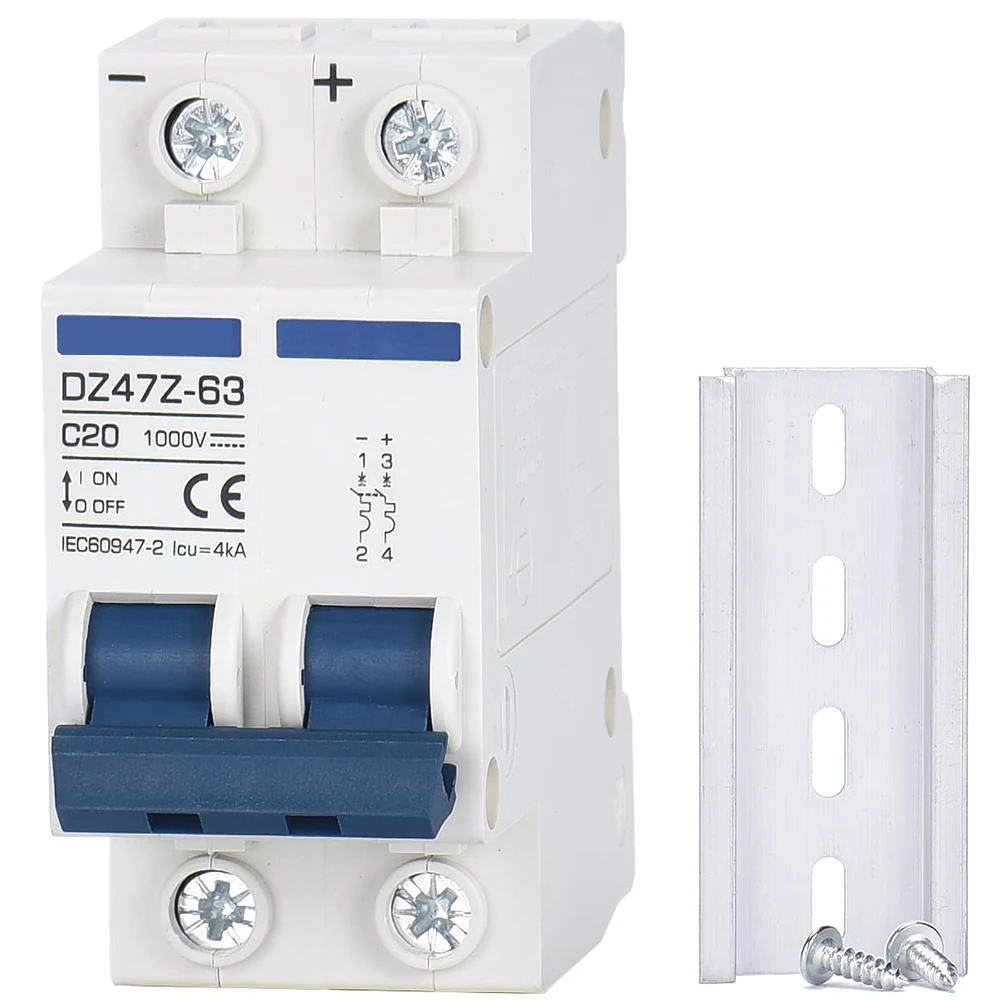

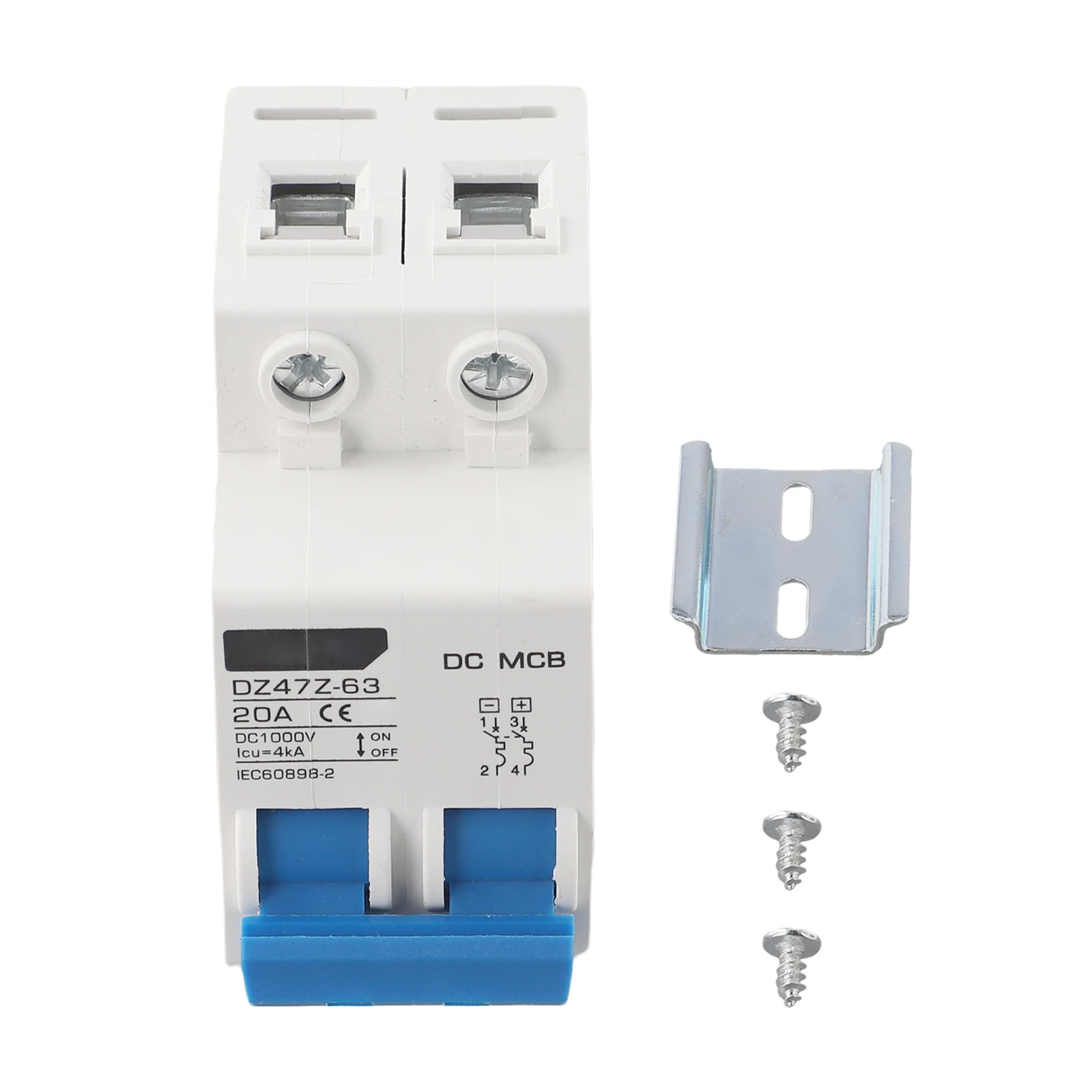

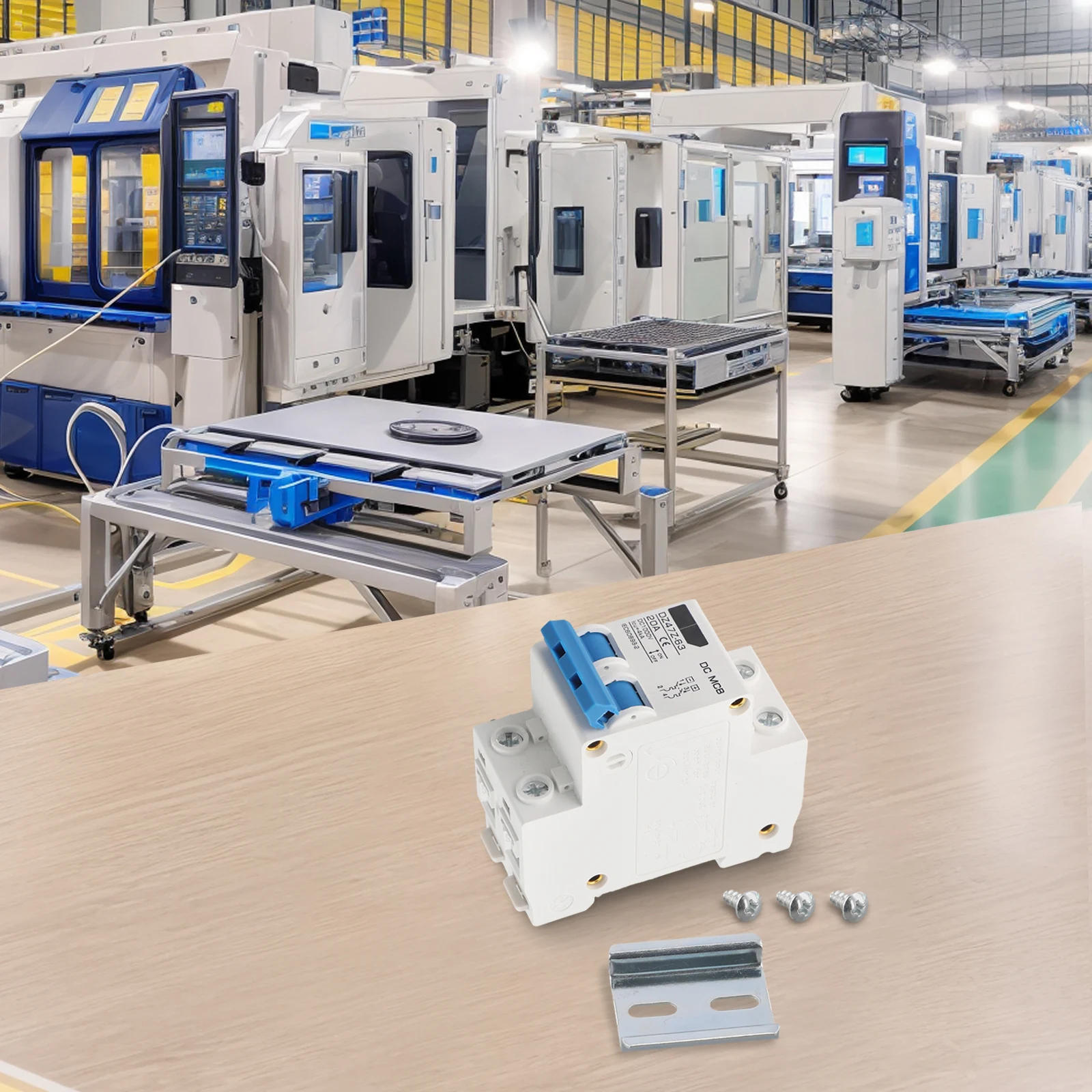

Package Contents:
1 x DC MCB
1 x DIN Rails
2 x screws

Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
