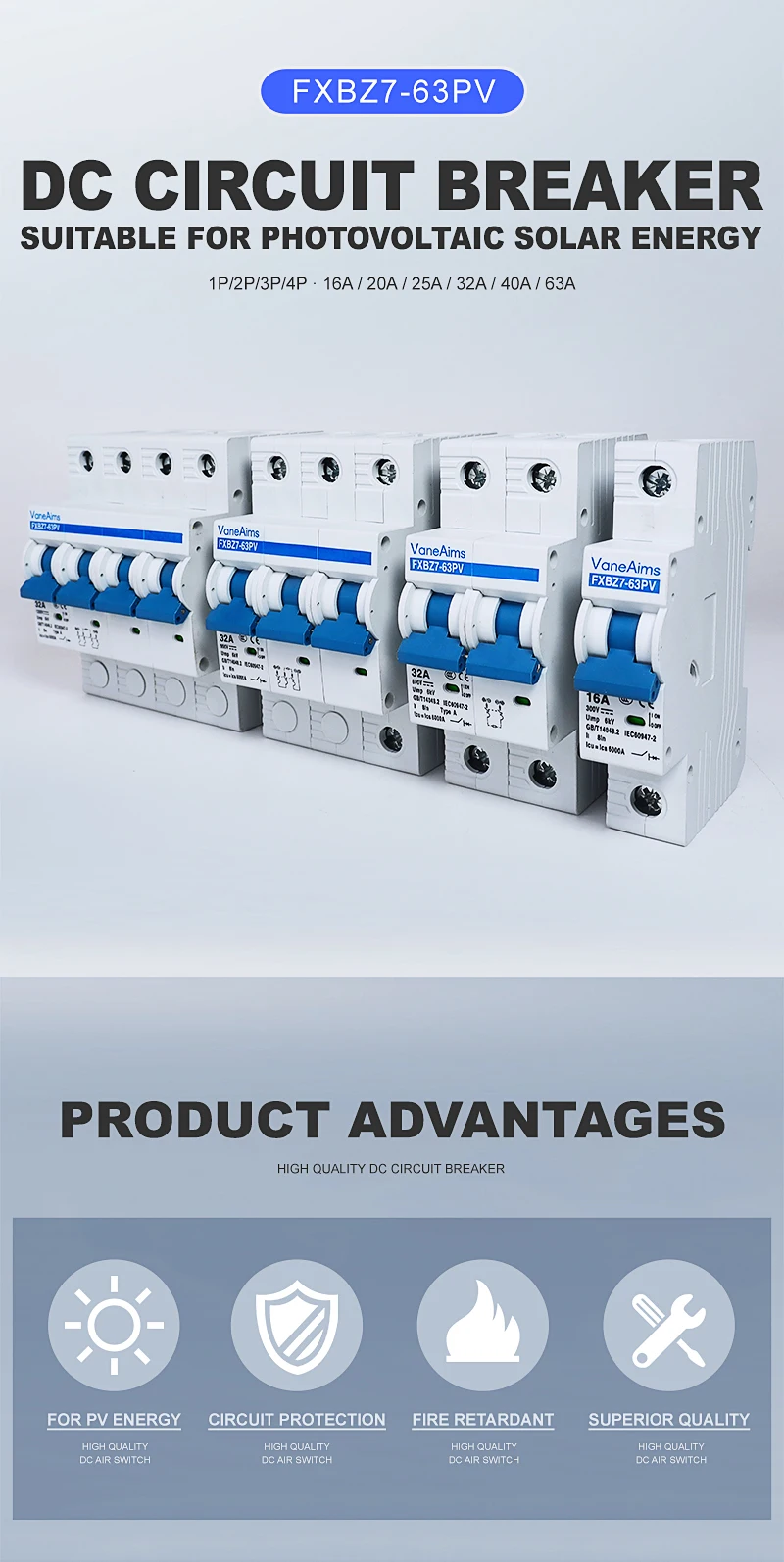

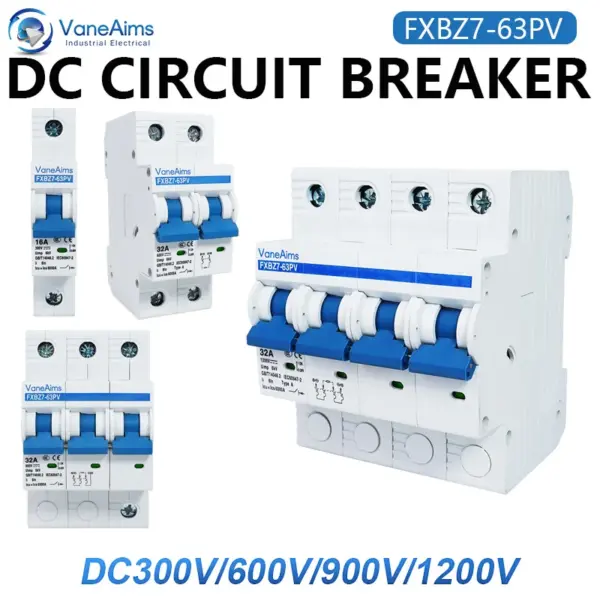

DC 600V 1200V Solar Mini Circuit Breaker 1P 2P 3P 4P Din Rail 6A-63A MCB Overload Protection Switch for PV Photovoltaic System

Application:

FXBZ7-63PV Series DC Solar Circuit Breaker, apply to rating current 63A or less, Direct current rating voltage is 300v 600v 900v 1200v for 1P 2P 3P 4P. It is mainly used for the overloading and short circuit protection in DC distribution system Equipment and electric equipment. It can be widely used in photovoltaic DC circuits such as mining, ships, UPS, etc., suitable for high-power electric motorcycles, modified cars, lithium-ion race cars, RVs, solar energy, supercapacitors, wind energy, electric vehicles and other fields

DC Circuit Breaker Features:

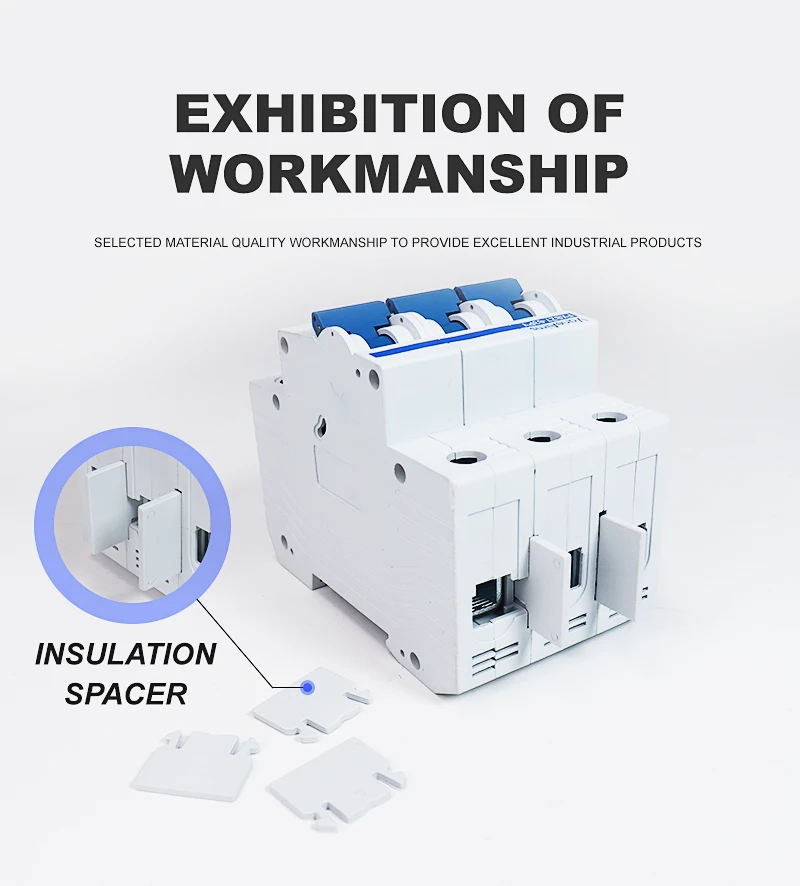

1. Fire retardant shell, impact resistant

2. Protection is safer and more suitable for the photovoltaic field. Different currents are suitable for different systems for comprehensive protection, which is safer and more reassuring

3. Safety handle, classic original design, ergonomic

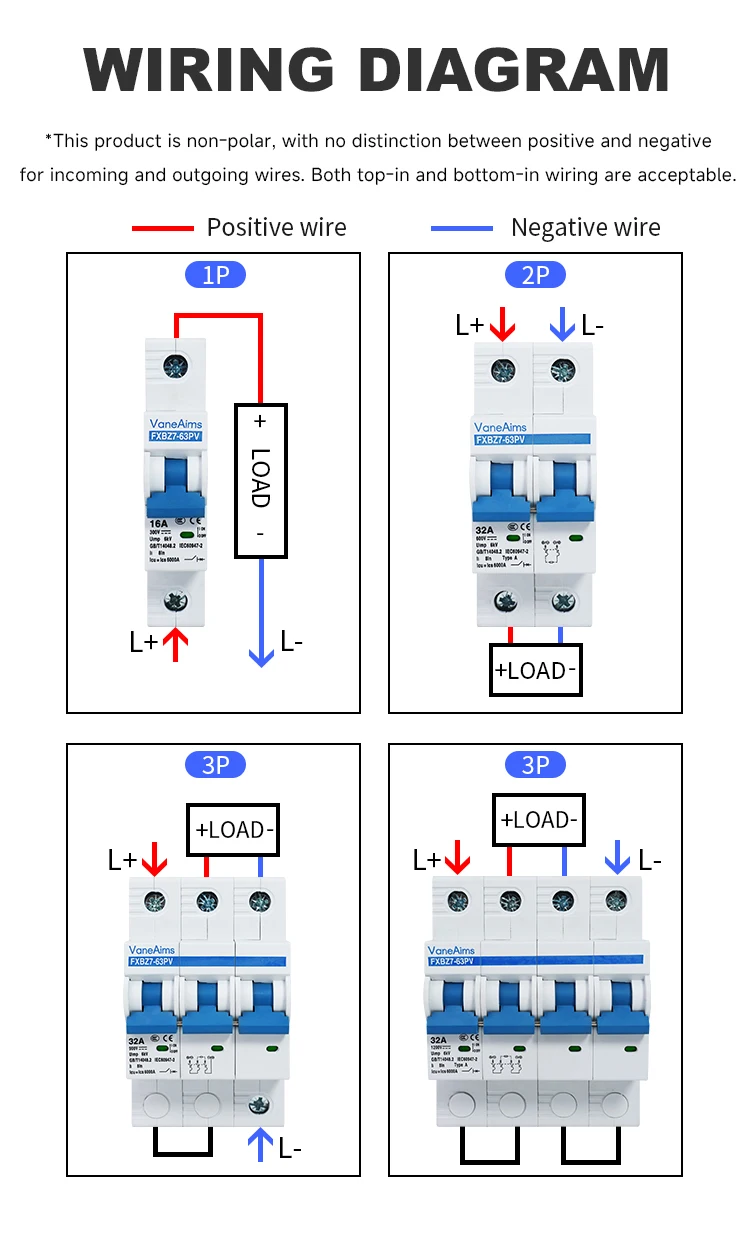

Suitable for different systems:

1P DC300V

Used for single-phase systems below 3KW

2P DC600V

Used for single-phase 3-5KW systems

3P DC900V

Used for three-phase systems below 5KW

4P DC1200V

Used for three-phase 3-25KW systems

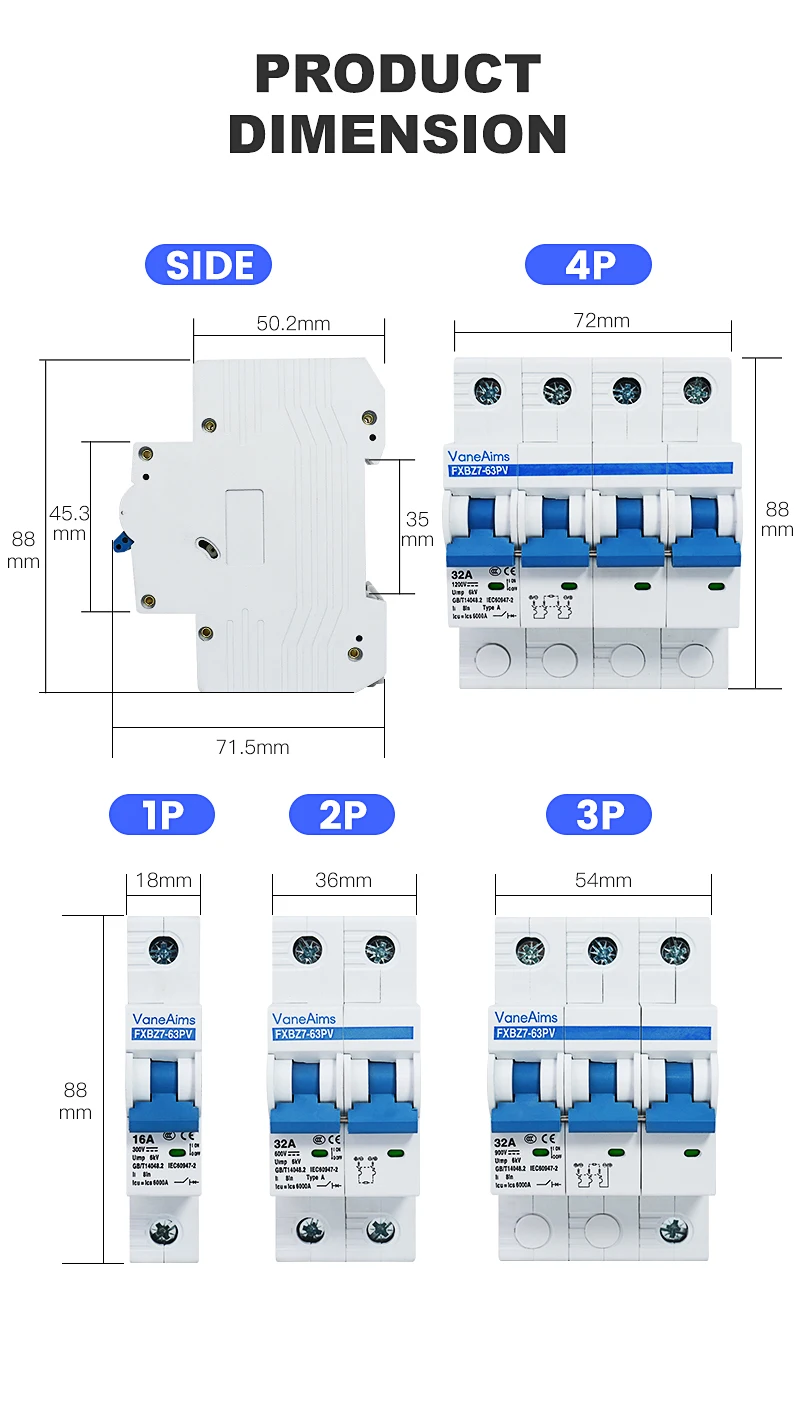

Specifications:

Product Name: DC Solar Circuit Breaker

Brand Name: VaneAims

Model: FXBZ7-63PV

Pole: 1P / 2P / 3P / 4P

Rated Current: 6A / 10A / 16A / 20A / 32A / 40A / 63A

Rating Voltage: 1P DC300V / 2P DC600V / 3P DC900V / 4P DC1200V

Execution standards: GB/T14048.2 IEC60947-2

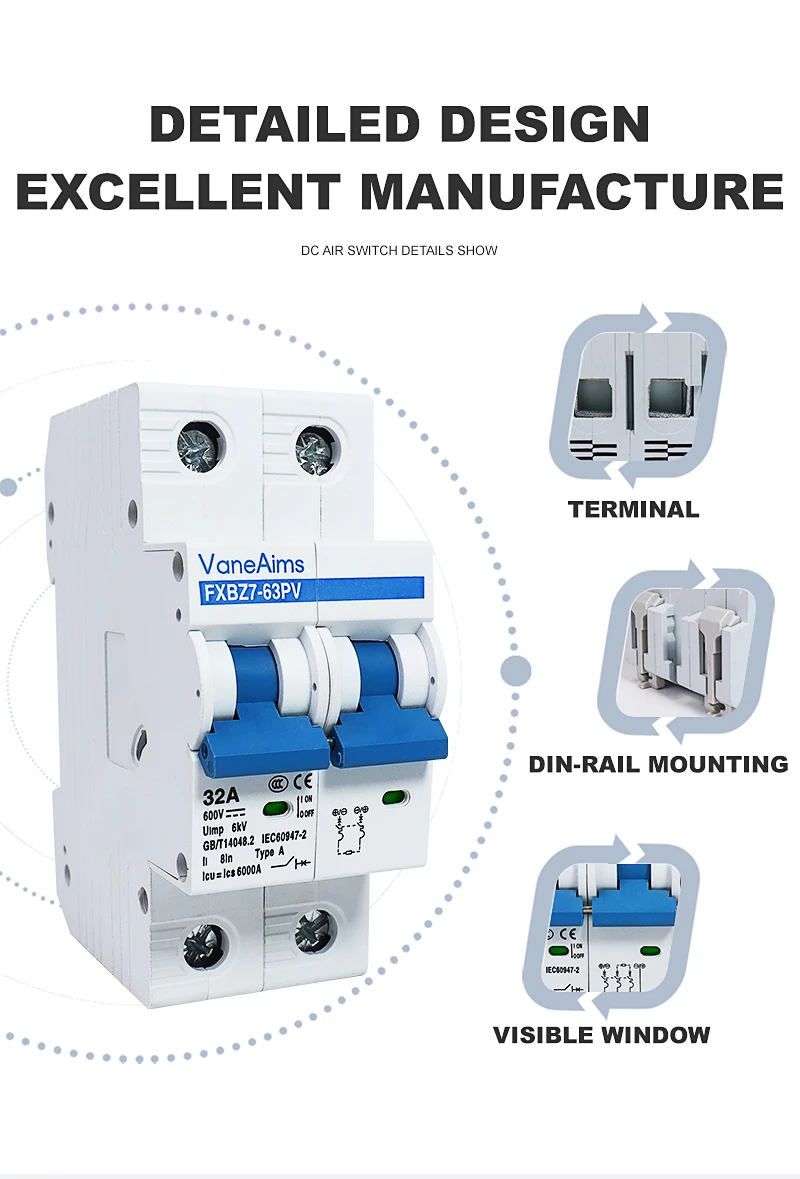

Installation method: Din rail mounting

Usage frequency: 50Hz
